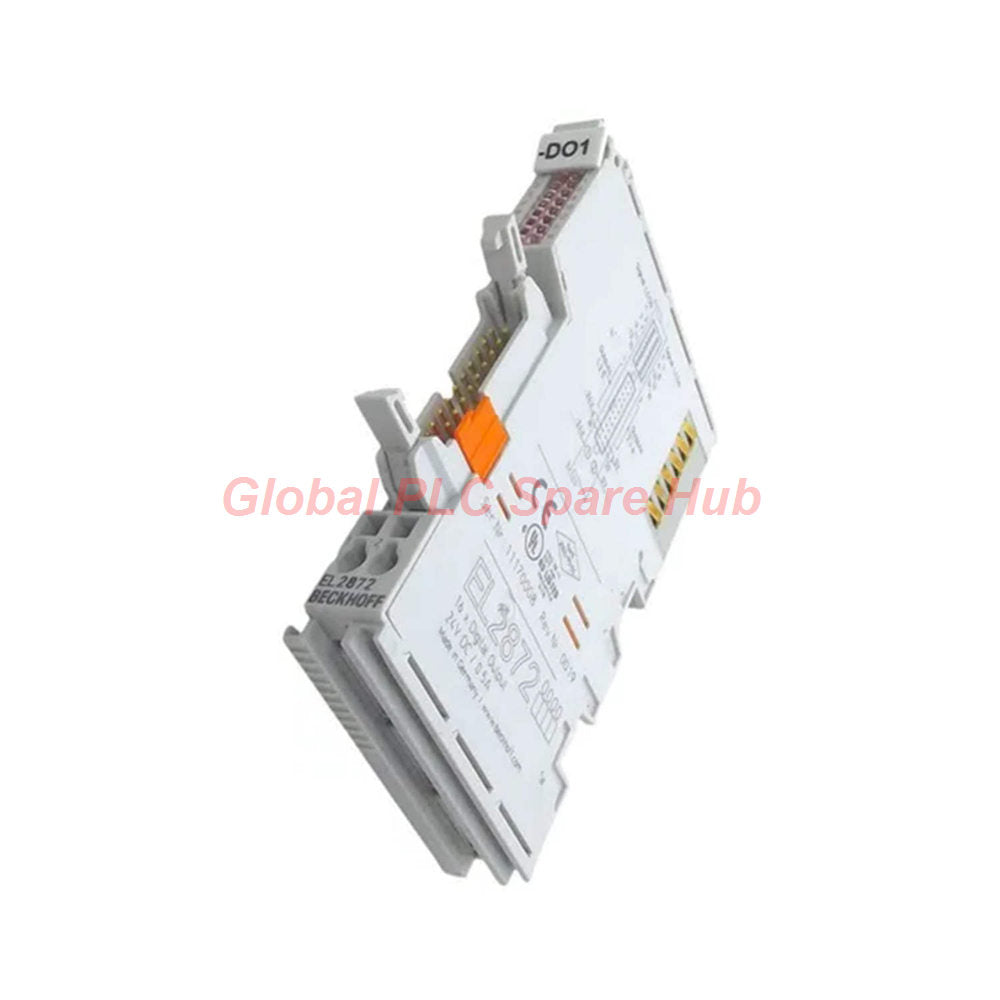

Beckhoff EL2872 Digital Output Module 16-Channel EtherCAT Terminal

Overview

The EL2872 represents a high-density digital output solution within the Beckhoff EtherCAT terminal portfolio. Engineered for space-constrained industrial environments, this module provides 16 channels of 24 V DC output in a compact 12 mm housing. Its standout feature is the 20-pin contact strip designed for flat-ribbon cable insulation displacement connectors (IDC), which drastically reduces assembly time and cabling complexity for multi-valve terminal applications.

Technical Performance

• Interface: EtherCAT Terminal
• Output Channels: 16 digital outputs
• Output Load: Max 0.5 A per channel (short-circuit proof)
• Connectivity: Flat-ribbon cable (AWG 28, 1.27 mm spacing)
• Switching Speed: Typ. 60 µs (ON) / 300 µs (OFF)
• Isolation: 500 V (E-bus to field potential)
• Environmental: IP20, 0 to +55 °C operation

Global PLC Spare HUB's Insight

Our engineering team regards the EL2872 as the benchmark for multi-valve terminal integration. Unlike standard terminal blocks, the IDC ribbon interface eliminates individual wire stripping, making it indispensable for rapid deployment in high-volume cabinet manufacturing. It excels in applications where clean, organized wiring is as critical as switching reliability.

Operational Scenarios

• Valve Terminals: Direct connection for multi-pin pneumatic valve manifolds.
• Packaging Automation: High-density signal distribution for rapid-cycle actuators.
• Robotic End-Effectors: Lightweight signal routing where space is at a premium.
• Lighting Control: Driving multiple LED indicators or small lamp loads.
• Auxiliary Logic: Driving relays and contactors in localized control clusters.

Logistics & Quality Assurance

• Shipping: Rapid global transit via FedEx, UPS, and DHL.
• Dispatch: Orders are processed and shipped within 24 to 48 hours.
• Warranty: All EL2872 units include a comprehensive 12-month quality performance warranty.

Technical FAQ

Q: What are the primary advantages of the IDC ribbon cable over standard spring-terminals?
A: IDC connectors allow you to mass-terminate 16 signals simultaneously without wire stripping or ferrule crimping, significantly reducing labor and potential wiring errors.

Q: Can I drive inductive loads directly with the EL2872?
A: Yes, the outputs are designed for inductive, ohmic, and lamp loads. However, ensure the breaking energy does not exceed 150 mJ per channel to prevent internal component damage.

Q: Is the module compatible with standard DIN rail mounting?
A: Absolutely. It features a standard 35 mm DIN rail lock mechanism and supports side-by-side mounting with other EtherCAT terminals via its integrated key and slot connection.

Q: What is the recommended selection criteria for the ribbon cables?
A: Use high-quality AWG 28 flat-ribbon cable with a 1.27 mm conductor spacing. Ensure your cable length is minimized to maintain signal integrity for inductive switching.

Q: How do I diagnose a channel failure?
A: Use the integrated front-facing LEDs to monitor signal status. If a channel output light remains off despite being commanded, check for short-circuit faults or reverse polarity, which are protected by the module's built-in self-resetting circuitry.
