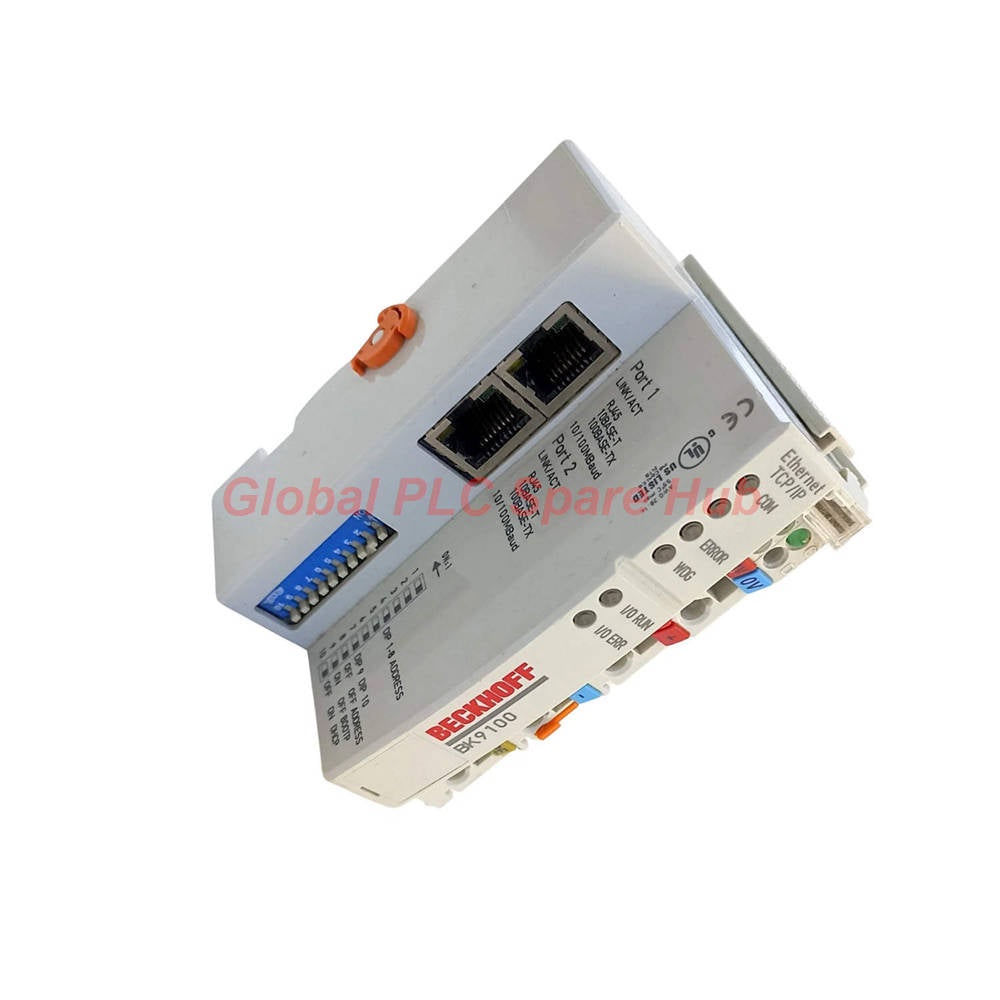

Beckhoff BK9100 Bus Coupler Ethernet Connectivity Module

Overview

The BK9100 acts as the intelligent gateway between standard Ethernet networks and the modular Beckhoff Bus Terminal system. Featuring an integrated 2-channel switch, this coupler enables flexible line topologies, significantly reducing cabling infrastructure compared to traditional star-wired architectures. It supports high-speed 10/100 Mbit/s communication and automatically maps fieldbus inputs and outputs to the system process image for streamlined configuration.

Technical Performance

• Ethernet Ports: 2 x RJ45 (2-channel switch for line topology)
• Protocols: TwinCAT ADS, Modbus TCP, Beckhoff Real-Time Ethernet
• Scalability: Up to 64 terminals directly, or 255 with K-bus extension
• Fieldbus Capacity: 512 bytes input / 512 bytes output
• Supply Voltage: 24 V DC (-15%/+20%)
• Cascading: Up to 20 units (max 2 km line length)
• Housing: Compact polycarbonate (51 mm x 100 mm x 69 mm)

Global PLC Spare HUB's Insight

Our engineering team identifies the BK9100 as a high-versatility bridge for legacy-to-modern network migrations. Its ability to support "Open Modbus" TCP makes it exceptionally compatible with third-party PLCs and HMI software, while the TwinCAT ADS integration allows for deep-level diagnostic access. It is the premier choice for large-scale distributed I/O systems requiring high reliability and simplified physical wiring layouts.

Deployment Applications

• Distributed Automation: Synchronizing I/O clusters across large manufacturing floors.
• Building Management: Monitoring analog/digital sensors via standard Ethernet backbones.
• Retrofitting: Upgrading existing legacy installations with flexible Modbus TCP connectivity.
• Conveyor Systems: Managing multiple nodes with minimal cabling effort via line-topology.
• Data Acquisition: High-density signal processing for environmental or thermal monitoring stations.

Logistics & Quality Assurance

• Shipping: Expedited transit via FedEx, UPS, and DHL.
• Dispatch: Orders are processed and ready for transit within 24-48 hours.
• Warranty: All BK9100 units are covered by a 12-month performance warranty.

Technical FAQ

Q: How does the integrated 2-channel switch benefit my field installation?
A: It allows you to daisy-chain multiple couplers in a single line rather than running every cable back to a central switch, saving significant copper and installation labor.

Q: Can I use this coupler with a non-Beckhoff controller?
A: Yes. Because the BK9100 supports the open Modbus TCP protocol, it can be easily integrated into any standard PLC or SCADA system that functions as a Modbus Master.

Q: How are IP addresses assigned in large-scale deployments?
A: You can use the onboard DIP switch for static offset addressing or, for dynamic environments, the device automatically obtains its configuration from a network DHCP server.

Q: What are the diagnostic benefits of the K-bus extension feature?
A: The extension allows for specialized terminal blocks to be added for advanced diagnostics or specific signal conditioning, increasing the total node capacity to 255 terminals per coupler.

Q: Selection Advice: When is the BK9100 preferred over a standard BK9000?
A: The BK9100 is superior when your application demands a line topology (daisy-chaining) rather than a star topology, effectively reducing switch ports required at the control level.
