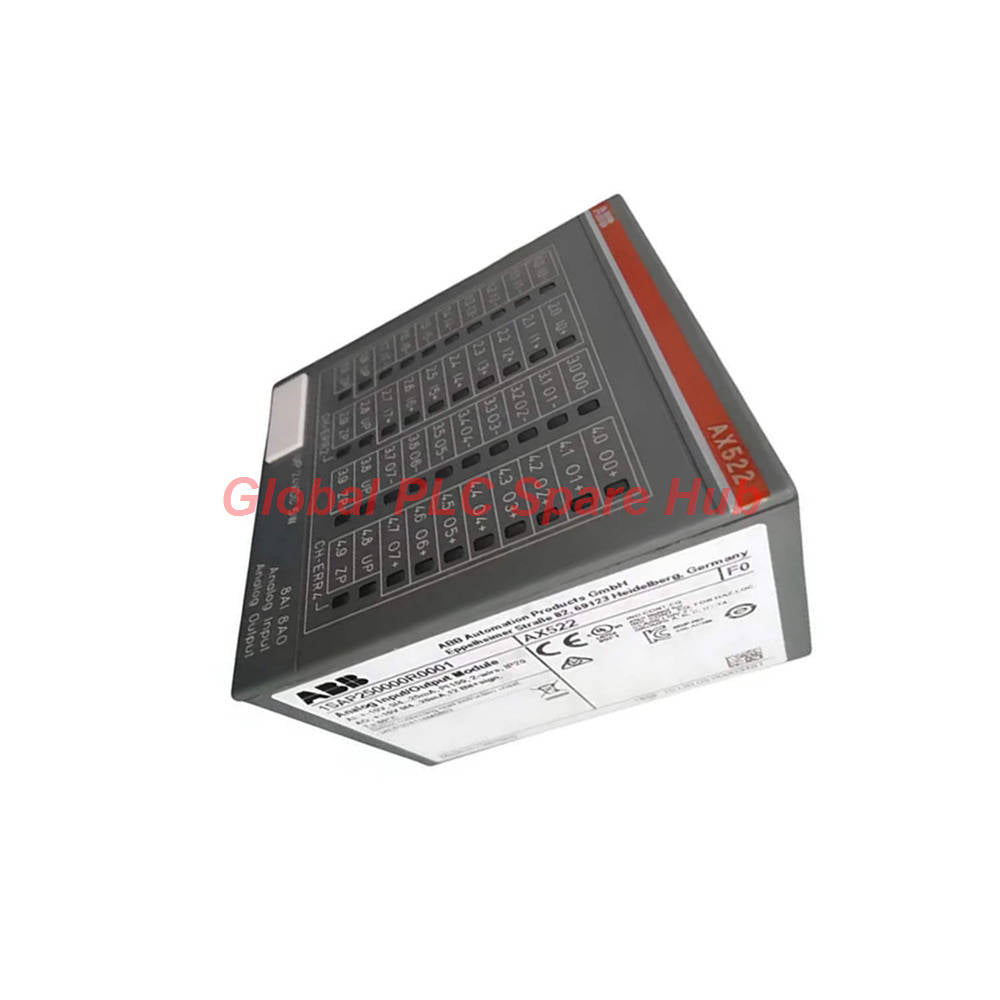

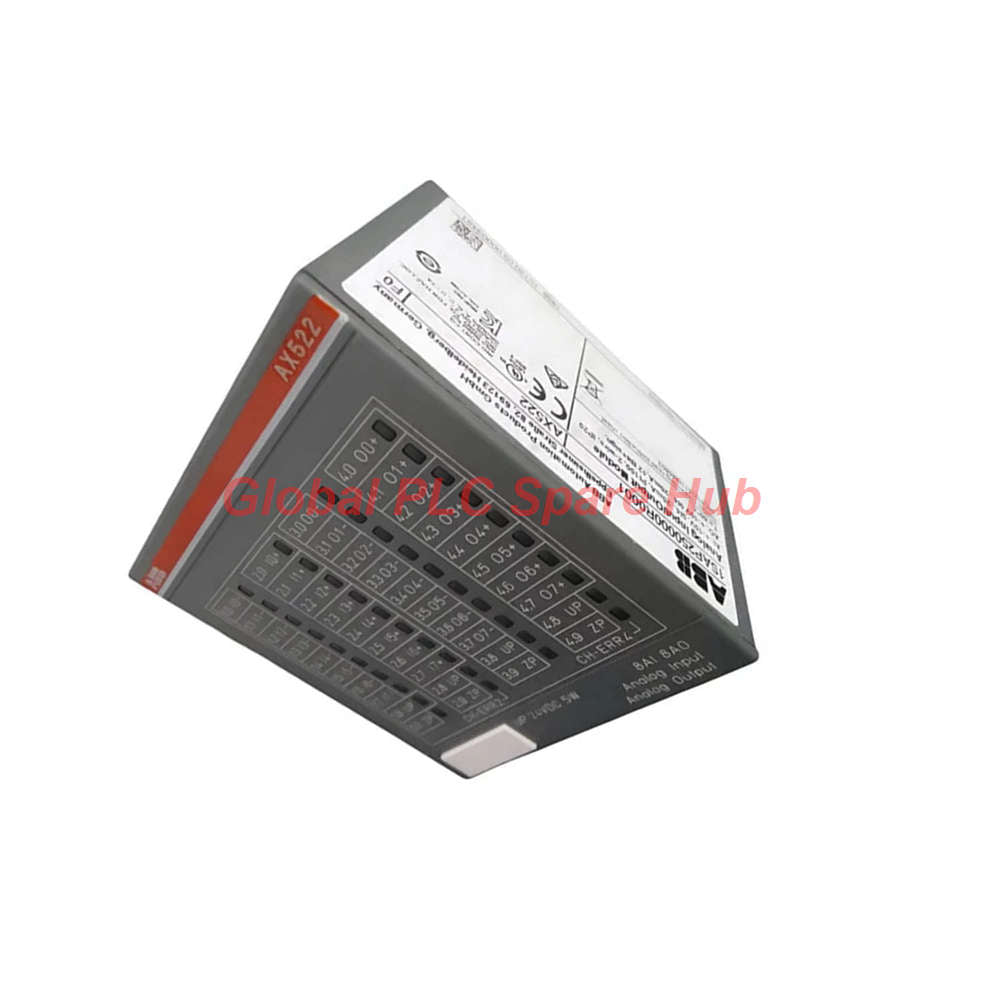

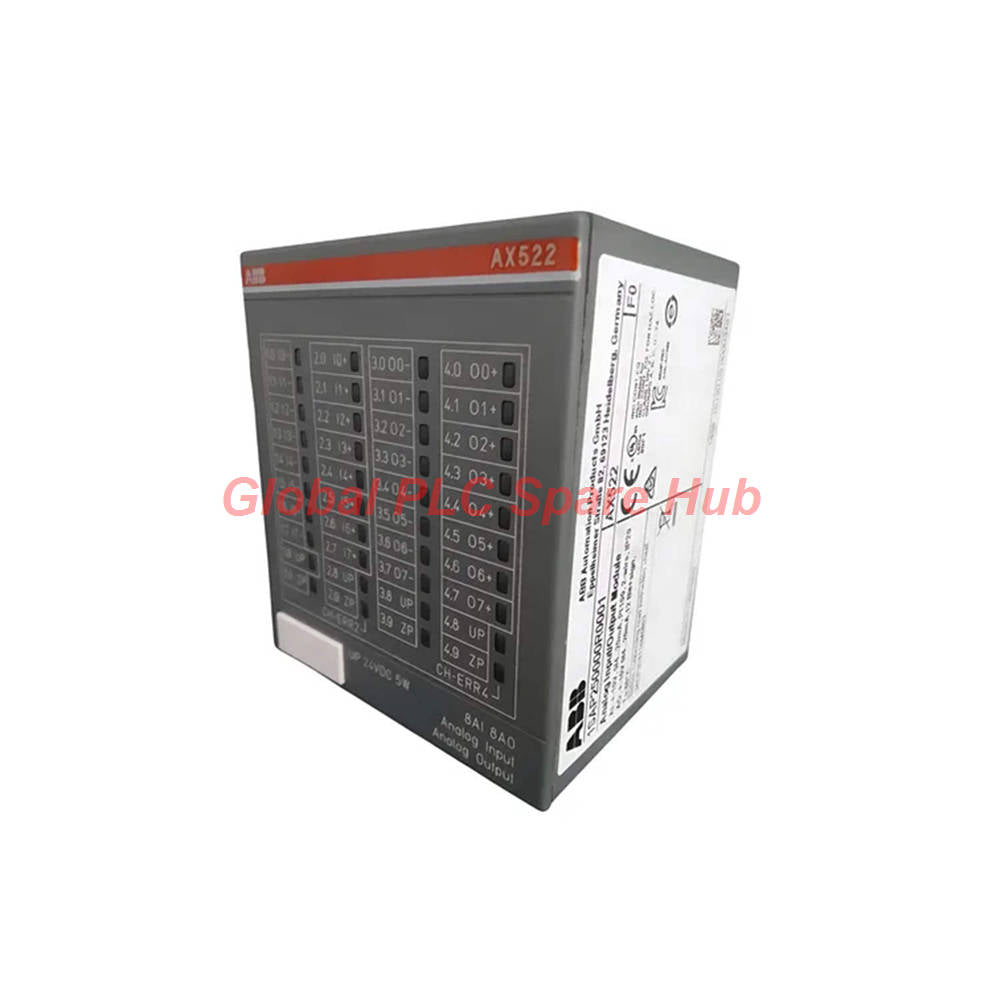

AX522 ABB 1SAP250000R0001 AC500 Analog I/O Module

Global PLC Spare HUB's Insight

The ABB AX522 (Part No. 1SAP250000R0001) is a high-density analog powerhouse within the AC500 PLC platform. From a field engineering perspective, its most impressive feat is the "all-in-one" configurability of its 8 inputs. Each channel can be independently set for Voltage (±10V), Current (4-20mA), or RTD (Pt100/1000) signals. This granularity allows the AX522 to act as a universal interface, effectively replacing multiple specialized modules. The 2 ms conversion cycle for all 16 channels ensures that high-speed PID loops remain stable and responsive, even in complex process environments.

Technical Architecture & Parameters

• Brand: ABB
• Model: AX522
• Part Number: 1SAP250000R0001
• Series: AC500 / S500
• Input/Output Configuration: 8 Analog Inputs / 8 Analog Outputs
• Resolution: 12 bits + sign (Bipolar support)
• Input Type Support: 0..10V, ±10V, 0..20mA, 4..20mA, Pt100/1000, Ni1000
• Conversion Cycle: 2 ms (Analog) / 1 s (RTD)
• Supply Voltage: 24 VDC (18..32V range)
• Galvanic Isolation: Yes, per module
• Current Consumption: 0.15 A + output loads
• Weight: 300 g
• Maximum Cable Length: 100 m (shielded)

Diagnostic & Maintenance Features

• Dedicated LED indicators for every input and output channel status.
• Internal self-diagnosis of conversion errors and hardware health.
• Configurable "Unused" channel status to prevent ghost errors in logic.
• Reversed voltage protection on power terminals UP and ZP.
• High-speed status polling via the AC500 CPU internal bus.

Typical Application Scenarios

• Precision temperature monitoring using Pt100/Pt1000 sensors.
• Pressure and flow control in industrial water treatment facilities.
• Feedback loops for Variable Frequency Drives (VFD) via 4-20mA signals.
• Universal signal conditioning in multi-sensor automation environments.
• Distributed I/O for ABB AC500-eCo or Standard PLC CPUs.

Logistics, Packaging & Warranty

• Handling Time: Ships globally within 24 to 48 hours.
• Shipping Partners: Worldwide express via FedEx, UPS, and DHL.
• Condition: New and Original in Factory Packing.
• Warranty Period: 12-month comprehensive warranty coverage.

Expert FAQ: Professional Insights

• Question: How does mounting position affect the performance of the AX522?
• Answer: While horizontal mounting is standard, vertical mounting is possible but requires derating the output load to 50% at 40 °C per group to prevent thermal buildup.
• Question: Can I mix Pt100 and 4-20mA signals on the same AX522 module?
• Answer: Yes, each of the 8 inputs can be configured individually for different signal types, allowing for maximum field wiring flexibility.
• Question: What is the significance of the 10A fast fuse on the UP terminal?
• Answer: The fuse protects the internal circuitry and output loads from overcurrent spikes, ensuring the module does not become a point of failure for the rest of the PLC rack.
• Question: Why is the conversion cycle significantly longer for RTD (Pt/Ni) inputs?
• Answer: RTD measurements require higher stability and filtering to ensure accuracy; therefore, the conversion time increases to 1 second compared to the 2ms for standard U/I signals.
• Question: What is the recommended terminal for the 0 VDC reference?
• Answer: The ZP (0V) reference should be connected to terminals 1.9, 2.9, 3.9, or 4.9 for consistent ground potential across the module.

Selection & Procurement Guidance

• Confirm that your existing CPU supports the S500 bus expansion before purchasing the AX522.
• Ensure you have the correct 12-bit + sign scaling in your software logic for bipolar (±10V) signals.
• If using 2-wire sensors, verify your power supply can handle the 0.15 A base current plus the total sensor load.
• Always source from Global PLC Spare HUB for guaranteed original ABB hardware.
