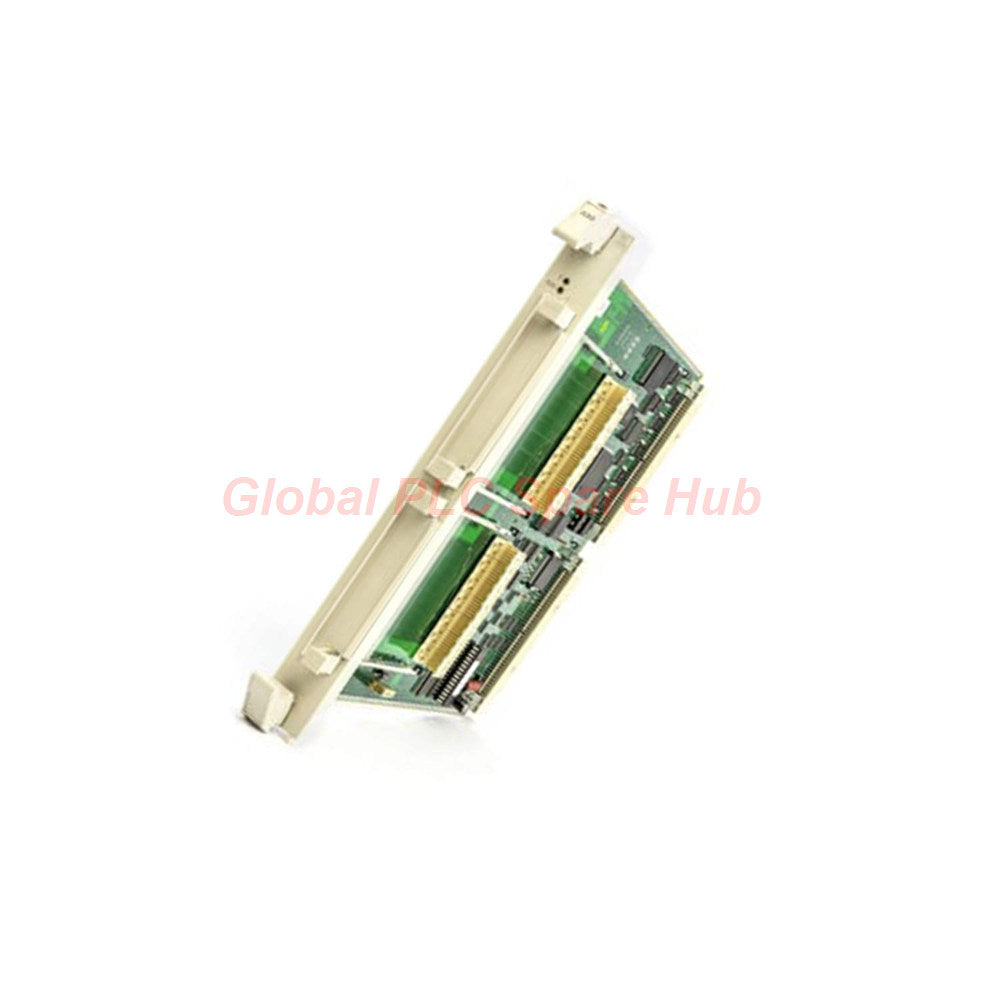

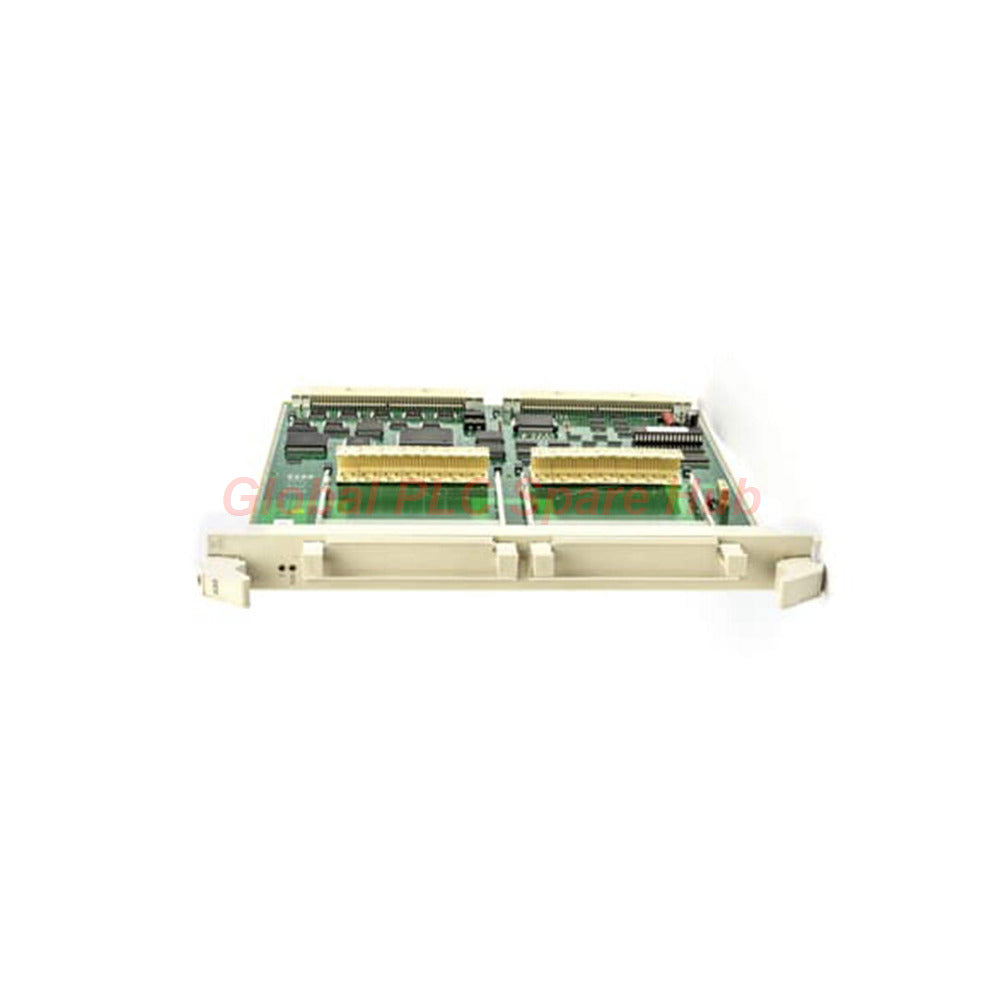

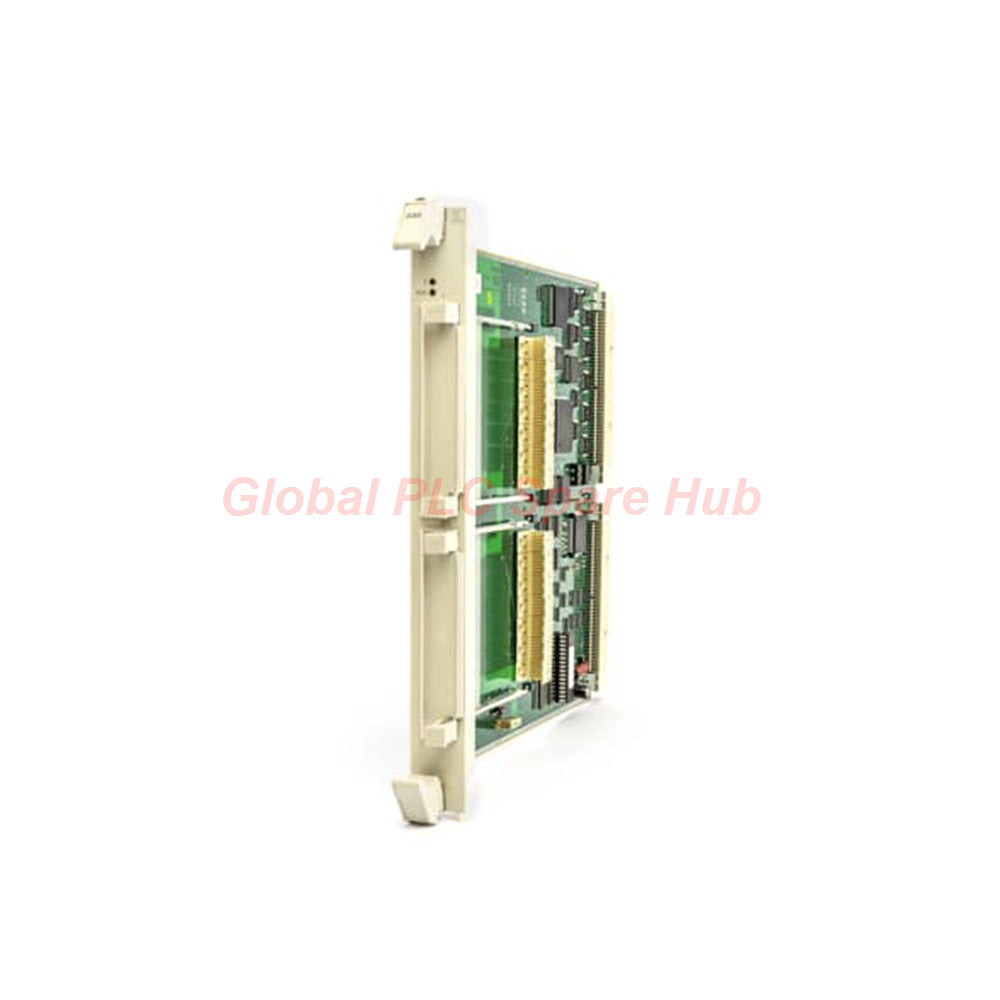

ABB SC510 Submodule Carrier 3BSE003832R1 | AC450 AC460 Controller

Product Introduction

• The ABB SC510 (Part Number: 3BSE003832R1) serves as a specialized communication submodule carrier for Advant Controller 400 series.
• This carrier acts as the physical foundation for integrating S800 I/O, S100 I/O, and TRIO systems into your automation network.
• It facilitates high-speed data exchange via Multi-Vendor Interface (MVI) personality modules.


Global PLC Spare HUB's Insight

• The SC510 is essential for modular system expansion without upgrading the entire CPU architecture.
• This carrier ensures robust electrical isolation and stable bus communication for mission-critical industrial environments.
• It is a primary component for maintaining legacy AC450 and AC460 controller reliability.

Technical Specifications

• Brand: ABB
• Model: SC510
• Product ID: 3BSE003832R1
• Module Type: Communication Submodule Carrier (No CPU)
• Slot Capacity: Supports two independent personality modules
• Power Supply (5V): 1.8 A current consumption
• Power Supply (24V): 0.54 A current consumption
• Cooling Load: 75 BTU/H typical thermal output
• Dimensions: 486mm Width x 22.5mm Height x 288mm Depth
• Net Weight: 0.67 kg
• HS Code: 853890 (Electrical machinery parts)
• Environmental Tolerance: Fully compliant with EU RoHS Directive 2011/65/EU
• Interference Resistance: Built-in industrial-grade EMC shielding for signal integrity

Compatible Equipment & Kits

• Advant Controller 450 (AC450) and 460 (AC460) systems
• ACMHWV16 Hardware Kits
• PM510V16 Processor Modules
• MB510 Connection Units
• S800 I/O and S100 I/O interface modules

Installation and Commissioning

• Mount the SC510 carrier securely into the designated controller subrack.
• Power down the system before inserting or removing any personality modules into the carrier slots.
• Verify that the guide rails are aligned to prevent damage to the backplane connectors.
• Ensure the 5V and 24V DC power rails are within specified tolerance levels before startup.
• Confirm module recognition through the system's central diagnostic software interface.

Diagnostics and Maintenance

• The SC510 supports real-time status monitoring through the host controller's error logs.
• Routine maintenance should include checking the physical integrity of the carrier’s female connectors.
• Monitor the internal cabinet temperature to stay within the 75 BTU/H cooling requirements.
• Check for LED indicators on the plugged-in personality modules to verify bus activity.

Package List and Warranty

• 1 x ABB SC510 Submodule Carrier (3BSE003832R1)
• Anti-static protective packaging
• Standard Certificate of Conformance (upon request)
• Warranty: Comprehensive 12-month quality guarantee

Shipping and Logistics

• Courier Partners: Worldwide shipping via FedEx, UPS, and DHL.
• Dispatch Time: Orders are processed and shipped within 24-48 hours.
• Tracking: Real-time tracking numbers provided immediately upon dispatch.

FAQ

• Does the SC510 include the CPU module? No, the SC510 is a carrier unit only and requires separate CPU and personality modules.
• How many personality modules can I install on one carrier? Each SC510 supports exactly two personality modules for varied I/O communication.
• What is the typical cooling load for system design? The unit generates approximately 75 BTU/H, which must be factored into your cabinet's thermal management.
• Is the SC510 compatible with S800 I/O? Yes, it is designed specifically to support S800 I/O integration via the appropriate personality modules.

Purchasing Guide

• Verify your specific hardware kit number, such as 3BSE011302R1, to ensure carrier compatibility.
• Calculate your total current draw to ensure the 1.8 A (5V) requirement fits your power budget.
• Determine if you require the SC540 carrier instead if your application involves DCN networking.
• Consult our technical experts for bulk orders or specialized system integration support.
