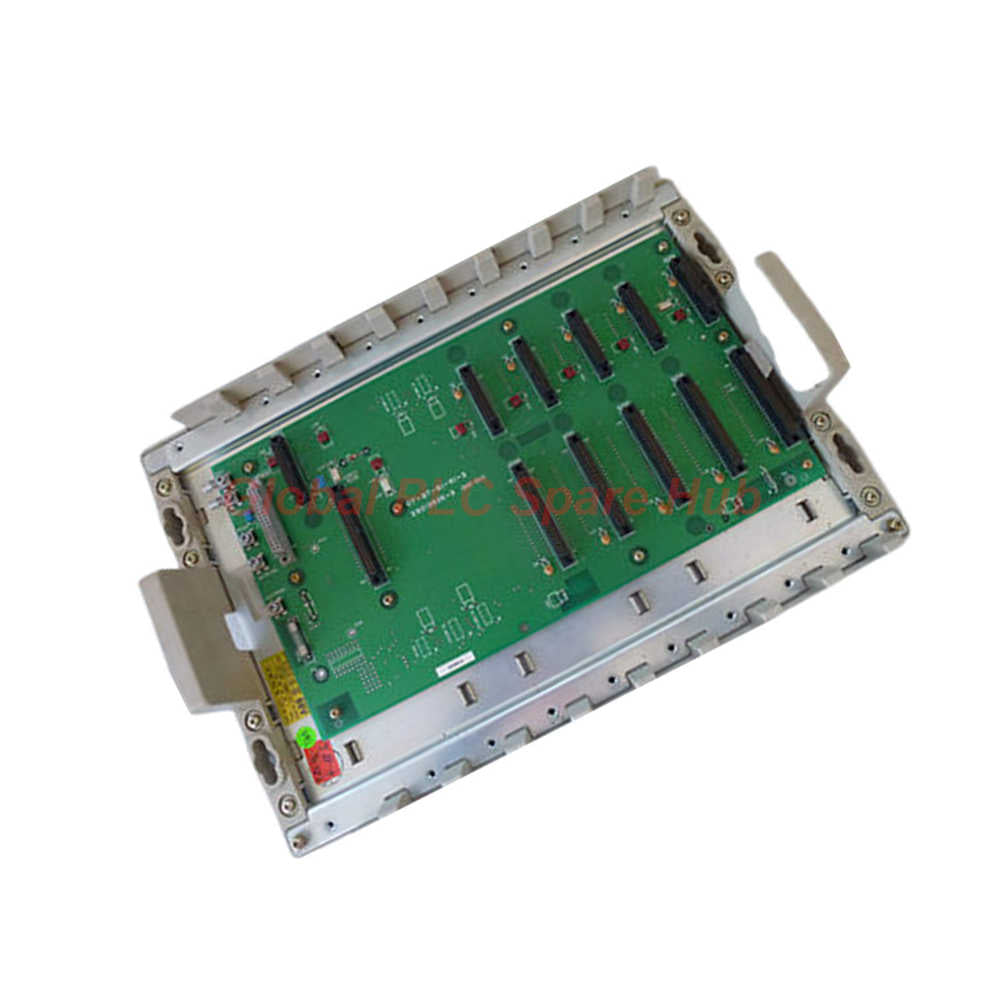

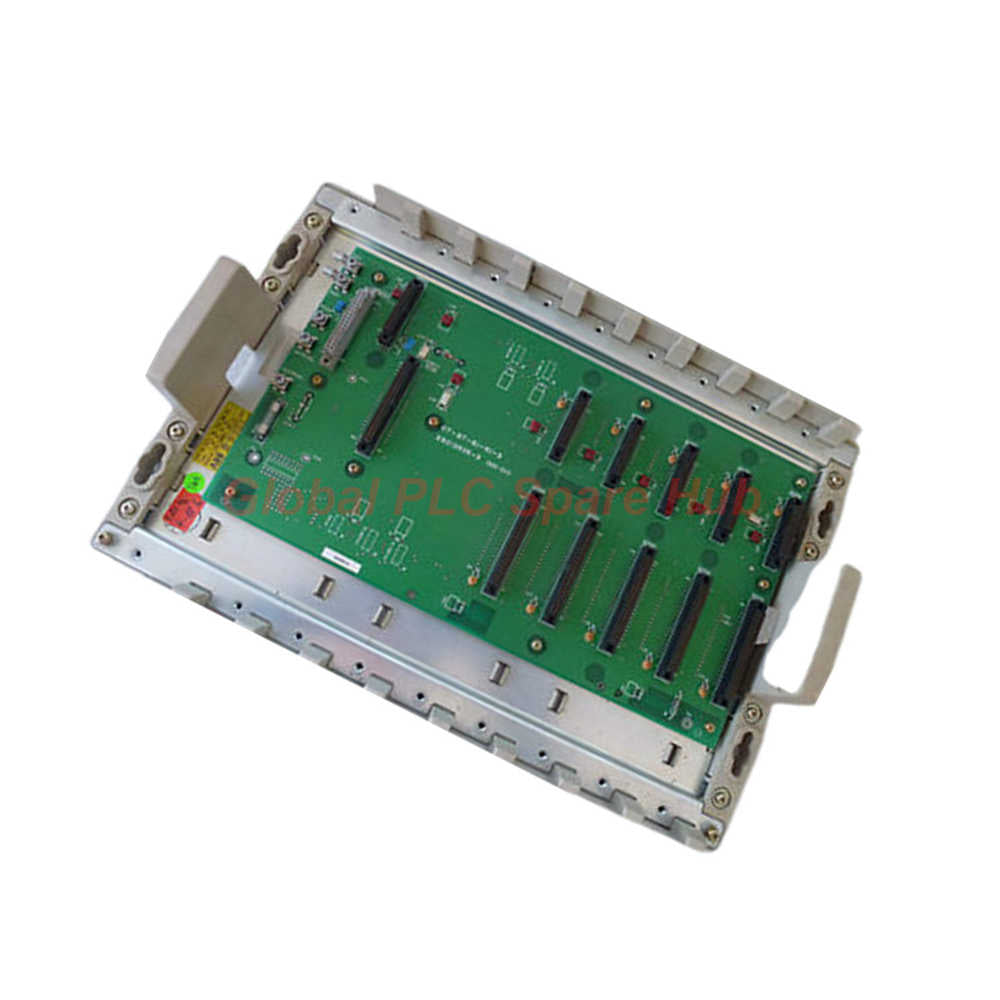

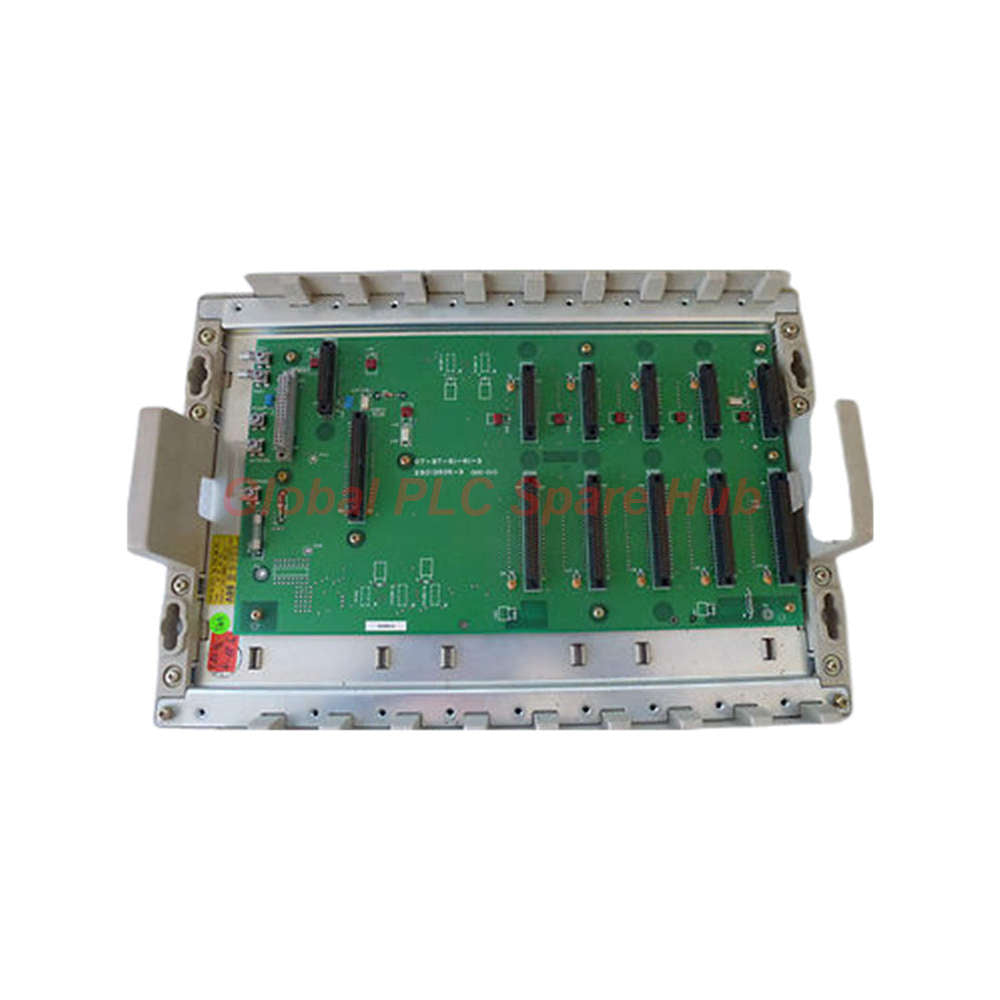

ABB 07BT61R1 GJV3074302R1 Modular Industrial Controller Module
Manufacturer: ABB
Product No.: 07BT61R1
Condition： In stock
Product Type: Control Module
Product Origin: SE
Payment: T/T, Western Union
Weight: 2700g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Global PLC Spare HUB Insight
The ABB 07 BT 61 R1 series excels in high-density I/O configurations across diverse industrial sectors. Our engineering team notes its exceptional thermal management due to the high-grade aluminum housing. This module provides reliable data processing in environments with heavy electromagnetic interference. It integrates seamlessly with existing ABB automation architectures. Use this controller to upgrade system responsiveness and maintain long-term operational reliability.
Technical Specifications
- Brand: ABB
- Model Number: 07BT61R1 GJV3074302R1
- Product Type: Modular Industrial Controller / Communication Interface
- Power Supply: 24 V DC (Range: 20.4 to 28.8 V DC)
- Power Consumption: 10 Watts typical
- Module Slots: 10 slots for functional expansion cards
- Measurement Resolution: High-precision digital signal processing
- Frequency Response: Optimized for rapid industrial bus cycles
- Linearity: Accurate signal tracking across the full operating range
- Ethernet Port: 1 x 10/100 Mbps RJ45 interface
- Serial Ports: 1 x RS-232 and 1 x RS-485 ports
- Operating Temperature: -20°C to +60°C
- Environmental Tolerance: 5% to 95% relative humidity (non-condensing)
- Shock Resistance: 15 g for 11 ms duration
- Enclosure Material: Industrial-grade high-strength aluminum
- Dimensions: 60 mm x 200 mm x 150 mm
- Weight: 2.7 kg
Installation, Maintenance, and Compatibility
- Installation Guide: Mount the 07BT61R1 on a standard 35mm DIN rail or flat panel.
- Wiring: Connect the stable 24V DC power source to the designated input terminals.
- Compatibility: This unit works with all ABB 07 series I/O and communication modules.
- Diagnostics: Use the integrated LED indicators to monitor power and network traffic status.
- Maintenance: The modular design allows for fast hardware swaps without removing main field wiring.
- Safety: Ensure proper grounding to protect internal circuits from electrical surges.
Certification and Quality Assurance
- Safety Certifications: CE, UL Listed, and CSA Certified
- EMC Compliance: Meets IEC 61326-3-1 standards for industrial environments
- Warranty: Includes a comprehensive 12-month warranty period
- Condition: Factory-fresh unit in original professional packaging
Shipping and Logistics
- Courier Services: Worldwide shipping via FedEx, UPS, and DHL
- Dispatch Time: Orders process and ship within 24 to 48 hours
- Packaging List: 1 x 07BT61R1 GJV3074302R1 controller module
- Tracking: Real-time tracking numbers provided immediately after dispatch
Typical Application Scenarios
- Centralized factory automation control systems
- Distributed I/O management in water treatment plants
- High-speed communication bridging for CNC machinery
- Custom control cabinet builds for energy management
Selection and Purchasing Guide
Confirm your backplane slot requirements before selecting the 07BT61R1 module. Verify that your total power budget accommodates the 10W typical consumption. This model is ideal for engineers needing high-density I/O in a compact footprint. Always check protocol compatibility for your specific RS-485 or Ethernet network requirements.
FAQ
How many expansion modules does this unit support?
The 07BT61R1 features 10 dedicated slots for various I/O and functional cards.
Is the aluminum housing better than plastic?
Yes, the aluminum enclosure provides superior heat dissipation and enhanced electromagnetic shielding.
Can I use this for remote monitoring?
You can utilize the built-in Ethernet port for remote data access and system monitoring.
What is the typical shipping time to North America?
Express shipping via DHL or FedEx usually takes 3 to 5 business days after dispatch.
Does it support Modbus communication?
The RS-485 port supports standard industrial protocols for multi-drop network integration.
