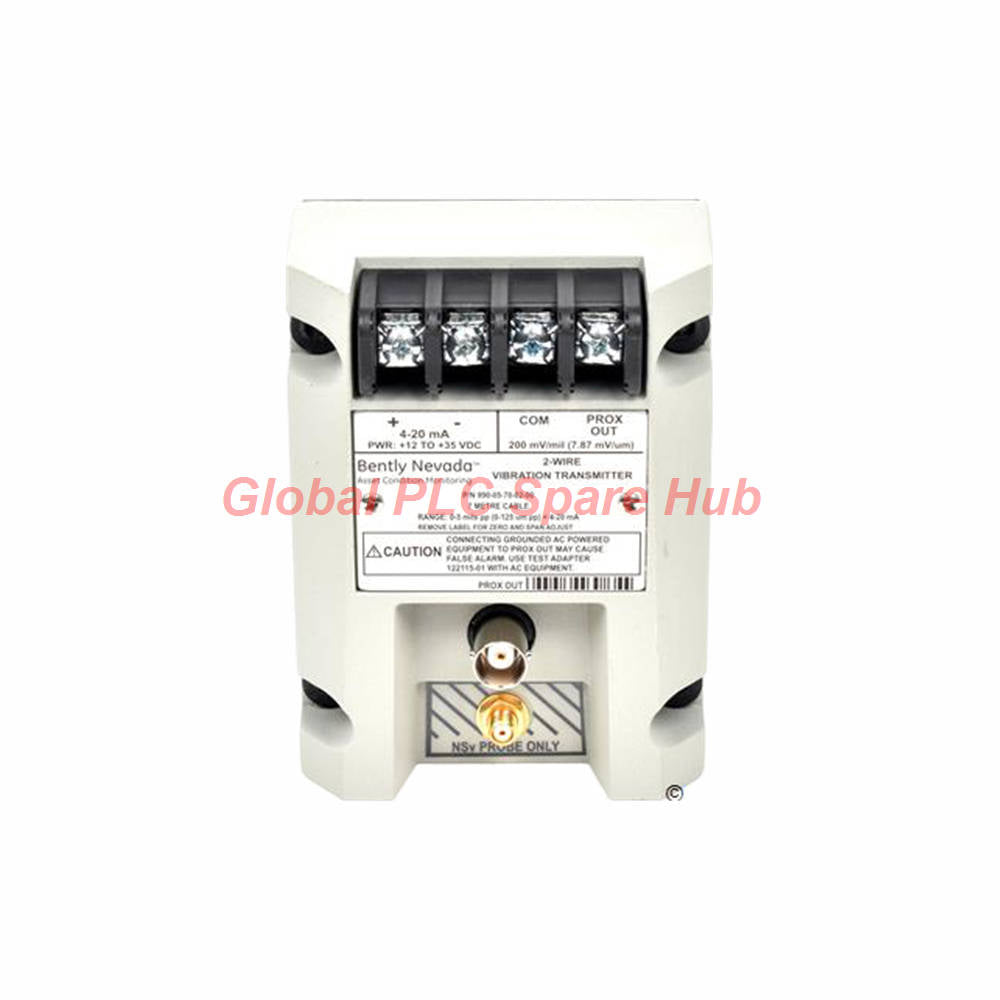

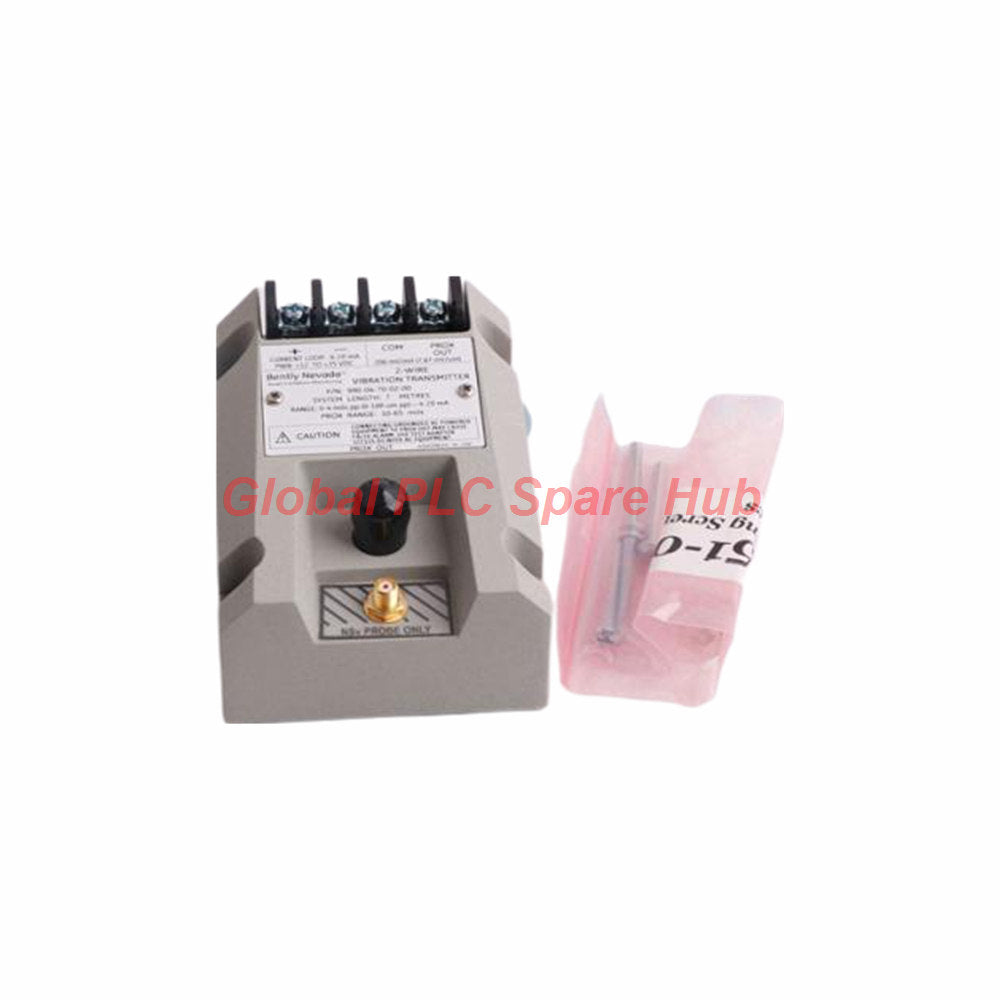

990-10-70-03-CN Bently Nevada Vibration Transmitter 4-20mA

990-10-70-03-CN Bently Nevada 990 Vibration Transmitter

990-10-70-03-CN belongs to the trusted 990 Series vibration monitoring platform from Bently Nevada.

This transmitter converts shaft vibration signals into stable 4–20 mA process outputs. It supports continuous machinery protection in demanding industrial environments.

The unit integrates directly with 3300 NSv proximity probes. It simplifies vibration monitoring for rotating equipment and process control systems.

Engineers frequently deploy this transmitter in turbine skids, compressor packages, and critical pump systems.

Global PLC Spare HUB's Insight

990 Series vibration transmitters focus on practical field deployment and long-term signal stability.

Unlike traditional rack-based monitoring systems, this transmitter delivers direct loop-powered integration with PLC, DCS, and SCADA platforms.

Its fast NOT OK response protects machinery during probe failure conditions. This capability improves maintenance visibility and operational reliability.

The compact DIN mounting structure also reduces installation complexity inside crowded industrial cabinets.

Recommended Equipment Integration

• Steam turbine monitoring systems
• Centrifugal compressor trains
• Industrial process pumps
• API rotating machinery packages
• Boiler feedwater systems
• High-speed motor assemblies
• Fan and blower protection systems
• OEM vibration monitoring skids

Core Diagnostic Functions

• Continuous shaft vibration monitoring
• Rotor imbalance detection
• Bearing degradation indication
• Mechanical looseness identification
• Misalignment trend analysis
• Early-stage vibration fault warning
• Process alarm integration through 4–20 mA output

Configuration Structure

• 990
  • 990 Series vibration transmitter platform
• 10
  • Full-scale range:
    • 0–10 mils peak-to-peak
    • 0–250 μm peak-to-peak
• 70
  • System length:
    • 7.0 meters
    • 23.0 feet
• 03

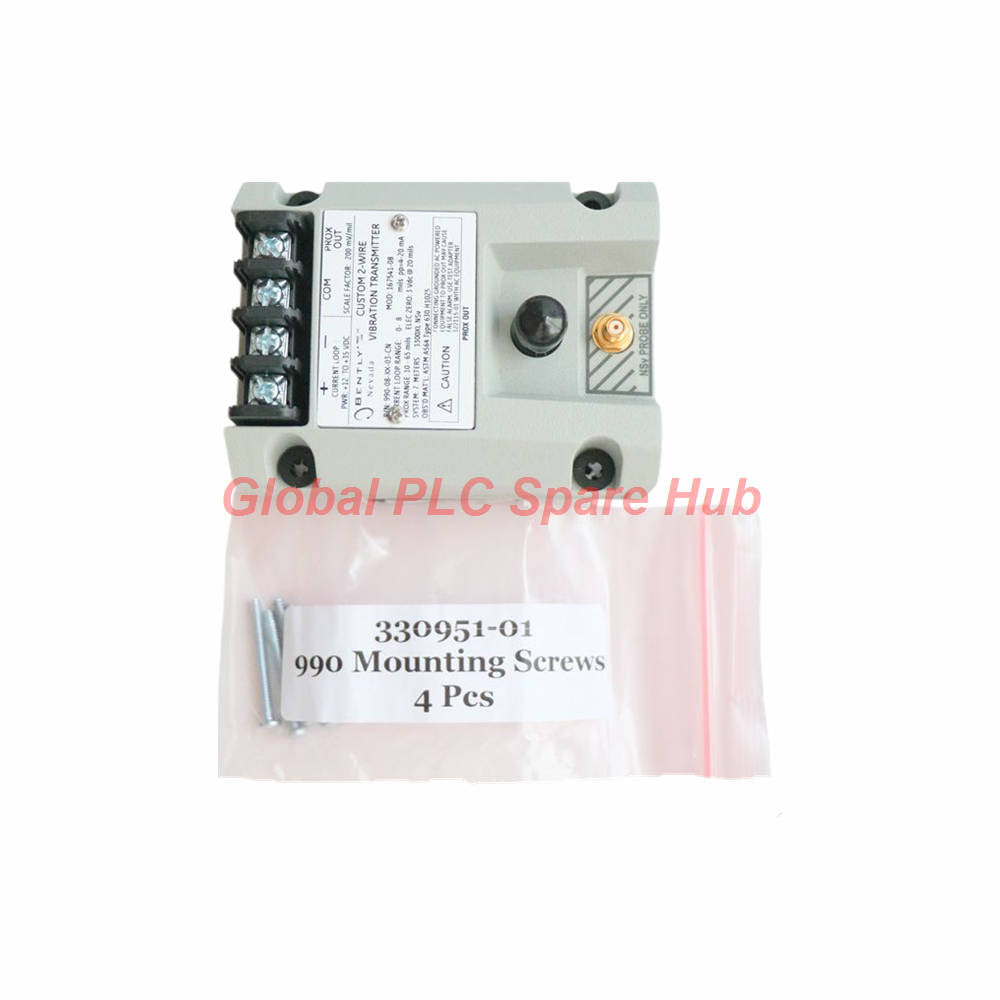

  • Mechanical mounting package:
    • DIN clips included
    • Mounting screws included
• CN
  • Country-specific agency approvals

Engineering Specifications

• Manufacturer: Bently Nevada
• Model: 990-10-70-03-CN
• Series: 990 Series
• Product Type: Vibration Transmitter
• Country of Origin: Made in U.S.A
• Input Compatibility: 1 non-contacting 3300 NSv probe system
• Signal Output: 4–20 mAdc
• Output Configuration: 2-wire loop-powered
• Loop Accuracy: ±1.5% full scale
• Operating Power: +12 to +35 Vdc
• Maximum Loop Resistance: 1000 Ω at 35 Vdc
• Frequency Response: 5 Hz to 6000 Hz
• Current Limiting: 23 mA typical
• Probe Gap Range: 0.5 to 1.75 mm
• Minimum Target Diameter: 9.5 mm
• Signal Recovery Time: 2–3 seconds after NOT OK reset
• Fault Response Time: Less than 100 μs
• Leadwire Distance: Maximum 3 meters
• Mounting Method: DIN rail clips and screws
• Hazardous Area Support: Zone 2 and Div 2 locations
• Typical Supply Voltage: 28 Vdc
• Approximate Weight: 0.43 kg

Signal Processing Advantages

• Stable analog transmission over long cable distances
• Fast fault reaction improves machinery protection
• External zero and span adjustments simplify calibration
• Strong anti-noise capability in industrial environments
• Suitable for direct PLC analog input integration

Field Installation Recommendations

• Maintain correct probe gap before startup
• Use shielded routing near high-voltage cables
• Verify loop resistance during commissioning
• Install DIN clips securely inside control cabinets
• Confirm target diameter meets minimum specification

Industrial Communication Compatibility

• Distributed Control Systems (DCS)
• Programmable Logic Controllers (PLC)
• SCADA monitoring architectures
• Condition monitoring platforms
• Plant asset management systems

Shipping and Supply Support

• 24–48 hour dispatch available
• International export packaging provided
• Courier services:
  • FedEx
  • UPS
  • DHL

Warranty Information

• 12-month warranty coverage
• Technical support during warranty period
• Factory-standard inspection before shipment

Professional FAQ

• Why does the transmitter output remain below 4 mA?

  The system may detect a NOT OK condition from the probe circuit.

• How should engineers choose the correct full-scale range?

  Select the range according to expected shaft vibration amplitude during normal operation.

• What installation issue commonly causes unstable readings?

  Incorrect probe gap settings frequently create fluctuating vibration outputs.

• Can this transmitter connect directly to a PLC analog input card?

  Yes. The 4–20 mA output supports most industrial analog input modules.

• What benefits does DIN mounting provide in field applications?

  DIN installation reduces panel space usage and speeds cabinet maintenance work.
