95DSS2-1 Enhanced InSight Series Fireye Scanner Safety Tech

Engineering Overview: Advanced Flame Detection

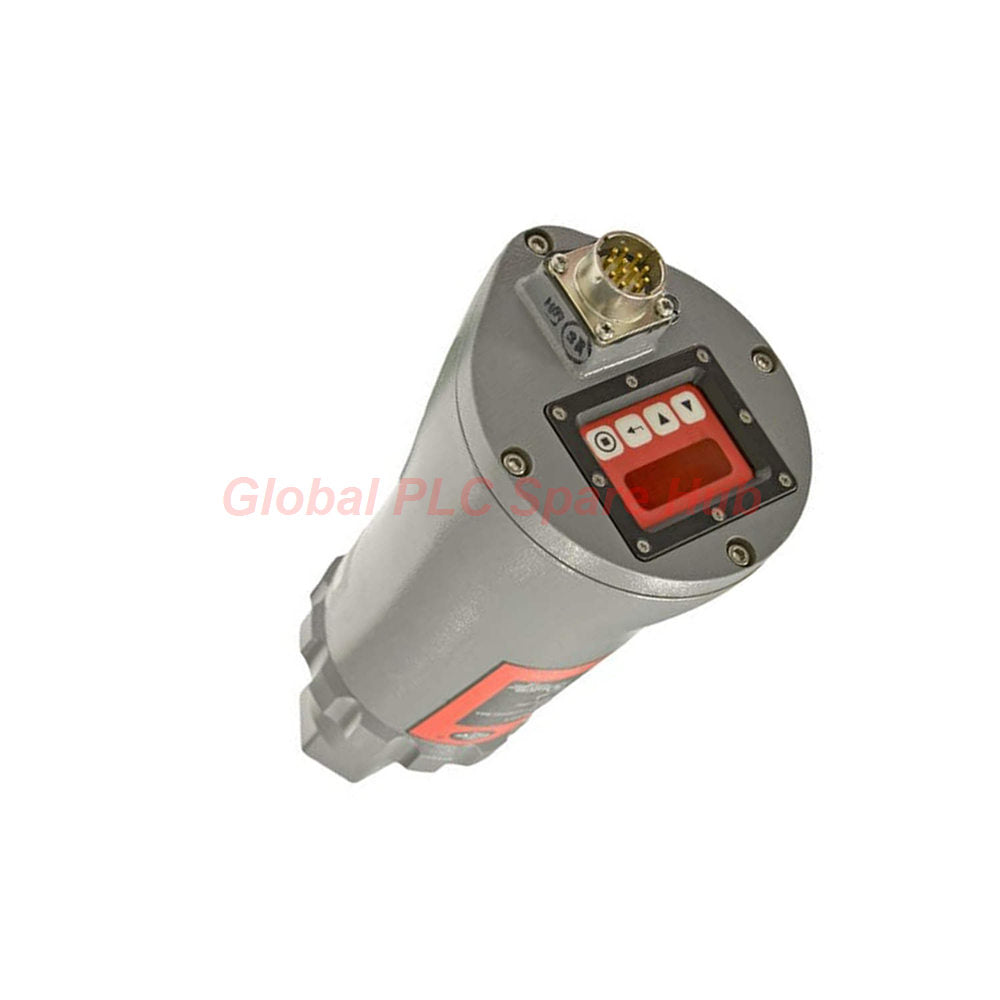

The 95DSS2-1 is a specialized unit within the Fireye InSight Scanner family, featuring an Enhanced architecture that integrates both Infrared (IR) and Ultraviolet (UV) sensors. This dual-sensor capability allows the scanner to monitor diverse flame characteristics across complex combustion setups. Engineered for heavy-duty industrial service, this model eliminates the complexity of external amplifiers by processing flame data directly at the burner front.

Precision Technical Specifications

• Model: 95DSS2-1
• Series: Enhanced InSight Scanner
• Sensor Type: Dual-Channel IR & UV
• Connector Interface: 12-pin male quick-disconnect
• Contact Rating: Max 240 Vac switching capability
• Housing Standard: NEMA 4X / IP66
• Hazardous Certification: Class I Div 2 (Groups A, B, C, D); Class II Div 2 (Groups F, G)
• Approvals: UL C/US & FM approved
• Construction: Cast aluminum with polyester powder coat finish
• Physical Weight: 4.3 lbs (1.96 kg)

Global PLC Spare HUB’s Insight

The 95DSS2-1 stands out for its flexibility in spectral detection. By utilizing both IR and UV, it excels in applications where burner modulation causes significant changes in flame emissivity. From our experience, this scanner is the preferred choice for combined-cycle power plants and refinery process heaters where multiple fuel types (gas and oil) are toggled. Its ability to maintain a clear flame signal despite fluctuating air-fuel ratios makes it indispensable for reliable boiler management.

Industrial Applications & Diagnostic Capability

• Primary Applications: Industrial utility boilers, waste-to-energy incinerators, petrochemical heaters, and high-capacity gas turbines.
• Diagnostic Power: The internal logic provides real-time signal intensity feedback. It effectively identifies "noisy" flame signals or degrading detector optics, allowing for predictive maintenance before an emergency burner trip occurs.

Warranty & Logistics

• Quality Assurance: Every 95DSS2-1 unit is backed by a 12-month professional warranty.
• Global Logistics: Reliable, expedited shipping via FedEx, UPS, or DHL.
• Dispatch Timeline: Orders processed and dispatched within 24 to 48 hours.

Expert Frequently Asked Questions

Why is the dual IR/UV sensor approach better than a single-mode sensor?
Single-mode sensors can sometimes mistake hot refractory radiation for a flame. Dual IR/UV sensing confirms the flame by matching the flicker frequency across both spectral bands, drastically reducing nuisance trips.

Does this model require a fiber optic mount for high-heat applications?
The base 95DSS2-1 does not include a fiber optic mount. If the burner front temperature exceeds the rating of the scanner electronics, you should verify if an external mounting kit is needed to provide the necessary thermal standoff.

What is the main benefit of the 240 Vac contact rating?
The higher voltage rating allows for direct integration into legacy control panels that utilize 220/240V interlock strings, removing the need for intermediate isolation relays.

How should I choose between this Enhanced model and a standard unit?
If your application involves varying fuel types or high-modulation burners, the 95DSS2-1 is the superior choice because the dual-sensor "Enhanced" logic is designed to handle more complex flame signatures.

What does the Class I Div 2 rating mean for my installation?
This rating certifies that the scanner is safe for operation in environments where flammable gases or vapors may be present intermittently, provided the unit is installed according to local electrical codes.
