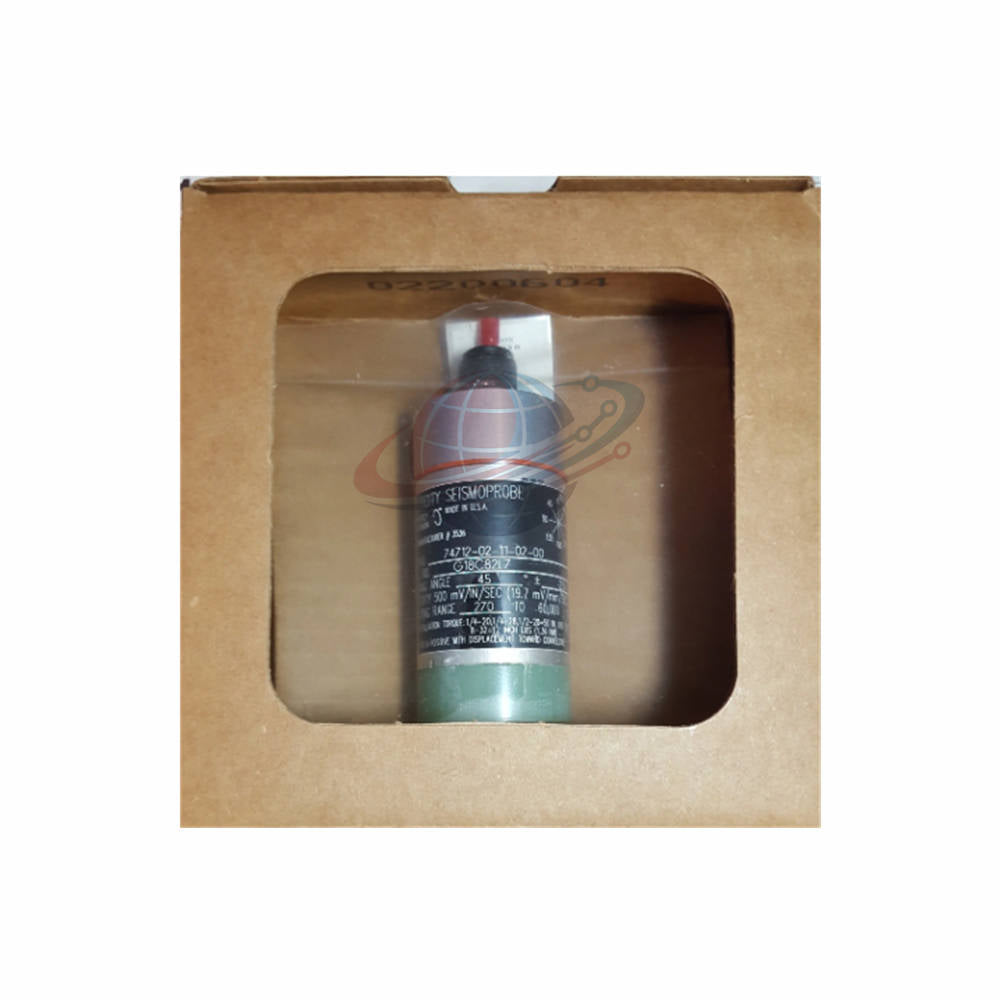

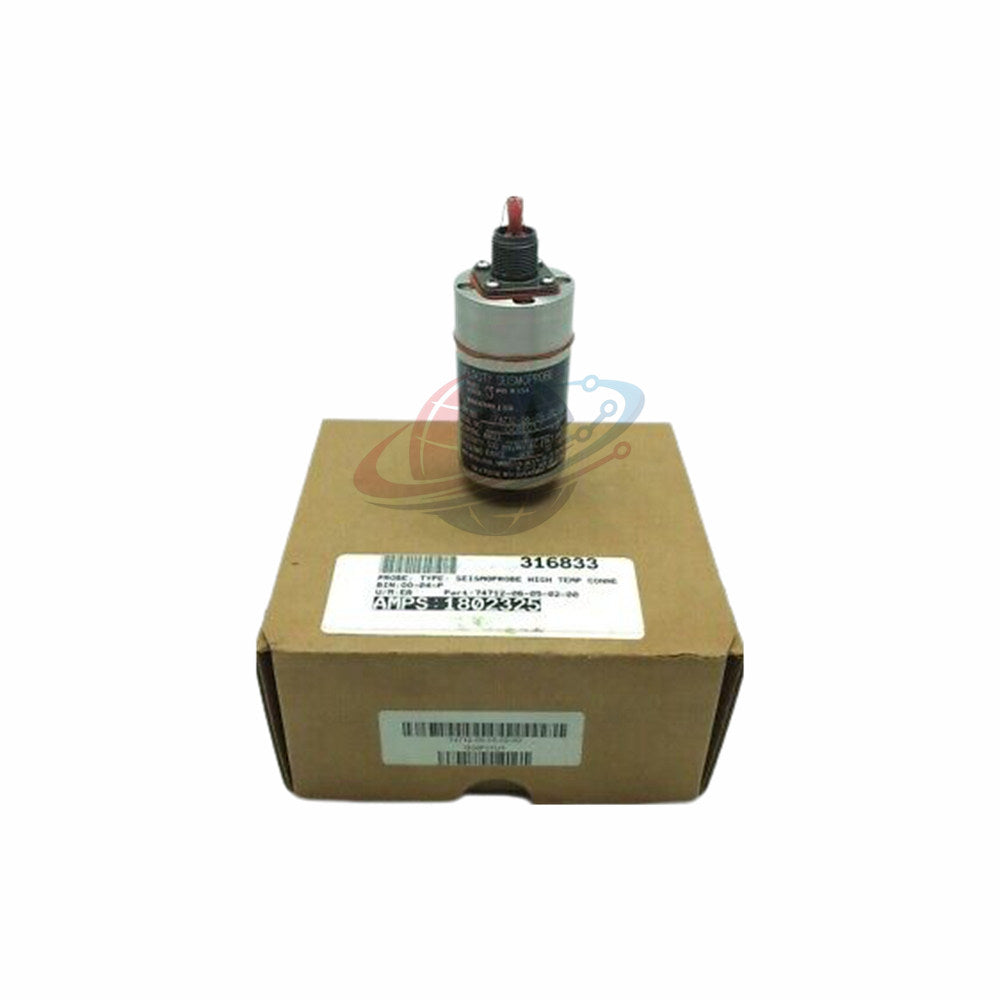

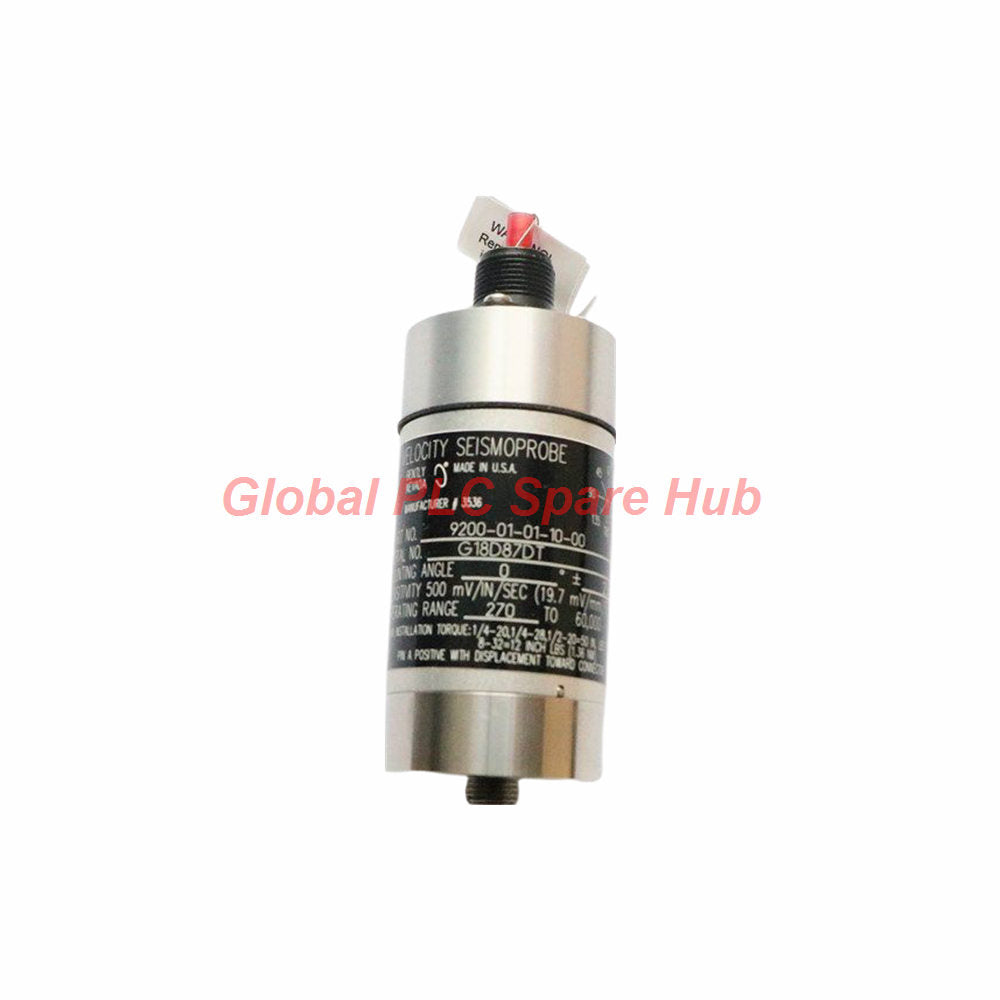

9200-09-01-01-00 Bently Nevada 9200 Velocity Seismoprobe | Vibration Transducer
Manufacturer: Bently Nevada
Product No.: 9200-09-01-01-00
Condition： In stock
Product Type: Two-Wire Transducer
Product Origin: USA
Payment: T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Precision Vibration Detection for Rotating Machinery
9200-09-01-01-00 provides reliable velocity vibration monitoring for industrial equipment protection systems.
The transducer converts mechanical vibration into stable electrical output signals.
Bently Nevada 9200 Series sensors support predictive maintenance and machinery diagnostics.
The compact two-wire design simplifies installation in restricted mechanical spaces.
Dust-resistant construction improves long-term field reliability.
The sensor operates effectively across demanding industrial temperature ranges.
Anodized aluminum housing improves corrosion resistance and structural durability.
Configuration Breakdown
| Configuration Code | Technical Description |
|---|---|
| 9200 | Two-Wire Velocity Seismoprobe Transducer Series |
| 09 | 0° ±180° Mounting Angle / 15 Hz Minimum Operating Frequency |
| 01 | Top Mount Connector Configuration |
| 01 | Circular Mounting Base with 1/4-20 UNC Stud |
| 00 | No Agency Approval Requirement |
Core Vibration Monitoring Characteristics
- Two-wire velocity sensing architecture
- Optimized for rotating machinery condition monitoring
- Stable signal response across wide vibration ranges
- Compact mechanical footprint for flexible mounting
- Industrial temperature endurance capability
- Moisture-resistant and dust-resistant enclosure design
- Reliable long-term sensitivity stability
- Simple field integration with monitoring systems
Electrical and Measurement Specifications
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Part Number | 9200-09-01-01-00 |
| Product Type | Two-Wire Velocity Seismoprobe Transducer |
| Sensitivity | 20 mV/mm/s (500 mV/in/s) ±5% |
| Calibration Load | 10 kΩ Terminal A to B |
| Sensitivity Temperature Coefficient | 0.2%/°C |
| Dynamic Operating Range | 2.54 mm peak-to-peak maximum displacement |
| Velocity Range | 25 mm/s at 100 Hz with 10 kΩ load |
| Coil Resistance | 1.25 kΩ ±5% |
| Locked Coil Inductance | 125 mH typical |
Environmental and Mechanical Specifications
| Feature | Specification |
|---|---|
| Operating Temperature | -29°C to +121°C |
| Extended Temperature Version | Up to +204°C with 74712 option |
| Humidity Resistance | 95% non-condensing |
| Sealed Cable Option | 100% humidity resistant, non-submerged |
| Case Material | Anodized aluminum A204 |
| Gasket Material | Neoprene |
| Typical Height | 102 mm |
| Typical Diameter | 41 mm |
| Typical Weight | 300 g |
Installation and Mounting Guidance
9200-09-01-01-00 supports direct installation on machinery bearing housings.
The circular base configuration improves mounting stability.
Rigid mounting surfaces improve signal accuracy and repeatability.
Shielded cabling improves electrical noise resistance in industrial environments.
Correct mounting orientation ensures calibrated sensitivity performance.
Recommended Equipment Integration
- Steam turbines
- Centrifugal compressors
- Industrial pumps
- Electric motors
- Cooling tower fans
- Gear reduction systems
- Reciprocating machinery
- API machinery monitoring systems
Industrial Application Environments
- Power generation facilities
- Oil and gas production plants
- Petrochemical processing units
- Mining machinery systems
- Heavy manufacturing facilities
- Water treatment infrastructure
- Industrial automation monitoring systems
Diagnostic and Predictive Maintenance Advantages
9200-09-01-01-00 improves detection of abnormal mechanical vibration conditions.
The sensor supports early identification of imbalance and misalignment.
Velocity-based monitoring improves rotating equipment health analysis.
Stable sensitivity characteristics improve long-term trend monitoring accuracy.
The transducer assists predictive maintenance programs by reducing unexpected downtime.
Reliable signal stability supports continuous machinery protection systems.
Global PLC Spare HUB's Insight
9200-09-01-01-00 suits industrial operators requiring robust vibration trend monitoring.
The compact structure simplifies retrofits inside existing machinery systems.
Its wide temperature tolerance supports severe process environments.
Engineers benefit from the stable sensitivity characteristics during long operating cycles.
The sensor performs effectively in continuous-duty rotating machinery applications.
The rugged enclosure improves operational reliability in high-vibration installations.
Packaging and Logistics
- Factory original industrial packaging included
- 24–48 hour dispatch service available
- FedEx international shipping supported
- UPS industrial logistics available
- DHL express delivery service supported
- Protective export packaging included
Warranty Support
12-month factory warranty supports long-term industrial operation requirements.
Technical assistance remains available throughout the warranty period.
The warranty applies under standard industrial operating conditions.
Professional Engineering FAQ
Why is velocity monitoring preferred for many rotating machines?
Velocity measurements provide effective evaluation of overall mechanical vibration severity.
What installation factor most affects transducer accuracy?
Rigid mechanical coupling between the sensor and machinery surface improves signal integrity.
How should engineers select the minimum operating frequency option?
Evaluate machine running speed and expected vibration frequency characteristics before selection.
What maintenance practice improves long-term monitoring stability?
Periodic inspection of mounting tightness and cable integrity prevents measurement drift.
Which applications benefit most from this transducer design?
Continuous-duty industrial equipment with vibration-based predictive maintenance programs benefit significantly.
