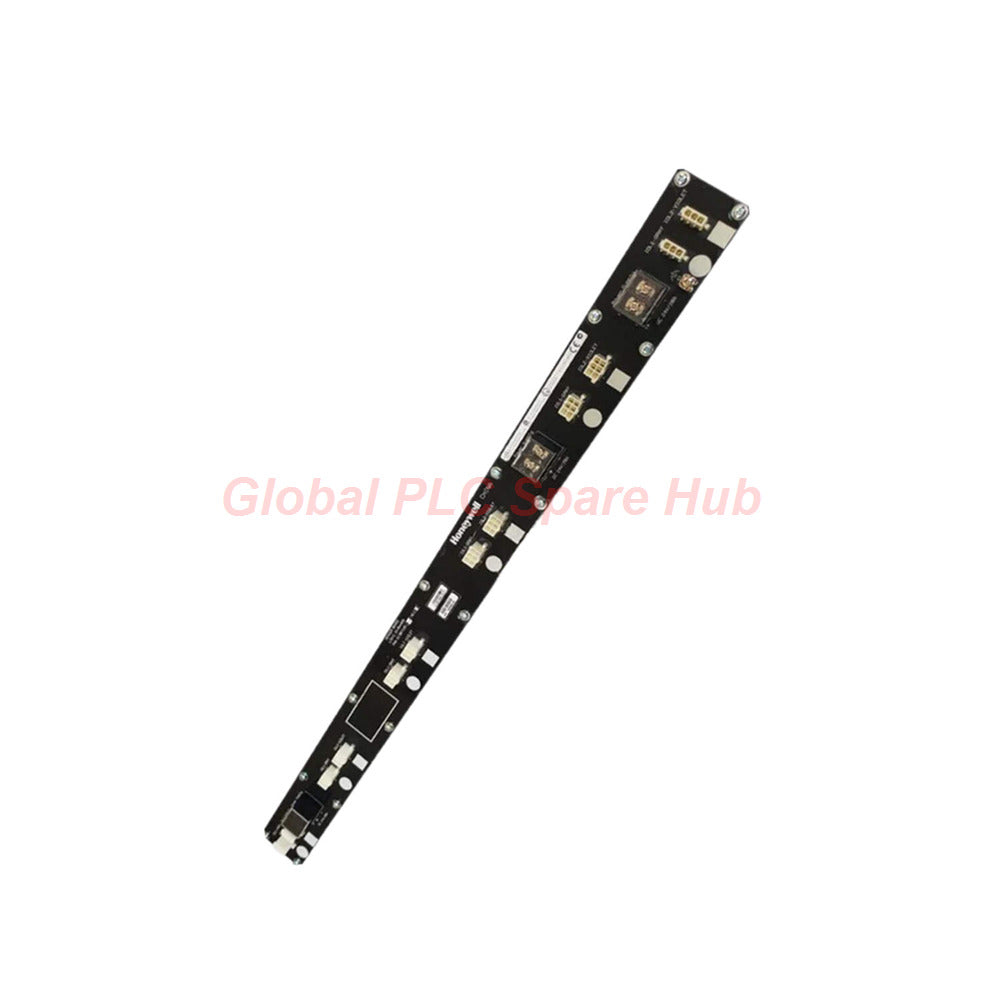

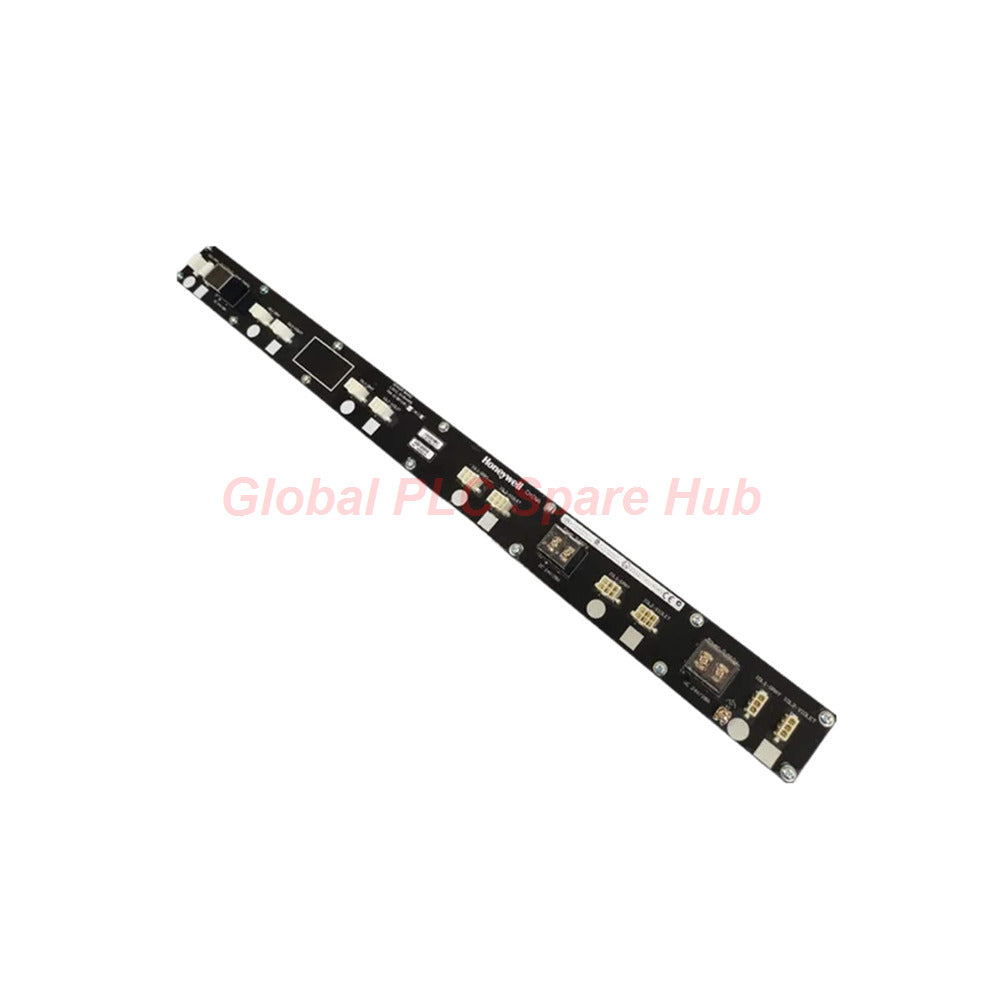

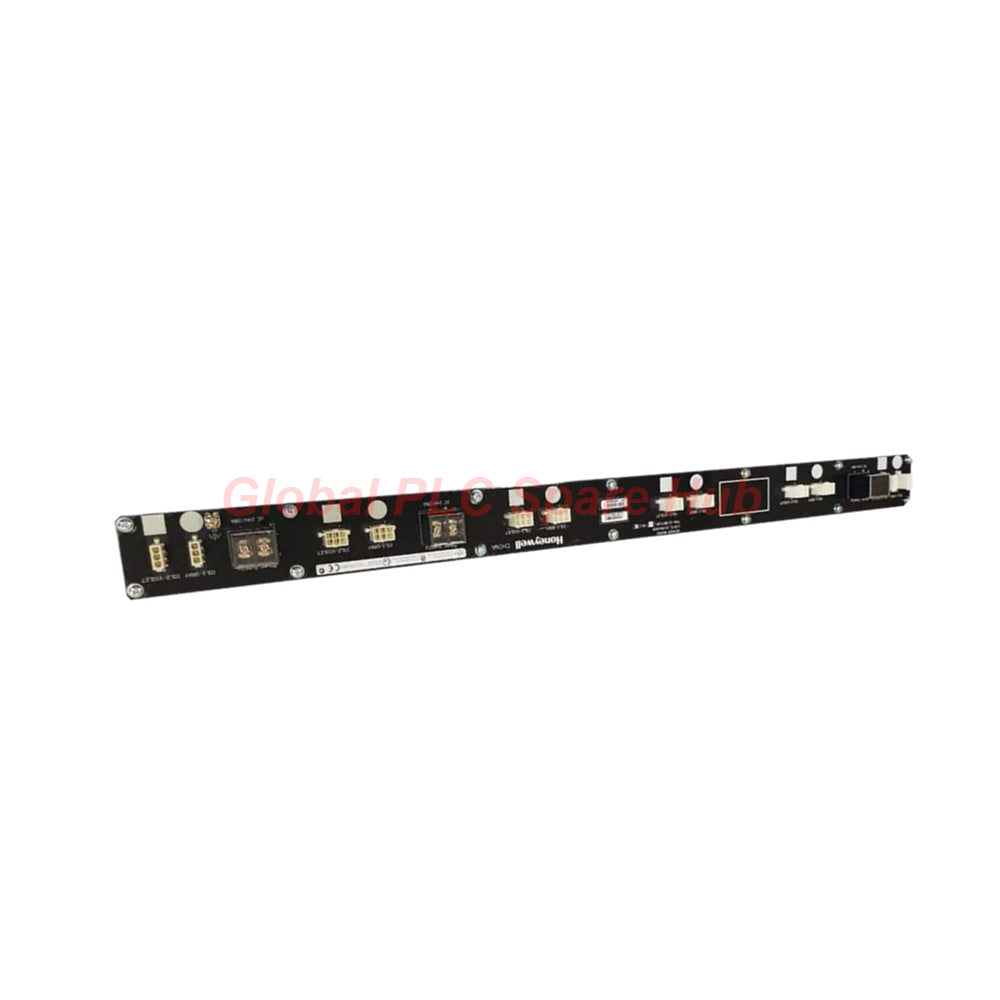

8C-SHEDA1 Honeywell Experion PKS Series 8 Redundant Header

Global PLC Spare HUB's Insight

The Honeywell 8C-SHEDA1 is a foundational component of the Experion PKS Series 8 hardware infrastructure. Unlike standard distribution blocks, this Header Board is specifically engineered to synchronize redundant 24 VDC power and IOLink communication across high-density I/O cabinets. The 8C-SHEDA1 ensures that I/O Termination Assemblies (IOTAs) receive stable, filtered power through specialized combo cables. For senior systems engineers, the most significant advantage is its "hot-swappable" cable architecture; the daisy-chained design allows for the disconnection of a single I/O module without interrupting the communication or power flow to the rest of the column.

Core Technical Architecture

• Brand: Honeywell
• Model: 8C-SHEDA1
• Series: Series 8 (Experion PKS)
• Function: Redundant Power & IOLink Distribution
• Input Voltage: 24 VDC (Nominal System Power)
• Output Voltage: 24 VDC (Distributed to IOTAs)
• Power Connectors: 3 High-reliability input ports
• Combo Cable Interfaces: 4 Pairs (6-pin configuration)
• Link Extension: 2 Pairs (3-pin configuration)
• Thermal Limit: 0°C to 60°C Operating Range
• Expansion Capability: Supports cabinet-to-cabinet bridging

Engineering Applications & Environment

• Cabinet Power Distribution: Distributes 24 VDC from the main power system to multiple mounting plate columns.
• Redundant Communication: Dual-board pairing provides seamless IOLink redundancy for safety-critical I/O.
• Cabinet Expansion: Features built-in connectors to bridge power and IOLink to adjacent cabinet rows.
• High-Availability PKS: Essential for Experion PKS Series 8 I/O clusters requiring maximum uptime.

Diagnostic & Integration Capabilities

• Link Integrity: Facilitates transparent IOLink communication, allowing the controller to monitor individual IOTA health.
• Mechanical Design: Engineered for standard Series 8 mounting, ensuring low-resistance electrical contact.
• Fault Isolation: Separates power distribution segments, making it easier to isolate electrical faults during commissioning.
• Non-Disruptive Maintenance: Daisy-chain diagnostics allow downstream modules to remain powered even if a single cable is removed.

Global Logistics & Quality Standards

• Warranty Coverage: Full 12-month industrial warranty for all engineering deployments.
• Express Shipping: Worldwide priority dispatch via FedEx, UPS, and DHL.
• Order Processing: Guaranteed fulfillment and shipment within 24-48 hours.
• Authenticity: Every 8C-SHEDA1 is verified for strict Series 8 hardware compliance.

Selection & Buying Guide

• Current Load Calculation: Verify the total current draw for the I/O modules connected to the header board.
• Redundancy Planning: Remember that 8C-SHEDA1 units must be used in pairs for full path redundancy.
• Cable Verification: Ensure the use of high-quality 6-pin combo cables to maintain shielding for IOLink data.

Professional FAQ

Does the 8C-SHEDA1 require external software configuration?

No, the 8C-SHEDA1 is a hardware-level distribution board; it facilitates the physical layer for IOLink and power without needing IP settings.

What happens if a combo cable is accidentally unplugged from one I/O module?

Thanks to the daisy-chain architecture, the remaining I/O modules in the chain will continue to function normally without loss of power or link.

Can I mix different Series 8 I/O types on a single header board?

Yes, the 8C-SHEDA1 is universal for Series 8; it can distribute power/link to Analog and Digital IOTA types simultaneously.

Why are there specific "Extension" connectors on the board?

These 3-pin pairs are designed to bridge the IOLink communication to adjacent cabinets, allowing for a unified controller link.

How do I verify the power distribution is active across all ports?

Use a calibrated multimeter at the 6-pin combo connectors to verify a stable 24VDC output relative to the common ground.
