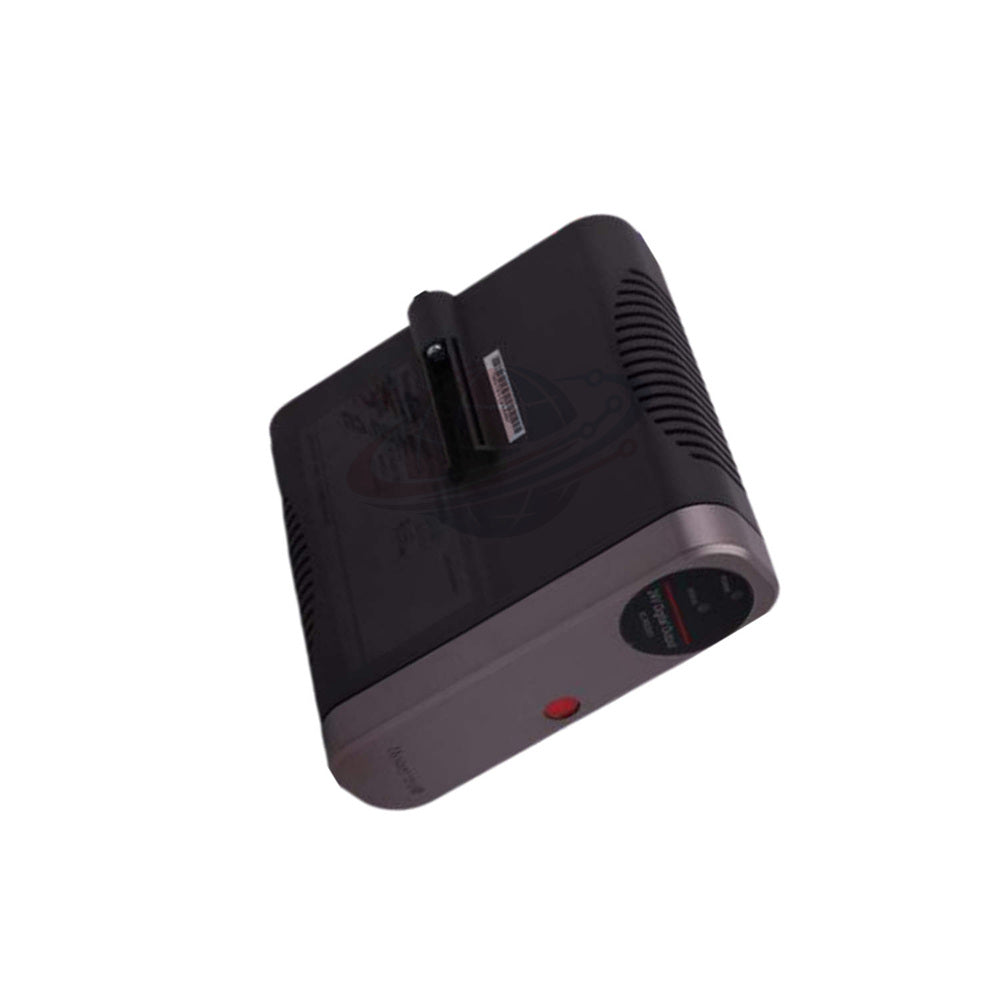

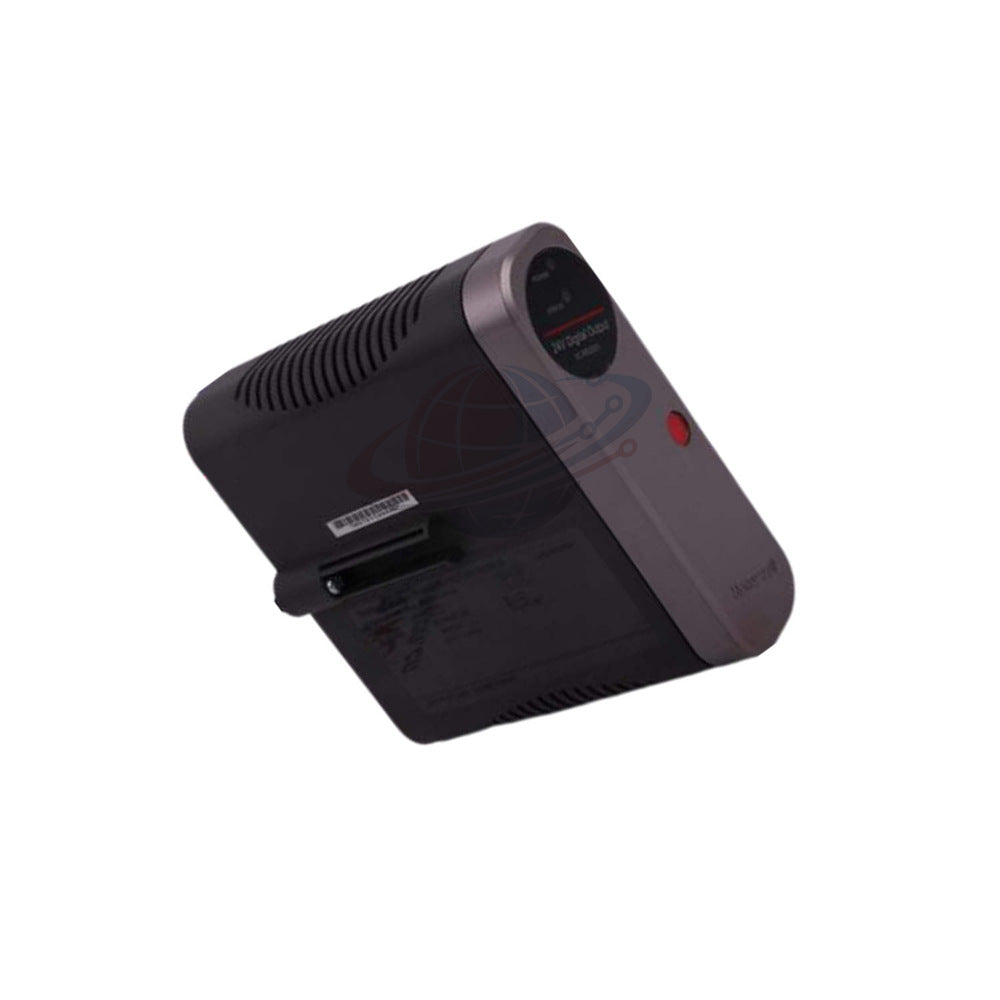

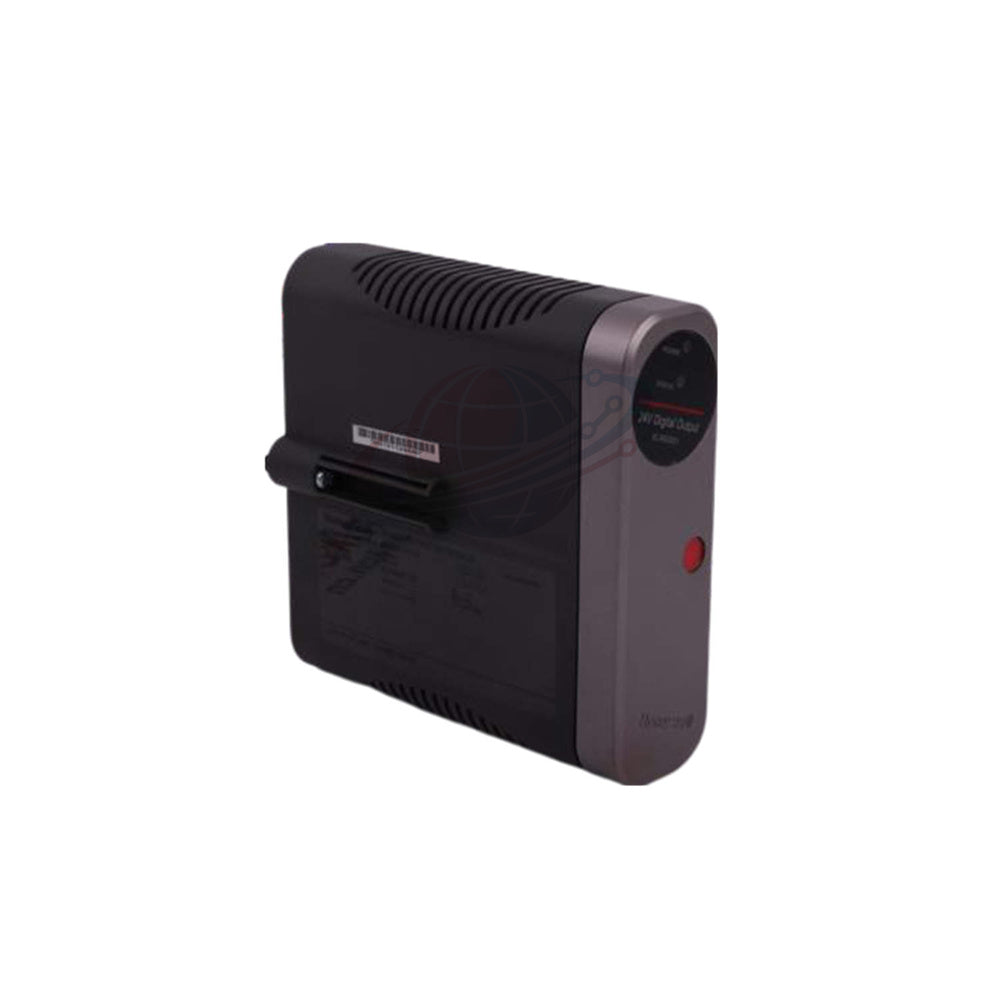

8C-PAIH51 Honeywell Analog Input with HART | 4-20mA Non-Incendive

Product Overview

• The 8C-PAIH51 is a high-density 16-channel Analog Input module for the Honeywell Series C platform.
• It supports 4-20 mA signals and features integrated HART communication for multivariable instrument data.
• Engineered for safety, the 8C-PAIH51 provides non-incendive field power, supporting Class 1, Div 2 hazardous area requirements.
• With a 50 ms scan rate and 16-bit resolution, it is optimized for high-speed and high-precision industrial control.

Technical Specifications

• Brand: Honeywell
• Model: 8C-PAIH51
• Series: Series C I/O
• Input Type: 4-20 mA (2-wire or self-powered)
• Channels: 16 Single-Ended
• A/D Resolution: 16 Bits
• Scan Rate: 50 ms Loop Scan
• Accuracy: ± 0.075% of full-scale (at 23.5°C)
• Hazardous Rating: Class 1, Div 2 (Non-incendive)
• HART Modems: Multiple modems for fast collection of control variables

Diagnostic & Safety Capabilities

• Extensive internal self-diagnostics continuously verify the health of the 16-bit converter and I/O bus communication.
• Individually protected current-limiting circuits prevent field faults from affecting adjacent channels.
• The 8C-PAIH51 eliminates the need for external fuses or marshalling through its active power-conditioning design.
• Integrated HART modems provide remote access to field device diagnostics and secondary process variables.

Typical Application Scenarios

• Pressure, temperature, and flow monitoring in petrochemical refineries.
• High-speed control loops in power generation and utility management.
• Hazardous area instrumentation where Division 2 non-incendive ratings are required.
• Asset management systems utilizing HART data for predictive maintenance of smart transmitters.

Global PLC Spare HUB’s Insight

• The 8C-PAIH51 is highly regarded for its ability to reduce hardware costs by eliminating the need for external isolation barriers.
• Our engineers highlight the 50ms scan rate as a critical feature for users transitioning to more dynamic process control strategies.
• The G3 conformal coating (standard on Series C) makes the 8C-PAIH51 exceptionally resilient in humid or corrosive industrial environments.

Shipping & Warranty Terms

• Warranty: 12-month professional quality guarantee on all 8C-PAIH51 modules.
• Express Logistics: Global delivery via FedEx, UPS, or DHL Express.
• Fulfillment Time: Standard dispatch from stock within 24 to 48 business hours.
• Support: Expert technical assistance available for Series C system integration.

Expert FAQ & Selection Tips

• What is the maximum voltage the 8C-PAIH51 can withstand without damage?
• The module is designed to handle up to ± 30 Volts on any input referenced to common.
• Does this module support redundant configuration?
• Yes, the 8C-PAIH51 can be used in a redundant pair to ensure zero downtime for critical process loops.
• Can I use this module for non-HART transmitters?
• Absolutely; the module functions as a high-precision 4-20mA analog input for any standard device, even if HART features are not utilized.
• Why is "No Fusing Required" emphasized?
• The 8C-PAIH51 uses electronic current limiting for each channel, which is faster and more reliable than traditional physical fuses.
• What is the purpose of the 200 Ω internal resistor?
• This precision resistor is used to convert the 4-20mA current signal into a voltage that the 16-bit A/D converter can process.
