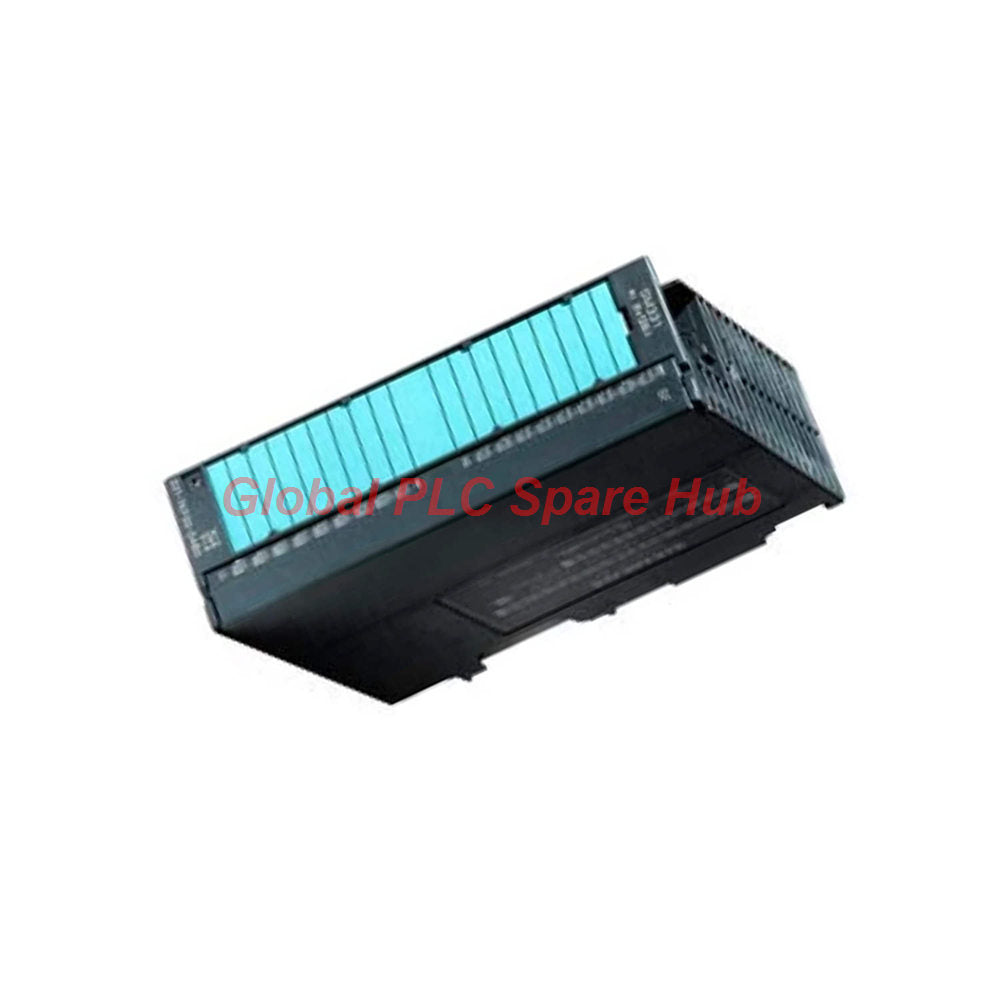

6ES7331-7PF01-0AB0 Siemens S7-300 RTD Input Module 8-Channel

Product Overview

The 6ES7331-7PF01-0AB0 is a specialized high-precision isolated analog input module designed for the Siemens SIMATIC S7-300 automation system. Engineered for high-fidelity temperature acquisition, this module provides 8 channels capable of processing signals from diverse resistance thermometers (Pt, Ni, Cu) and linear resistors (up to 600 Ω). With robust 500V DC isolation and 16-bit resolution, it ensures stable and accurate measurement in electrically noisy industrial environments.

Technical Performance Data

• Manufacturer: Siemens
• Series: SIMATIC S7-300
• Part Number: 6ES7331-7PF01-0AB0
• Channel Capacity: 8 channels (RTD and resistance)
• Sensor Compatibility: Pt, Ni, Cu thermometers; 0-600 Ω resistors
• Resolution: 16-bit, two’s complement
• Isolation Voltage: 500V DC (channel to backplane/power)
• Conversion Time: Configurable (10ms to 190ms)
• Noise Rejection: Programmable for 50Hz, 60Hz, and 400Hz
• Accuracy: ±0.05% for resistors; ±0.5K for RTDs (at 25°C)
• Dimensions: 40mm x 125mm x 120mm

Diagnostics and Industrial Resilience

• Advanced Monitoring: Per-channel diagnostics detect hardware interruptions, limit violations, and connectivity issues.
• Flexibility: Supports 2-wire, 3-wire, and 4-wire connection schemes for lead-wire compensation.
• Environmental Integrity: Designed for standard control cabinets with high-grade EMI suppression.

Global PLC Spare HUB's Insight

The 6ES7331-7PF01-0AB0 is a benchmark for thermal stability in S7-300 racks. Its internal isolation grouping (2-channel groups) is critical for preventing cross-channel ground loops—a common failure point in large-scale temperature monitoring systems. This module is the gold standard for engineers requiring high-accuracy process telemetry in chemical, HVAC, and power generation loops.

Ideal Applications

• Precision HVAC system temperature regulation.
• Industrial furnace and heat-treatment monitoring.
• Chemical process reactor temperature sensing.
• Power plant thermal management systems.

Shipping and Warranty

• Logistics: Reliable delivery via FedEx, UPS, and DHL.
• Dispatch: Guaranteed processing within 24-48 hours.
• Warranty: 12-month comprehensive manufacturer warranty.

Frequently Asked Questions

Why does my module show incorrect RTD readings when using long cables?
Long cables introduce lead-wire resistance. Always utilize 3-wire or 4-wire connection configurations to allow the module to automatically compensate for lead-wire resistance.

Can I configure channels individually for different sensor types?
Yes, the module's software configuration allows for independent channel settings. Ensure your hardware configuration in STEP 7 matches the physical wiring.

What is the advantage of the 500V DC isolation?
This isolation protects the module's backplane and logic circuits from high-voltage surges or accidental common-mode spikes originating from the field.

Selection Advice: When should I choose the 4-wire connection method?
Select the 4-wire method for maximum precision in high-accuracy applications like chemical batching. It completely eliminates the influence of cable resistance on measurements.

How do I reduce jitter in my analog values?
Increase the channel conversion time in your hardware settings and enable the appropriate noise rejection frequency (50/60Hz) to filter out line-frequency interference.
