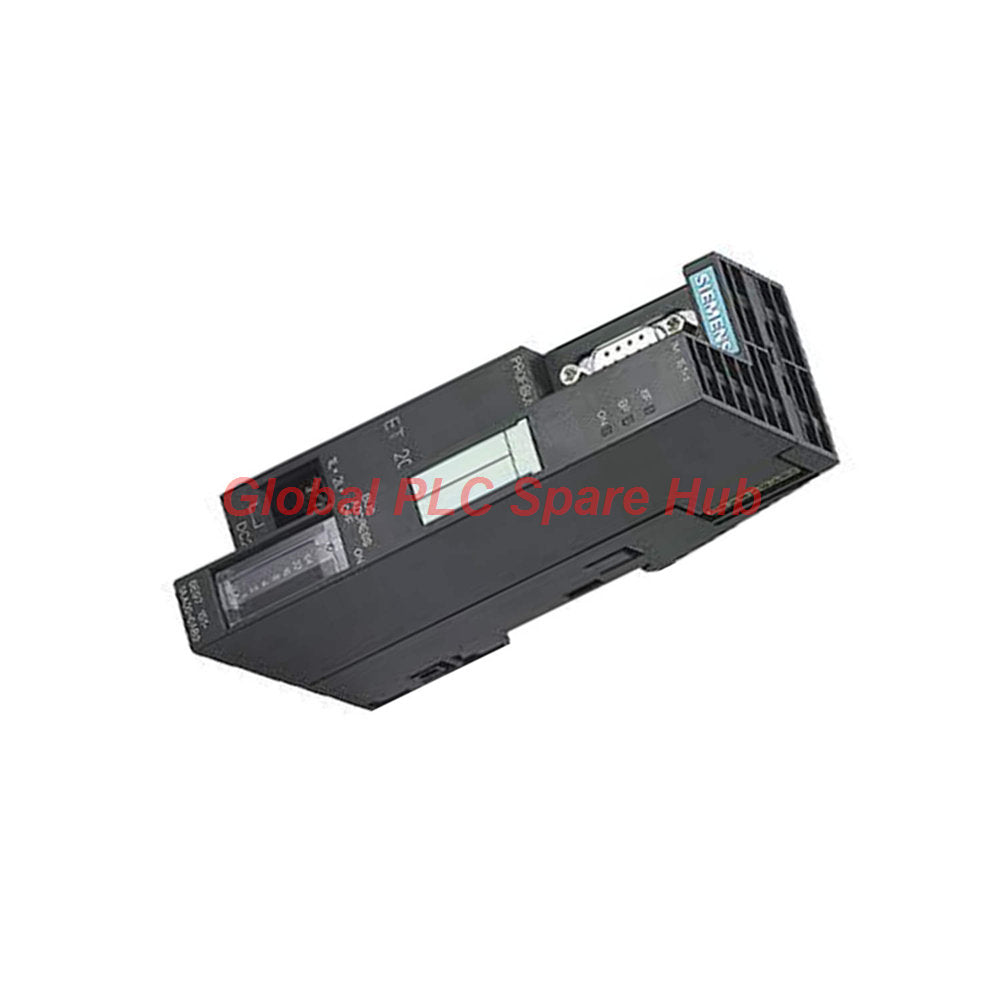

6ES7151-1AA05-0AB0 Siemens ET200S PROFIBUS DP Interface Module

System Integration: The Siemens 6ES7151-1AA05-0AB0 Interface

The 6ES7151-1AA05-0AB0 serves as the high-performance PROFIBUS DP head station for the Siemens ET200S distributed I/O system. By acting as the bridge between the field level and the master controller, the 6ES7151-1AA05-0AB0 streamlines data exchange, supporting up to 63 discrete or analog expansion modules within a single node architecture.

Technical Core Parameters

• Protocol Standard: PROFIBUS DP (High-speed fieldbus).
• Data Throughput: 244 bytes of cyclic data volume.
• Expansion Capacity: Scales up to 63 I/O modules per station.
• Transmission Distance: Up to 1200 meters, ideal for distributed plant layouts.
• Thermal Ratings: Optimized for 0°C to 40°C operational environments.
• Form Factor: Lightweight 0.14 kg chassis for space-saving DIN-rail mounting.

Global PLC Spare HUB's Insight

Our engineers recommend the 6ES7151-1AA05-0AB0 for large-scale infrastructure projects such as automated conveyor systems, water treatment plants, and assembly lines where controllers are physically distanced from the process. It excels in minimizing wiring complexity while maintaining robust communication integrity over long bus cable runs.

Diagnostics and Operational Resilience

This module features proactive diagnostic capabilities that flag station-level communication errors. By tracking parity errors and bus timeouts, the unit allows maintenance personnel to identify faulty segments or degraded cabling without shutting down the entire PROFIBUS DP network segment.

Logistics and Warranty Excellence

• Shipping: Expedited worldwide shipping via FedEx, UPS, and DHL.
• Dispatch: Guaranteed order processing within 24–48 hours.
• Protection: Every unit is backed by a 12-month performance warranty.

Expert FAQ and Configuration Guide

Can this interface handle non-Siemens PROFIBUS masters?

Yes, as a standard PROFIBUS DP slave device, it is compatible with any certified PROFIBUS master controller using the corresponding GSD file.

What is the limitation of the 244-byte data volume?

The 244-byte limit applies to the cyclic input/output data per station. If your process requires higher density, consider distributing modules across multiple PROFIBUS nodes.

How should I terminate the bus at the 1200-meter mark?

At 1200 meters, ensure active bus termination resistors are enabled at both the first and last nodes of the segment to prevent signal reflections.

Is the module suitable for high-altitude industrial sites?

The module is rated for operation up to 1000 meters; for installations exceeding this, consult derating charts for potential thermal impacts.

Buying Guide: How do I optimize cycle times for 63 modules?

Keep your total cable distance below 1200m and utilize the highest possible baud rate supported by the master to maintain the fastest scan cycles for all 63 modules.
