59-546-9 Fireye Integrated UV/IR Flame Scanner Cable

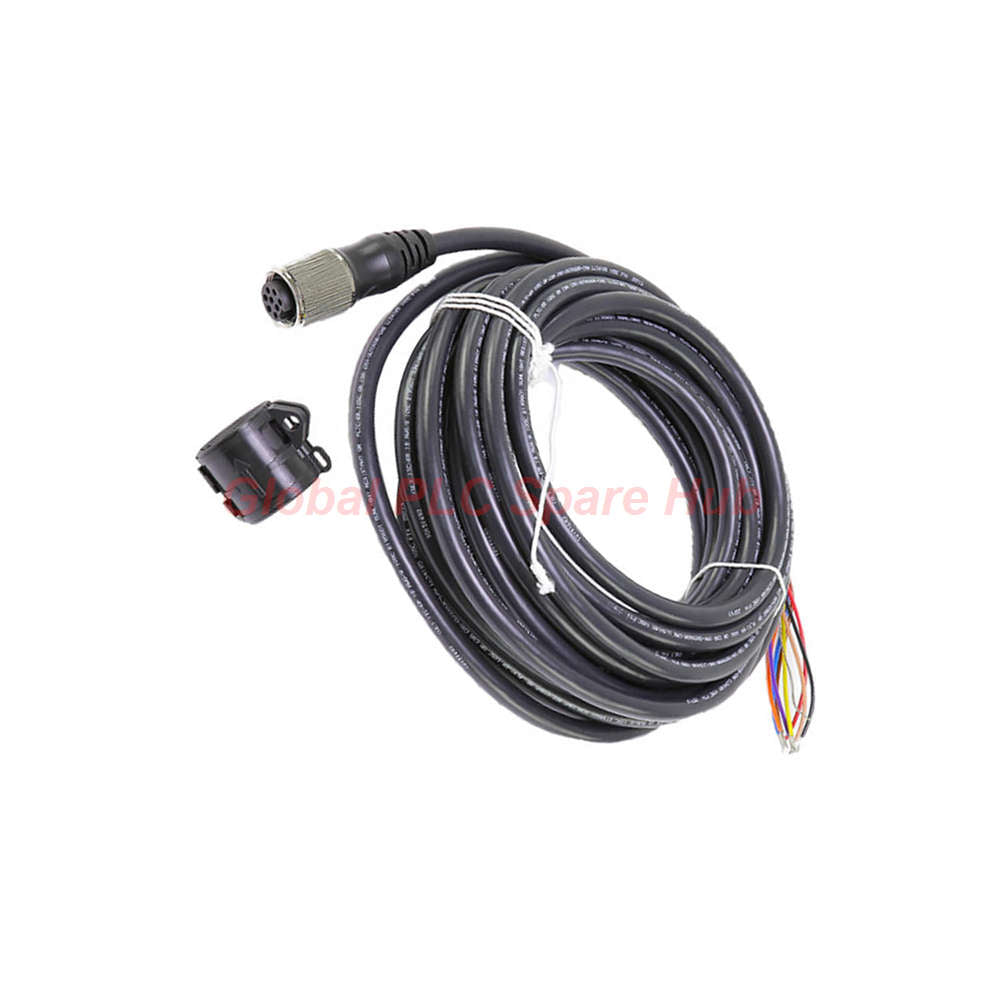

59-546-9 Fireye Integrated UV/IR Flame Scanner Cable Assembly

59-546-9 Fireye combines ultraviolet and infrared flame sensing technologies in one industrial scanner platform.

The assembly includes an 8-conductor 9-meter cable with an 8-pin female connector for stable field integration.

This scanner supports demanding combustion safety systems requiring fast flame verification and high signal reliability.

Engineers deploy this model in burner management systems where continuous flame discrimination remains critical.

Its dual-spectrum sensing design improves flame detection stability during changing fuel and furnace conditions.

System Architecture Snapshot

• Optical Detection Core
  • Integrated infrared and ultraviolet sensing channels
  • Improves flame discrimination accuracy
  • Supports multi-fuel combustion environments
• Signal Transmission Structure
  • 9-meter shielded cable assembly
  • 8-pin female connector interface
  • Stable long-distance signal transfer
• Control Output Layer
  • Two SPDT flame relays
  • One SPST fault relay
  • Two standard 4-20 mA outputs
• Commissioning Platform
  • Supports intrinsically safe wireless handheld setup tool
  • Simplifies burner startup adjustments
  • Improves field diagnostics efficiency

Global PLC Spare HUB's Insight

Fireye 59-546-9 performs effectively in combustion environments with unstable flame characteristics.

The combined UV and IR sensing structure reduces false flame detection during heavy combustion turbulence.

Field engineers value its relay architecture for independent flame and fault annunciation logic.

The scanner suits applications requiring precise burner supervision and rapid flame response behavior.

Wireless commissioning capability reduces adjustment time during burner startup and maintenance procedures.

Recommended Equipment Integration

• Industrial burner management systems
• Boiler combustion safety systems
• Gas turbine ignition platforms
• Refinery process heaters
• Thermal oxidizer systems
• Petrochemical furnace controls
• Multi-burner combustion skids
• Power generation combustion systems

Core Technical Characteristics

• Brand: Fireye
• Model: 59-546-9
• Product Type: Flame Scanner Cable Assembly
• Sensor Technology: Combined ultraviolet and infrared sensing
• Cable Structure: 8-conductor assembly
• Cable Length: 9 meters
• Connector Type: 8-pin female connector
• Input Voltage: 24 Vdc
• Voltage Tolerance: +10% / -15%
• Supply Current: 0.35 A
• Power Consumption: 8.5 VA
• Minimum Hold Time: 20 msec
• Recommended Power Supply: Fireye 60-2685
• Flame Relay Outputs: 2 SPDT relays
• Fault Relay: 1 SPST relay
• Analog Outputs: Dual 4-20 mA channels
• Operating Temperature: -40°C to +65°C ambient
• Internal Scanner Temperature: -40°C to +80°C
• Storage Temperature: -40°C to +85°C
• Humidity Range: 0% to 95% non-condensing
• Cooling Air Requirement: 4 SCFM minimum
• Maximum Purge Air Flow: 15 SCFM for harsh environments
• Installation Interface: Threaded mounting flange

Engineering Notes for Installation

• Use clean and dry purge air only
• Maintain sufficient pressure above furnace pressure
• Install the scanner away from excessive vibration sources
• Protect optical access from soot accumulation
• Verify grounding integrity before commissioning
• Use recommended flange assemblies for thermal stability
• Inspect connector sealing during outdoor installation

Diagnostic and Monitoring Capability

• Supports continuous flame integrity monitoring
• Detects unstable combustion conditions rapidly
• Improves burner startup verification
• Helps isolate intermittent ignition failures
• Supports predictive combustion maintenance programs
• Provides independent fault relay diagnostics
• Analog outputs support real-time flame strength trending

Industrial Application Advantages

• Fast response during burner ignition sequences
• Reliable flame discrimination in mixed-fuel systems
• Reduced false trips during turbulent combustion
• Stable operation under elevated thermal conditions
• Flexible integration into legacy combustion platforms
• Improved maintenance visibility through analog feedback

Shipping and Warranty Support

• Warranty Period: 12 Months
• Shipping Partners: FedEx, UPS, DHL
• Dispatch Time: Fast international processing available
• Packing: Industrial protective export packaging
• Technical Support: Product verification assistance available

Professional FAQ

• Why does dual-spectrum sensing improve combustion reliability?
  • UV and IR channels verify flame characteristics differently during unstable combustion conditions.
  • This reduces nuisance shutdowns caused by transient flame disturbances.
• How should engineers size purge airflow in dusty applications?
  • High particulate environments typically require airflow near the upper recommended range.
  • Insufficient purge air may shorten optical stability and maintenance intervals.
• What commissioning issue appears most frequently during startup?
  • Improper scanner sighting angles often reduce flame signal consistency.
  • Field technicians should verify direct flame visibility during alignment.
• When should users prefer analog flame outputs over relay-only monitoring?
  • Analog outputs help track gradual combustion quality changes before shutdown conditions occur.
  • This improves predictive maintenance planning for burner systems.
• What factors matter most when selecting a flame scanner for refinery heaters?
  • Engineers should evaluate fuel type variability, furnace pressure, and thermal exposure conditions.
  • Dual-spectrum scanners perform better in fluctuating combustion environments.
