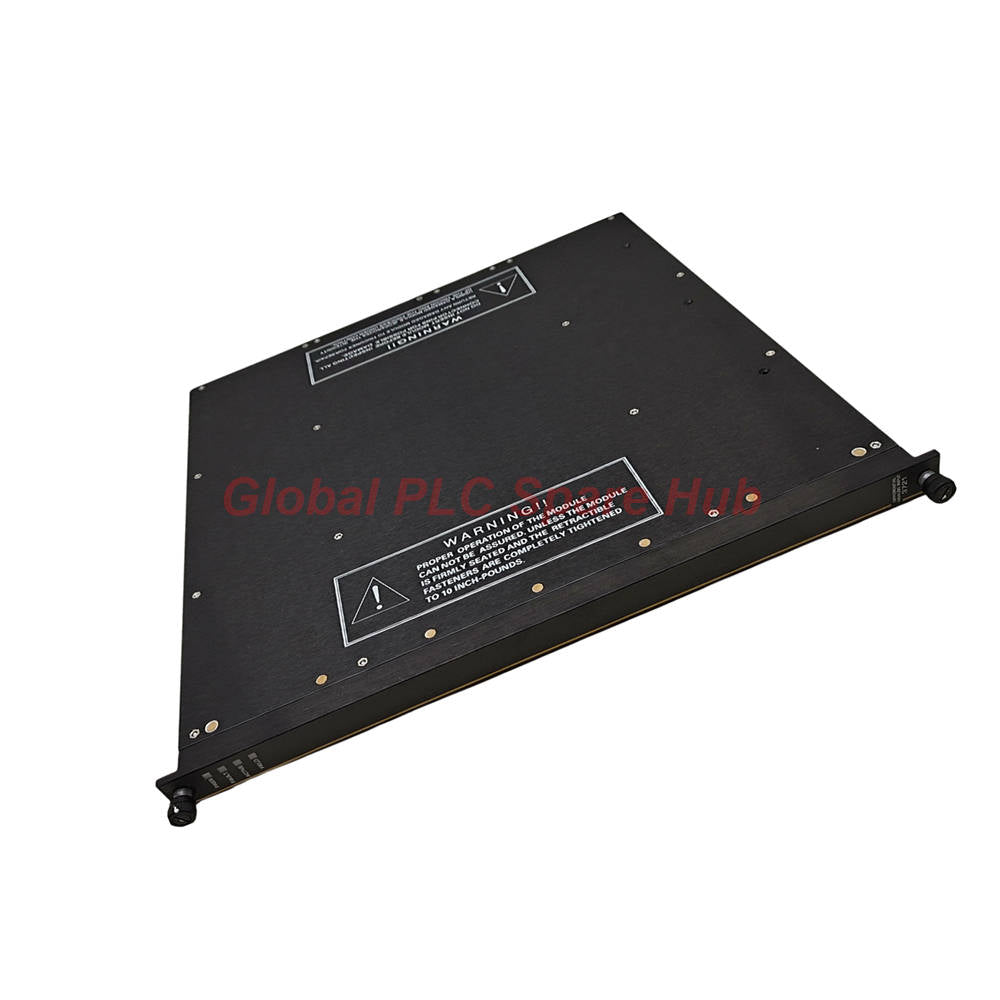

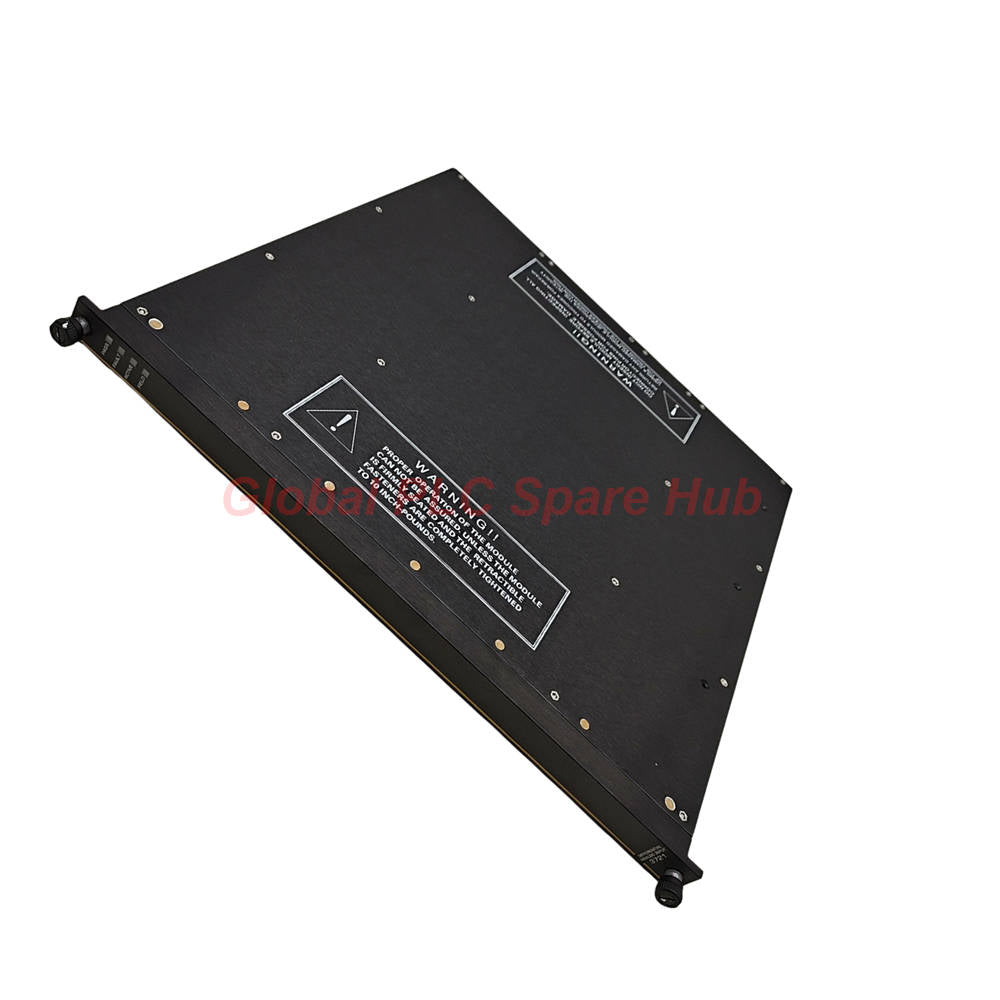

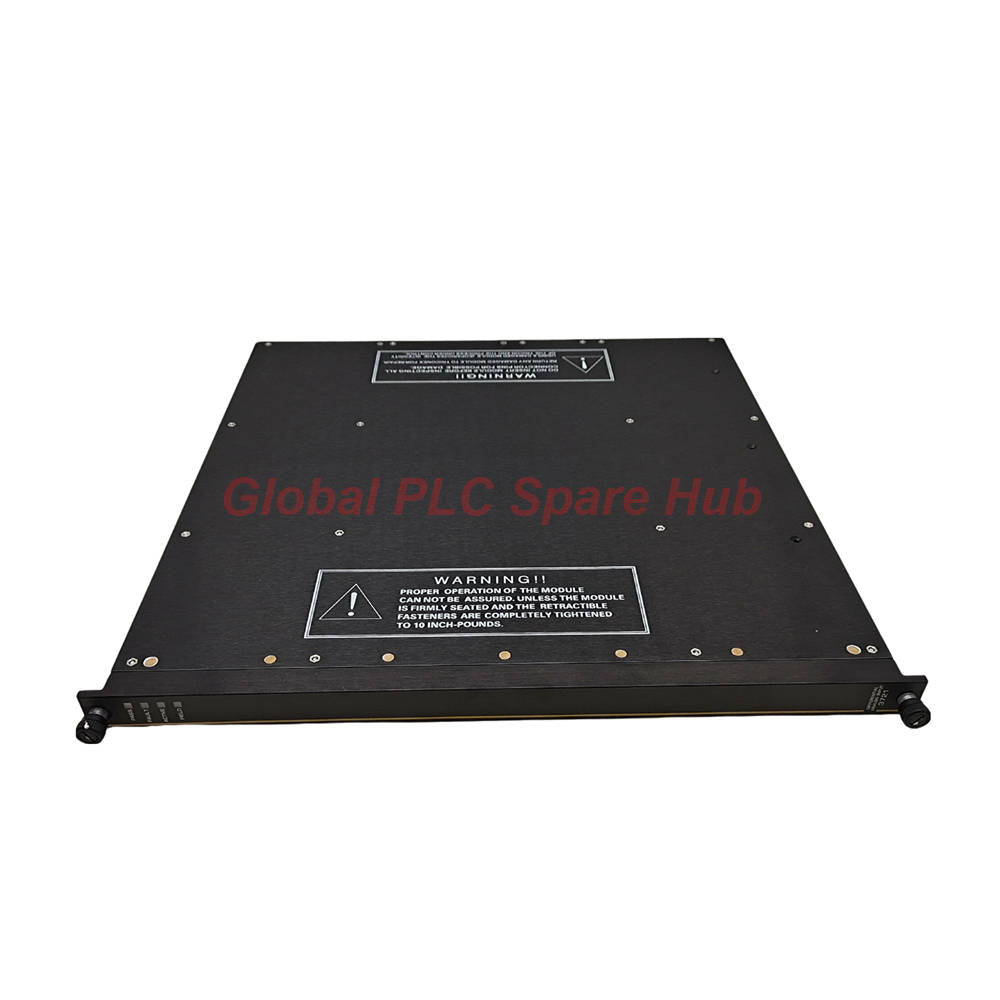

3721 Schneider Triconex 0-5VDC Input Module Safety System

Global PLC Spare HUB's Insight

• The 3721 Analog Input Module is a high-performance cornerstone of the Triconex TMR architecture.
• Unlike standard modules, the 3721 utilizes 32 differential inputs for superior noise immunity.
• Engineers value the programmable 12 or 14-bit resolution to balance speed and precision.
• The 10ms update rate captures rapid process transients for safety-critical surge protection.
• It remains a top choice for high-speed turbine control and SIL3-rated safety environments.

Technical Specification Matrix

• Brand: Schneider Electric / Triconex
• Model Number: 3721
• Series: Triconex TMR Series
• Module Type: Differential Analog Input (AI)
• Input Capacity: 32 points, Differential, DC-Coupled
• Input Voltage Range: 0 to 5 VDC or -5 to +5 VDC
• Current Range: 0–20 mA (Requires 250 Ω shunt resistor)
• Update Velocity: 10 ms (Continuous scan)
• Resolution: Programmable 12-bit or 14-bit
• Common Mode Rejection: -85 dB (DC – 100 Hz)
• Overrange Protection: 150 VDC / 115 VAC continuous
• Identification: Yellow Color-Coded Module

Diagnostic Capabilities & Fault Tolerance

• Comprehensive internal self-testing for all three TMR channels ensures zero failure gaps.
• Front-panel status LEDs: PASS, FAULT, ACTIVE, and FIELD for instant health monitoring.
• Integrated Field-to-Logic isolation protects against field-side electrical surges.
• Automatic channel-specific fault detection allows continuous operation via voting logic.
• High-level overvoltage protection ensures survival during field wiring malfunctions.

Strategic Application Scenarios

• High-Speed Rotating Equipment: Optimized for vibration monitoring in steam turbines.
• Safety Instrumented Systems (SIS): A staple for SIL3-rated Emergency Shutdown (ESD) loops.
• Complex Process Control: High-accuracy temperature and pressure monitoring.
• Power Generation: Reliable grid monitoring with high common-mode rejection.
• Hazardous Monitoring: Interfacing with emission analyzers and gas detection hardware.

Global Logistics & Warranty

• Warranty: Standard 12-month quality guarantee on all 3721 units.
• Shipping Partners: Global air freight via FedEx, UPS, and DHL.
• Dispatch Window: Orders ship within 24 to 48 hours of confirmation.
• Condition: Industrial-grade reliability, quality-inspected for critical service.

FAQ & Expert Procurement Guide

What is the benefit of the differential input design in the 3721?

Differential inputs significantly reduce common-mode noise, which is vital for long-distance sensor runs.

Can I use the 3721 for 4-20mA signals without a specialized baseplate?

Yes, but you must install a high-precision 250 Ω shunt resistor to convert current into the 5VDC voltage range.

How do I choose between the 12-bit and 14-bit resolution modes?

Use 12-bit for maximum speed in high-dynamic loops; use 14-bit when application precision is the priority.

What does a "Yellow" color code on the module indicate?

The yellow code is a mechanical keying indicator to ensure correct insertion into the matching AI baseplate.

Selection Advice: Is the 3721 compatible with older Tricon v9 chassis?

It is compatible, but ensure your TriStation software supports 14-bit configuration for that specific system version.
