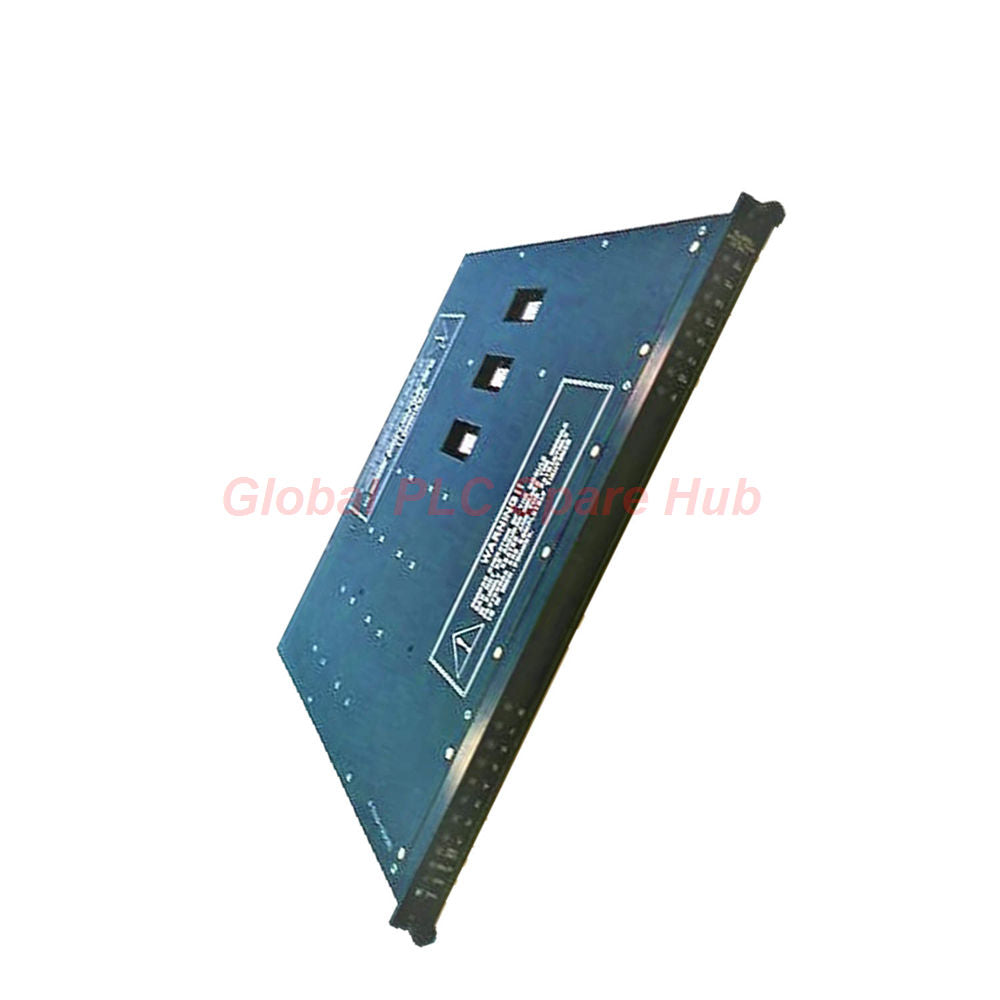

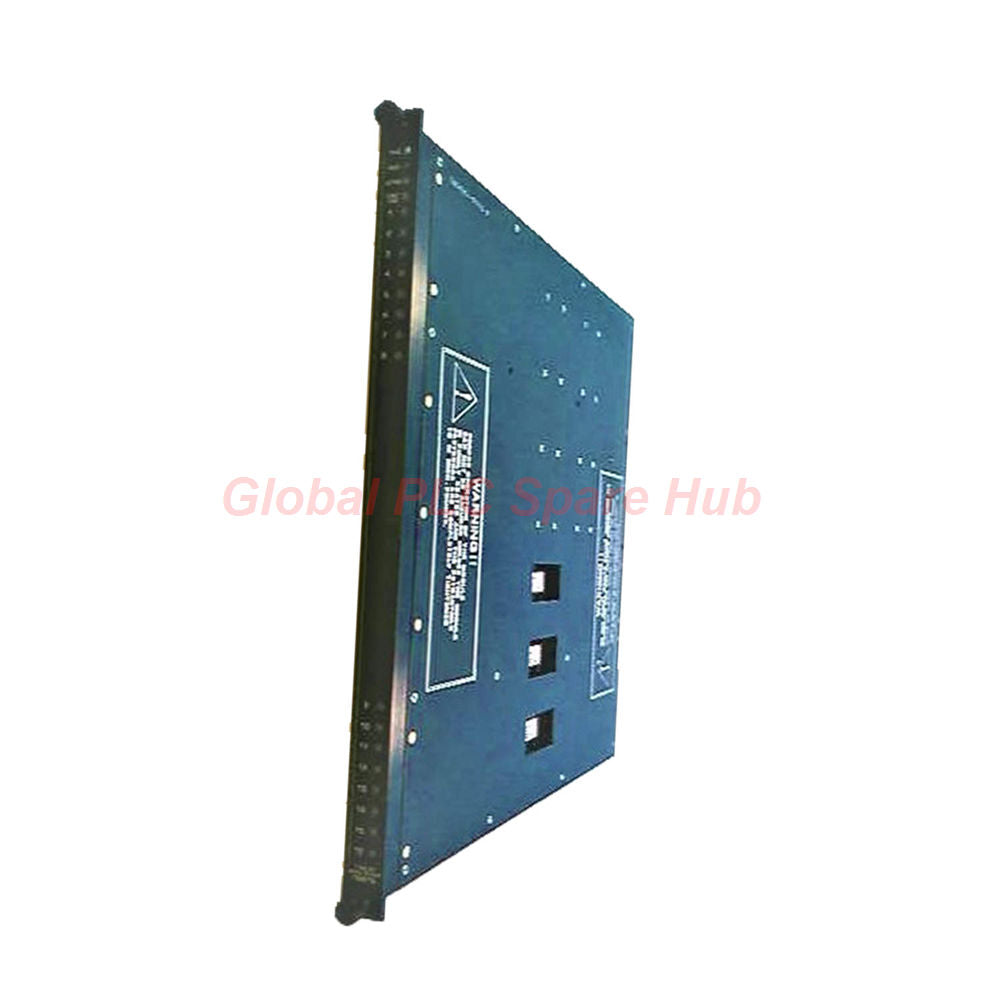

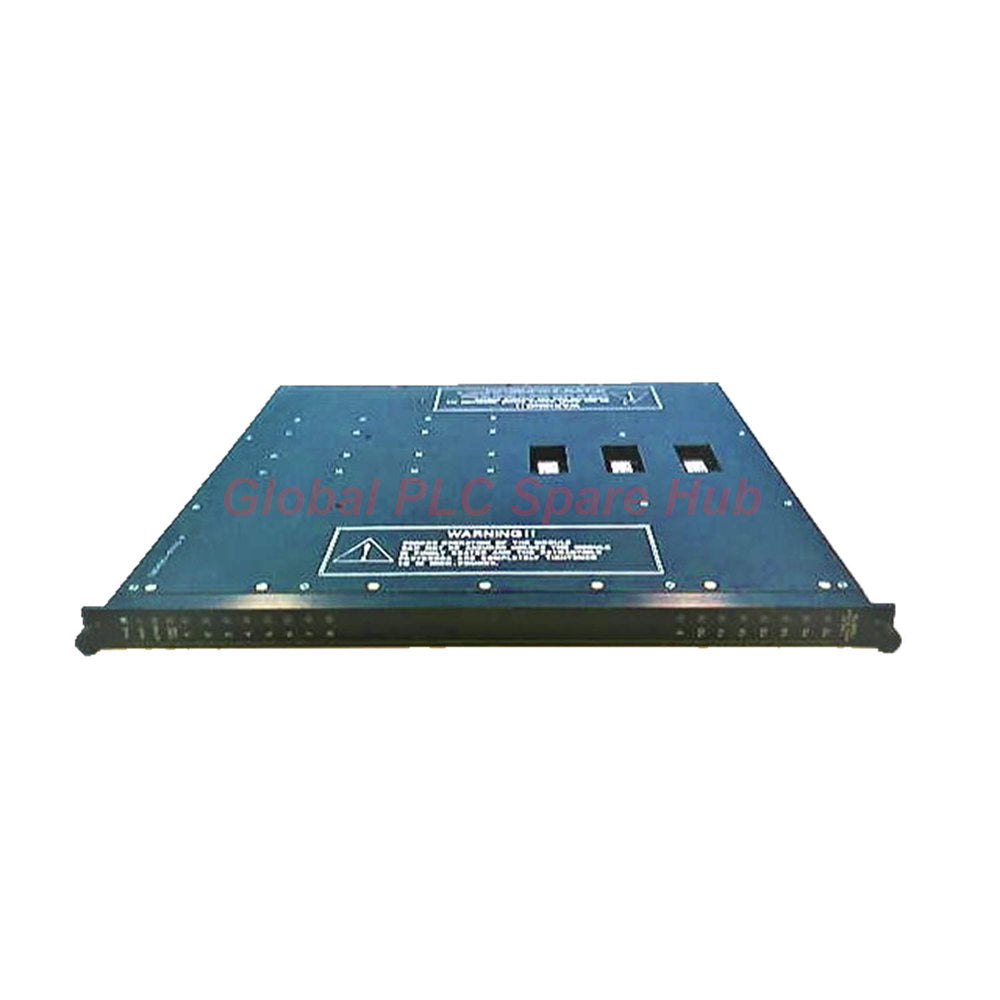

3601E Schneider Electric Triconex DO Module 115V AC Non-Commoned

Global PLC Spare HUB's Insight

• The 3601E is a heavy-duty powerhouse within the Triconex safety ecosystem.
• Unlike commoned modules, the 3601E is strictly non-commoned for maximum loop isolation.
• The 12A surge rating is engineered to "kick-start" large AC solenoids and heavy actuators.
• Individual isolation eliminates the risk of single-point ground faults affecting multiple safety loops.
• If your facility relies on 115VAC for final control, the 3601E provides the required SIL3 integrity.

Engineering Technical Profile

• Brand: Schneider Electric / Triconex
• Model Number: 3601E
• Series: Triconex TMR Series
• Module Type: TMR Digital Output (DO)
• Output Density: 16 Points, Individually Isolated (Non-Commoned)
• Nominal Voltage: 115 VAC
• Operational Range: 80 to 155 VAC
• Max Continuous Current: 2.0 Amps per point
• Max Surge Current: 12.0 Amps (One cycle peak)
• Point Isolation: 1,500 VDC
• Color Code: Green Faceplate
• Required Fusing: 3A Fast-acting fuse per output

Advanced Diagnostic & Monitoring

• Individually Isolated Monitoring: Each point is independently tracked to ensure output integrity.
• LOAD/FUSE Alarms: Specific diagnostics to identify open-load conditions or blown field fuses.
• TMR Triple Voting: Internal hardware voting ensures outputs change state only on majority processor agreement.
• Module Health Status: Front-panel PASS, FAULT, and ACTIVE LEDs for rapid system health checks.
• Point Indicators: Dedicated On/Off LED per point for field-side troubleshooting.

Strategic Application Scenarios

• High-Power Solenoid Control: Driving 115VAC solenoids in SIL3 Emergency Shutdown (ESD) systems.
• Motor Starter Interfacing: Handling the high-current inrush of AC motor contactor coils.
• Fire & Gas (F&G) Notification: Activating heavy AC-powered sirens and strobe lights.
• Critical Valve Actuation: Managing heavy inductive loads in refinery manifold control.
• Electrical Separation: Mandatory for safety loops requiring full separation between channels.

Logistics & Quality Assurance

• Warranty: Comprehensive 12-Month industrial warranty on all 3601E units.
• Global Shipping: Fast international air freight via FedEx, UPS, and DHL.
• Dispatch Window: All 3601E units ship within 24–48 hours of verification.
• Condition: Industrial-grade reliability, quality-inspected for safety-critical service.

FAQ & Expert Selection Guide

Why should I choose the 3601E over a commoned 115VAC module?

The non-commoned design prevents a field fault on one device from propagating to others through a shared return path.

How does the 3601E handle highly inductive loads like large contactors?

The module's 12A surge rating allows it to withstand inrush currents typical of inductive coils without damage.

What is the significance of the "Green" color code on this module?

It is a mechanical keying safeguard to prevent insertion into low-voltage DC slots.

Does the 3601E require external fuses on the termination panel?

Yes, each output requires a 3A fast-acting fuse; the module will diagnostic-alert you if a fuse blows.

Selection Guidance: When should I choose the 3601T variant over the 3601E?

Check your TriStation 1131 hardware list; the "T" variant may be required for specific system firmware revisions.
