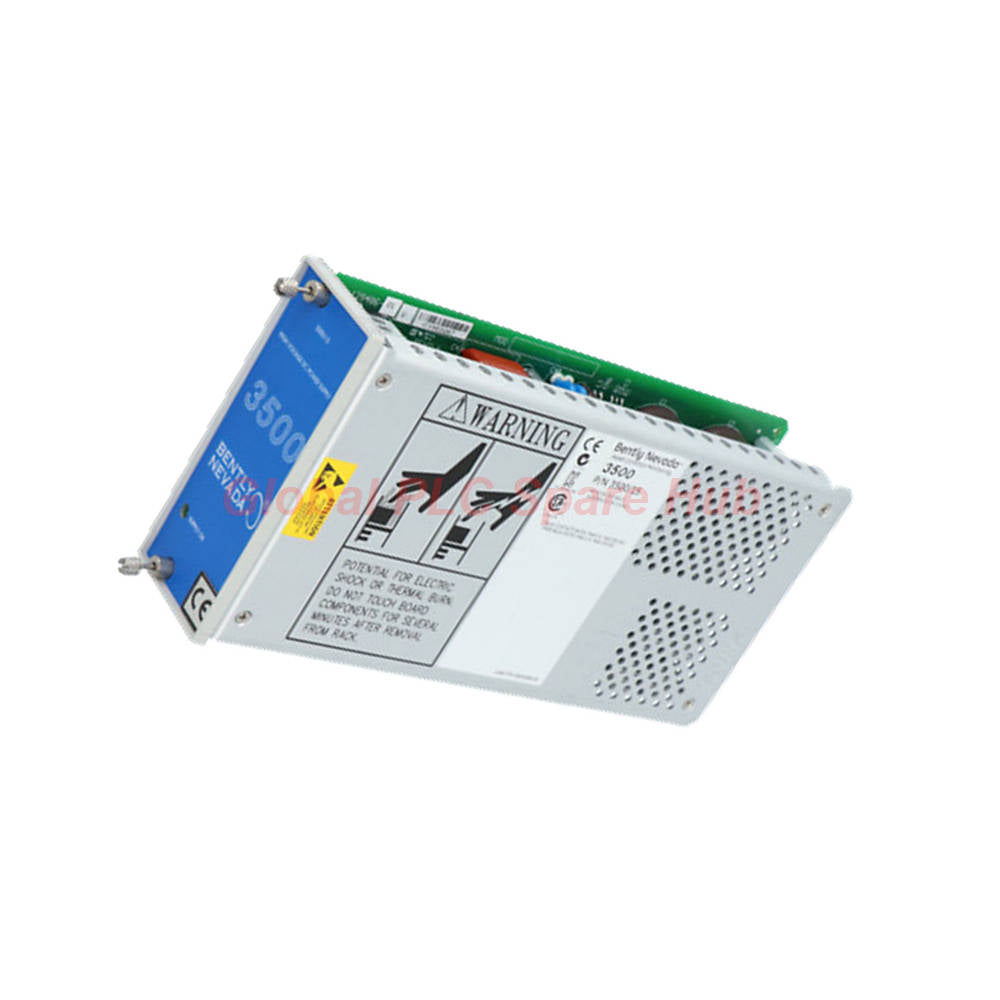

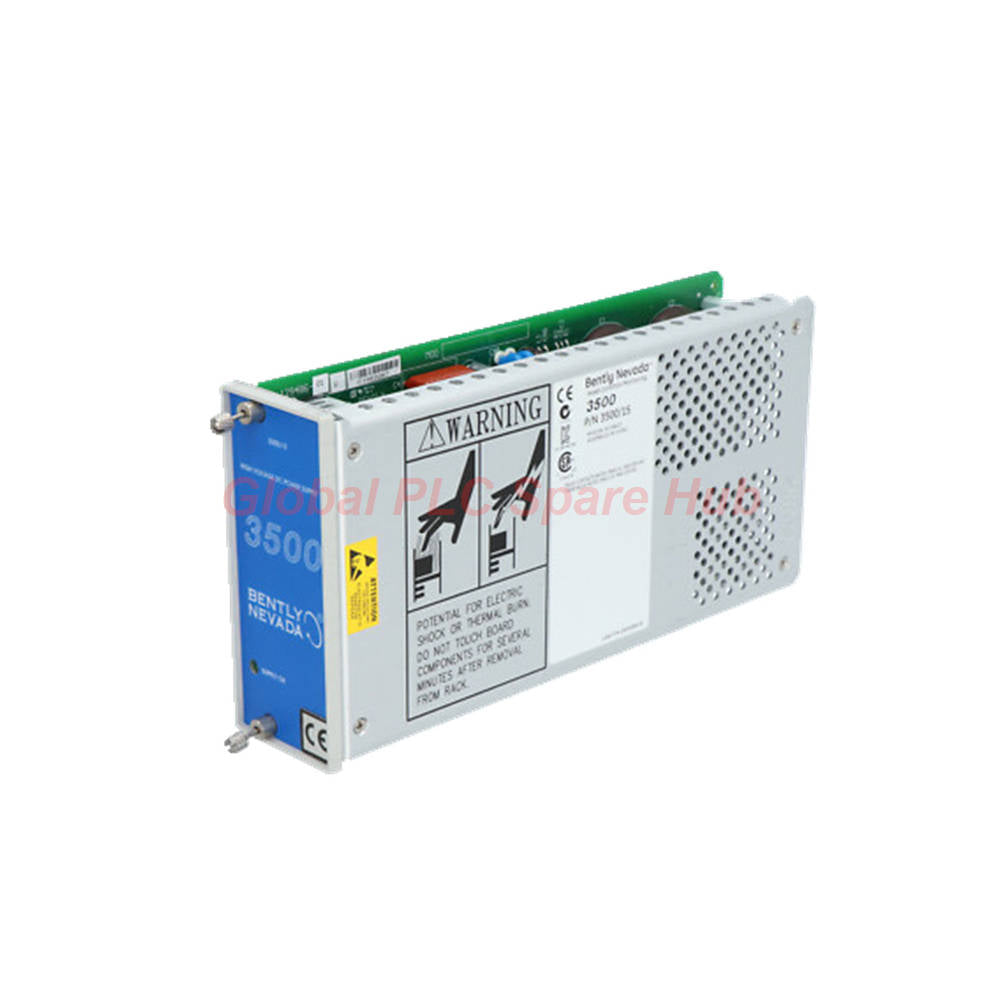

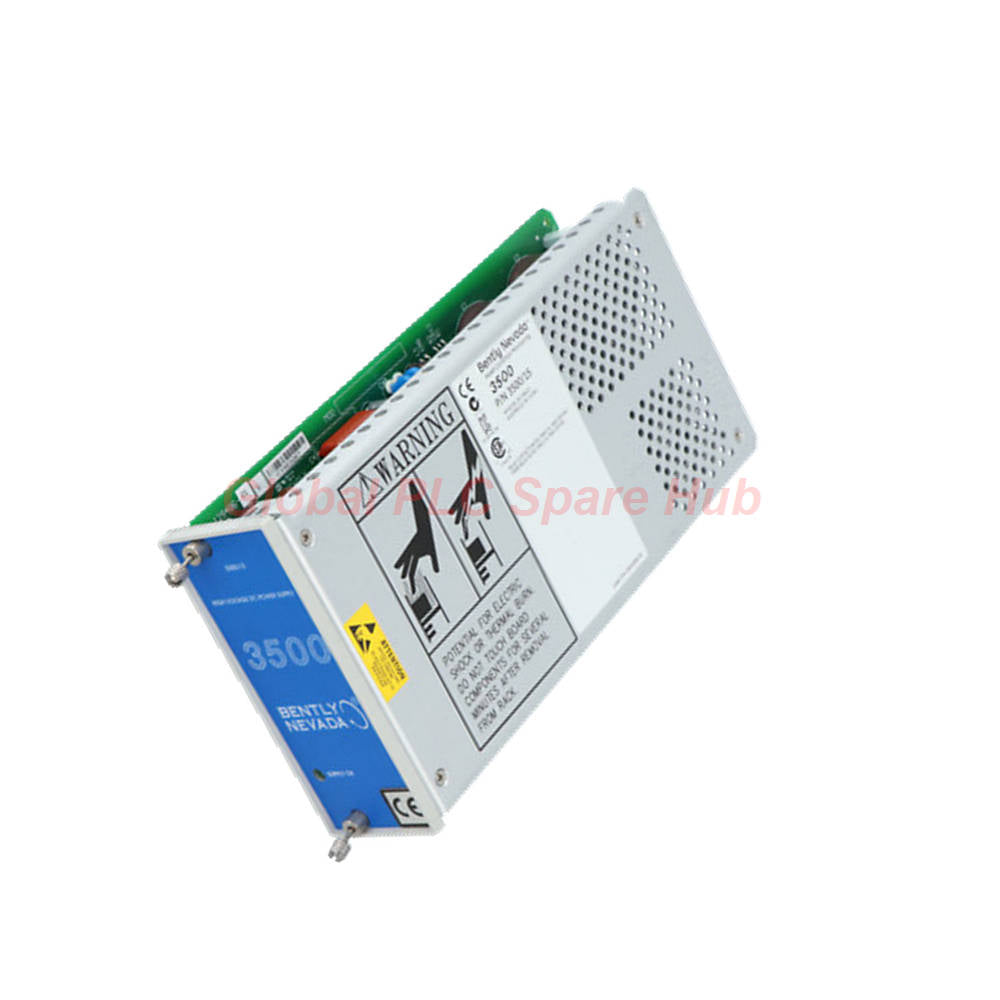

3500/15-02-02-01 Bently Nevada Power Supply Unit

Engineering Architecture & Configuration Breakdown

This technical summary details the Bently Nevada 3500/15-02-02-01 power supply module from the 3500/15 AC and DC Power Supplies series. Engineered for critical machinery protection systems, this half-height module provides reliable high-voltage AC power conversion and redundant backup capabilities.

Core Electrical & Environmental Parameters

• Manufacturer & Series: Bently Nevada, 3500 Machinery Protection System
• Nominal Input Voltage: 220 Vac nominal (175 to 264 Vac rms operating range, 247 to 373 Vac pk)
• Input Frequency Band: 47 to 63 Hertz
• Physical Footprint: Dimensions (L x W x H) 25.15 cm x 5.08 cm x 12.07 cm (9.89 in x 2.0 in x 4.75 in)
• Module Weight: 1.39 Kilograms (3.06 Pounds)
• Operating Temperature Range: Minus 30 degrees Celsius to plus 65 degrees Celsius (minus 22 degrees Fahrenheit to plus 150 degrees Fahrenheit)
• Storage Temperature Range: Minus 40 degrees Celsius to plus 85 degrees Celsius (minus 40 degrees Fahrenheit to plus 185 degrees Fahrenheit)
• Relative Humidity Limit: Up to 95 percent, non-condensing

Mechanical Installation & Redundancy Guidelines

Install the 3500/15-02-02-01 module exclusively into the designated half-height slots on the extreme left side of the 3500 rack structure. When deploying dual power supplies, the lower slot module acts as the primary feed while the upper slot unit serves as an automatic backup. Hot-swapping either module is fully supported without disrupting rack operation, provided the secondary power supply remains active.

Compliance, Certifications & Regulatory Standards

• Electromagnetic Compatibility (EMC): EN 61000-6-2 (Industrial Immunity) and EN 61000-6-4 (Industrial Emissions) per EMC Directive 2014/30/EU
• Electrical Safety Compliance: EN 61010-1 standard adherence per Low Voltage Directive 2014/35/EU
• Hazardous Area Rating: CSA / NRTL / C approval for Class 1, Division 2 environments

Quality Assurance, Terms & Fulfillment Logistics

• Warranty Protection: Comprehensive 12-month replacement coverage against manufacturing flaws
• Global Shipping Methods: Expedited dispatch via FedEx, UPS, and DHL
• Fulfillment Speed: Standard processing and shipping within 24 to 48 hours
• Package Contents: One 3500/15-02-02-01 power supply module and compliance documentation

Targeted Industrial Equipment & Application Environments

• Large-scale steam and gas turbine generator monitoring racks
• Critical multi-stage centrifugal compressor protection systems
• Hydroelectric turbine vibration and process monitoring setups
• Industrial petrochemical compressor stations requiring dual-redundant power architecture

Built-In Diagnostics & Fault Handling Framework

The 3500/15-02-02-01 unit incorporates front-panel LED status indicators to report input power status and internal converter health. If the primary supply experiences a voltage sag or component failure, the system automatically transitions to the backup supply without dropping rack monitoring channels, logging fault flags to the rack diagnostic interface.

Global PLC Spare HUB Insight

Field engineering reviews emphasize that unexpected power supply trips in high-vibration environments often result from loose input terminal block screws or transient voltage spikes on the AC mains. When installing the 3500/15-02-02-01 module, always verify that an external line filter or surge protector is active on the 220 Vac feed to protect the internal high-voltage rectifiers during heavy plant switching events.

Expert Frequently Asked Questions

Question:
Can a single 3500/15-02-02-01 power supply handle a fully populated 3500 rack?

Answer:
Yes, either an individual primary or backup high-voltage AC supply is engineered with sufficient capacity to power a complete rack containing any combination of modules.

Question:
What precise input voltage range is required for older revision AC power input modules paired with this series?

Answer:
Installations utilizing AC power input modules prior to Rev. R and power supply modules prior to Rev. M require a constrained input voltage range of 175 to 250 Vac rms.

Question:
What purchasing considerations apply when selecting Class 1 Division 2 approved modules?

Answer:
Verify that your local plant safety mandates require hazardous location certifications for control room or local panel installations before finalizing model selection.

Question:
Why does the module front panel indicator show a fault condition despite stable incoming plant voltage?

Answer:
A fault indication during stable voltage usually points to an internal blown input fuse, a failed internal DC conversion stage, or a seating issue within the rack backplane connectors.

Question:
How does hot-swapping a failed power supply module affect rack configuration parameters?

Answer:
Hot-swapping does not affect system configuration because rack parameters are stored on separate rack rack-interface modules, allowing seamless hardware replacement.
