3482 Triconex High-Current Analog Output Module | 4-40mA Control

3482 | Triconex | TMR High-Current Analog Output Module

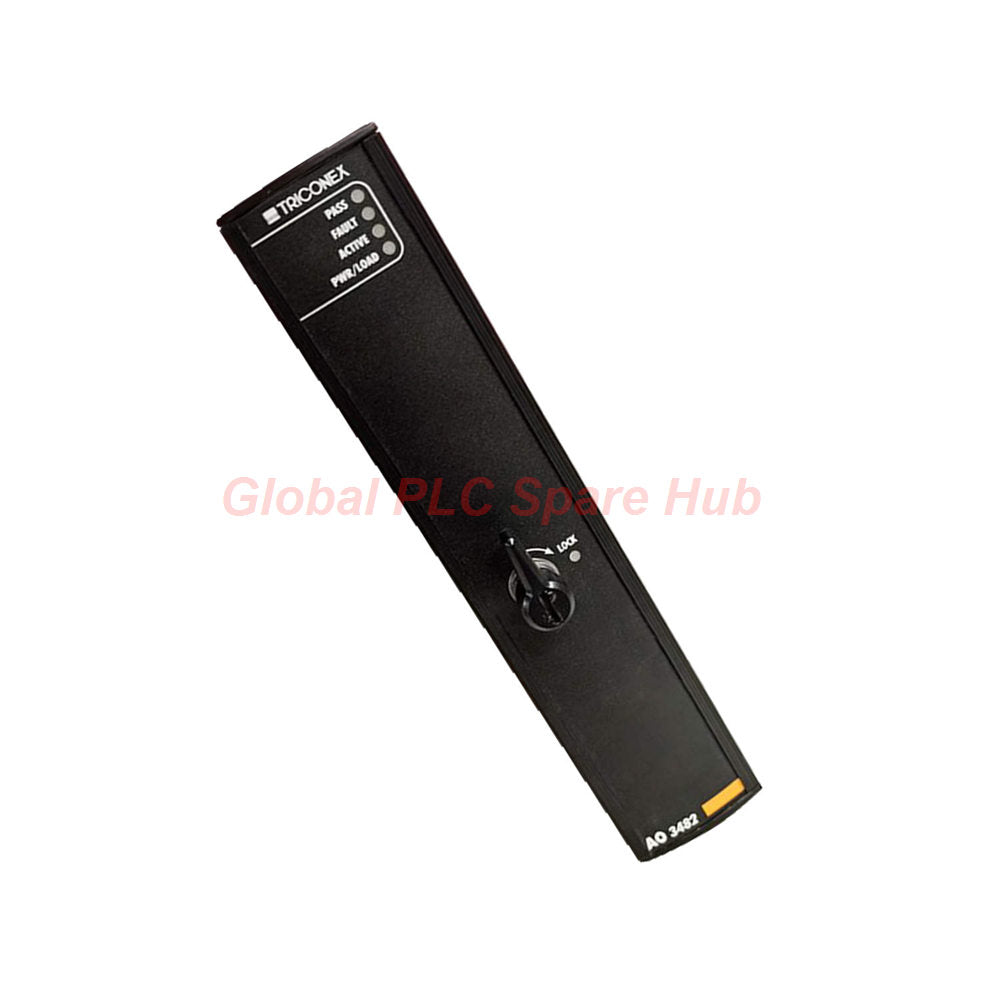

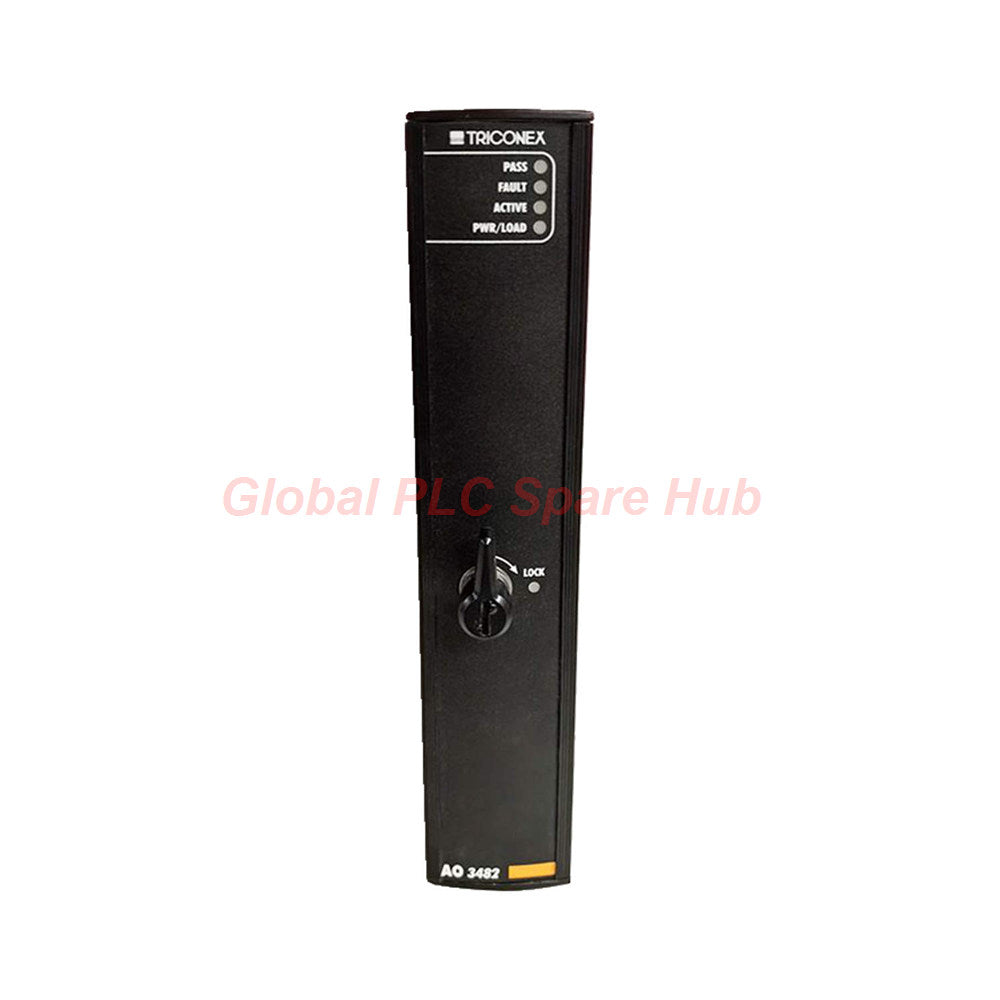

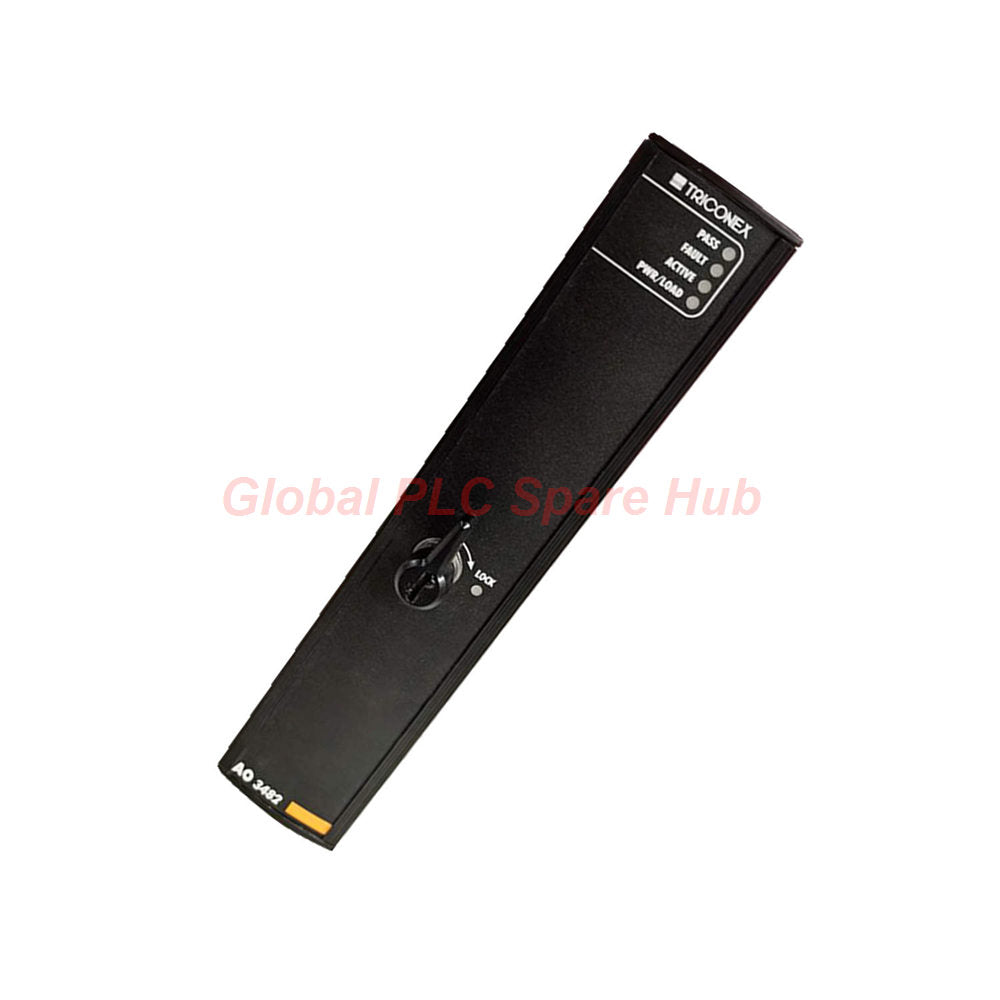

• The Triconex 3482 is a specialized High-Current Analog Output (AO) module designed for Triple Modular Redundant (TMR) safety and control.
• Optimized for high-demand actuators, providing 4 to 40 mA output current (with 0-44 mA over-range capability).
• Features a DC-coupled, commoned-return architecture specifically built for high-torque or high-impedance field devices.
• Utilizes high-speed switching logic, with a typical leg failure transition time of only 1 ms to ensure continuous process stability.
• Note: The 3482 module is exclusively compatible with the Model 2481 Analog Output Baseplate.

Technical Engineering Specifications

• Brand: Triconex (Schneider Electric)
• Model: 3482
• Architecture: Triple Modular Redundant (TMR)
• Output Points: 4 (Commoned-return, DC-coupled)
• Current Range: 4–40 mA (Controlled) / 0–44 mA (Over-range)
• Resolution: 12 bits
• Accuracy: < 0.25% of FSR (in 4–40 mA range)
• External Loop Power: 24 VDC Nominal (32 VDC Maximum)
• Leg Failure Switch Time: 1 ms Typical / 3 ms Maximum
• Over-range Protection: 36 VDC Continuous

Diagnostic Capability & Application Scenes

• Integrated Forced-Switch Diagnostic (FSD) ensures that all three redundant paths are capable of driving the load at all times.
• Heavy-Duty Valve Actuators: Driving large proportional valves that require higher current for stable positioning.
• Variable Speed Drives (VSD): Interfacing with legacy or high-current speed controllers in power generation.
• Hydraulic Positioning: Precision control for high-force hydraulic solenoids and governors.
• Marine & Offshore: Robust 40mA signal transmission over long cable runs to counteract voltage drops.

Shipping & Global Warranty

• Warranty: 12-month comprehensive industrial hardware guarantee.
• Courier Partner: Rapid worldwide shipping via FedEx, UPS, or DHL Express.
• Dispatch Time: Orders are typically processed and shipped within 24 to 48 hours.
• Packaging: Ships in premium ESD-shielded packaging to ensure zero-defect delivery.

Selection & Purchasing Guide

• Confirm your backplane compatibility; the 3482 will only seat in a 2481 Baseplate.
• Calculate your loop power requirements based on load impedance (e.g., 295 Ω requires >24 VDC loop power).
• If your application requires 0 mA output (step function), the 3482 supports this capability for values <4 mA.
• Ensure the external 24 VDC supply is rated for at least 1A minimum to support the high-current output stages.

Professional FAQ

• Why is the 3482 specified for 40 mA instead of the standard 20 mA?
• The 3482 is designed for high-current actuators and long-distance loops that require higher drive strength to overcome electrical resistance and load demands.

• What is Forced-Switch Diagnostic (FSD) and why is it used?
• FSD allows the TMR system to rotate the active output leg among the three redundant channels to confirm each path is healthy without dropping the signal.

• Can I use this module on a standard analog output baseplate?
• No, the 3482 is hardware-keyed and electronically compatible only with the Model 2481 Analog Output Baseplate.

• How does the module handle a hardware failure in one of the redundant legs?
• The system detects the fault and switches to a healthy leg within 1 to 3 ms, which is fast enough to prevent mechanical movement in most actuators.

• Does the accuracy vary across the full temperature range?
• The module maintains its < 0.25% FSR accuracy consistently from 0°C up to 50°C, making it reliable for cabinet installations in warm environments.
