Precision Engineering: 330930-045-00-00 NSv Extension Cable

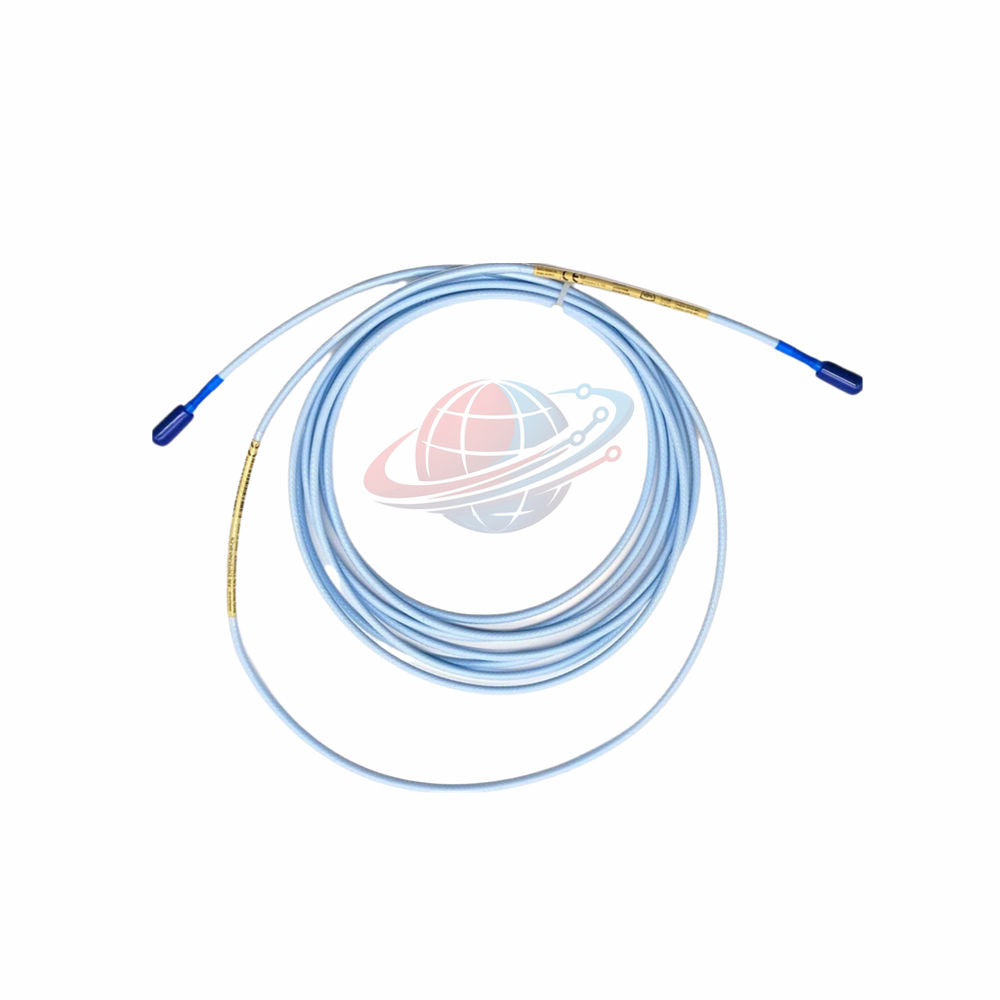

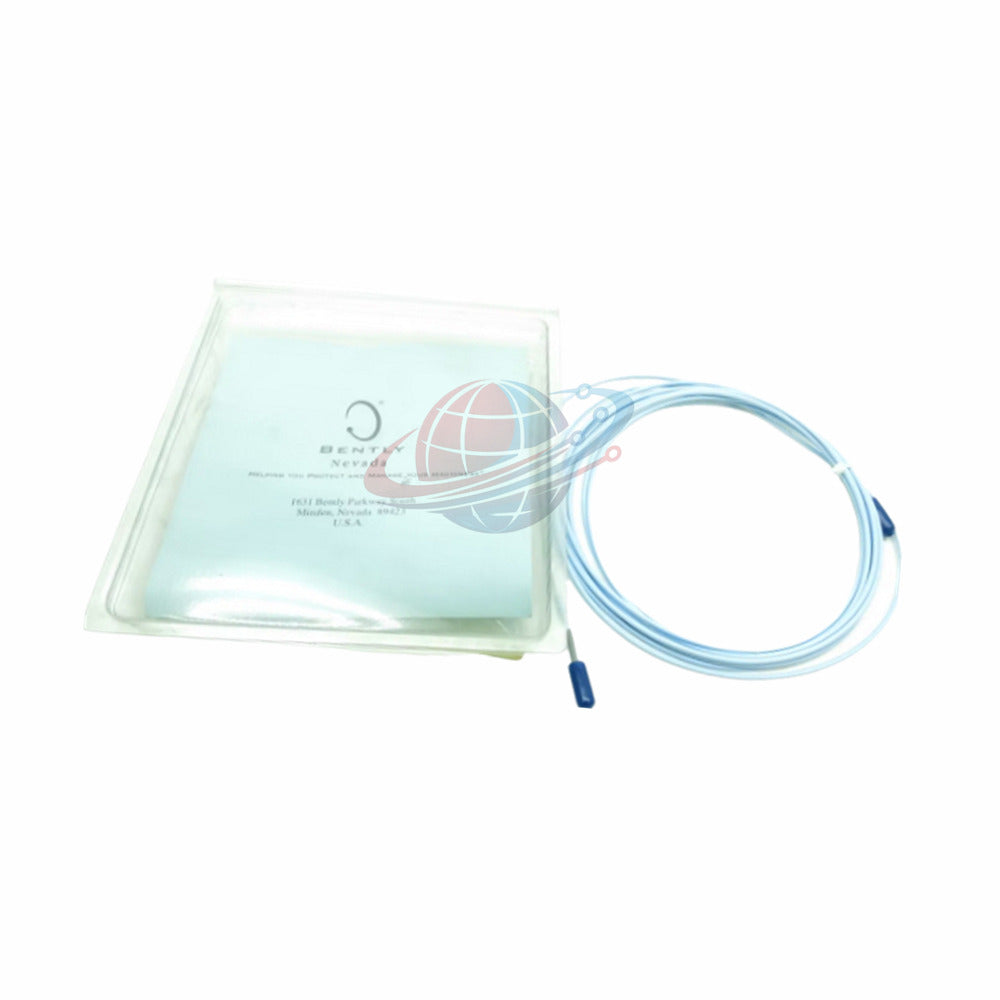

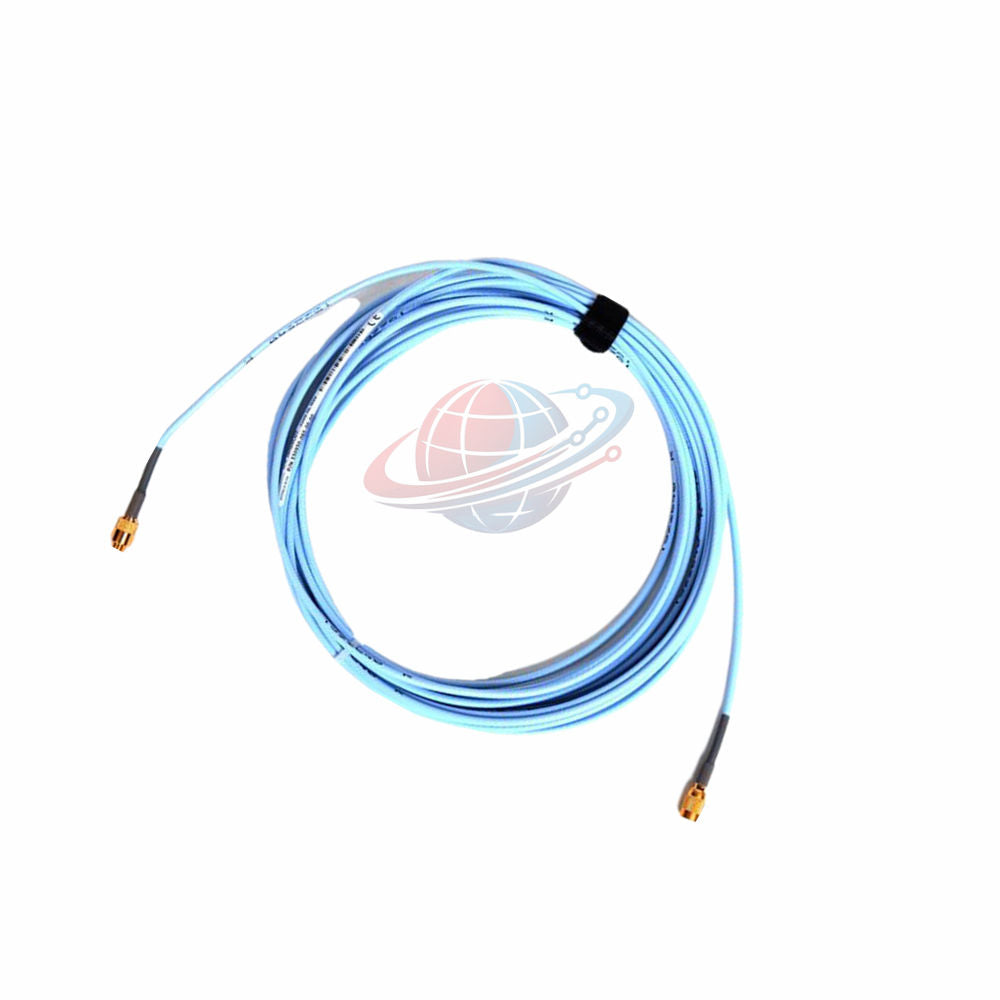

The 330930-045-00-00 is a high-precision 3300 NSv (Near-field/Small-vibration) extension cable by Bently Nevada. Engineered for demanding proximity sensing, this cable ensures signal stability in low-amplitude vibration applications, utilizing FEP-insulated coaxial construction to maintain superior EMI shielding.

Configuration Breakdown

• Part Number: 330930-045-00-00
• Suffix Selection:
  • 045: 4.5 meters (14.8 feet) total length
  • 00: Standard construction (Without stainless steel armor)
  • 00: No regulatory agency approval required

Technical Specifications

• Material: 75 Ω coaxial, FEP insulated
• Linear Range: 1.5 mm (60 mils)
• DC Resistance: Center 0.220 Ω/m; Shield 0.066 Ω/m
• Operating Temp: -51°C to +177°C
• Tensile Strength: 220 N (50 lb) rated
• Compatibility: Designed for 3300 NSv Proximitor Sensors

Selection Comparison & Technical Advice

For installations requiring longer reach, compare this unit with the 330930-065-11-00 variant.

Technical Suggestion: The 330930-045-00-00 is optimized for systems where total chain length must match the Proximitor sensor calibration. Ensure the sum of probe and extension cable lengths aligns with your sensor's factory calibration to avoid signal attenuation.

Global PLC Spare HUB's Insight

In our experience, the NSv series requires meticulous care regarding cable routing. Because these cables handle lower-amplitude signals compared to standard 3300 XL probes, we strongly advise using shielded triad cables for field wiring and maintaining a maximum of 305 meters between the sensor and monitor to keep signal noise floor low.

Logistics & Quality Commitment

• Dispatch: Orders processed and shipped within 24-48 hours.
• Logistics: Secure global shipping via FedEx, UPS, or DHL.
• Warranty: This 330930-045-00-00 component includes a 12-month performance warranty.

Professional Frequently Asked Questions

Q: Is the 330930 series compatible with standard 3300 XL Proximitors?
A: No. The NSv (Near-field) series is specifically tuned for different electromagnetic field characteristics; using it with standard 3300 XL sensors will result in incorrect displacement readings.

Q: Can I use this cable in marine or offshore environments?
A: Yes. The 330930-045-00-00 meets 2019 Maritime Classification Rules for offshore units and structures, making it suitable for high-humidity, salt-air environments.

Q: Why is the FEP insulation critical for this application?
A: FEP (fluoroethylene propylene) provides exceptional thermal stability and chemical resistance, ensuring the cable maintains its dielectric constant even in extreme temperature fluctuations.

Q: What is the risk of using ferrules on the field wiring?
A: While ferrules are recommended for 0.25 to 0.75 mm² wiring to prevent strand fraying, ensure they are high-quality crimps to avoid adding intermittent contact resistance to the loop.

Q: How does the watchdog or fault response function in the NSv system?
A: The system relies on the Proximitor's diagnostic reporting; if the cable integrity is compromised, the monitor will typically detect a "gap out-of-range" event due to the change in loop resistance/capacitance.
