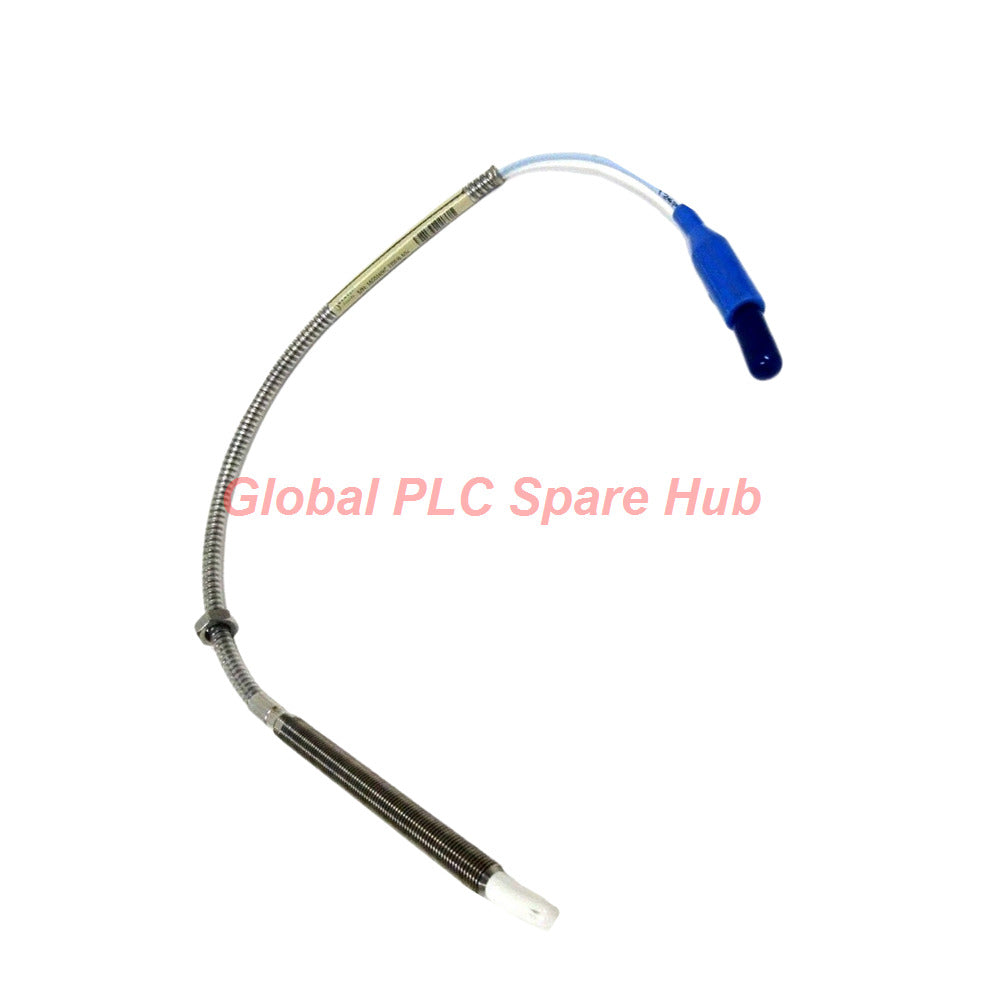

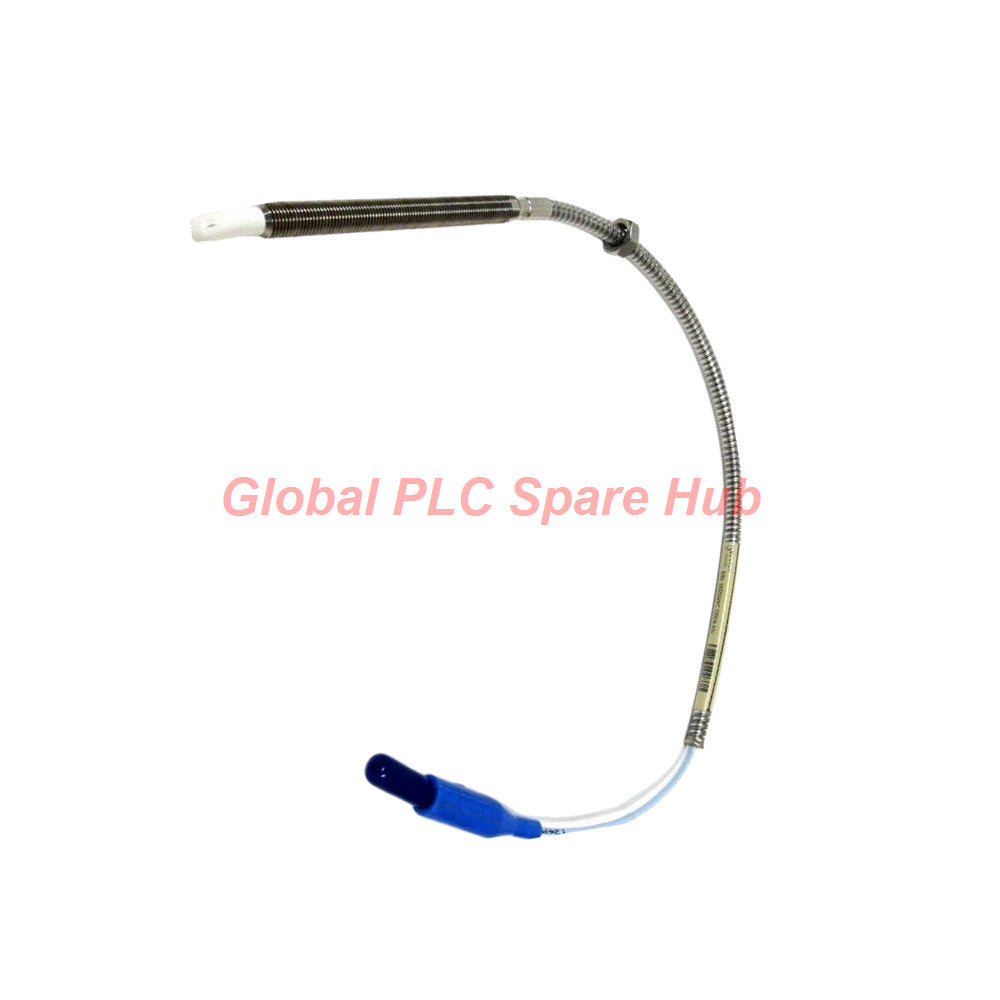

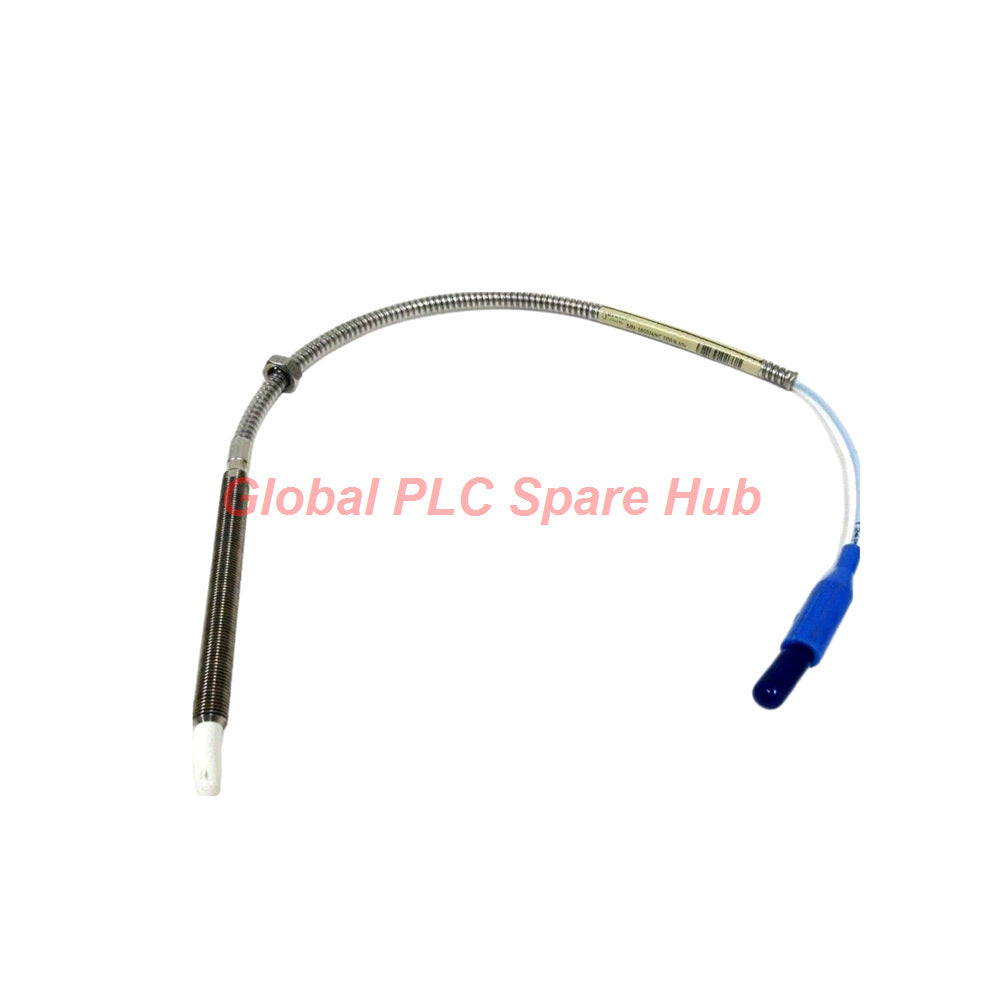

330909-00-60-50-02-05 Bently Nevada 3300 NSv Proximity Probe Armored
Manufacturer: Bently Nevada
Product No.: 330909-00-60-50-02-05
Condition： In stock
Product Type: Proximity Probe
Product Origin: USA
Payment: T/T, Western Union
Weight: 150g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Engineering Insight & Performance Summary
The 330909-00-60-50-02-05 represents an engineered 3300 NSv proximity sensor designed by Bently Nevada for specialized machinery with restricted target areas or non-standard shaft materials. Built with an integrated stainless steel armor over a 75-Ω FEP-insulated coaxial cable, this 3/8-24 UNF threaded probe delivers dependable radial vibration and axial position feedback in harsh, confined industrial environments where standard 8 mm probes experience field interference or boundary clipping.
Part Number Configuration Breakdown
- Base Model: 330909 — 3300 NSv Probe with 3/8-24 UNF thread and armor
- Unthreaded Length Option (00): 0.0 inches unthreaded section
- Overall Case Length Option (60): 6.0 inches case length
- Total Length Option (50): 5.0 meters (16.4 feet) system cable length
- Connector & Cable-Type Option (02): Miniature coaxial ClickLoc connector with standard armored cable
- Agency Approval Option (05): Multiple hazardous area approvals (CSA, ATEX, IECEx)
Technical Specifications Matrix
| Parameter Classification | Technical Engineering Metric |
|---|---|
| Brand & Series | Bently Nevada / 3300 NSv Series |
| Model Number | 330909-00-60-50-02-05 |
| Probe Thread & Material | 3/8-24 UNF thread with AISI 304 stainless steel case |
| Tip Material | Polyphenylene sulfide (PPS) |
| DC Resistance (RPROBE) | 5.3 ± 0.7 Ω (center to outer conductor at 5.0m) |
| Operating Temperature | -52°C to +177°C (-62°F to +351°F) |
| Maximum Torque Limit | 33.9 N·m (300 in·lb) overall case rating |
| Thread Engagement Limit | 0.563 inches maximum thread engagement |
Application Compatibility & Diagnostic Capabilities
- Target Machinery: Small high-speed compressors, centrifugal pumps, multi-stage gearboxes, and specialized turbines with tight radial clearances.
- Diagnostic Capabilities: Detects micro-vibrations, rotor eccentricity, fluid whirl, and early-stage journal bearing wear on shafts with restricted target surface diameters.
Model Selection & Technical Comparison
| Comparison Model | Cable & Armor Specifications | Technical Recommendation & Selection Guide |
|---|---|---|
| 330909-00-60-10-01-05 | 1.0 m total length, connectorized armor | Select this variant when your layout requires a shorter 1.0-meter cable run to match close-proximity housing arrangements. |
Logistics, Warranty & Fulfillment Terms
- Fulfillment Speed: Rapid 24 to 48-hour dispatch window.
- Global Shipping: Secure courier delivery via FedEx, UPS, and DHL.
- Warranty Terms: Comprehensive 12-month factory defect warranty.
Frequently Asked Questions
Why does the 3300 NSv series require specialized signal scaling compared to standard 8 mm probes?
The NSv system utilizes a unique linear range design tailored for small targets or non-standard materials, preventing signal saturation that occurs with standard probes in tight geometries.
What is Global PLC Spare HUB's Insight on tightening torque limits for 3/8-24 threads?
Global PLC Spare HUB recommends adhering strictly to the recommended 11.3 N-m torque limit (or 7.5 N-m for the first three threads) to prevent thread stripping or case distortion during installation.
How does the stainless steel armor protect the coaxial cable in industrial settings?
The integrated armor shields the 75-Ω FEP cable from mechanical abrasion, metal shavings, and accidental crushing in congested machine terminal boxes.
What precautions should technicians take when installing probes in sub-zero environments?
Avoid exposing the probe and its Viton O-ring seal to temperatures below -34°C prior to installation, as extreme cold can cause seal embrittlement and leakage.
How can I troubleshoot an erratic output signal on an NSv probe channel?
Verify the center-to-outer conductor DC resistance matches the expected 5.3 Ω baseline to rule out internal coaxial breaks or moisture ingress in the ClickLoc connector.
