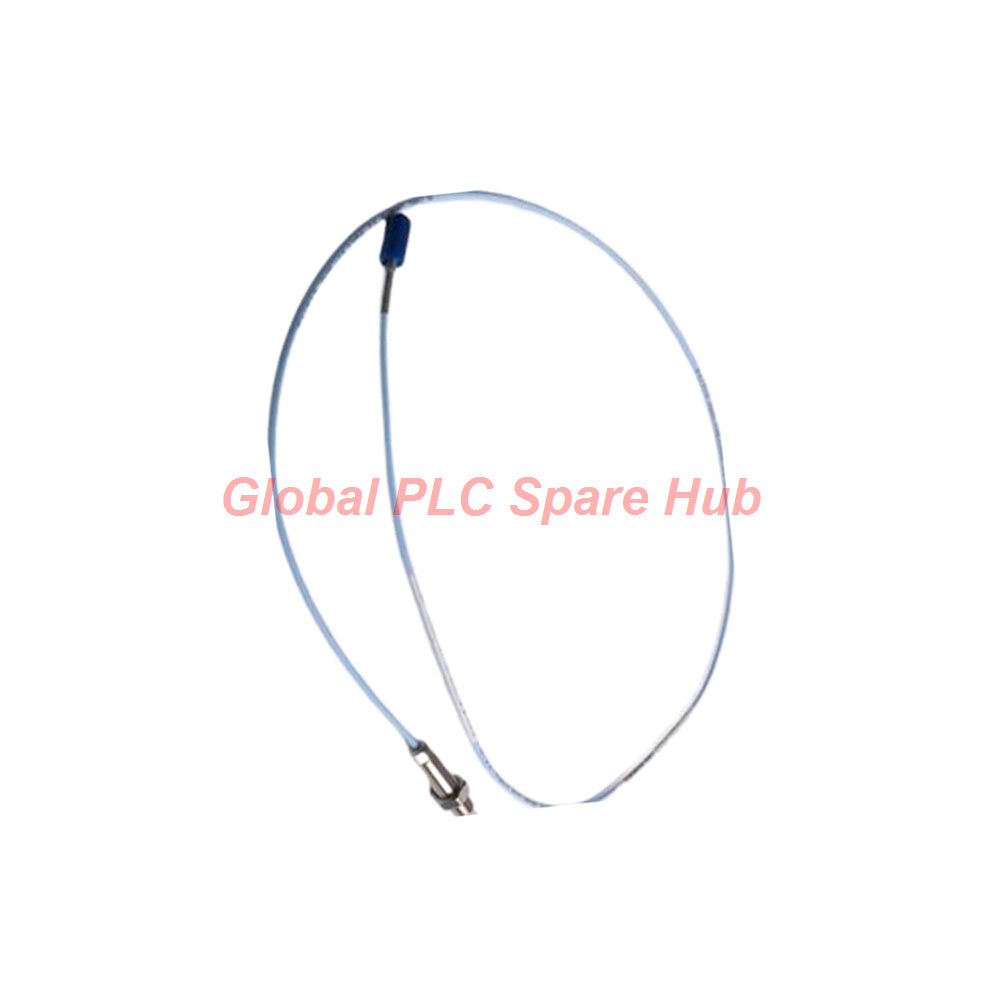

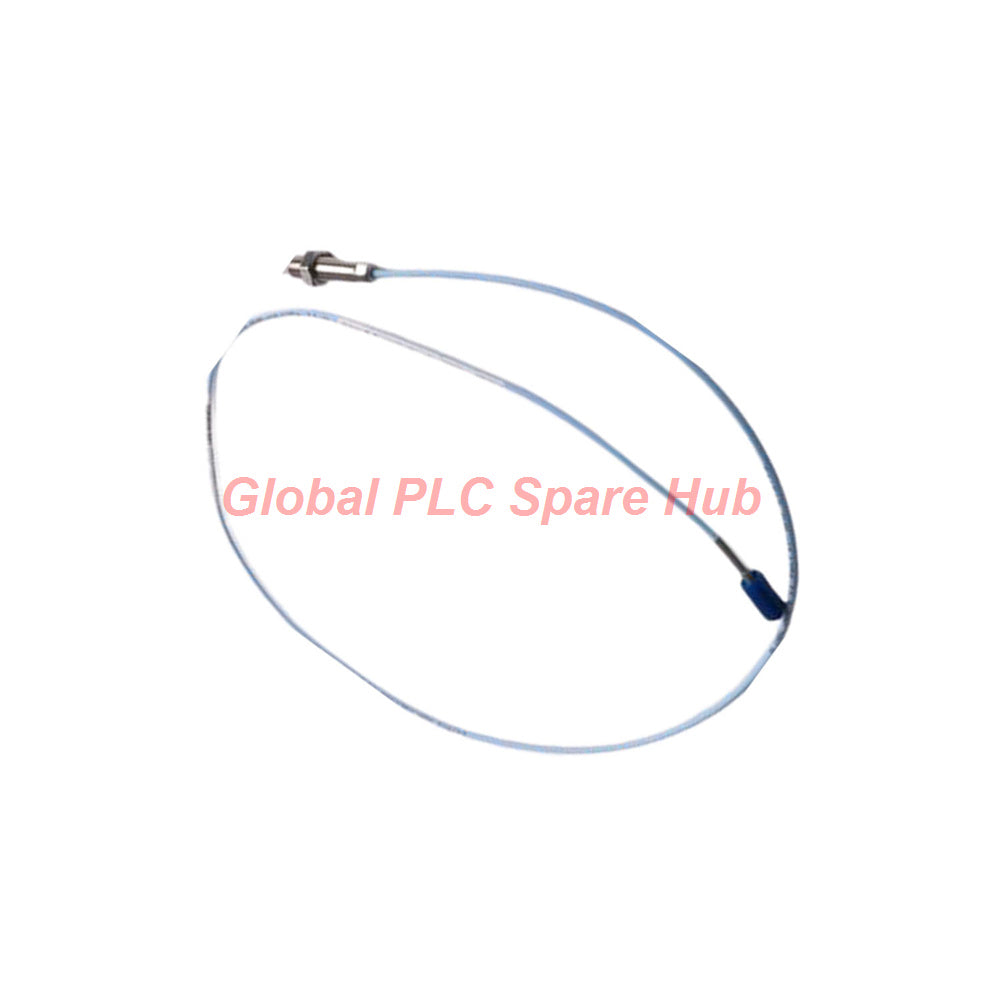

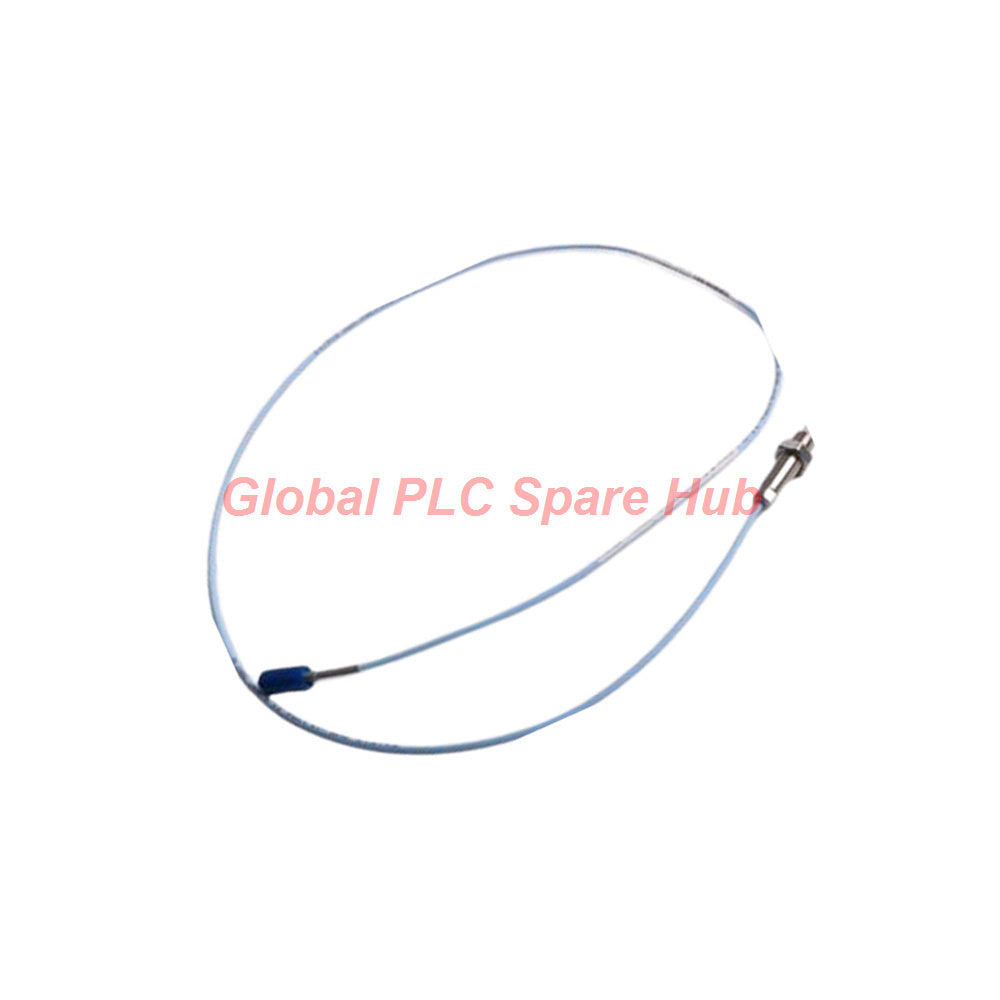

330908-00-16-05-02-00 Bently Nevada 3300 NSv Proximity Probe

Engineering Architecture and Model Breakdown

The 330908-00-16-05-02-00 sensor belongs to the Bently Nevada 3300 NSv proximity probe series, engineered specifically for measuring radial vibration and axial position on machinery featuring small targets, low-speed shafts, or specialized turbo-machinery configurations. The following configuration table decodes the exact part number structure:

Technical Parameters and Mechanical Specifications

Physical Mounting and Installation Guidelines

• Thread the 3/8-24 UNF probe case into machine mounting holes, ensuring thread engagement does not exceed the 0.563-inch limit.
• Apply the recommended installation torque of 11.3 N•m (100 in•lb) to prevent crushing the internal coil assembly or distorting the stainless steel housing.
• Route the 75-ohm coaxial FEP-insulated cable away from high-voltage AC motor lines to avoid electromagnetic interference on the low-level eddy current signal.
• Verify that ambient cold soak temperatures do not drop below -34°C (-30°F) during installation to safeguard the Viton O-ring pressure seal against premature failure.

Diagnostic Capabilities and Signal Monitoring

• Continuous monitoring of probe DC resistance (4.0 ohms) through connected 3300 NSv proximitor monitors allows immediate detection of internal open or short circuits.
• Eddy current linear range tracking detects high-frequency radial shaft vibrations and axial thrust displacement with extreme nanometer-level precision.
• ClickLoc connector locking mechanism ensures secure electrical contact, preventing intermittent open-circuit faults caused by severe machinery vibration.

Target Equipment and Application Scenarios

• Small centrifugal compressors, pumps, and specialized auxiliary gearboxes featuring restricted target surface areas.
• Laboratory test rigs and high-speed miniature spindles requiring high-resolution displacement and vibration telemetry.
• Low-speed turbine shafts where standard proximity probes fail to provide linear scaling due to insufficient target diameter.

Global PLC Spare HUB's Insight and Field Experience

Machinery protection engineers frequently deploy the 330908-00-16-05-02-00 when monitoring small-shaft machinery where standard 3300 XL probes lose linearity due to inadequate target width. Field experience indicates that technicians must exercise extreme caution when applying thread sealant or tightening the case; exceeding the 100 in-lb recommended torque easily strips the 3/8-24 threads or damages the PPS probe tip. Additionally, maintaining the strict 0.5-meter cable length configuration requires mounting the 3300 NSv proximitor housing in a close-coupled junction box to avoid signal attenuation.

Model Selection Comparison and Technical Recommendation

When evaluating alternative configurations within the same product family, comparing the current part against the 330908-22-31-10-01-05 Bently Nevada 3300 NSv Proximity Probe highlights key mechanical differences. While the unit described here features a compact 1.6-inch case with a short 0.5-meter cable, the alternative model utilizes an extended unthreaded/overall case profile and a longer 1.0-meter cable designed for deep-well machine mountings. Engineers should select this 0.5-meter variant when panel space inside the machinery terminal housing is constrained, eliminating the need to coil excess coaxial cable.

Frequently Asked Questions

Q: What specific machinery condition necessitates selecting the NSv (Non-Standard vibration) probe series over standard 3300 XL models?
A: NSv probes are specifically engineered for small target shafts or restricted clearance areas where standard eddy current probes cannot maintain linear output voltage responses.

Q: How does exposing the probe tip to extreme cold temperatures below -34°C impact structural integrity?
A: Sustained cold soak conditions harden the Viton O-ring seal, destroying its elasticity and causing pressure seal failure across differential pressure boundaries.

Q: What troubleshooting steps should be performed if the proximitor output voltage shifts toward negative power supply rails?
A: Check the 75-ohm coaxial cable continuity, inspect the ClickLoc connector for moisture ingress, and verify that probe DC resistance measures precisely 4.0 ohms.

Q: Can the 330908-00-16-05-02-00 probe be safely installed without thread tape or liquid thread sealants?
A: Yes, but if thread sealants are mandated by plant piping standards, ensure they do not contaminate the PPS probe tip or foul the eddy current electromagnetic field.

Q: What selection guide rules apply when deciding between 0.5-meter and longer cable options?
A: Choose the 0.5-meter cable variant only when the associated 3300 NSv proximitor can be mounted within close proximity to the probe penetration point, avoiding extra cable slack.
