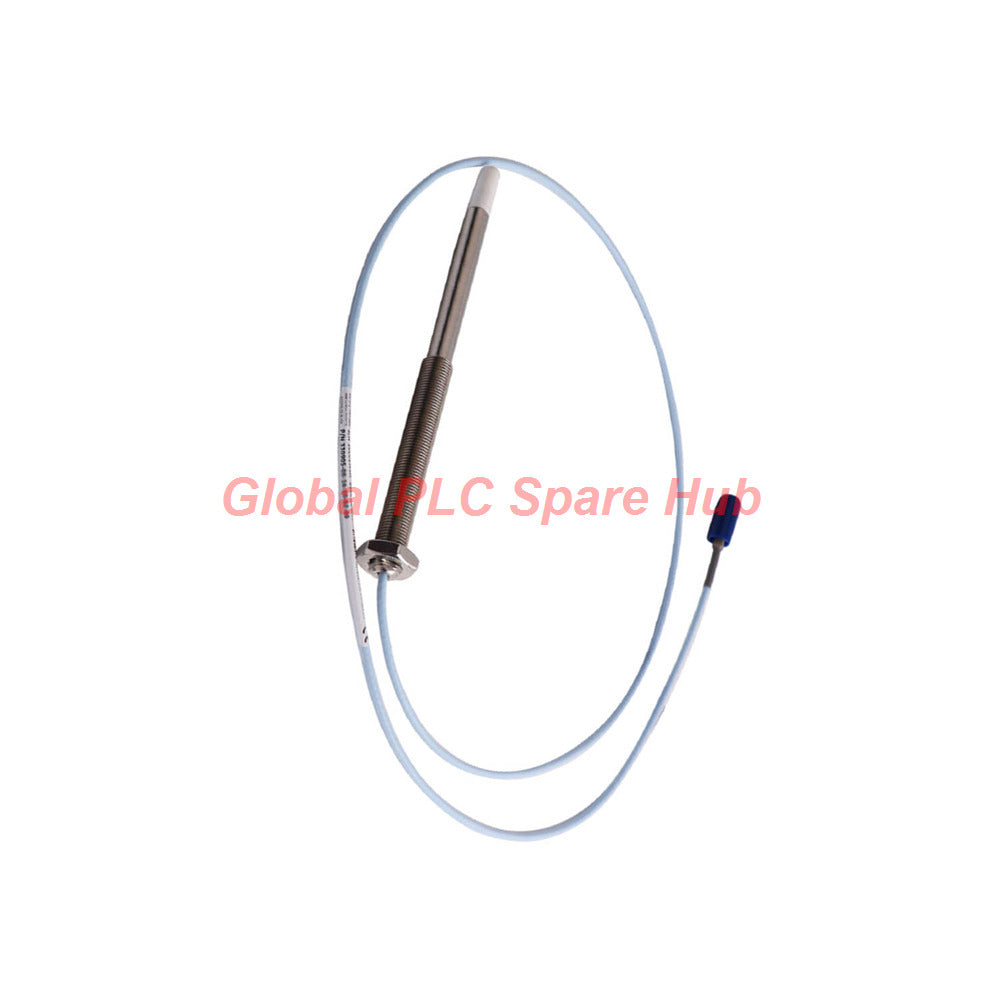

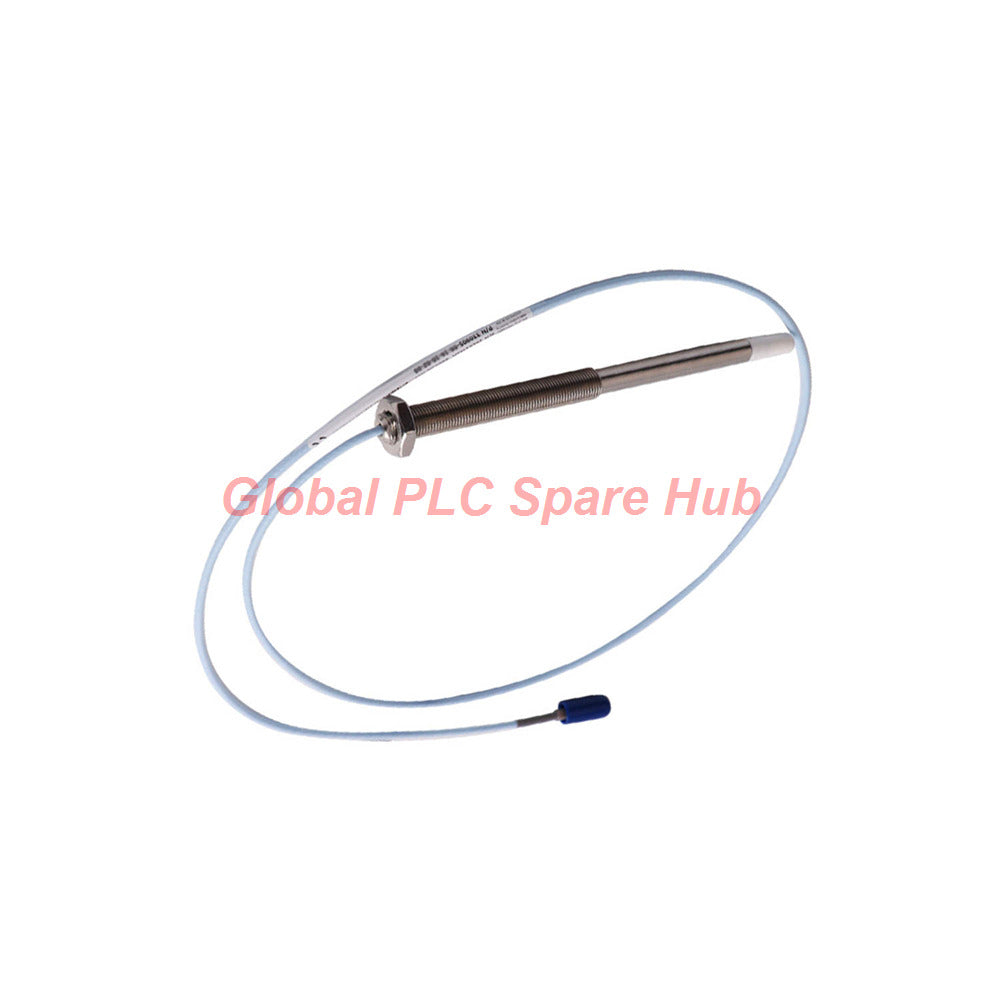

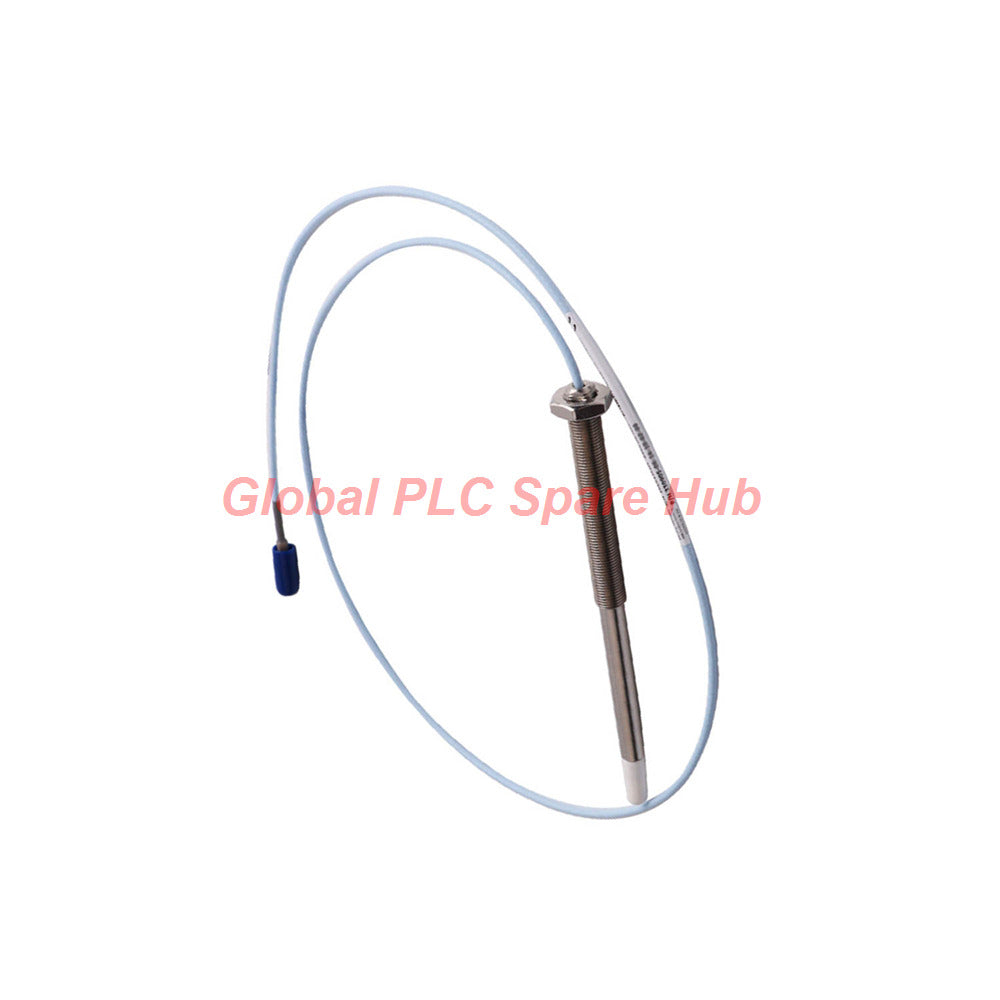

330905-00-15-05-02-05 Bently Nevada 3300 NSv Proximity Probe

Engineering Overview

Rotating machinery engineers deploy the Bently Nevada 3300 NSv 330905-00-15-05-02-05 proximity probe to measure minute radial vibration and axial position shifts in restricted spatial envelopes. Global PLC Spare HUB Insight indicates this specialized sensor excels in tight clearance zones where standard probes suffer from side-view interference errors.

Technical Parameters & Performance Limits

• Brand: Bently Nevada
• Series: 3300 NSv
• Part Number: 330905-00-15-05-02-05
• Sensor Type: Proximity Probe Transducer
• Linear Range: 1.5 mm (60 mils) spanning 0.25 to 1.75 mm from target
• Incremental Scale Factor: 7.87 V/mm (200 mV/mil) nominal
• Frequency Response: 0 to 10 kHz (+0, -3 dB typical)
• Operating Temperature: -52°C to +177°C (-62°F to +351°F)
• DC Resistance: 4.0 ± 0.5 ohms (probe center conductor to outer shield)
• Minimum Target Size: 8.9 mm diameter (13 mm recommended)

Ordering Configuration Breakdown

• Model Core: 330905 — 3300 NSv Probe, M10X1 thread, unarmored construction
• Unthreaded Length Option (-00-): 00 mm extension length behind thread
• Overall Case Length Option (-15-): 150 mm total mechanical body length
• Total Length Option (05): 0.5 meter (20 in) integral cable length
• Connector & Cable Option (-02): Miniature coaxial ClickLoc connector with standard cable
• Agency Approval Option (-05): Multiple hazardous area certifications included

Operational Diagnostics & Commercial Fulfillment

Diagnostic Capabilities

• Continuously outputs a proportional DC voltage (-1 to -13 Vdc) reflecting gap displacement.
• Detects mechanical runout, shaft vibration, and thrust position anomalies in real-time.
• Low deviation from best fit straight line (DSL) under ±0.06 mm ensures reliable diagnostic trends.

Logistics and Commercial Terms

• Warranty: Fully backed by a 12-month operational performance guarantee.
• Fulfillment: Rapid dispatch within 24 to 48 hours to eliminate downtime.
• Shipping Carriers: Secure global delivery via FedEx, UPS, and DHL.

Target Equipment & Deployment Scenarios

• Process Compressors: Monitoring high-pressure centrifugal gas compressors with aggressive chemical vapors.
• Small Steam Turbines: Measuring radial shaft displacement on rotors featuring restricted target diameters.
• High-Speed Gearboxes: Tracking gear mesh alignment and dynamic shaft movement in confined housings.

Model Comparison & Technical Recommendations

When evaluating alternative configurations for specific clearance requirements, engineers should consider compatible variants. For alternative cable lengths and connector configurations, review the 330905-00-08-05-12-05 NSv series sensor. Technical Recommendation: Verify that your mechanical thread depth and cable routing distance match the selected part suffix to prevent excessive signal attenuation or mechanical binding during installation.

Frequently Asked Questions

What primary advantage do NSv probes offer over traditional 3300 XL standard probes in tight spaces?
The NSv design features superior side-view characteristics, minimizing erroneous readings when mounted close to shoulders, keyways, or small-diameter shafts.

Why is finger-tight torque recommended initially during mechanical installation?
Finger tightening prevents over-stressing the M10X1 stainless steel threads before final alignment and locking with the jam nut.

Global PLC Spare HUB Review: How does field wiring length impact high-frequency vibration signals?
Using long field wiring runs up to 305 meters introduces signal rolloff at high frequencies due to cable capacitance; consult manufacturer frequency response graphs for attenuation curves.

What sealing mechanism prevents gas leakage along the probe body in compressor applications?
An integrated Viton O-ring seals differential pressure between the polyphenylene sulfide (PPS) probe tip and the AISI 304 stainless steel case.

Purchasing Guide: What critical factor should technicians confirm before selecting the 0.5-meter probe option?
Ensure the physical distance between the probe tip and the Proximitor sensor enclosure allows for an extension cable connection without exceeding maximum total loop capacitance limits.
