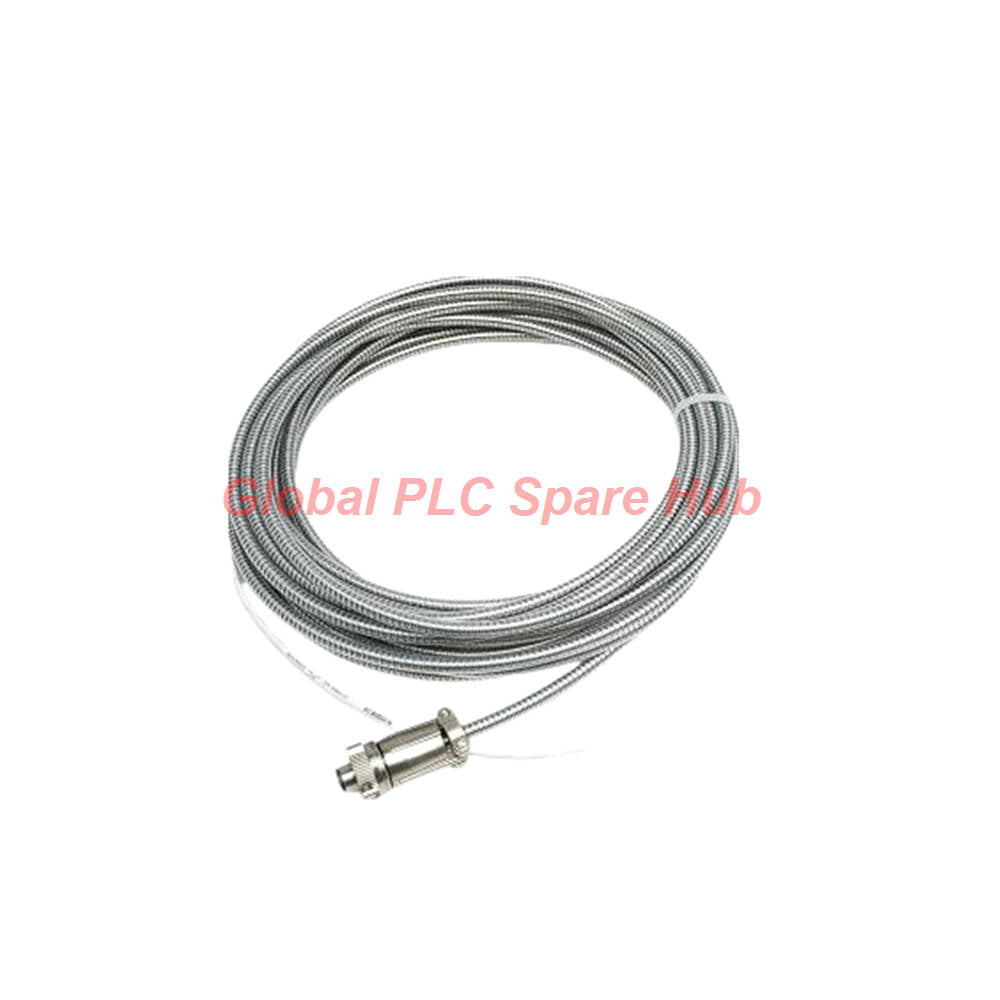

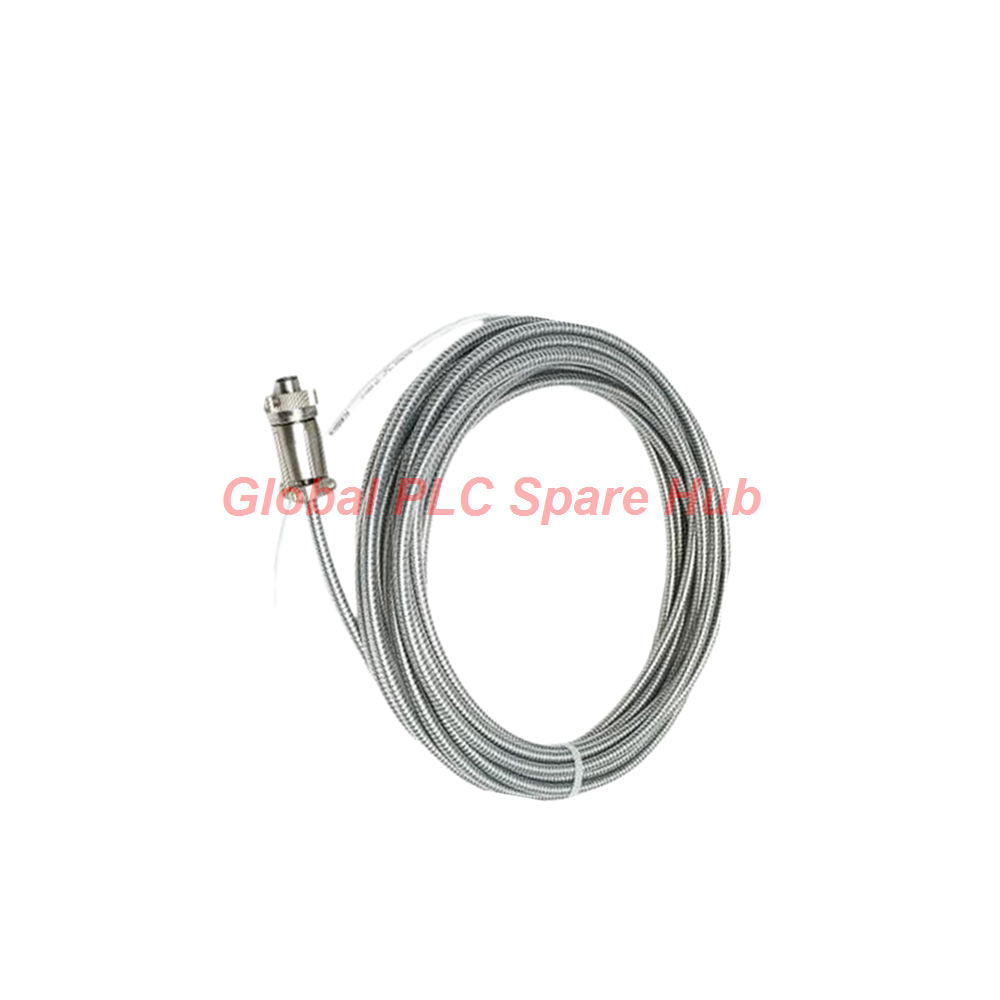

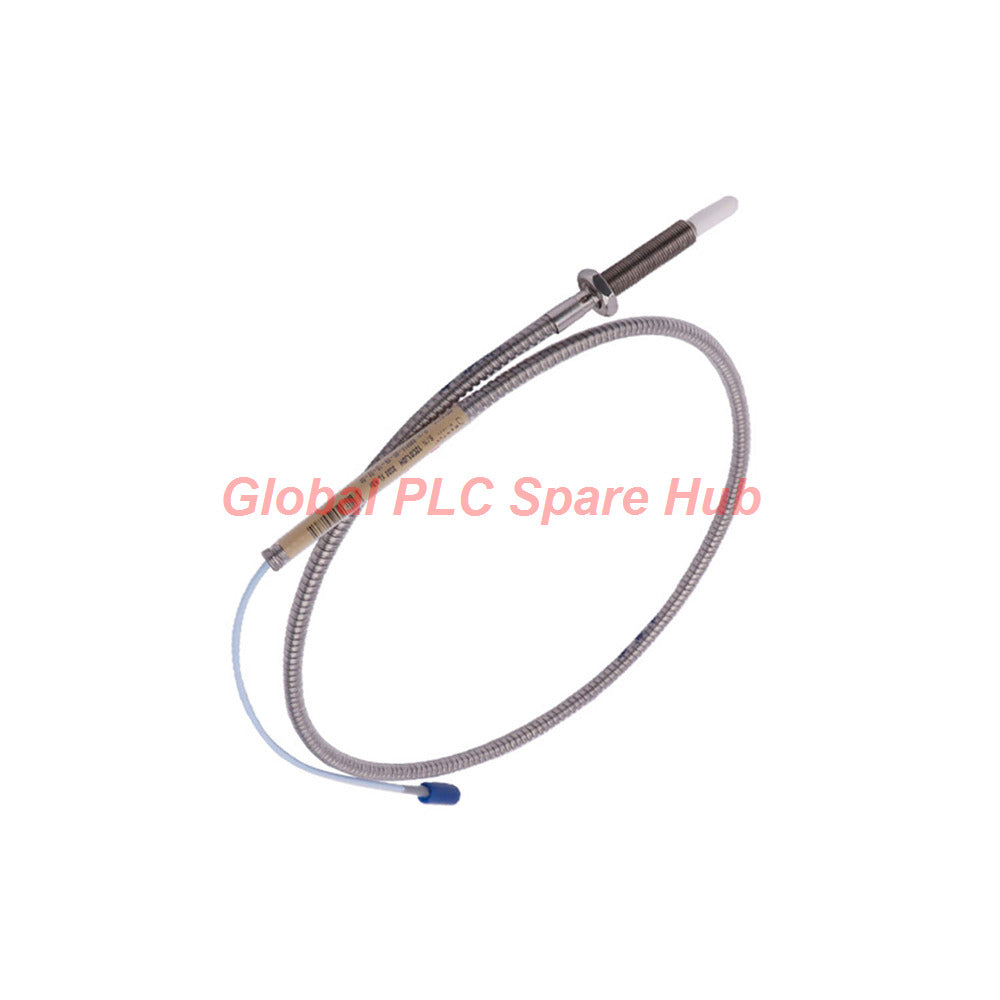

330904-00-10-05-11-05 Bently Nevada 3300 NSv Proximity Probe System

Global PLC Spare HUB Review

Engineers deploying the Bently Nevada 330904-00-10-05-11-05 3300 NSv Proximity Probe in high-vibration centrifugal compressors benefit immensely from its superior side-view characteristics. During a recent commissioning project on a high-speed process gas compressor train, traditional proximity probes suffered from severe cross-talk and false vibration spikes due to tight spatial constraints near the bearing housing. Upgrading to the 330904-00-10-05-11-05 3300 NSv Proximity Probe eliminated these spurious readings entirely, providing pristine axial position and radial vibration data without compromising the target gap clearance of 1.0 mm.

Product Overview

The Bently Nevada 330904-00-10-05-11-05 3300 NSv Proximity Probe delivers high-precision vibration and position monitoring for industrial machinery. Built for extreme operating environments, this 3300 NSv series sensor offers exceptional chemical resistance and mechanical durability. Engineers rely on the 330904-00-10-05-11-05 3300 NSv Proximity Probe to protect critical rotating assets from catastrophic failure. Every unit ships factory new in original packaging with a 12-month warranty. Fast global delivery is available via FedEx, UPS, and DHL within 24 to 48 hours.

Technical Specifications

Installation Guide

• Mount the Bently Nevada 330904-00-10-05-11-05 3300 NSv Proximity Probe using the M8x1 thread.
• Limit thread engagement to a maximum length of 12 mm.
• Tighten probe case connections securely using finger-tight methods initially.
• Apply a maximum torque of 0.56 N-m on the probe tip and 5.1 N-m recommended torque on M8x1 probe cases.
• Maintain a minimum bend radius of 25.4 mm for the armored coaxial cable.
• Connect field wiring using a three-conductor shielded triad cable up to 305 meters long.

Debugging and Maintenance Convenience

• Verify DC resistance matches the 4.0 ohm baseline before system startup.
• Inspect the ClickLoc miniature coaxial connector for secure locking.
• Check the Viton O-ring seal integrity if exposed to aggressive process gases.
• Use a multimeter to validate the -1 to -13 Vdc output across the linear range.

Compatibility and Model Comparison

The Bently Nevada 330904-00-10-05-11-05 3300 NSv Proximity Probe is mechanically and electrically interchangeable with older legacy systems. For alternative configuration options within the same family, consider the 330904-08-10-10-12-00 Proximity Sensor, which provides alternative cable lengths and armor specifications tailored for unique turbine layouts.

Certification Information

• Approved with multiple international agency hazardous area certifications.
• Designed to meet rigorous industrial electrical safety standards.

Package Contents and Warranty

• One Bently Nevada 330904-00-10-05-11-05 3300 NSv Proximity Probe in original factory packing.
• Factory calibration documentation and technical data sheets.
• Comprehensive 12-Month Warranty included.
• Express global shipping via FedEx, UPS, and DHL within 24-48 hours.

Typical Application Scenarios and Diagnostic Capabilities

• Centrifugal process gas compressors handling aggressive chemical vapors.
• Steam and gas industrial turbines requiring precision shaft vibration monitoring.
• Industrial gearboxes tracking radial and axial rotor displacement.
• Diagnostic systems detecting unbalance, misalignment, and bearing wear in real time.

Frequently Asked Questions

Q: What is the recommended gap setting for the Bently Nevada 330904-00-10-05-11-05 3300 NSv Proximity Probe?

• A: Set the initial static gap to 1.0 mm (40 mils) to center the probe within its 1.5 mm linear operating range.

Q: Can this probe replace older 3300 RAM proximity probes directly?

• A: Yes, the 330904-00-10-05-11-05 3300 NSv Proximity Probe is fully interchangeable with previous 3300 RAM systems while offering superior chemical resistance.

Q: What is the maximum allowed distance between the sensor and the monitor?

• A: The maximum field wiring length is 305 meters using a three-conductor shielded triad cable.

Buying Guide

Select the Bently Nevada 330904-00-10-05-11-05 3300 NSv Proximity Probe when upgrading compressors or rotating machinery operating in chemically aggressive environments. Verify your thread size, required cable length, and connector type against your machine specifications before ordering to ensure seamless mechanical integration.
