Bently Nevada 330881-28-00-100-06-02 PROXPAC XL Proximity Transducer Overview

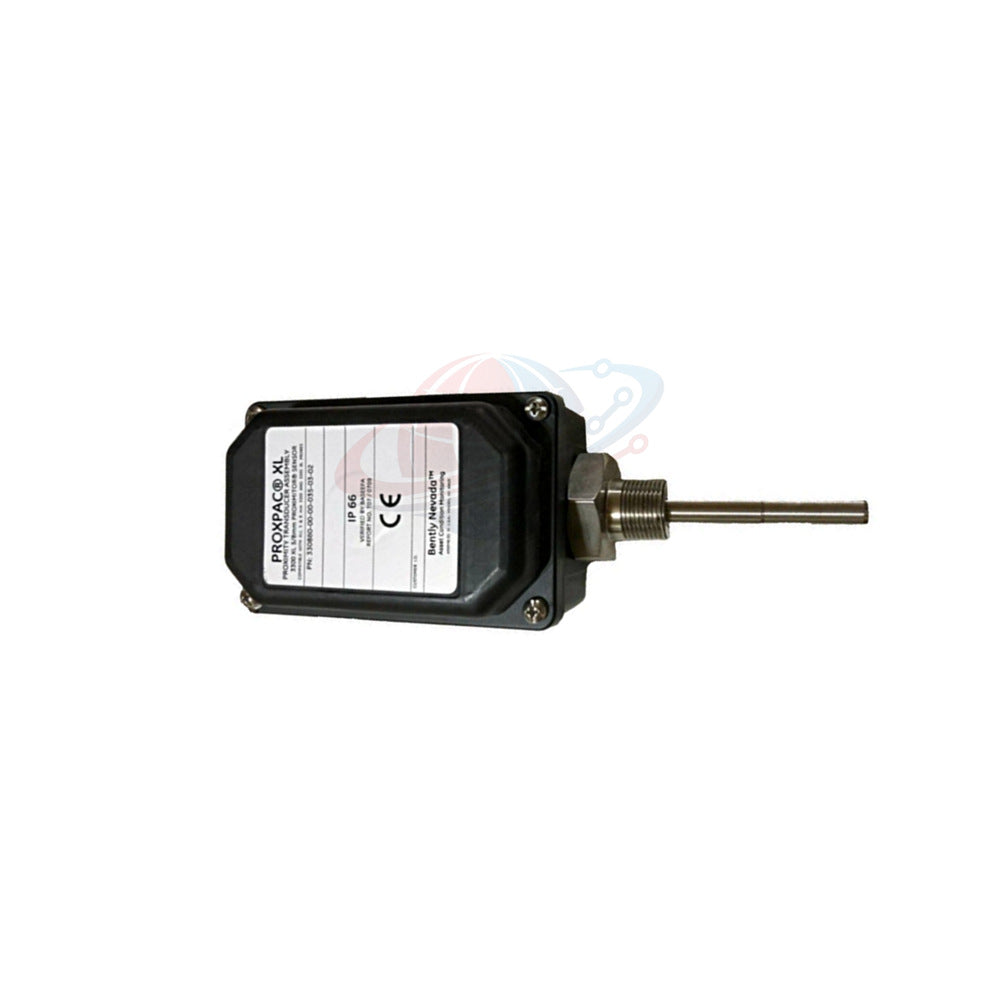

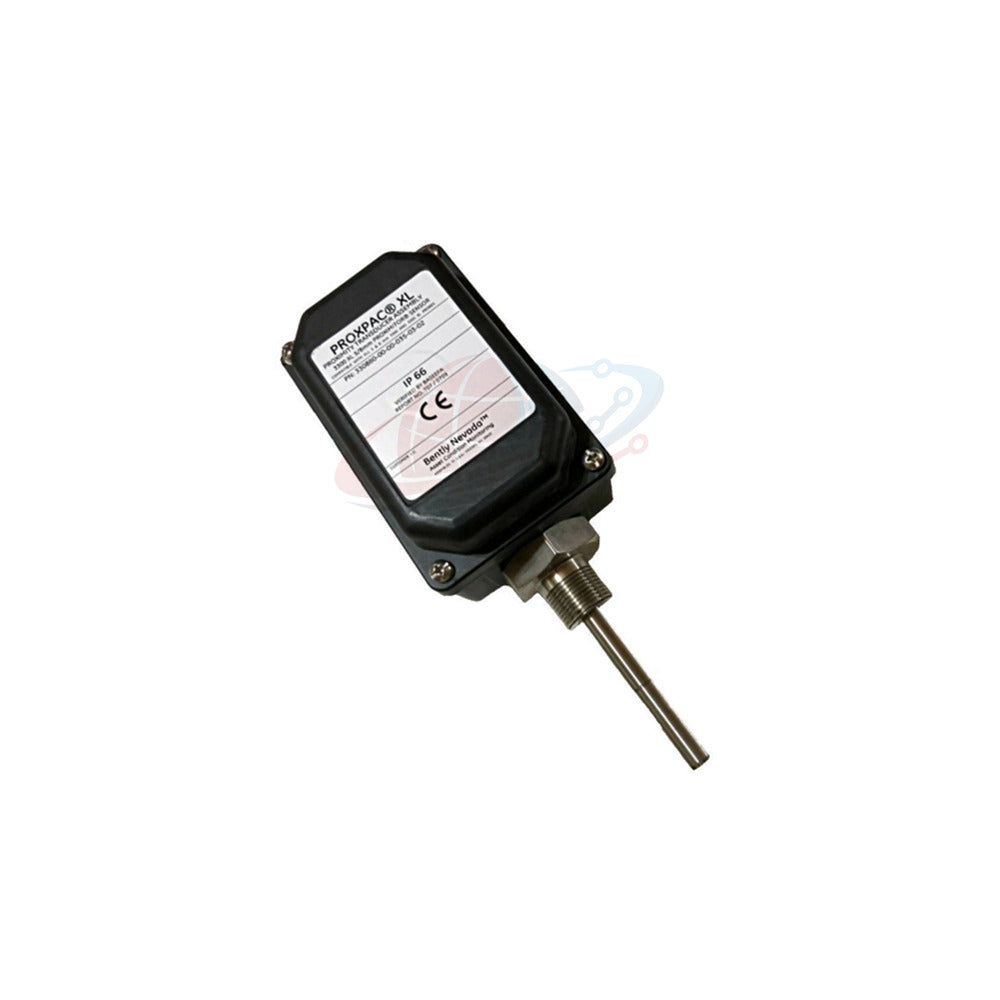

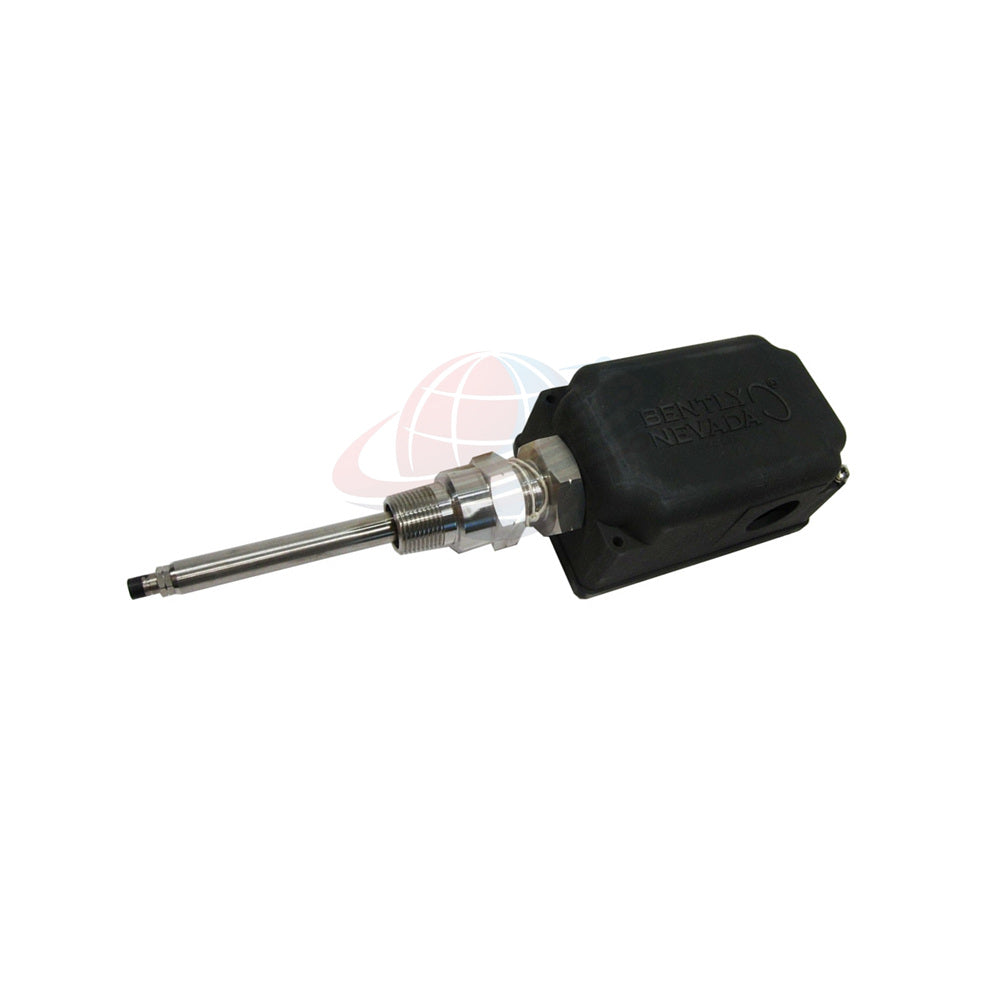

The Bently Nevada 330881-28-00-100-06-02 forms an integral part of the high-integrity PROXPAC XL Series self-contained proximity transducer assemblies. Engineered as a unified, weatherproof enclosure, this unit houses an internal 3300 XL 8 mm eddy current probe and integrated Proximitor processing circuit within a conductive glass-reinforced PPS thermoplastic body. The 330881-28-00-100-06-02 delivers precise shaft displacement and dynamic vibration measurements directly from rugged field environments without requiring remote sensor housing cabinets.

Part Number Configuration Breakdown

330881-28-00-100-06-02 Model Structure
├── 330881 : PROXPAC XL Integrated Proximity Transducer Assembly (IP66 Housing)
├── -28-   : Probe & Approvals Option (3300 XL 8 mm Probe with Multiple Hazardous Area Approvals)
├── -00-   : Standoff Adapter Option (00 mm / Direct Casing Flush Mount)
├── -100-  : Probe Penetration Option (100 mm / 3.94 in Sleeve Reach)
├── -06-   : Fittings Option (One 3/4-14 NPT Fitting, One 3/4 to 1/2 NPT Reducer, Two Plugs)
└── -02    : Mounting Thread Option (3/4-14 NPT Threaded Connection)

Comprehensive Technical Specifications

Engineering Characteristics & Advantages

• Integrated All-In-One Transducer Architecture: Combines probe, internal cable, and Proximitor conditioning circuitry inside one localized IP66 housing.
• Rugged Non-Metallic Thermoplastic Body: Glass-reinforced conductive PPS body resists aggressive industrial atmospheres, chemical spray, and UV degradation.
• Vibration-Damped Internal Mounting: Internal silicone damping structures isolate sensitive signal conditioning electronics from machine vibration.
• Field-Adaptable Cable Entries: Supplied with 3/4-14 NPT ports and 1/2-14 NPT stainless steel reducers for flexible field conduit installation.
• High-Precision Dynamic Tracking: 7.87 V/mm output accuracy maintains full signal fidelity over field cable distances up to 305 meters (1,000 feet).

Suitable Machinery & Field Applications

• Induced Draft (ID) & Forced Draft (FD) Fans: Measures radial shaft vibration in wet, dirty, or dusty outdoor power generation environments.
• Cooling Tower Fan Drives: Protects vibration instrumentation installed directly in high-humidity, water-splashed drive gearboxes.
• Overhead Motor-Pump Sets: Serves as a compact standalone shaft monitoring station on balance-of-plant auxiliary rotating gear.
• Mining Hydrocyclone Feed Pumps: Replaces delicate external proximity probe setups vulnerable to flying slurry or heavy physical impact.

Model Cross-Selection Comparison & Technical Guidance

Engineering Selection Advice:

• Select the 330881-28-00-100-06-02 when your bearing housing requires a 100 mm deep probe insertion directly flush through the process wall without standoff extensions.
• Choose the 330881-28-04-050-06-02 variant if your application requires a 4-inch standoff spacer to clear external casing insulation or piping obstructions, paired with a shorter 50 mm probe insertion depth.

Installation & Physical Mounting Protocols

• Check that the 3/4-14 NPT mounting port on the machine casing is clean and free of burrs before threading the sleeve assembly.
• Torque the main probe sleeve locknut to 39.3 N·m (350 in·lb) to establish a firm mechanical seal against the bearing wall.
• Adjust the internal 3300 XL probe gap setting to 1.27 mm (50 mils) to establish the nominal -9.0 Vdc signal midpoint.
• Tighten housing retaining nuts to 29.5 N·m (260 in·lb) after completing internal terminal wiring to ensure proper IP66 cover sealing.
• Route 3-conductor shielded triaxial wiring into the enclosure through approved NPT conduit seals, securing the shield wire to the internal grounding plate.

Diagnostic Capabilities & Onsite Troubleshooting

• Supply Voltage Level Auditing: Verify input power remains between -17.5 Vdc and -26 Vdc; input drops below -23.5 Vdc under load reduce linear range.
• Gap Output Calibration Audit: Measure terminal DC output voltage; a reading between -8.5 Vdc and -10.5 Vdc indicates correct mechanical gap alignment.
• Dynamic Signal Noise Inspection: Check AC raw voltage output via an oscilloscope; unexpected high-frequency noise points to poor ground liner contact or unshielded field wiring.
• Loop Resistance Verification: Ensure output load loop resistance matches 50 Ω to prevent signal attenuation over long field cable runs.

Global PLC Spare HUB's Insight

Installing vibration sensors on remote cooling tower fans often leads to moisture-related failures when using traditional separate probe housings and Proximitor boxes. The Bently Nevada 330881-28-00-100-06-02 solves this field failure point by integrating the conditioning circuit directly into a single conductive PPS housing rated IP66. On a recent municipal water treatment site overhaul, converting exposed drive fans to the 330881-28-00-100-06-02 eliminated signal drift caused by water ingress, providing stable long-term machinery protection.

Packaging, Express Fulfillment & Warranty Terms

• Condition: Brand New & Original in Factory Sealed Packing.
• Order Fulfillment: Orders processed and dispatched from warehouse stocks within 24 to 48 hours.
• Global Express Shipping: Fast international transit via FedEx, UPS, and DHL.
• Warranty Terms: Backed by a full 12-Month Factory Warranty.

Frequently Asked Questions

What advantage does the conductive PPS thermoplastic housing provide over aluminum enclosures?

The conductive PPS housing provides superior resistance to chemical attack and salt spray while dissipating electrostatic charges, avoiding galvanic corrosion on steel machinery walls.

How do I troubleshoot a system producing an out-of-range -21 Vdc output signal?

An output near supply voltage indicates an open-circuit probe connection or a physical gap exceeding 2.3 mm; re-verify probe tip gap and internal ClickLoc tightness.

Can I install this transducer unit without an external Proximitor housing box?

Yes, the PROXPAC XL series houses both the probe and Proximitor signal conditioner within its internal damped mounting chassis, outputting direct raw vibration signals.

What precautions are necessary when wiring the terminal block inside the housing?

Use tinned 16 to 24 AWG 3-conductor shielded triaxial cable and ensure the shield wire connects directly to the internal AISI 304 stainless steel grounding plate.

How does the 100 mm penetration depth affect mechanical gap setting procedures?

The 100 mm sleeve reach positions the probe tip close to the target shaft; fine gap adjustments are made using the threaded probe locknut inside the housing base prior to locking.
