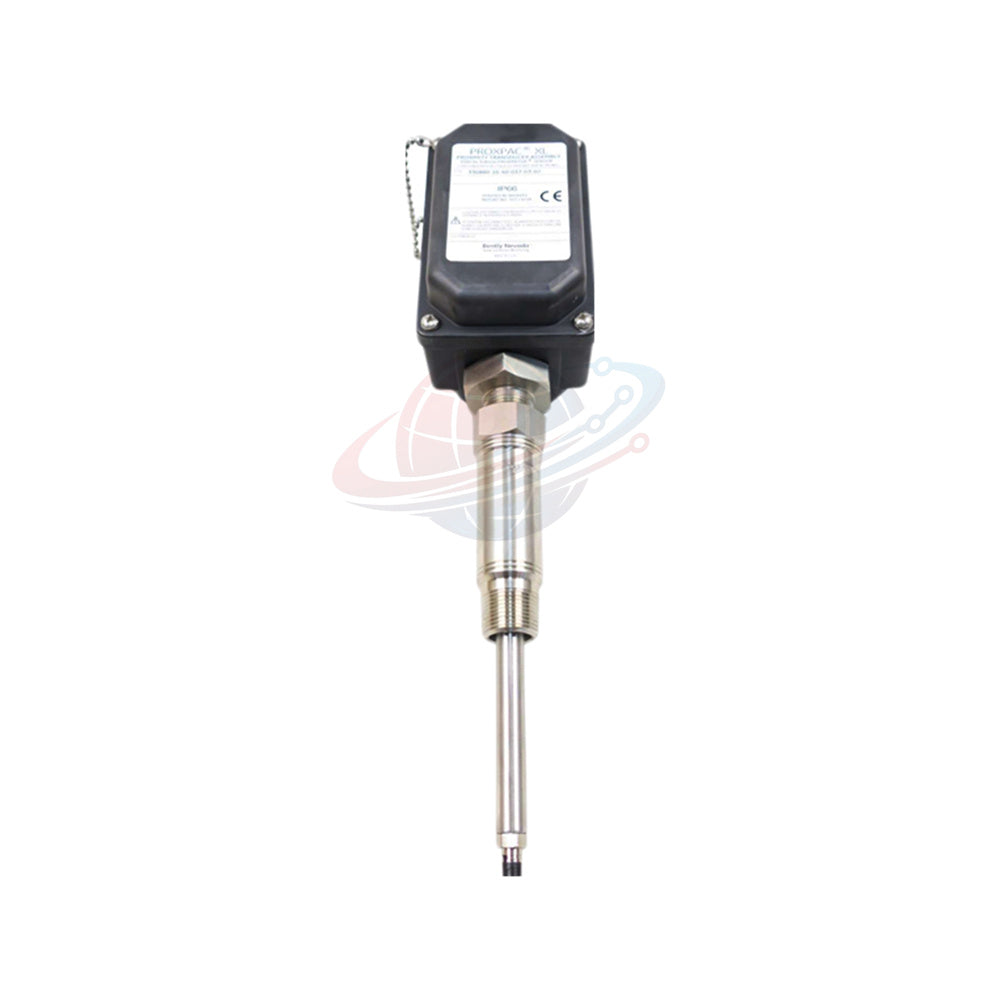

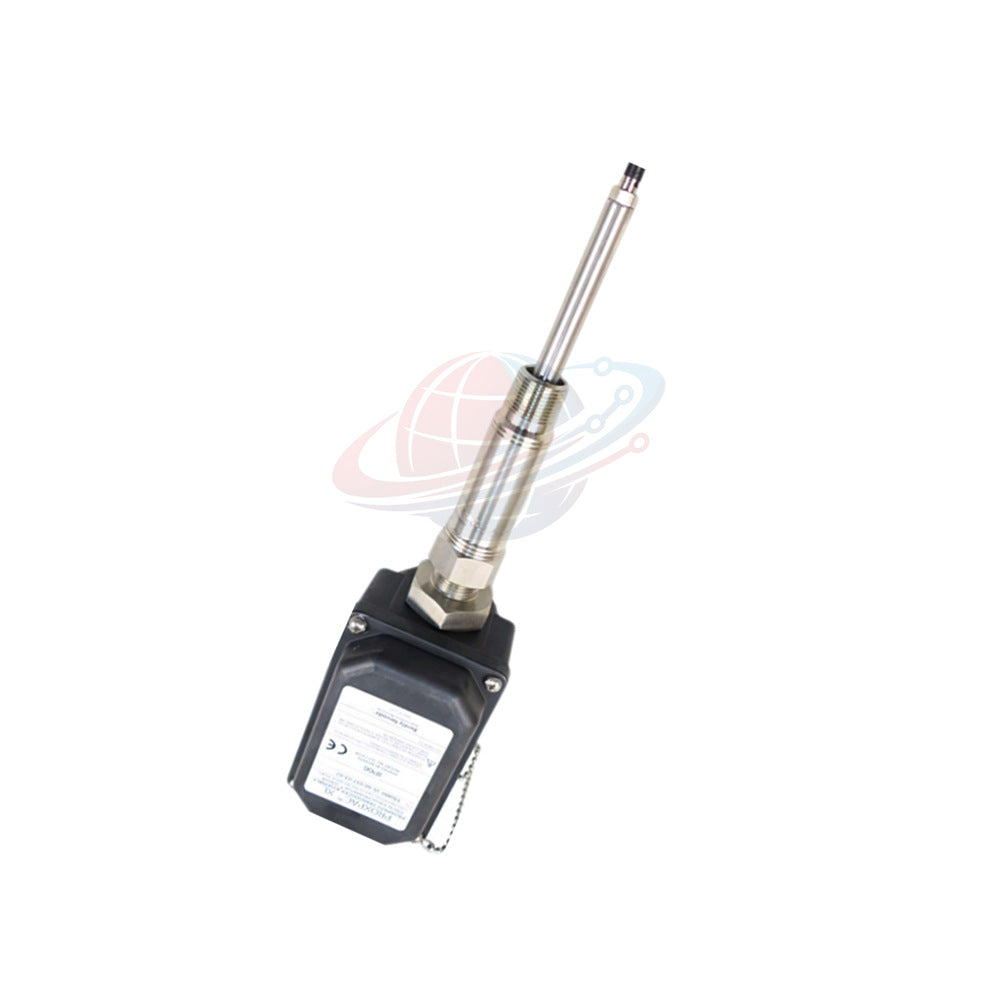

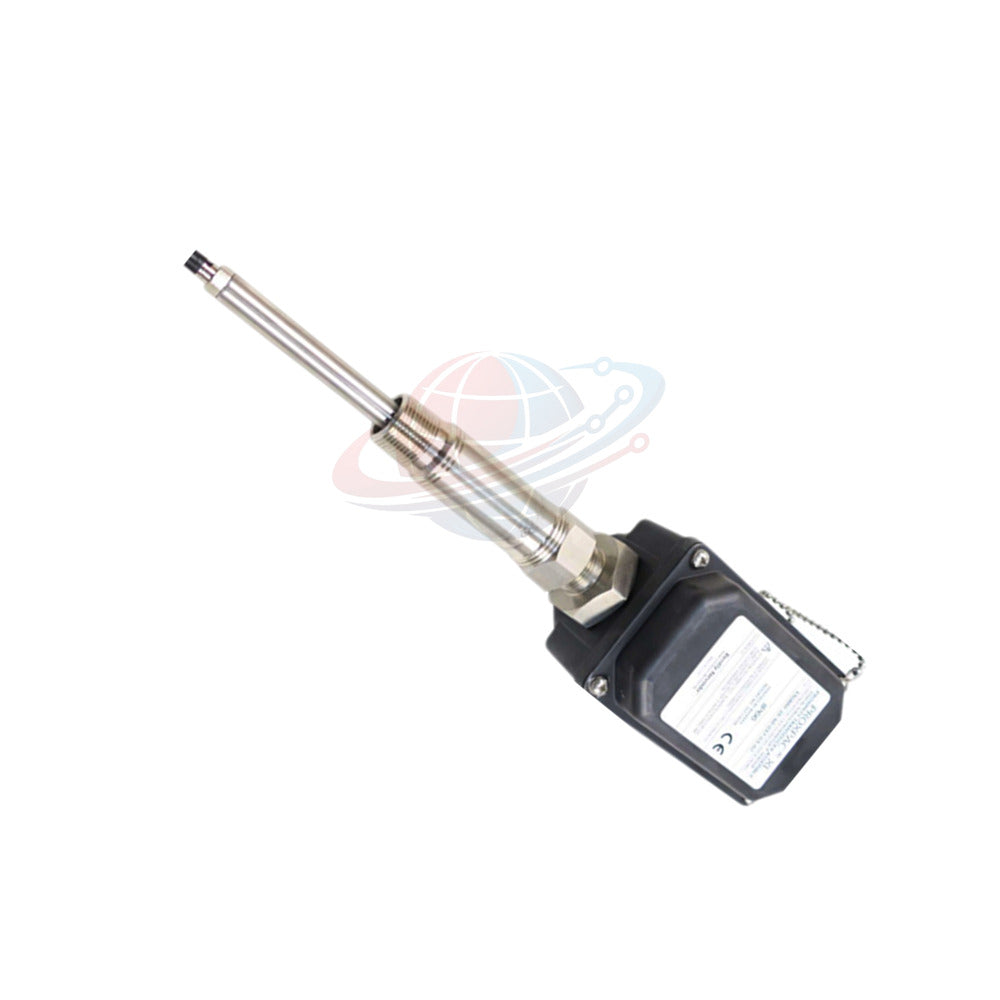

330881-16-04-138-03-02 PROXPAC XL Series Bently Nevada Transducer System

Configuration Breakdown

• Manufacturer: Bently Nevada
• Model Number: 330881-16-04-138-03-02
• Product Series: PROXPAC XL Proximity Transducer System
• Country of Origin: Made in U.S.A
• Probe & Approvals Option (16): 3300 XL 8 mm probe without hazardous area approvals
• Standoff Adapter Option - Dimension B (04): 40 mm standoff length
• Probe Penetration Option - Dimension C (138): 138 mm total probe insertion depth
• Fittings Option (03): One M20 cable entry fitting, two blanking plugs
• Mounting Thread Option (02): 3/4-14 NPT process connection thread

Engineering Specifications & Physical Parameters

Global PLC Spare HUB's Insight

The Bently Nevada 330881-16-04-138-03-02 is a factory-integrated, ruggedized vibration monitoring assembly belonging to the PROXPAC XL series. Designed primarily for heavy rotating machinery housed outdoors or exposed to aggressive plant environments (such as large petrochemical compressors, generator gearboxes, and multi-stage boiler feed pumps), this integrated housing encapsulates both the 3300 XL 8 mm proximity probe and an internal Proximitor sensor interface. By unifying the sensor and signal conditioning electronics within a robust, IP66-rated PPS thermoplastic enclosure, it eliminates external signal degradation risks caused by long interposing coaxial cable runs in high-EMI or corrosive utility spaces.

Suitable Equipment & Target Application Scenarios

• Reciprocating & Centrifugal Compressors: Continuous monitoring of piston rod drop, crosshead vibration, and radial shaft relative vibration.
• Large Industrial Steam and Gas Turbines: Harsh-ambient bearing caps where local junction box housing protects against moisture ingress and oil mist.
• Heavy Industrial Pumps & Fans: Applications requiring direct structural mounting via rigid threaded standoffs (3/4-14 NPT) to monitor machine casing absolute vibration or rotor-to-stator clearance gaps.

Diagnostic Capabilities

When integrated into condition monitoring software (such as System 1), this transducer feeds high-fidelity dynamic displacement waveforms to diagnostic systems, allowing engineers to track sub-synchronous and synchronous vibration vectors indicating rotor rub, oil whirl, or fluid instability, shaft centerline positional shifts derived from DC gap voltage fluctuations, and mechanical looseness and structural resonance tracking via broad 0–10 kHz frequency response tracking.

Commercial Terms & Fulfillment

• Warranty Terms: Comprehensive 12-month global warranty covering manufacturing defects and factory calibration integrity.
• Logistics & Express Delivery: Fast dispatch and global carrier fulfillment through FedEx, UPS, and DHL.

Model Selection Comparison & Technical Guidance

When engineering replacement parts or upgrading machine condition monitoring points, verifying specific dimensional parameters (probe penetration and standoff lengths) is crucial to avoid mechanical clash or invalid linear range settings.

Comparison Target: Bently Nevada 330881-28-00-095-05-01 PROXPAC XL Transducer

Selection Recommendation: While the current model 330881-16-04-138-03-02 features a 40 mm standoff adapter and a 138 mm penetration depth tailored for specific casing clearances, alternative configurations such as the comparison link utilize different reach profiles. Verify physical shaft standoff distance using a depth micrometer and check hazardous area classification requirements prior to final procurement.

Professional Engineering FAQs

Q: What is the primary engineering risk if the probe is exposed to extreme sub-zero temperatures during winter turnarounds?

A: Exposing the probe tip and casing assembly to temperatures dropping below –34 °C (–29 °F) can induce rapid thermal contraction across dissimilar material boundaries, risking premature failure of the hermetic pressure seal and subsequent oil/gas process leakage into the housing. Ensure low-ambient startup procedures include proper localized enclosure heating if required.

Q: How does the choice of probe penetration depth (e.g., 138 mm vs shorter variants) impact dynamic gap calibration during mechanical overhaul?

A: The penetration code dictates the physical reach of the probe tip relative to the mounting flange face. If swapping to a unit with a differing penetration length, the mechanical thread adjustment range inside the sleeve will shift. Technicians must verify that the target resting position allows the nominal recommended gap setting of 1.27 mm (50 mils) to fall comfortably within the linear range interval (0.25 mm to 2.3 mm).

Q: What specific field wiring practices should instrument technicians follow to maintain the specified Incremental Scale Factor (ISF) over long cable runs?

A: For runs approaching the 305-meter (1,000-foot) limit, it is mandatory to use a 3-conductor shielded triaxial cable with tinned wiring, ensuring the shield is grounded exclusively at the monitor end to prevent ground loops. Failure to maintain shielding integrity introduces high-frequency noise floor elevation, distorting sub-mil displacement resolution.

Q: Can this transducer be retrofitted directly onto machinery previously outfitted with legacy 3300-series non-XL monitoring racks?

A: While the electrical output scale factor remains standardized at 7.87 V/mm (200 mV/mil), legacy 3300 system components exhibit different phase shift characteristics and probe tip linearity curves compared to the 3300 XL architecture. Mixed deployment within the same monitoring channel loop can introduce signal errors; system channel configuration cards should be verified for XL-compatibility.

Q: What procurement factors should spare parts planners evaluate when selecting between different fitting options (such as M20 vs alternative conduit threads)?

A: Cable entry mismatch is one of the most common causes of installation downtime on skid packages. Planners must cross-reference existing plant junction box knockout standards and cable armor thread specifications against the designated fittings option code (e.g., Code 03 providing an M20 fitting with dual plugs) to ensure physical compatibility without requiring costly thread adapters.
