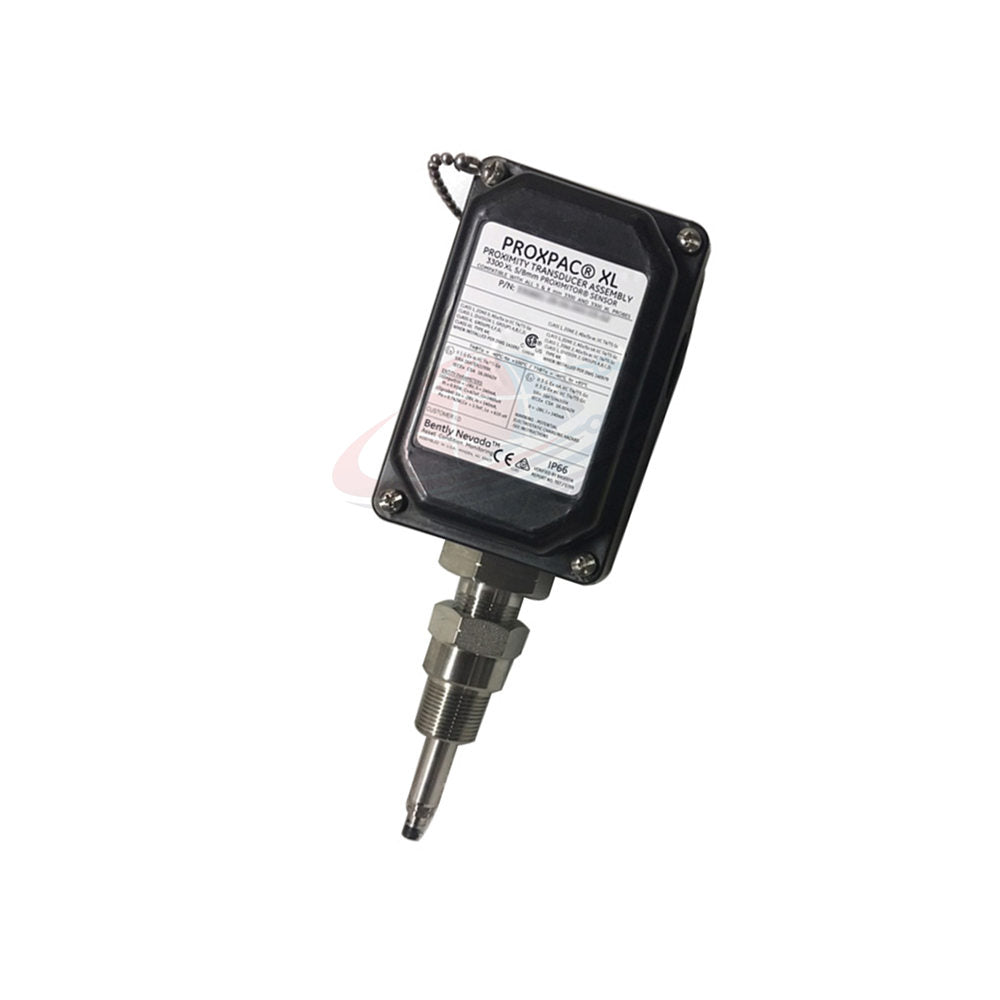

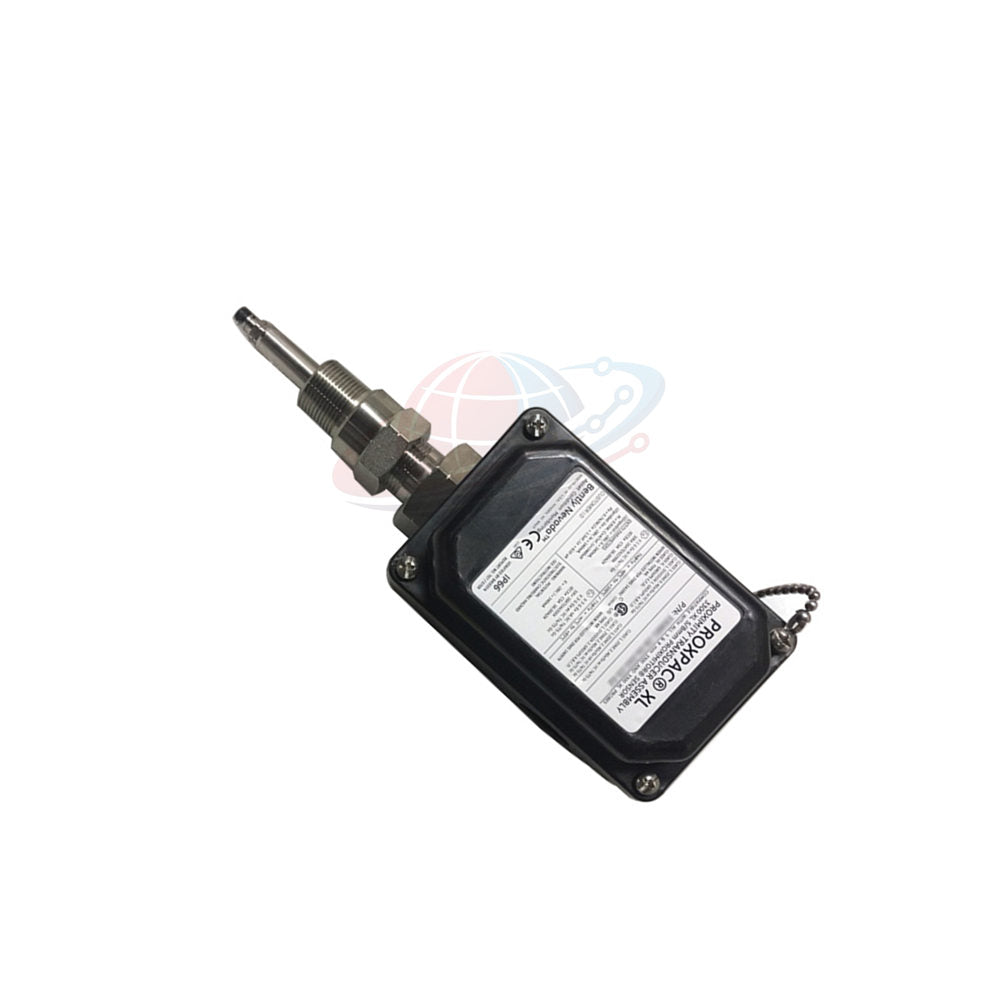

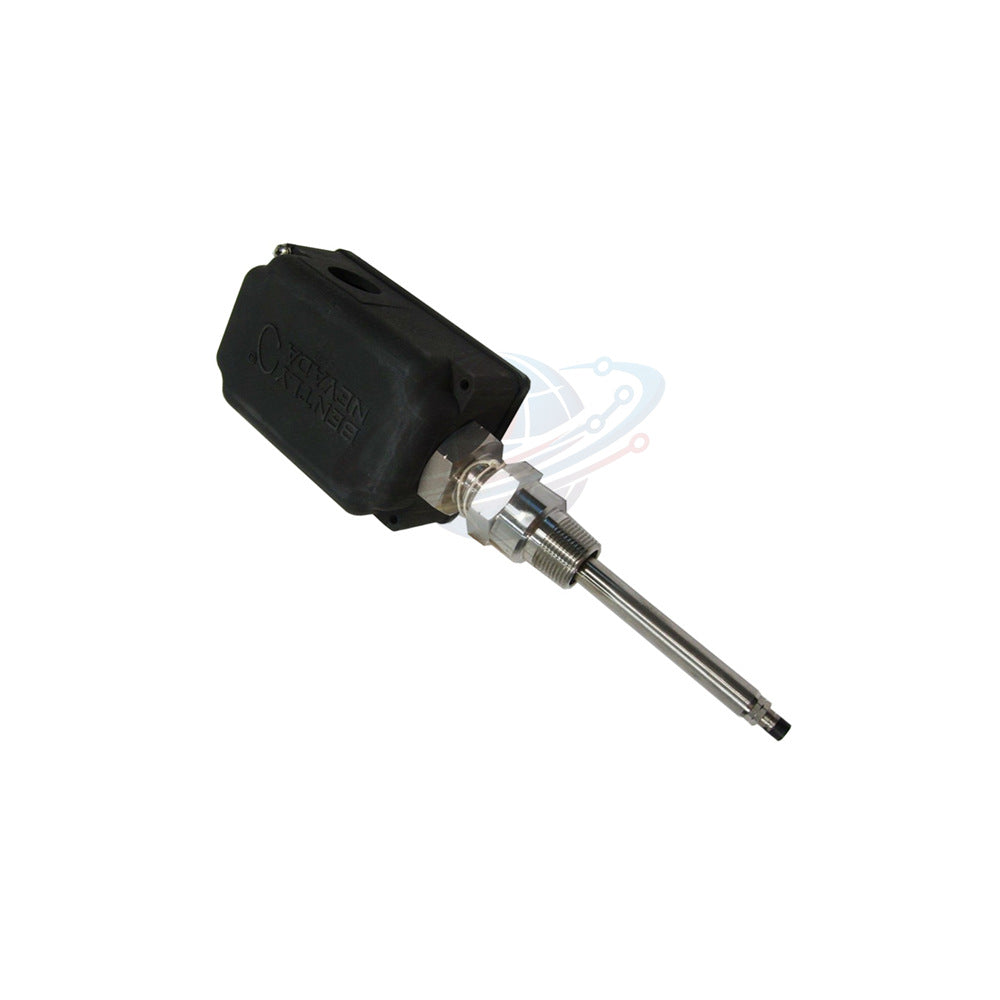

330881-01-00-000-00-02 Bently Nevada 3300 XL PROXPAC Transducer

Product Overview

The 330881-01-00-000-00-02 is a rugged 3300 XL PROXPAC Proximity Transducer engineered by Bently Nevada. This self-contained housed transducer system integrates a Proximitor sensor within an industrial-grade weatherproof enclosure. Global PLC Spare HUB's Insight highlights that enclosed PROXPAC housings eliminate vulnerable external wiring junctions, protecting delicate coaxial connections against severe weather, moisture ingress, and mechanical abuse in outdoor machinery setups.

Configuration Breakdown

• Full Part Number: 330881-01-00-000-00-02
• Model Base: 330881 (3300 XL PROXPAC Transducer)
• Probe & Approvals Option (-01): No probe; Proximitor sensor with Multiple Approvals
• Standoff Adapter Option (-00): No standoff adapter
• Probe Penetration Option (-000): No probe sleeve
• Fittings Option (-00): No outer sleeve assembly
• Mounting Thread Option (-02): 3/4-14 NPT thread

Installation Guide

• Thread Engagement: Secure the 3/4-14 NPT mounting thread firmly into the machinery conduit or adapter port, ensuring proper alignment.
• Torque Specifications: Apply 29.5 N·m (260 in·lb) to the retaining nut and 39.3 N·m (350 in·lb) to the probe sleeve locknut during assembly.
• Field Wiring Connection: Terminate 3-conductor shielded triax cable to the internal screw terminals, keeping maximum distance to the monitor under 305 meters (1,000 feet).

Debugging and Maintenance Convenience

• Output Impedance Check: Verify that the monitoring circuit observes a stable 50-ohm output impedance from the internal Proximitor module.
• Housing Integrity: Inspect the IP66-rated ultraviolet-resistant housing lid and Neoprene o-rings periodically to ensure zero moisture seepage.
• Supply Voltage Verification: Confirm power input remains between -17.5 Vdc and -26 Vdc; voltages more positive than -23.5 Vdc risk compressing the linear operating range.

Compatibility & Diagnostics

• System Compatibility: Fully compatible with standard Bently Nevada 3300 XL monitoring systems and vibration monitors.
• Diagnostic Capability: Provides continuous DC voltage output tracking (-1 Vdc to -17 Vdc) to diagnose shaft runout, radial vibration, and mechanical looseness.
• Global PLC Spare HUB Review: Instrumentation engineers note that the high impact strength (withstanding 4 Joule impacts at extreme temperatures) makes this unit ideal for unprotected outdoor skids.

Typical Application Scenarios

• Outdoor Centrifugal Pumps: Continuous vibration monitoring in exposed chemical processing plants.
• Large Industrial Blowers: Shaft displacement tracking on high-inertia fans operating in dusty environments.
• Marine Turbomachinery: Vibration surveillance on shipboard auxiliary gearboxes subjected to weather elements.

Selection Comparison & Technical Advice

Evaluating alternative configurations ensures that your hardware matches physical depth and mounting requirements:

• Alternative Configuration: 330881-28-00-095-05-01 Bently Nevada PROXPAC XL Transducer Buy
• Engineering Advice: The alternative model includes a probe sleeve and specific penetration length options (-095), whereas the 330881-01-00-000-00-02 ships without an integrated probe sleeve. Verify your machinery casing penetration depth before ordering to ensure correct mechanical fit.

Certifications, Logistics, and Warranty

• Certifications: Verified by BASEEFA (Report T07/0709) for IP66 weatherproofing and impact resistance standards.
• Logistics & Dispatch: Fast 24-48 hour dispatch window utilizing reliable international carriers including FedEx, UPS, and DHL.
• Warranty Terms: Protected by a full 12-month warranty from the delivery date.
• Packing List: One 330881-01-00-000-00-02 PROXPAC Transducer assembly and technical documentation.

Frequently Asked Questions (FAQ)

Q: What causes signal distortion when powering the 330881-01-00-000-00-02 unit?

A: Supplying a voltage more positive than -23.5 Vdc restricts the linear operating range, flattening voltage curves during high-amplitude vibration peaks.

Q: Is this PROXPAC housing rated for explosive hazardous atmospheres?

A: Yes, the unit features multiple agency approvals certified by BASEEFA and CSA for hazardous industrial environments when installed with proper barriers.

Q: Why is 3-conductor shielded triax cable recommended for field wiring?

A: Triax cabling provides superior noise rejection against electromagnetic interference over long cable runs up to 1,000 feet.

Q: What precautions are necessary when exposing the unit to sub-zero temperatures?

A: While the housing resists extreme impacts, ensure internal probe tips are not subjected to thermal shocks below -34 °C (-29 °F) to preserve pressure seal integrity.

Q: Purchasing Guidance: When should I choose a model with an integrated probe sleeve versus this bare NPT version?

A: Choose the bare NPT version (330881-01-00-000-00-02) if your machine casing already has a dedicated mounting well or if you are supplying a separate probe assembly remotely.
