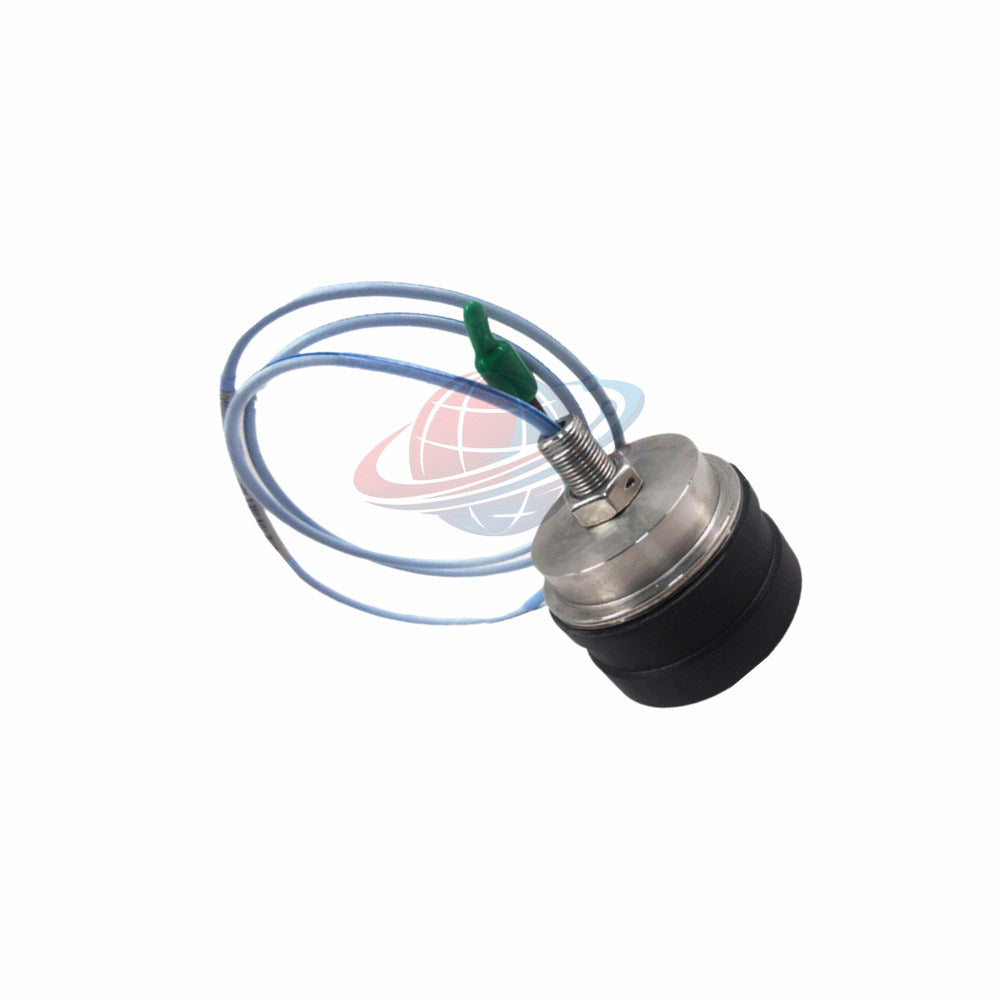

330876-01-50-01-05 Bently Nevada 3300 XL 50 mm Proximity Probe
Manufacturer: Bently Nevada
Product No.: 330876-01-50-01-05
Condition： In stock
Product Type: Proximity Probe
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
High-Temperature Turbine Monitoring Probe System
330876-01-50-01-05 delivers stable shaft vibration measurement in extreme turbine environments.
The probe is engineered for continuous operation inside demanding steam turbine installations.
Bently Nevada 3300 XL 50 mm Series combines thermal durability with precise displacement monitoring.
The reinforced FluidLoc cable structure improves resistance against moisture intrusion.
Integrated ClickLoc connectors simplify secure installation in confined turbine spaces.
The probe maintains signal stability during elevated operating temperatures.
Dual sealing architecture improves long-term reliability in harsh process conditions.
Configuration Breakdown
| Configuration Segment | Technical Definition |
|---|---|
| 330876 | 3300 XL 50 mm Proximity Probe Series |
| 01 | ½-20 Thread Straight Exit Probe Case |
| 50 | 5.0 Meter Total Probe Length |
| 01 | High Temperature FluidLoc Armored Cable |
| 05 | Multiple International Agency Approvals |
Core Engineering Features
- Designed for steam turbine DE environments
- Continuous operation up to 200°C
- Short-term thermal resistance up to 250°C
- Front and rear environmental sealing system
- High-temperature ClickLoc connector technology
- FluidLoc armored cable protection
- Removable connector collar for tight routing areas
- Contamination-resistant connector protection tools included
Electrical and Mechanical Specifications
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Part Number | 330876-01-50-01-05 |
| Product Type | 3300 XL 50 mm Proximity Probe |
| Probe Length | 5.0 meters (16.4 feet) |
| Probe Case Thread | 1/2-20 |
| Maximum Thread Engagement | 0.750 in |
| Probe Cable Type | 75 Ω triaxial PFA insulated FluidLoc cable |
| Probe DC Resistance | 7.6 ± 0.8 Ω |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 304 Stainless Steel |
Temperature and Environmental Capability
| Environmental Parameter | Performance Specification |
|---|---|
| Continuous Operating Temperature | -35°C to +200°C |
| Short-Term Temperature Exposure | +250°C for less than 24 hours |
| Cable Protection | High Temperature FluidLoc armored structure |
| Moisture Resistance | Dual front and rear sealing architecture |
Advanced Connector and Cable Design
330876-01-50-01-05 uses high-temperature ClickLoc connector technology.
The removable connector collar improves cable routing flexibility.
Connector protectors reduce contamination risks during installation activities.
The armored triaxial cable improves signal integrity in industrial turbine systems.
FluidLoc technology minimizes moisture penetration under severe operating conditions.
Recommended Equipment Integration
- Steam turbines
- Gas turbines
- Industrial compressors
- High-speed rotating shafts
- Turbine generator systems
- Critical rotating machinery protection systems
- API 670 vibration monitoring platforms
- Heavy industrial process equipment
Industrial Application Environments
- Thermal power generation plants
- Petrochemical processing facilities
- Oil and gas production platforms
- Industrial steam turbine installations
- Combined cycle power plants
- High-temperature machinery monitoring systems
- Continuous-duty rotating equipment applications
Diagnostic and Reliability Advantages
330876-01-50-01-05 improves shaft vibration measurement stability under thermal stress.
The 50 mm sensing architecture supports large rotating machinery monitoring.
High-temperature cable insulation reduces long-term degradation risk.
Sealed connector systems improve operational reliability in steam environments.
The armored cable structure protects against mechanical wear and routing damage.
Stable electrical resistance improves long-term signal consistency.
Global PLC Spare HUB's Insight
330876-01-50-01-05 is optimized for severe steam turbine operating conditions.
The probe performs effectively where thermal cycling challenges standard sensor designs.
Engineers benefit from the integrated sealing architecture during long operating cycles.
The armored FluidLoc cable structure improves durability in high-vibration environments.
The probe suits facilities requiring dependable high-temperature shaft monitoring.
The extended 5-meter cable configuration simplifies complex turbine routing requirements.
Installation and Engineering Recommendations
- Maintain proper cable bend radius during installation
- Use secure cable clamping near turbine housings
- Inspect connector seals before commissioning
- Avoid contamination during connector assembly
- Verify thread engagement depth before operation
- Use compatible 5-meter Proximitor sensors only
Packaging and Logistics Support
- Factory original sealed packaging included
- 24–48 hour dispatch service available
- FedEx international shipping supported
- UPS industrial logistics available
- DHL express delivery service supported
- Protective export packaging included
Warranty Coverage
12-month factory warranty supports industrial operational reliability requirements.
Technical assistance remains available throughout the warranty period.
The warranty applies under standard industrial operating conditions.
Professional Engineering FAQ
Why is FluidLoc cable technology important in turbine environments?
FluidLoc construction reduces moisture intrusion and improves high-temperature cable durability.
What installation factor most affects probe measurement stability?
Proper thread engagement and secure mechanical positioning improve signal consistency.
How should engineers select probe cable length?
Evaluate turbine routing distance and ensure compatibility with matching Proximitor systems.
What benefit does the armored cable provide?
The armored structure improves resistance against abrasion, vibration, and mechanical stress.
Which industrial assets benefit most from this probe?
High-temperature steam turbines and critical rotating machinery systems benefit significantly.
