330851-02-000-030-50-00-00 Bently Nevada Series 3300 XL 25mm Probe

Bently Nevada 330851-02-000-030-50-00-00 Engineering Architecture

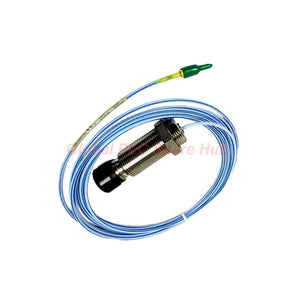

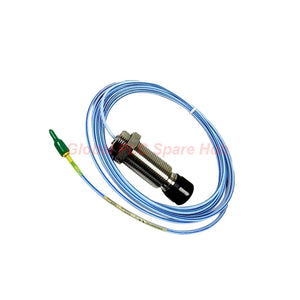

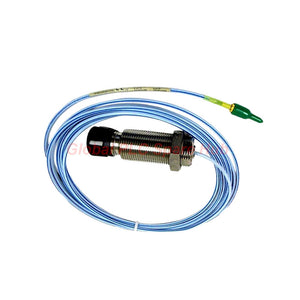

The 330851-02-000-030-50-00-00 from Bently Nevada is a high-temperature 25 mm proximity probe engineered within the advanced 3300 XL Series. Designed specifically to survive harsh steam turbine drive-end environments, this transducer system delivers continuous, high-precision vibration and axial position measurements in extreme thermal conditions up to 200°C.

Configuration & Suffix Breakdown

Technical Specifications & Material Matrix

Target Equipment & Industrial Application Scenarios

• Heavy-duty industrial steam turbine drive-end (DE) shaft vibration monitoring.
• Legacy 7200 25 mm, 35 mm, and 25 mm DE transducer system retrofits.
• High-temperature centrifugal compressor and gas expander thrust measurement.
• Power generation utility turbine-generator rotor dynamics monitoring skids.

Diagnostic Capabilities & Survivability

• Thermal Endurance: Maintains linear calibration and signal accuracy in continuous 200°C steam environments without thermal drift.
• FluidLoc Prevention: PFA-insulated triaxial cable blocks oil and steam condensate migration through the cable interior.
• Retrofit Compatibility: Physically replaces older 7200-series large-bore probes while leveraging modern 3300 XL signal processing.

Commercial Terms & Global Logistics

• Condition & Assurance: 100% factory original hardware backed by a comprehensive 12-month warranty.
• Order Fulfillment: Rapid processing and dispatch within 24 to 48 hours from order confirmation.
• Express Freight Carriers: Expedited worldwide delivery supported via FedEx, UPS, and DHL.

Global PLC Spare HUB's Insight

In high-temperature utility steam turbine applications, standard proximity probes often suffer from tip degradation and cable oil wick-back due to extreme operating heat. Our engineering evaluation indicates that deploying the 330851-02-000-030-50-00-00 PEEK-tipped probe successfully eliminates these failure modes. During a recent turbine overhaul at a coal-fired power plant, replacing legacy 7200 series transducers with this 25 mm high-temp assembly stabilized baseline vibration readings and eliminated false alarm trips during rapid thermal load ramps.

Engineering Selection & Purchasing Guidelines

• Verify Thread Pitch: Ensure your mounting bore matches the M30 x 2 thread specification required by the -02 case option.
• Check Cable Length: Confirm the 5.0-meter integral cable length reaches your local junction box or Proximitor sensor enclosure without splicing.
• Assess Thermal Limits: Verify your machinery's operating envelope stays within the -35°C to +200°C continuous rating to maximize sensor lifespan.

Frequently Asked Questions (FAQ)

Q1: What structural advantage does the PEEK probe tip provide in steam turbine environments?

A1: PEEK (Polyetheretherketone) offers exceptional mechanical stability and thermal resistance, allowing the probe to withstand continuous temperatures up to 200°C without dimensional distortion.

Q2: How does the FluidLoc cable construction prevent fluid migration into machinery casings?

A2: The PFA-insulated triaxial cable incorporates internal blocking barriers that physically prevent oil, steam, and moisture from leaking out of the machine through the cable core.

Q3: What precise DC resistance should technicians expect when testing the 5-meter probe?

A3: Field technicians should measure approximately 7.5 ± 0.8 Ω between the center conductor and outer conductor during routine loop checks.

Q4: What torque limit must be observed when installing the M30 threaded probe case?

A4: Technicians should apply a recommended torque of 68 N·m (50 ft·lb) to secure the probe properly without damaging the threaded mounting boss.

Q5: What shipping carriers and delivery timelines apply to urgent turbine replacement orders?

A5: We dispatch all in-stock replacement parts within 24 to 48 hours using priority global carriers including FedEx, UPS, and DHL to minimize downtime.
