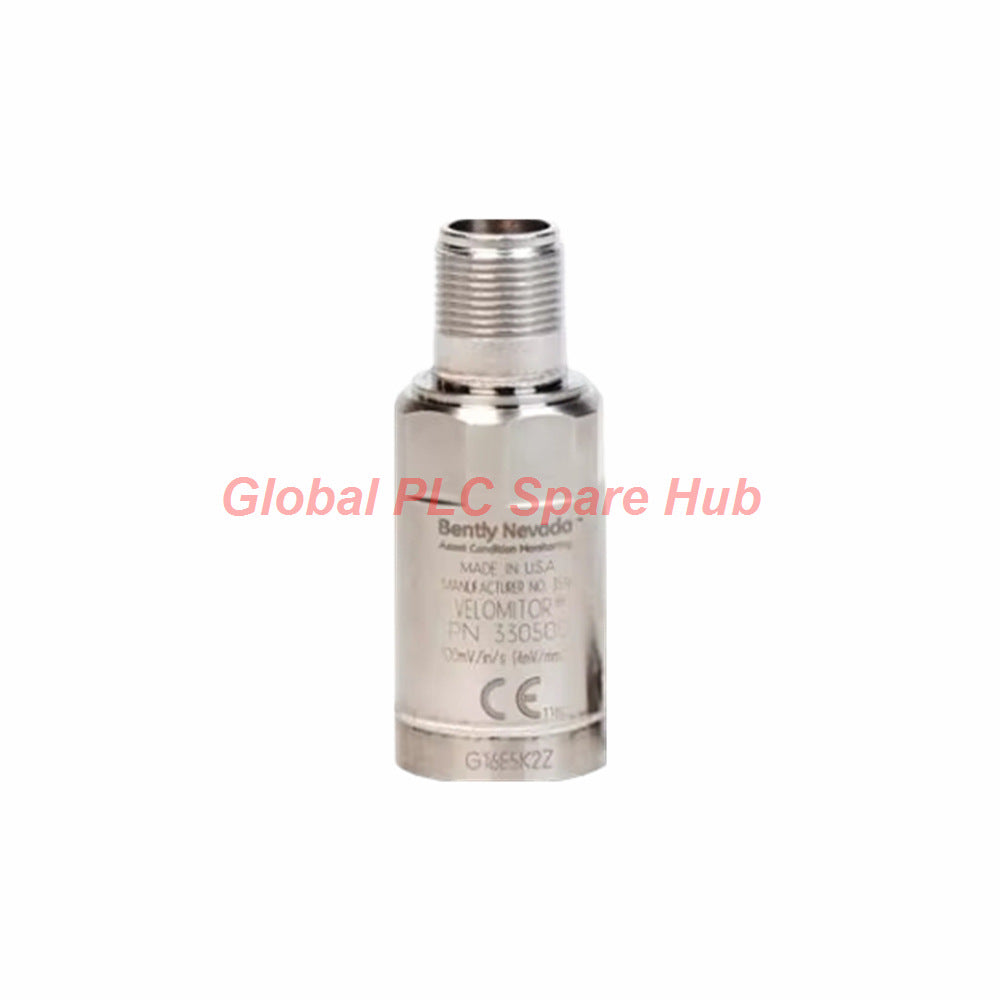

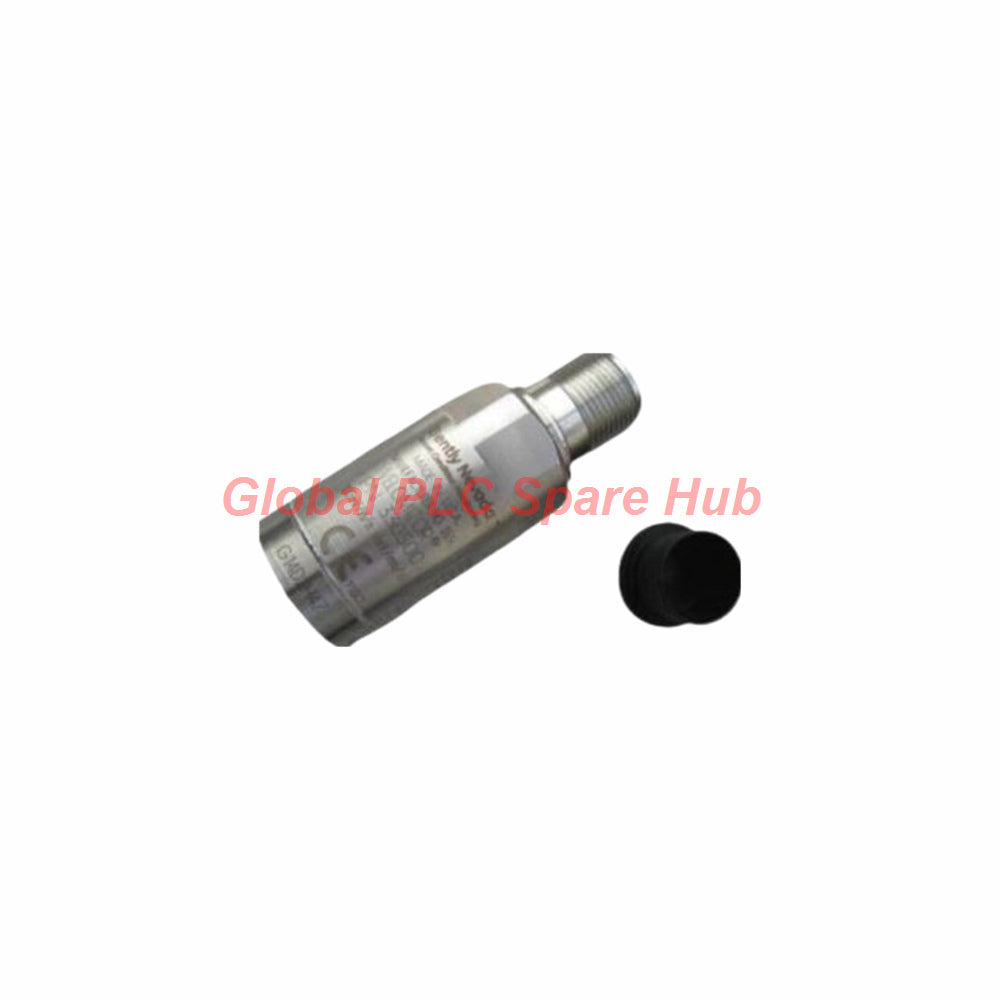

330500-07-01 Bently Nevada Velomitor Piezo-Velocity Sensor Module
Manufacturer: Bently Nevada
Product No.: 330500-07-01
Condition： In stock
Product Type: Piezo-velocity Sensor
Product Origin: USA
Payment: T/T, Western Union
Weight: 142g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Engineering Insight & Performance Summary
Manufactured by Bently Nevada, the 330500-07-01 represents a high-performance Velomitor Piezo-velocity Sensor built to measure absolute casing vibration on industrial rotating equipment. Combining the rugged durability of piezoelectric technology with the low-frequency performance of a traditional velocity sensor, this hermetically sealed 316L stainless steel unit delivers precise vibration velocity feedback across an operating temperature range of -55°C to 121°C.
Part Number Configuration Breakdown
- Base Model: 330500 — Velomitor Piezo-Velocity Sensor
- Mounting Thread Option (-07): 3/8 – 16 UNC internal mounting stud configuration
- Agency Approval Option (-01): CSA/US/C hazardous area and ordinary location approvals
Technical Specifications Matrix
| Parameter Classification | Technical Engineering Metric |
|---|---|
| Brand & Series | Bently Nevada / Velomitor Series |
| Model Number | 330500-07-01 |
| Sensitivity | 3.94 mV/mm/s (100 mV/in/s) ±5% |
| Frequency Response | 4.5 Hz to 5 kHz (±3.0 dB) |
| Velocity Range & Linearity | 1270 mm/s (50 in/s) peak; ±2% linearity to 152 mm/s |
| Mounted Resonant Frequency | Greater than 12 kHz |
| Output Bias Voltage & Impedance | -12 ±3.0 VDC referenced to Pin A; <2400 Ω output impedance |

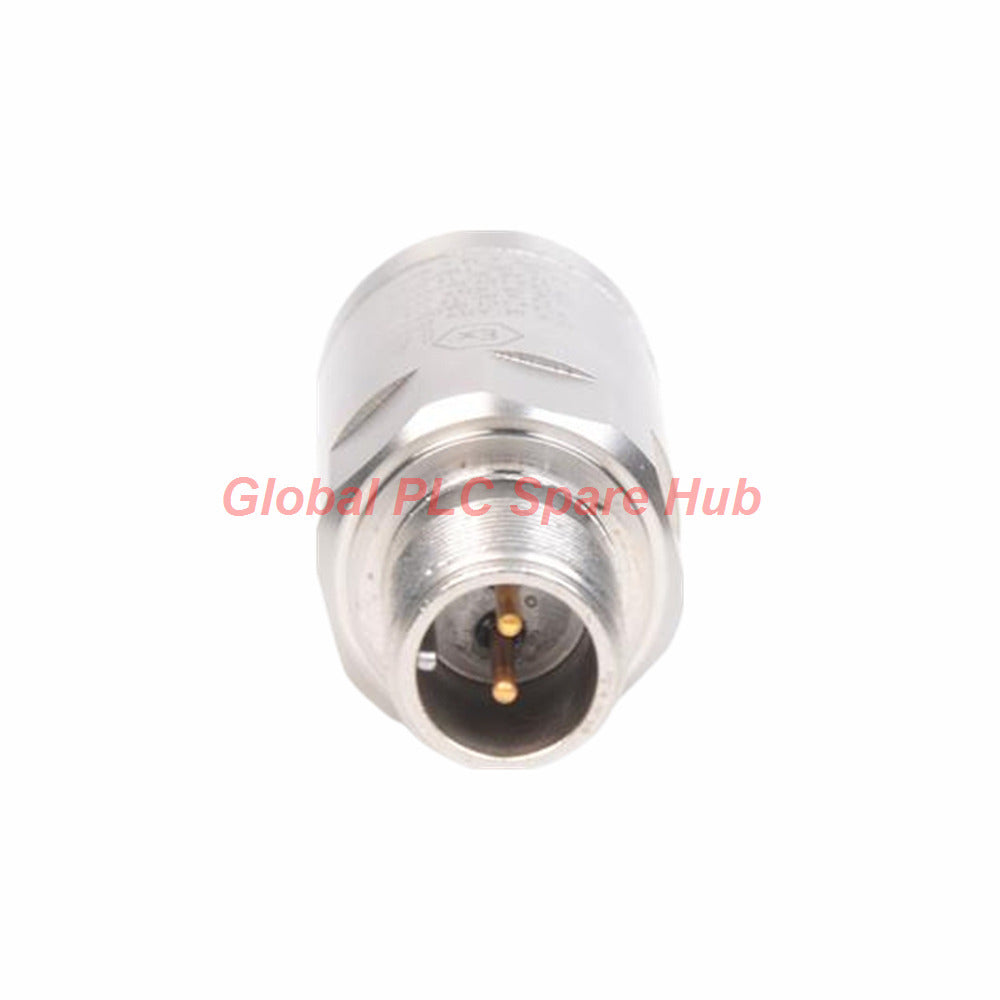

| Case Material & Connector | 316L stainless steel housing with hermetically sealed 2-pin Mil-C-5015 shell |
Application Compatibility & Diagnostic Capabilities
- Target Machinery: Large centrifugal compressors, hydroturbines, heavy electric motors, large fans, and industrial gearboxes.
- Diagnostic Capabilities: Detects casing structural resonance, unbalance, misalignments, gear mesh anomalies, and blade-pass vibrations in harsh industrial environments.
Model Selection & Technical Comparison
| Comparison Model | Mounting Thread Specification | Technical Recommendation & Selection Guide |
|---|---|---|
| 330500-08-01 | M8 x 1.25 mounting thread | Select this alternative variant when your machinery mounting pad requires metric M8 threading instead of English 3/8-16 UNC studs. |
Logistics, Warranty & Fulfillment Terms
- Fulfillment Speed: Rapid 24 to 48-hour dispatch.
- Global Shipping: Express international delivery via FedEx, UPS, and DHL.
- Warranty Terms: Comprehensive 12-month factory defect warranty.
Frequently Asked Questions
Why does the Velomitor combine piezoelectric elements with internal signal integration?
This design provides the wide frequency response and mechanical durability of a piezoelectric accelerometer while electrically integrating the output to yield a direct velocity signal.
What is Global PLC Spare HUB's Insight on proper mounting torque for 3/8-16 studs?
Global PLC Spare HUB recommends tightening the sensor to a maximum torque between 32 and 46 kg cm (24 to 40 in-lb) using a flat mounting pad to prevent base strain sensitivity errors.
How does base strain affect velocity sensor output accuracy?
Excessive mechanical torque or mounting pad distortion can induce base strain artifacts; using a clean, flat surface keeps base strain sensitivity well below the 0.005 in/s/mstrain threshold.
What precautions are necessary when routing long signal cables in high-noise environments?
Always use recommended shielded cables (such as part number 02173006) up to 305 meters, and ground the cable shield at the monitor end to eliminate electromagnetic interference.
Why is case isolation critical for industrial velocity measurements?
Case isolation prevents ground loops between the sensor housing and machine frame, ensuring clean signal transmission without 50/60 Hz power frequency noise contamination.
