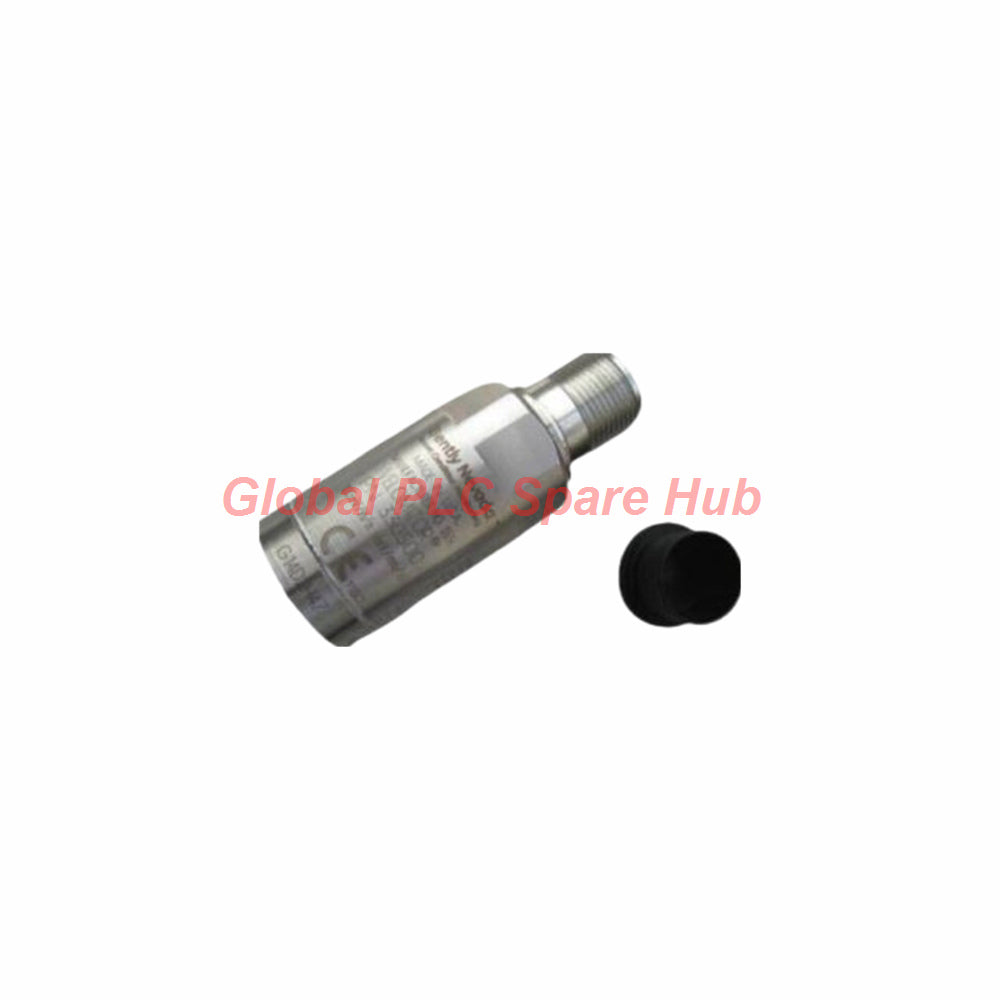

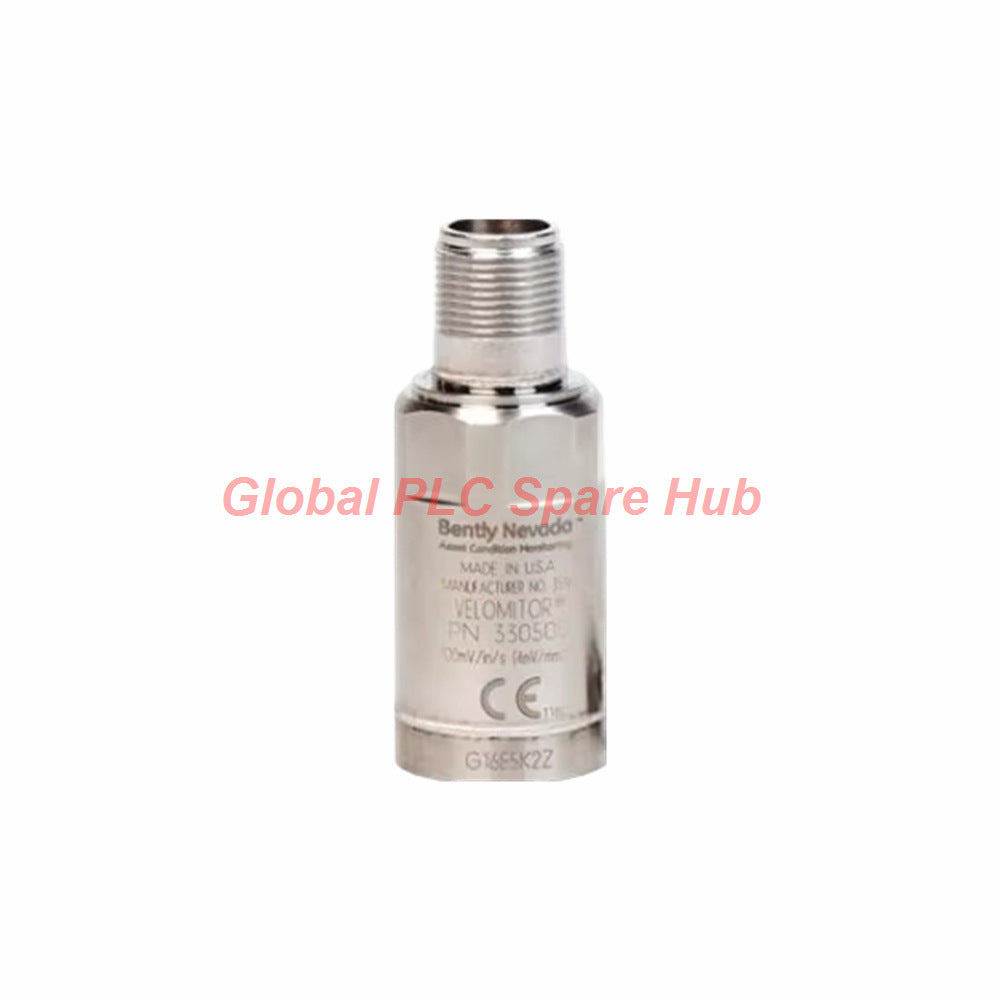

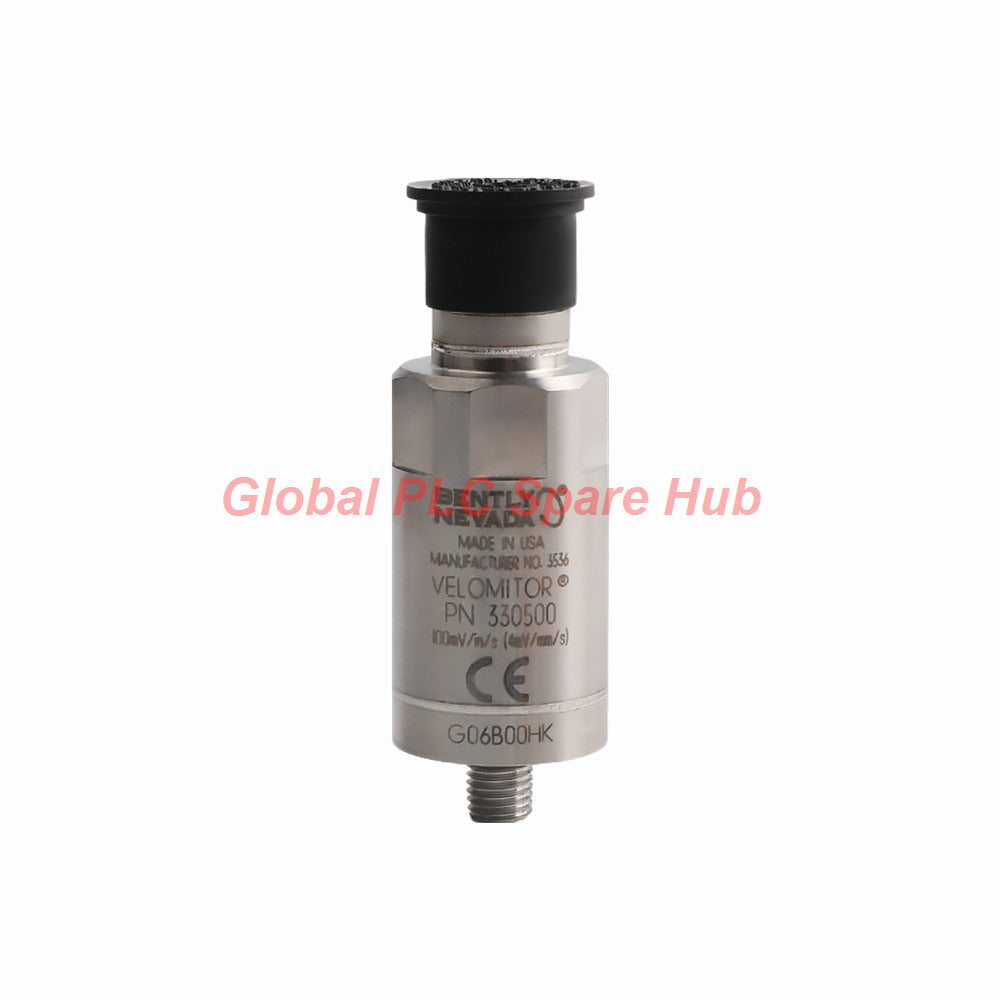

330500-06-02 Bently Nevada 330500 Velomitor Piezo-Velocity Sensor

Executive Overview & Detection Principle

The Bently Nevada 330500-06-02 functions as an advanced Velomitor piezo-velocity sensor engineered for absolute vibration monitoring in critical turbomachinery. Combining piezoelectric technology with internal signal integration, this transducer delivers rugged velocity measurements across high-frequency ranges. Engineers deploy the 330500-06-02 to protect high-speed rotating assets from destructive mechanical imbalance. Global PLC Spare HUB supplies this precision sensor to support reliable machine health programs.

Configuration Breakdown & Suffix Codes

Technical Blueprint & Performance Metrics

Deployment Protocol & Mechanical Mounting

• Prepare a flat, spot-faced mounting surface on the machine casing to ensure full mechanical contact.
• Apply the 5/8 – 18 UNF mounting stud corresponding to the 330500-06-02 thread option.
• Torque the sensor down using a calibrated wrench to between 32 and 46 kg cm (24 to 40 in-lb) max.
• Connect the hermetically-sealed 2-pin Mil-C-5015 plug, ensuring case isolation is maintained.
• Route up to 305 meters (1,000 feet) of shielded interconnecting cable without signal degradation.

Diagnostic Capabilities & Status Monitoring

• Bias Voltage Tracking: Continuous monitoring of the -12 VDC output bias reveals internal crystal or electronic degradation instantly.
• Broadband Noise Floor Analysis: Low baseline noise (0.004 mm/s rms nominal) allows early detection of subtle bearing wear.
• Polarity Verification: Case motion toward the connector drives Pin A positive relative to Pin B for dynamic signal validation.
• Magnetic Susceptibility Shielding: Internal design minimizes interference (< 51 min/s/gauss) from surrounding plant fields.

Target Equipment & Industrial Application Sectors

• Large Steam & Gas Turbines: Measuring absolute bearing housing vibration in power generation facilities.
• Centrifugal Compressors: Tracking high-frequency casing vibrations in hydrocarbon processing plants.
• Critical Industrial Pumps: Monitoring severe vibration signatures on high-pressure water injection skids.
• Marine Propulsion Drives: Providing DNV-certified vibration tracking on offshore vessel drivetrains.

Fulfillment, Logistics & Warranty Framework

• Processing Speed: In-stock velocity sensors are calibrated, packed, and dispatched within 24 to 48 hours.
• Global Carriers: Expedited international transport serviced by trusted partners FedEx, UPS, and DHL.
• Warranty Terms: Covered by a comprehensive 12-month replacement warranty backed by Global PLC Spare HUB.

Model Comparison & Technical Guidance

• Variant Comparison: When evaluating alternatives, compare this ATEX-approved unit against the 330500-07-01 model. While both share the core 330500 piezo-velocity architecture, suffix differences dictate specific mounting thread and hazardous area certification levels.
• Selection Advice: Ensure your regional electrical code matches the agency approval suffix (-02 for ATEX vs -01 for CSA/IECEx variants) before final procurement.

Global PLC Spare HUB's Insight & Buying Guide

• Field Engineering Insight: When installing the 330500-06-02 on vertical turbine casings, verify that the cable is anchored securely with P-clips within 30 centimeters of the connector. Unsecured cabling subjected to machine dither can induce cable whip noise and false high-frequency spikes.
• Selection Guidance: Always check maximum cable run requirements. Although the sensor supports up to 305 meters of cable, high vibration frequencies and extreme capacitance over 200 pF/m require adherence to length derating curves.

Frequently Asked Questions

Q: What does the -06 suffix designate on the Bently Nevada 330500-06-02?

A: It specifies the 5/8 – 18 UNF mounting thread option for machine casing attachment.

Q: What hazardous area certification does the -02 suffix provide?

A: The -02 option grants ATEX European hazardous area approval for explosive atmospheres.

Q: What is the expected output bias voltage during normal operation?

A: The nominal output bias voltage is -12 ±3.0 VDC referenced to Pin A over temperature.

Q: How do I troubleshoot a sudden drop in vibration readings on this sensor?

A: Inspect the 2-pin Mil-C-5015 connector for moisture ingress, check cable continuity, and measure the DC bias voltage to confirm internal circuit integrity.

Q: What is the maximum cable length recommended for high-vibration environments?

A: While maximum cable length reaches 305 meters, high vibration environments (e.g., 50g at 10 kHz) require limiting cable length according to capacitance specifications.
