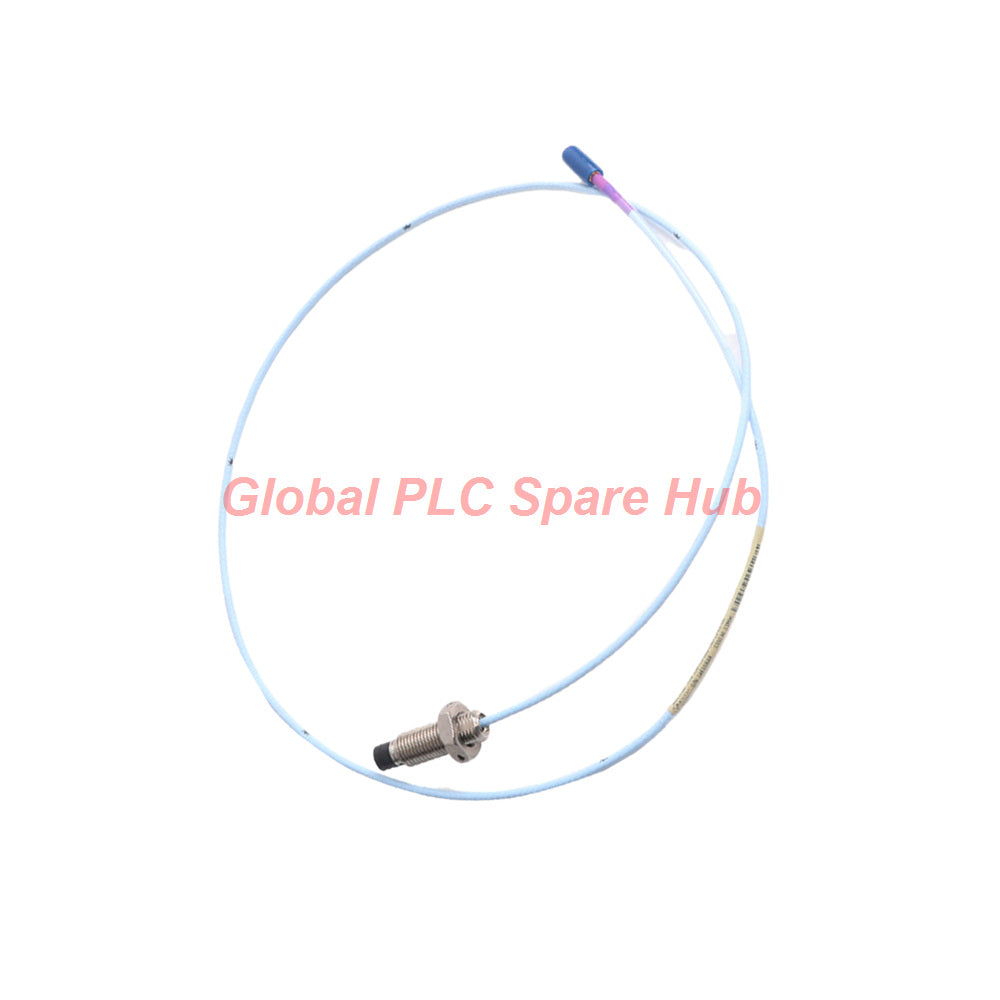

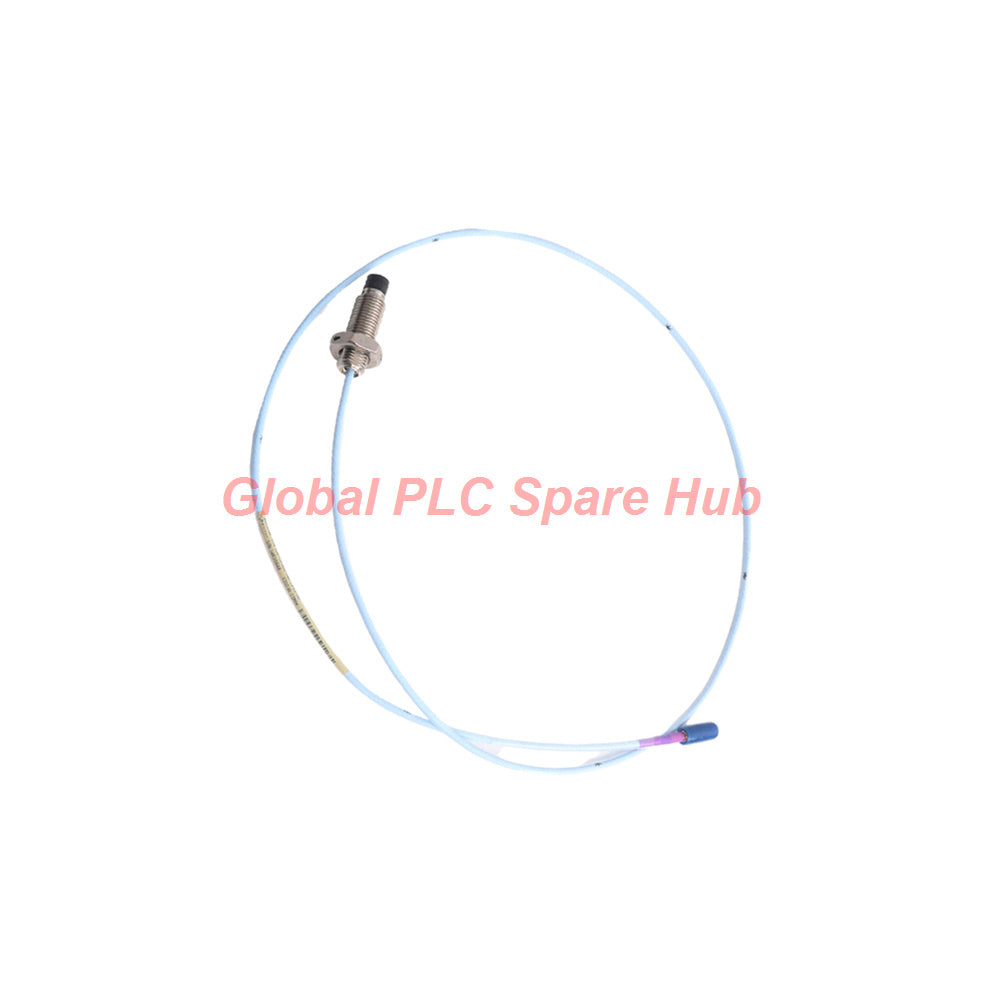

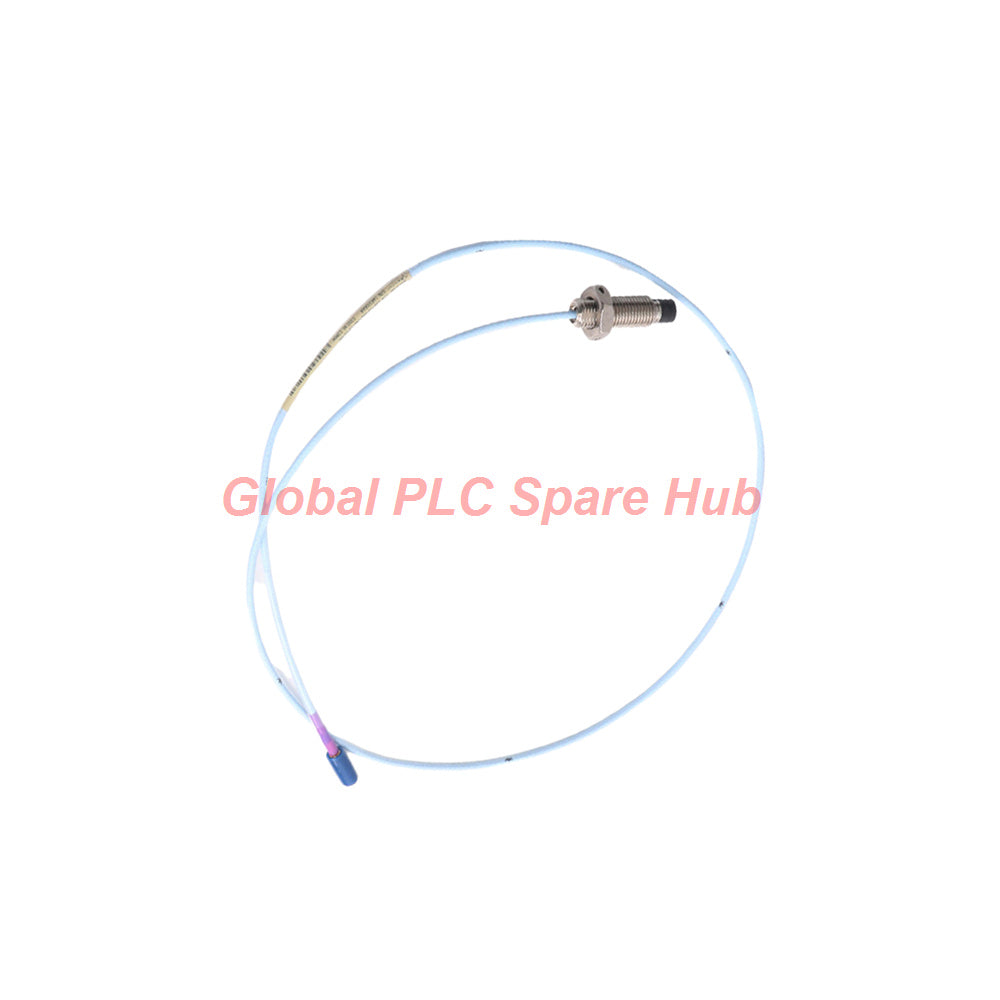

330302-000-011-50-90-00-05 Bently Nevada High Temperature Probe

330302-000-011-50-90-00-05 Bently Nevada High Temperature Probe

Manufacturer: Bently Nevada
Product No.: 330302-000-011-50-90-00-05
Condition： In stock
Product Type: Proximity Probe
Product Origin: USA
Payment: T/T, Western Union
Weight: 320g
Shipping port: Xiamen
Warranty: 12 months

Quantity

Selected quantity: 1

Estimate delivery times: 12-26 days (International), 3-6 days (United States).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Guaranteed Safe Checkout

Engineering Insight & Performance Summary

The 330302-000-011-50-90-00-05 represents a specialized high-temperature sensor engineered by Bently Nevada for extreme thermal environments. Part of the 3300 High Temperature Probe family, this unit utilizes a ceramic probe tip and AISI 316L stainless steel casing to withstand continuous operating temperatures up to +350°C (+662°F). Industrial instrumentation technicians rely on this model to monitor radial vibration and axial position on heavy turbomachinery where standard sensors fail due to heat degradation.

Part Number Configuration Breakdown

Base Model: 330302 — 3300 High Temperature Proximity Probe
Unthreaded Length Option (000): 0 mm unthreaded portion
Overall Case Length Option (011): 11 mm case length
Hardline Length Option (50): 5.0 meters (16.4 feet) integral hardline cable
Total Length Option (90): 9.0 meters (30 feet) total system length including extension cable
Extension Cable Armor Option (00): Without stainless steel armor protection
Agency Approval Option (05): Multiple hazardous area approvals (CSA, ATEX, IECEx)

Technical Specifications Matrix

Specification Parameter	Engineering Metric
Brand & Series	Bently Nevada / 3300 High Temperature Series
Model Number	330302-000-011-50-90-00-05
Incremental Scale Factor	3.94 V/mm (100 mV/mil) ±9.65%
Linear Range	4.0 mm (160 mil) linear measurement span
Linearity Deviation (DSL)	<±78 μm (±3.1 mils) at standard range
Frequency Response	0 to 6 kHz (+0, -3 dB typical with up to 305m field wiring)
DC Resistance (R_PROBE)	8.11 Ω (center conductor to outer conductor at 5.0m)
Temperature Range	-34°C to +350°C (-30°F to +662°F)
Minimum Target Size	30.5 mm (1.2 in) diameter flat target
Minimum Shaft Diameter	152 mm (6.0 in) recommended rotor size
Probe Tip & Case Material	Ceramic tip with AISI 316L stainless steel housing

Application Compatibility & Diagnostic Capabilities

Target Machinery: High-temperature steam turbines, gas turbine exhaust sections, industrial boiler feed pumps, and high-pressure hot oil compressors.
Diagnostic Capabilities: Detects rotor unbalance, thermal bow, fluid-induced instabilities, sub-synchronous vibrations, and impending sleeve or thrust bearing degradation in high-heat zones.

Model Selection & Technical Comparison

Comparison Model	Hardline & Total Length	Technical Recommendation & Selection Guide
330302-000-011-20-90-01-05	2.0 m hardline, 9.0 m total, with armor	Choose this variant when routing requires a shorter hardline cable length combined with stainless steel armor for physical protection in abrasive environments.

Logistics, Warranty & Fulfillment Terms

Fulfillment Speed: Express dispatch within 24 to 48 hours.
Global Shipping: Secure courier delivery via FedEx, UPS, and DHL.
Warranty Terms: Comprehensive 12-month factory defect warranty.

Frequently Asked Questions

Why does this model utilize a ceramic probe tip instead of polyphenylene sulfide?
Ceramic material maintains structural integrity and electrical stability under continuous exposure to extreme temperatures up to +350°C, whereas standard plastic tips degrade in high heat.

What is Global PLC Spare HUB's Insight on hardline cable handling during installation?
Global PLC Spare HUB recommends avoiding sharp bends on the 5.0-meter stainless steel hardline section, as severe kinks can damage the internal coaxial dielectric and alter signal propagation.

How does thermal expansion affect the linear scale factor of this probe?
Over operating temperatures from 22°C to +350°C, the incremental scale factor remains within ±30% of 3.94 V/mm, ensuring predictable signal scaling under hot conditions.

What precautions are necessary when setting the initial gap for high-temperature probes?
Account for thermal growth of the rotor during startup; setting the cold gap too tight can drive the probe out of its linear range as the shaft expands toward the sensor tip.

Can unarmored extension cables like option 00 be routed through open cable trays?
Unarmored cables should be run inside protective metallic conduit if installed in heavy industrial areas to prevent mechanical crushing or chemical damage to the outer jacket.
