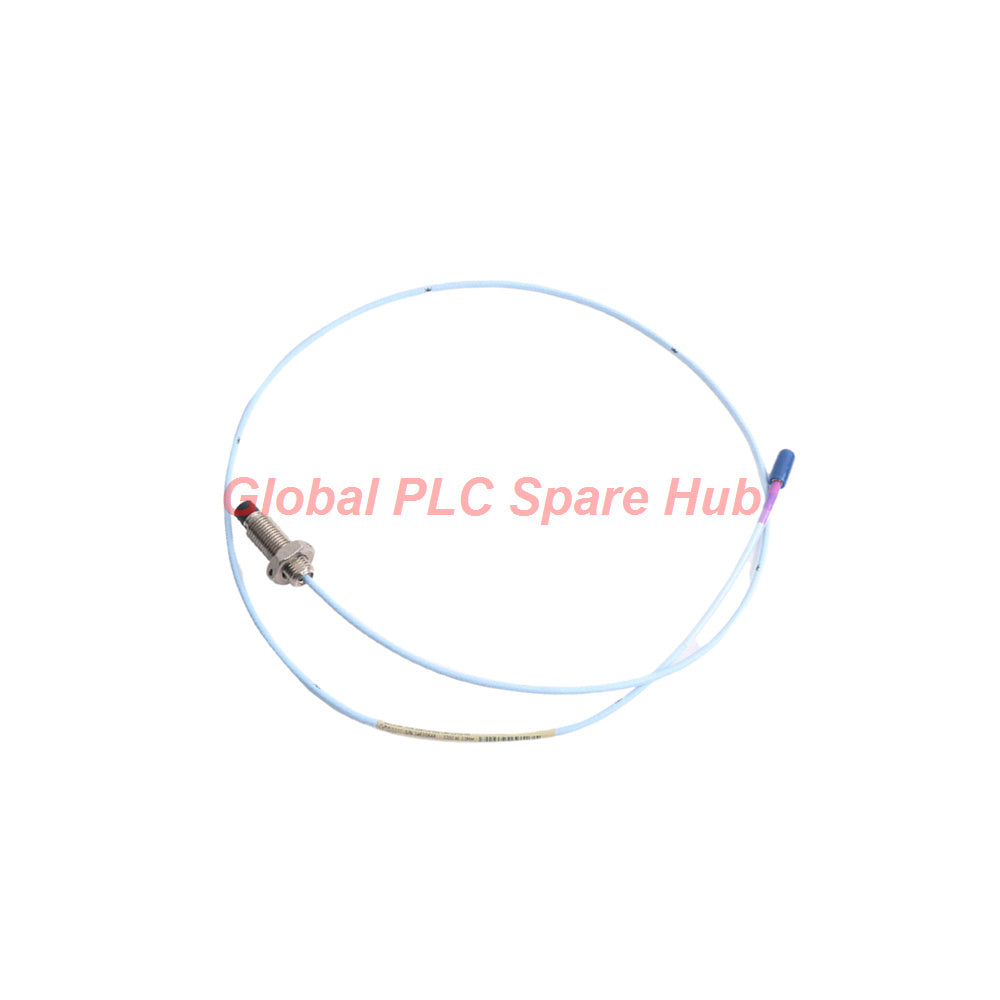

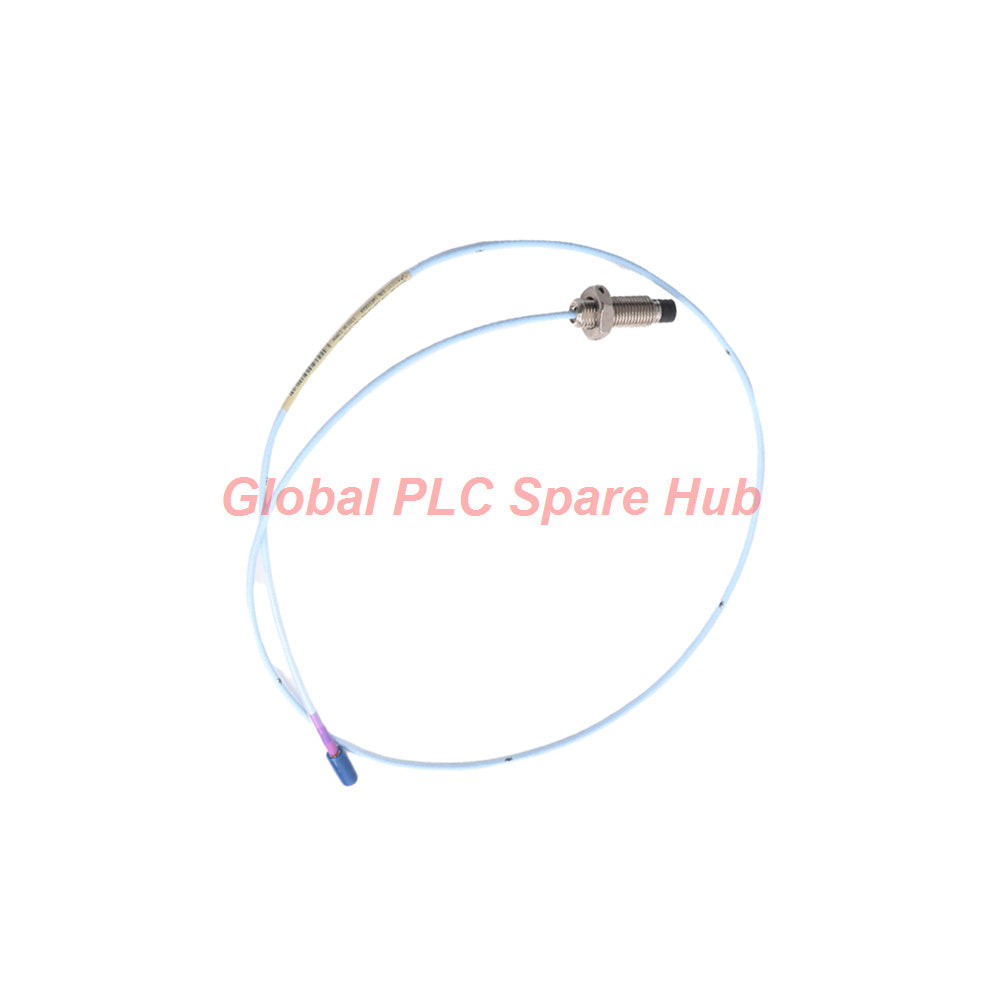

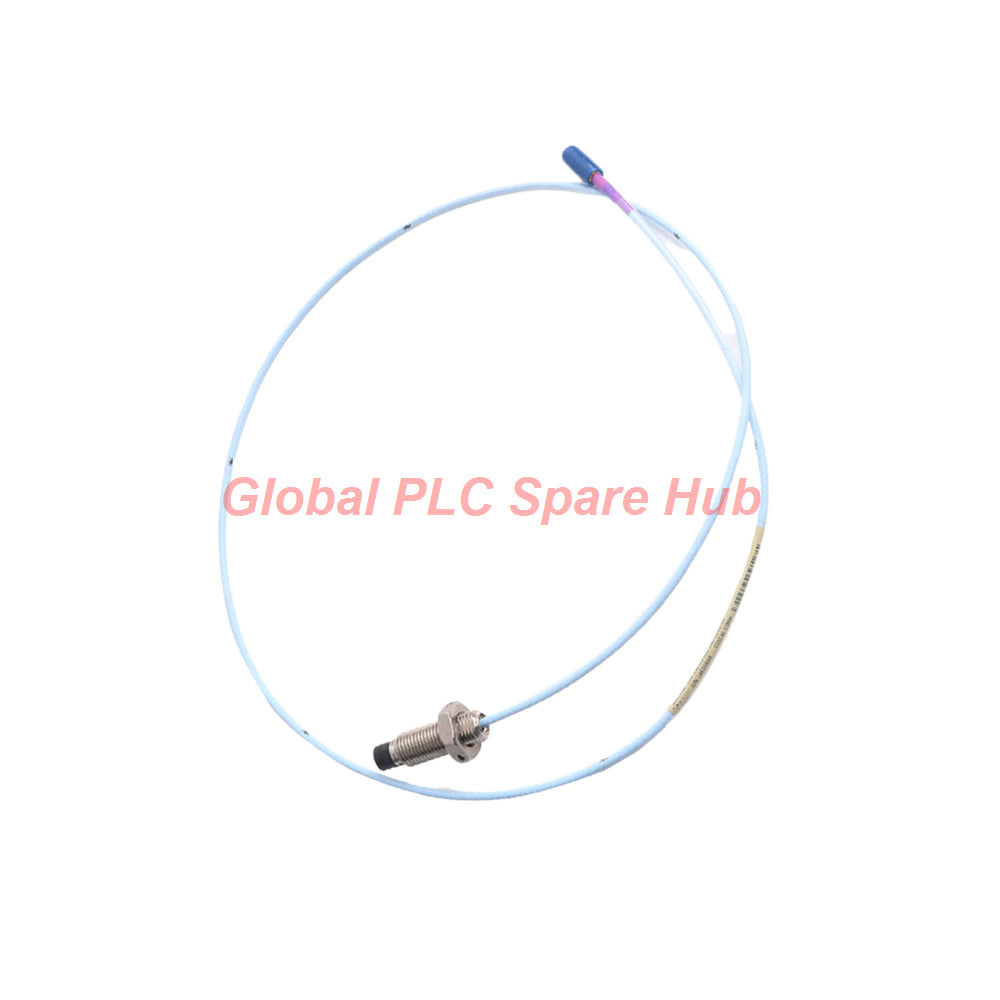

330302-000-011-20-90-00-05 Bently Nevada 3300 High Temperature Probe

Engineering Architecture and Configuration Breakdown

The 330302-000-011-20-90-00-05 transducer represents an advanced Bently Nevada 3300 High Temperature proximity probe assembly designed for severe industrial environments where continuous operating limits reach up to 350°C (662°F). The structured breakdown below details each part number suffix:

Technical Parameters and Mechanical Specifications

Physical Mounting and Installation Guidelines

• Mount the probe securely into specialized high-temperature machinery mounting brackets or threaded machine casing ports.
• Ensure the rigid 2.0-meter stainless steel hardline cable is routed cleanly, allowing proper bend radii without kinking the internal coaxial conductor.
• Verify that the target shaft diameter meets or exceeds the 152 mm (6.0 in) minimum requirement to maintain accurate linear scaling.
• Protect the extension cable connectors from direct chemical washdown and severe moisture accumulation during installation.

Diagnostic Capabilities and Signal Monitoring

• Continuous tracking of probe DC resistance (5.82 ohms) through associated 3300 XL high-temperature proximitor monitors allows instant fault detection.
• Advanced thermal compensation maintains incremental scale factor accuracy within ±30% across extreme temperature excursions up to 350°C.
• High-frequency eddy current response monitors micro-displacement and radial vibration on high-speed industrial turbines.

Target Equipment and Application Scenarios

• Heavy-duty steam turbines, gas turbine exhaust ends, and high-temperature centrifugal compressors.
• Industrial boiler feed pumps and specialized chemical reactors operating under elevated thermal loads.
• Refinery cracking units and high-temperature gearboxes requiring non-contacting vibration telemetry.

Global PLC Spare HUB's Insight and Field Experience

Plant machinery engineers frequently specify the 330302-000-011-20-90-00-05 when standard epoxy-tipped proximity probes fail due to thermal breakdown in extreme heat zones. Field experience highlights that the rigid stainless steel hardline cable must be handled with care during installation; sharp bends can compromise internal insulation and alter the DC resistance value. Furthermore, ensuring proper grounding of the signal shield at the monitor rack is vital for eliminating electrical noise interference in high-temperature environments.

Model Selection Comparison and Technical Recommendation

When assessing configuration options within the same product family, comparing this unit against the 330302-000-011-50-90-01-00 High Temperature Probe reveals important physical differences. While the model described here features a 2.0-meter hardline cable and multiple hazardous area approvals (Option 05), the alternative model utilizes an extended 5.0-meter hardline cable (Option 50) and standard agency approvals with added extension cable armor. Engineers should select the 2.0-meter hardline variant when terminal box routing is nearby, whereas the 5.0-meter option suits machinery where the probe must traverse thick thermal insulation blankets before reaching a safe junction enclosure.

Frequently Asked Questions

Q: What primary engineering factor requires the use of ceramic probe tips in high-temperature transducer models?
A: Ceramic materials resist thermal degradation and dimensional warping at continuous temperatures up to 350°C, unlike standard polyphenylene sulfide tips which soften under extreme heat.

Q: How do extreme thermal swings between ambient start-up and full-load operation affect the incremental scale factor?
A: The transducer system maintains its scale factor within ±30% of 3.94 V/mm even as operating temperatures fluctuate across the full 350°C thermal envelope.

Q: What troubleshooting steps apply if the proximitor output voltage drifts out of linear operating range during thermal soak?
A: Check the 5.82-ohm loop resistance, inspect the hardline cable for localized crushing, and verify that the target shaft thermal growth has not altered the cold gap setting.

Q: Can the rigid stainless steel hardline cable be field-shortened during machinery installation?
A: No, the hardline length is factory-calibrated to match the electrical resonance of the transducer system; altering its length destroys calibration accuracy.

Q: What selection criteria govern the choice between unarmored and armored extension cable suffixes?
A: Select armored extension cables when physical cable runs traverse heavy industrial traffic paths or areas exposed to mechanical abrasion from maintenance tools.
