330130-045-00-05 Bently Nevada 3300 XL Extension Cable | 4.5m

Precision Connectivity: 330130-045-00-05 Extension Cable

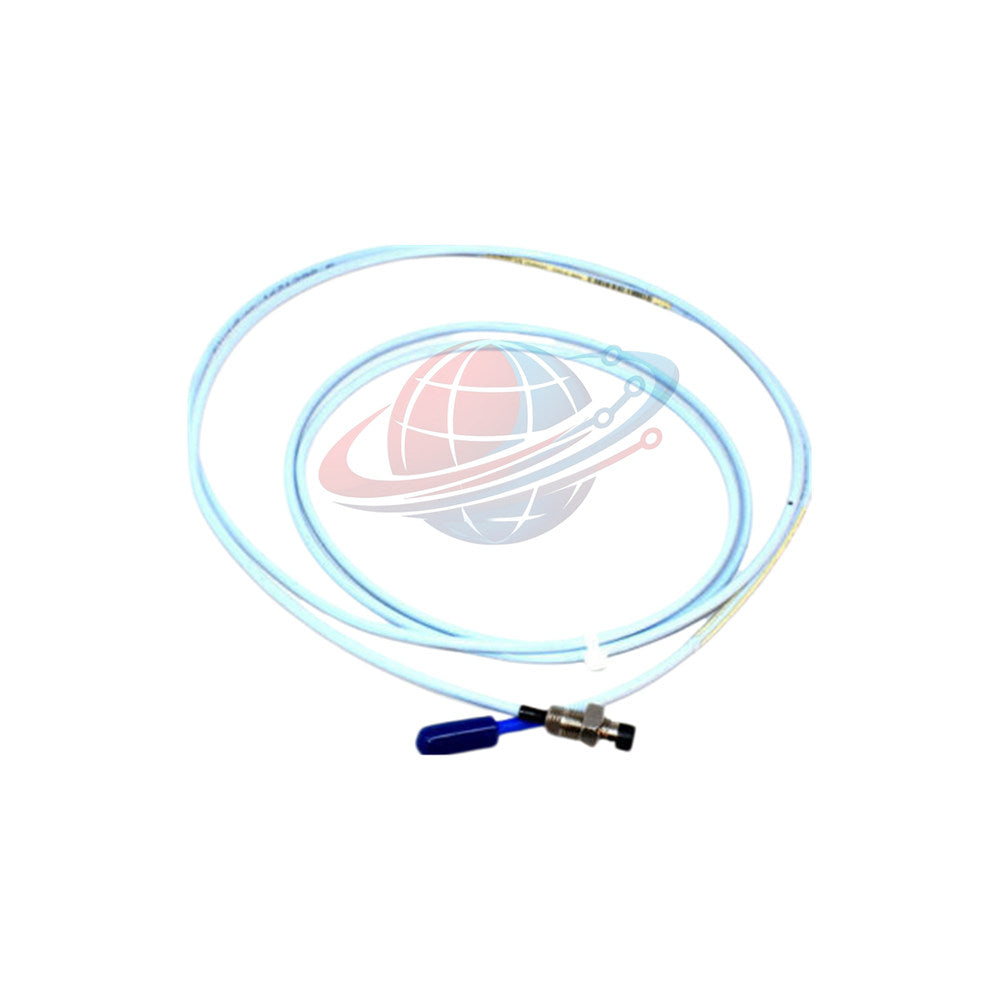

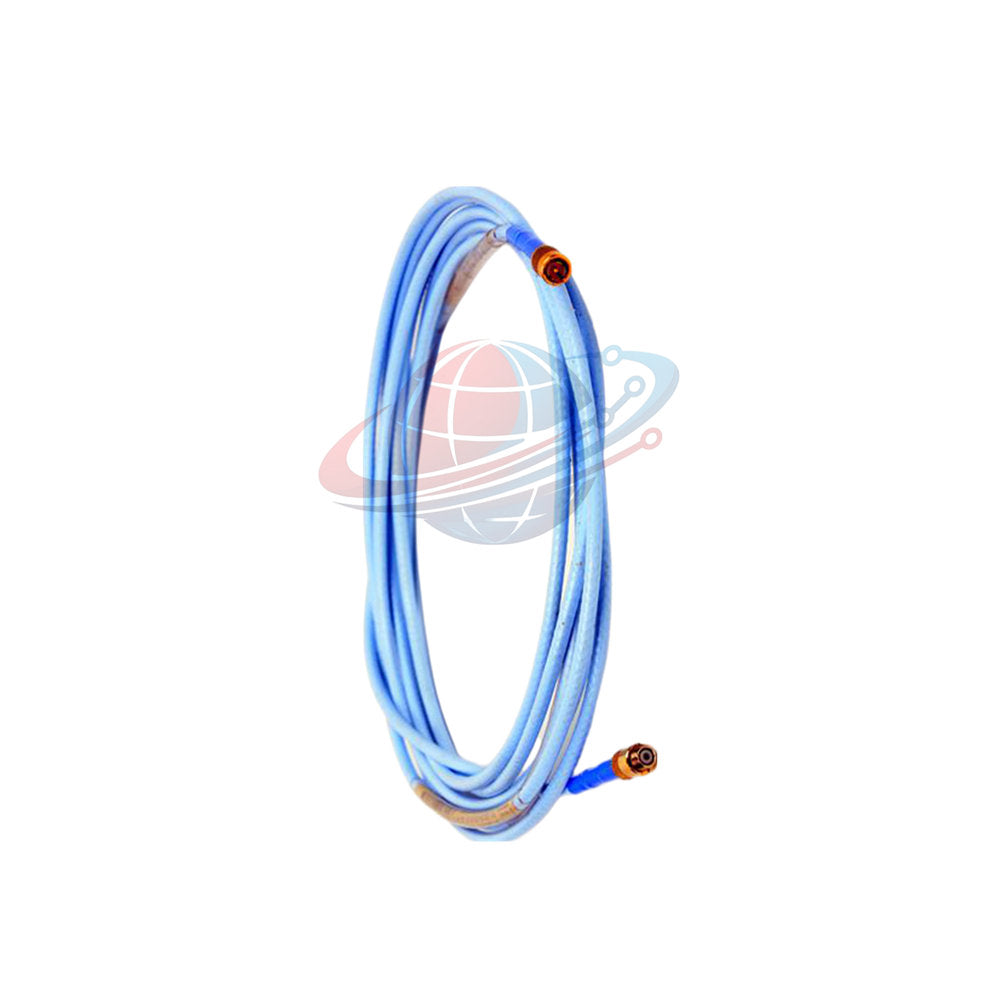

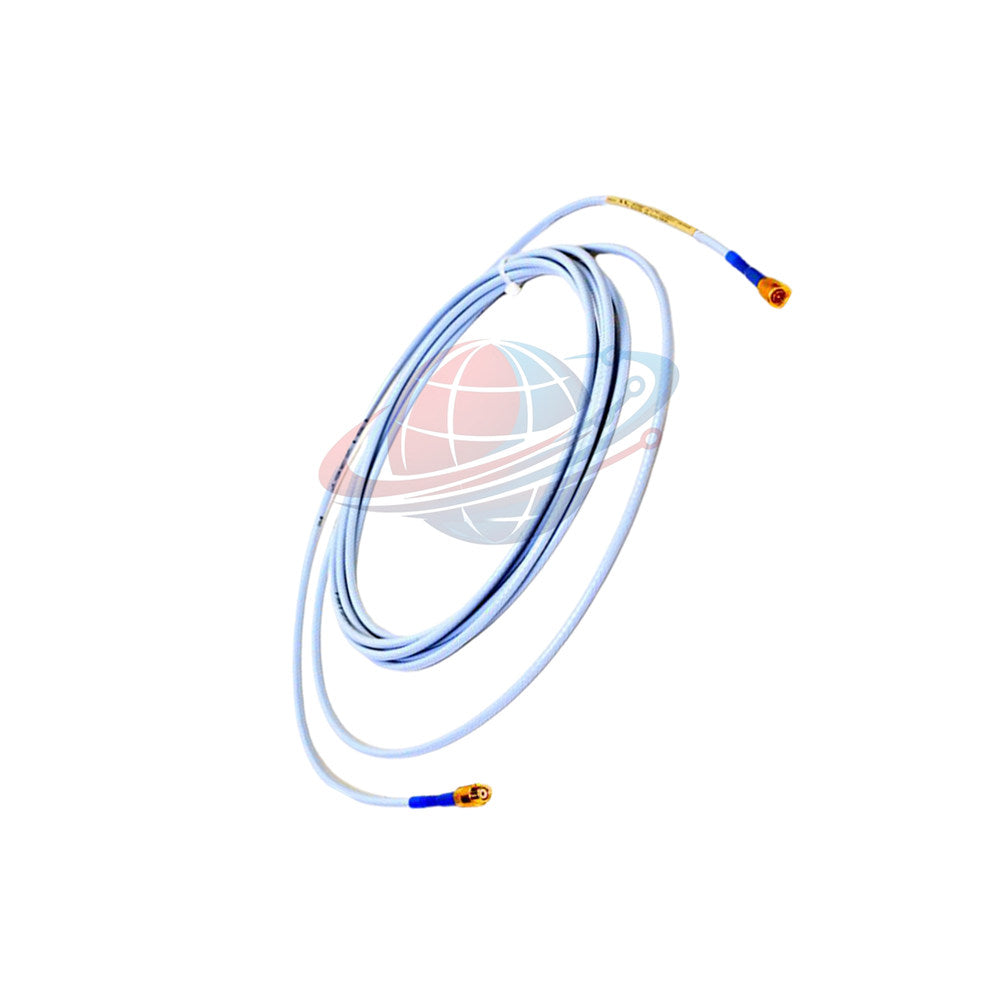

The 330130-045-00-05 is a high-reliability extension cable designed by Bently Nevada for the 3300 XL 8 mm proximity transducer system. This 4.5-meter cable ensures signal integrity between the probe and the Proximitor sensor, featuring the patented CableLoc design for superior mechanical pull strength and environmental sealing.

Configuration Breakdown

• Part Number: 330130-045-00-05
• Cable Length: 045 — 4.5 meters (14.8 feet)
• Connector/Cable Option: 00 — Standard construction
• Approvals: 05 — CSA, ATEX, IECEx Certified

Technical Specifications

• Linear Range: 2 mm (80 mils)
• DC Resistance (Center Conductor): 0.99 ± 0.15 Ω
• DC Resistance (Outer Conductor): 0.30 ± 0.06 Ω
• Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Pull Strength: 330 N (75 lbf) via CableLoc design
• Operating Temperature: -55°C to +232°C (Probe classification dependent)

Diagnostic & Operational Capabilities

The 330130-045-00-05 incorporates TipLoc and CableLoc molding technologies to prevent structural failure in vibrating machinery. The system maintains high accuracy (ASF) despite 93% humidity levels. Diagnostic monitoring of the signal rolloff is possible for field wiring lengths up to 305 meters, ensuring the 3300 XL system maintains its linear range (-1 to -17 Vdc) under harsh conditions.

Typical Applications

• Turbine and generator vibration monitoring.
• Centrifugal compressor shaft displacement sensing.
• Hazardous area machinery (ATEX/IECEx zone compliant).
• Critical rotating equipment where oil/liquid sealing is required.

Global PLC Spare HUB's Insight

In our technical analysis, the 330130-045-00-05 stands out for its robustness. For offshore or high-oil environments, we advise against using the included silicone tape. Instead, ensure a mechanical connector protector is utilized to maintain the integrity of the connection. Always verify the field wiring uses 3-conductor shielded triad cable to minimize EMI influence on the low-millivolt output signal.

Logistics & Quality Commitment

• Dispatch: Orders processed and shipped within 24-48 hours.
• Logistics: Secure global shipping via FedEx, UPS, or DHL.
• Warranty: This 330130-045-00-05 component includes a comprehensive 12-month performance warranty.

Professional Frequently Asked Questions

Q: Why should I avoid silicone tape in turbine oil applications?
A: Turbine oils can degrade the adhesive and sealing properties of silicone tape over time, potentially allowing contaminants into the connector interface. Use proper mechanical connector protectors instead.

Q: Can I shorten or splice this 4.5m extension cable?
A: We strongly recommend against splicing. The 330130-045-00-05 is factory-calibrated for specific resistance and capacitance; splicing introduces impedance changes that can skew your displacement readings.

Q: What is the benefit of the FluidLoc option?
A: While this specific unit (00 option) is standard, the FluidLoc design prevents machine oil from migrating through the cable interior, which is critical for preventing messy leaks on equipment housing.

Q: Does the cable length affect the Proximitor sensor output?
A: Yes. The 3300 XL system is designed as a complete chain. The 330130-045-00-05 is matched to the system's electrical characteristics; substituting different lengths without re-calibration can cause measurement drift.

Q: What is the best practice for installing the cable in high-vibration areas?
A: Use the CableLoc-rated pull strength to your advantage by ensuring the cable is properly anchored with strain relief brackets every 0.5 meters to prevent fatigue at the connector junction.
