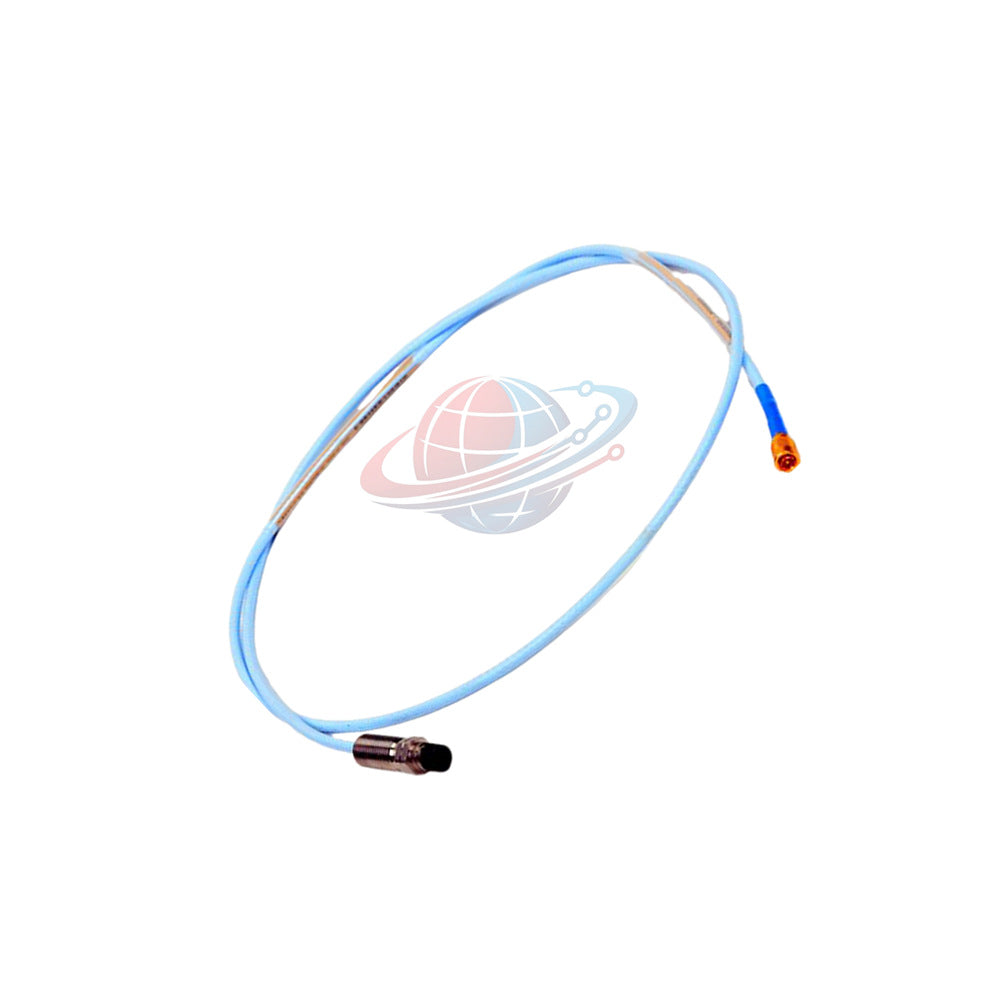

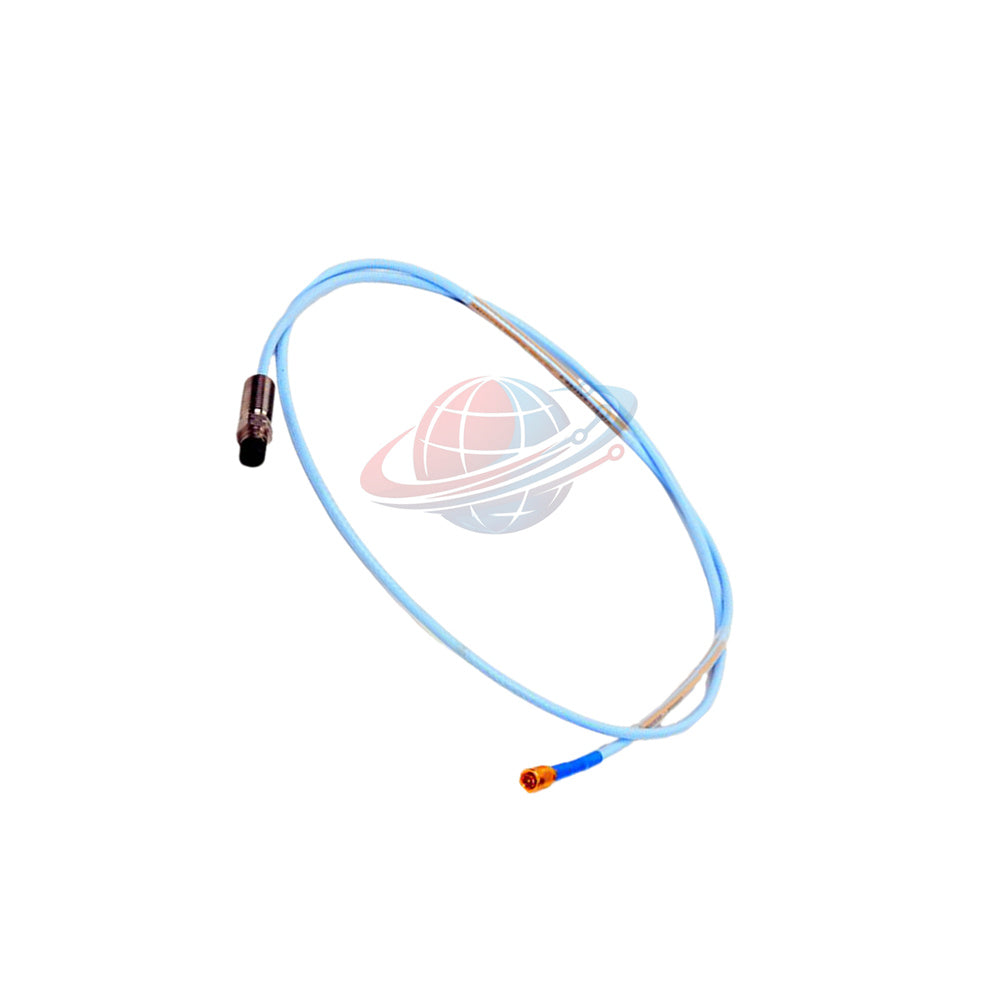

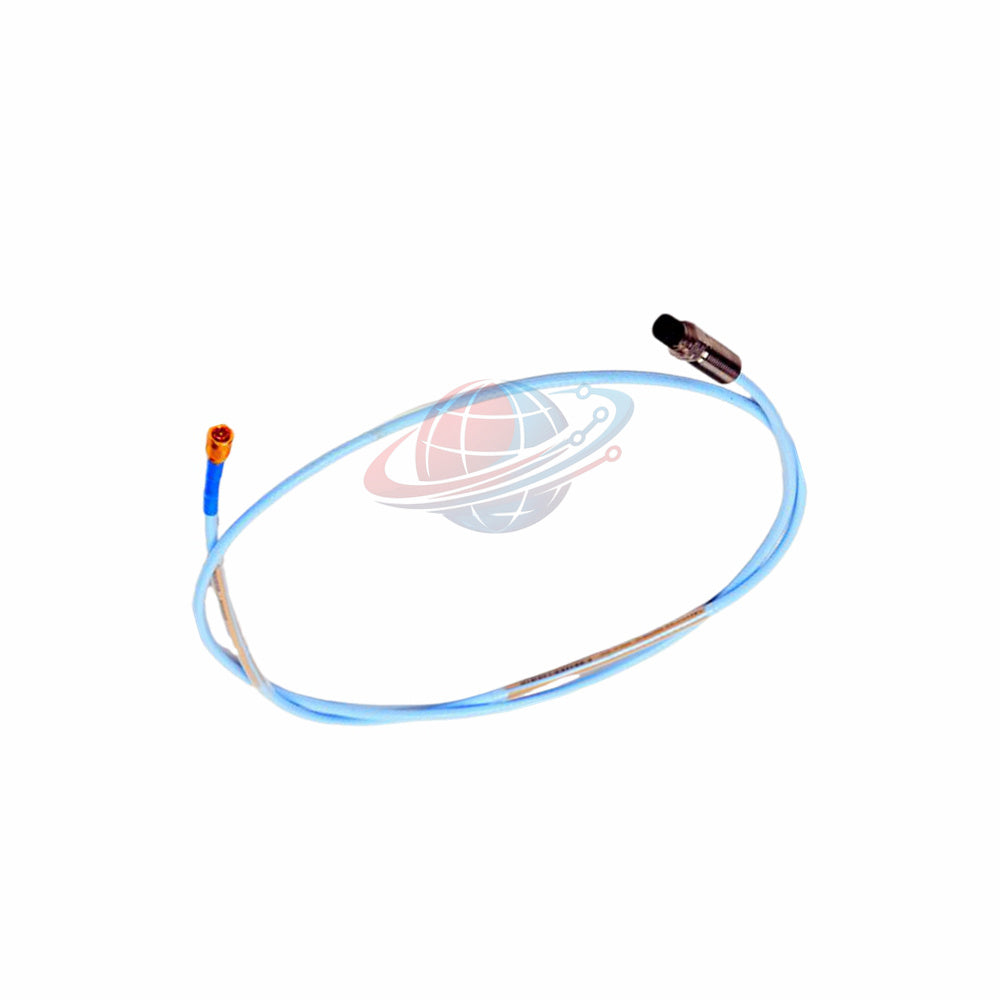

330106-05-30-50-02-00 Bently Nevada 3300 XL Reverse Mount Probe
Manufacturer: Bently Nevada
Product No.: 330106-05-30-50-02-00
Condition： In stock
Product Type: Reverse Mount Probes
Product Origin: USA
Payment: T/T, Western Union
Weight: 323g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
330106-05-30-50-02-00 Precision Reverse Mount Vibration Probe
Bently Nevada 330106-05-30-50-02-00 belongs to the high-performance 3300 XL 8 mm proximity probe series.
The probe supports accurate shaft vibration and position monitoring in rotating machinery systems.
This reverse mount configuration improves installation flexibility in restricted machine housings.
The 75Ω triaxial cable structure delivers stable signal transmission under industrial operating conditions.
Its stainless steel housing and PPS probe tip provide excellent environmental durability.
The miniature ClickLoc connector improves secure high-vibration installation performance.
Configuration Breakdown
| Configuration Code | Description |
| 330106 | 3300 XL 8 mm Reverse Mount Probe Series |
| 05 | 5.0 meter total probe length |
| 30 | M10 x 1 threaded probe case |
| 50 | Standard cable configuration |
| 02 | Miniature ClickLoc coaxial connector |
| 00 | Standard approval option |
Global PLC Spare HUB's Insight
330106-05-30-50-02-00 performs reliably in high-speed rotating equipment monitoring applications.
Predictive maintenance engineers value its stable proximity measurement characteristics.
The reverse mount structure simplifies installation inside compact bearing housings.
Its triaxial cable design improves signal integrity in electrically noisy environments.
Technicians frequently deploy this probe in turbine and compressor vibration systems.
The ClickLoc connector improves service efficiency during maintenance replacement cycles.
Mechanical and Electrical Characteristics
- Brand: Bently Nevada
- Model: 330106-05-30-50-02-00
- Series: 3300 XL 8 mm Reverse Mount Probe
- Device Type: Proximity Vibration Monitoring Probe
- Thread Type: M10 × 1
- Total Probe Length: 5.0 meters
- Connector Type: Miniature ClickLoc coaxial connector
- Probe Tip Material: Polyphenylene sulfide (PPS)
- Probe Case Material: AISI 303/304 stainless steel
- Probe Cable: 75Ω triaxial FEP insulated cable
- Maximum Thread Engagement: 15 mm
- Probe Resistance: 8.73 ±0.50 Ω
- Maximum Tensile Strength: 330 N
- Connector Material: Gold-plated brass or beryllium copper
- Probe Weight: 323 g/m
Environmental and Operating Performance
- Standard Operating Temperature: -52°C to +177°C
- Extended Temperature Capability: Up to +218°C probe tip
- Cable Temperature Capability: Up to +260°C
- Humidity Stability: Less than 3% ASF variation
- Pressure Seal: Viton® O-ring configuration
- Humidity Test Standard: IEC 68 2 3 compliant
- Cable Armor Option: Flexible stainless steel armor available
Recommended Industrial Applications
- Steam turbine vibration monitoring
- Centrifugal compressor protection systems
- Industrial motor shaft displacement monitoring
- Oil and gas rotating equipment diagnostics
- Generator shaft position supervision
- Process pump condition monitoring
- Predictive maintenance vibration systems
- High-speed machinery protection platforms
Diagnostic and Monitoring Functions
- Continuous shaft vibration monitoring
- Rotor displacement measurement
- Machine protection system integration
- Signal stability trend analysis
- Bearing condition monitoring support
- Mechanical looseness detection
- Rotor imbalance observation
- Thermal expansion movement analysis
Engineering Selection Comparison
| Model | Cable Length | Recommended Application | Technical Recommendation |
| 330106-05-30-50-02-00 | 5 meters | Compact machinery installations | Recommended for medium-distance routing with improved signal stability. |
| 330106-05-30-90-02-05 | 9 meters | Large turbine and remote cabinet layouts | Recommended for extended routing installations requiring longer cable reach. |
Technical Selection Guidance
- Select 5-meter configurations for minimized signal attenuation.
- Use 9-meter versions for extended panel routing environments.
- Verify thread compatibility before installation.
- Choose armored cable options for high-abrasion environments.
- Evaluate operating temperature before selecting standard or extended cable types.
Shipping and Warranty Service
- Fast dispatch within 24-48 hours
- Worldwide shipping support available
- FedEx, UPS, and DHL delivery services supported
- Protective industrial export packaging included
- 12-month warranty support provided
- Technical assistance available after shipment
Professional FAQ
Why are reverse mount probes preferred in compact machinery installations?
Reverse mounting improves installation access inside restricted bearing housings.
How can engineers improve proximity probe signal stability?
Maintain proper grounding and avoid routing near high-voltage power cables.
Which applications benefit most from ClickLoc connector designs?
High-vibration environments benefit from secure connector retention performance.
What factors determine correct probe cable length selection?
Cabinet distance, signal routing complexity, and machinery layout determine cable requirements.
Why is PPS material used for probe tip construction?
PPS provides stable thermal resistance and strong industrial chemical durability.
