32000-29-05-10-072-07-02 Bently Nevada Metric Proximity Probe Housing
Manufacturer: Bently Nevada
Product No.: 32000-29-05-10-072-07-02
Condition： In stock
Product Type: Proximity Probe Housing
Product Origin: USA
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Product Overview

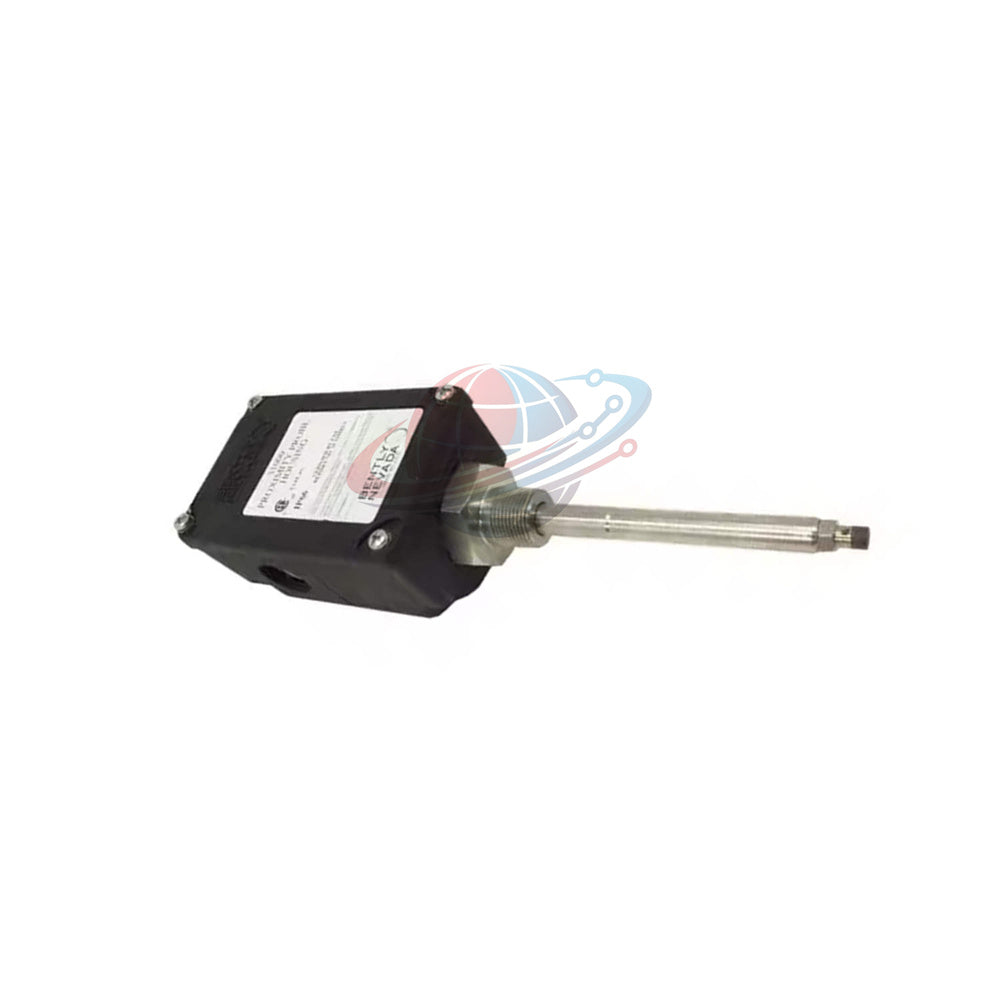

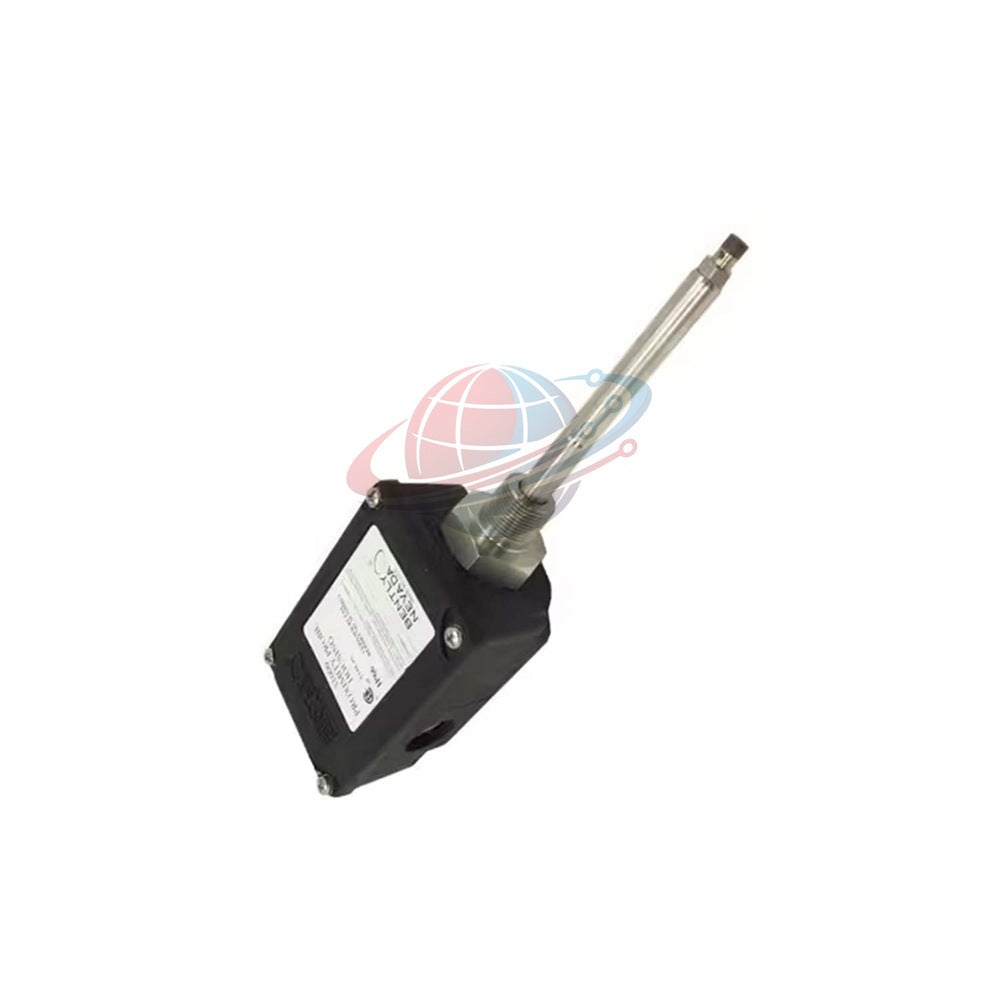

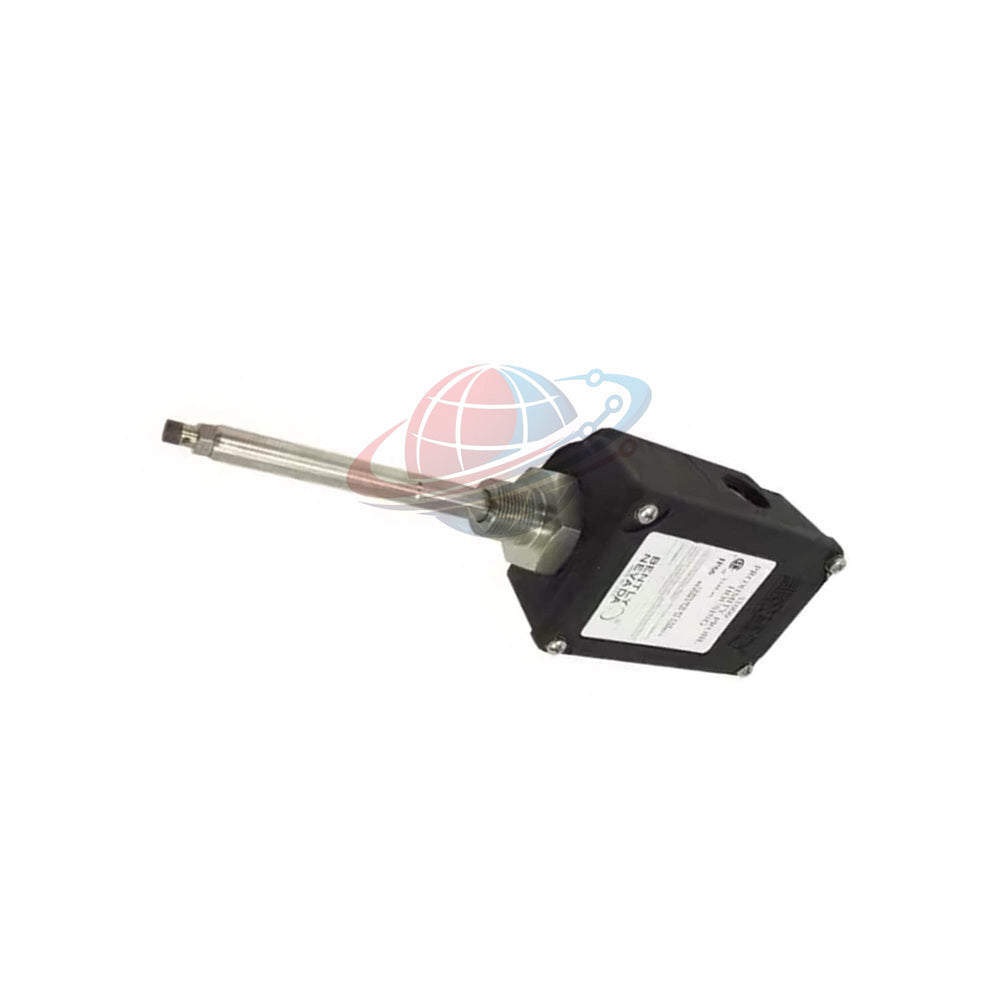

The 32000-29-05-10-072-07-02 is a rugged metric proximity probe housing engineered by Bently Nevada. Part of the 32000 Series, this enclosure protects eddy current displacement transducers in aggressive industrial environments. It secures internal cabling while providing robust resistance to mechanical impacts, thermal extremes, and moisture ingress.
Global PLC Spare HUB's Insight & Engineering Field Experience
In our field experience maintaining heavy rotating machinery, premature sensor failures often result from unsealed housing entries and thread mismatch during probe penetration adjustments. When installing the 32000-29-05-10-072-07-02, verify that the 72mm penetration depth matches your specific bearing clearance requirements. Additionally, ensure proper torque on the PG21 x M20 fittings to maintain the IP66 ingress protection rating across fluctuating thermal cycles.
Configuration Breakdown & Suffix Options
| Configurable Option | Selected Suffix Code | Engineering Specification |
|---|---|---|
| Base Model Number | 32000 | Metric Proximity Probe Housing platform |
| Probe Option & Connector | -29 | 3300 XL 8 mm probe with integrated connector protector |
| Probe Cable Length | -05 | 0.5 meter internal stub cable configuration |
| Standoff Adapter | -10 | 100 mm thermal and physical standoff adapter |
| Probe Penetration | -072 | 72 mm designated probe penetration depth |
| Fittings Option | -07 | One PG21 x M20 cable fitting with two sealing plugs |
| Mounting Thread | -02 | 3/4-14 NPT external mounting thread interface |
Technical Specifications
| Parameter Category | Technical Metric | Operational Value |
|---|---|---|
| Material Composition | Main Housing Body | Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic |
| Sleeve & Chain | AISI 304 stainless steel sleeve with retaining chain | |
| Hardware & O-Ring | AISI 303 exterior screws with Neoprene sealing O-ring | |
| Mechanical Durability | Impact Resistance | Withstands 4 Joule at -39°C/115°C; 7 Joule at room temp |
| Total Physical Weight | 1.2 Kg (2.65 lbs) nominal mass | |
| Environmental Ratings | Operating Temperature | -51°C to +105°C (-60°F to +221°F) limits |
| Protection Class | CSA Certified Type 4X and IP66 ingress protection rating |
Recommended Equipment & Application Scenarios
- Steam Turbines: High-temperature bearing housings requiring robust thermal isolation.
- Centrifugal Compressors: Gas processing units requiring hermetic moisture defense.
- Large Electric Motors: Industrial drive trains operating in wet or corrosive atmospheres.
- Hazardous Processing Skids: Petrochemical environments demanding electrostatic dissipation compliance.
Diagnostic Capabilities & System Performance
- Rotor Dynamic Protection: Secures proximity probes for accurate shaft vibration and radial displacement logging.
- Axial Position Tracking: Maintains precise probe positioning for thrust collar wear monitoring.
- Noise Mitigation: Shields sensitive extension cable connections from external electromagnetic interference.
- Structural Integrity: Protects delicate probe tips against catastrophic mechanical shock and fluid leakage.
Warranty, Shipping & Fulfillment
- Commercial Guarantee: Backed by a full 12-month manufacturer replacement warranty.
- Order Turnaround: Swift handling with dispatch guaranteed within 24 to 48 hours.
- Global Logistics: Express worldwide delivery fulfilled via FedEx, UPS, and DHL.
Professional Frequently Asked Questions (FAQ)
Q: Why is the -02 mounting thread option mandatory when selecting the standoff adapter?
A: The 3/4-14 NPT thread provides the mechanical rigidity necessary to support the 100 mm standoff extension without vibration-induced fatigue.
Q: How does the PPS thermoplastic housing handle electrostatic buildup in hazardous zones?
A: The housing incorporates conductive fibers within the Polyphenylene Sulfide matrix, meeting CENELEC EN50014 standards for safe electrostatic dissipation.
Q: Can the 72mm probe penetration depth be adjusted after initial factory assembly?
A: No. The penetration length is fixed by internal sleeve machining. Altering it requires replacing the internal guide assembly to maintain calibration.
Q: What maintenance steps prevent moisture accumulation inside the 32000-29-05-10-072-07-02 housing?
A: Inspect the Neoprene O-ring annually for cracking and ensure the PG21 cable glands are torqued tightly around external field wiring.
Q: How do I select between standard direct mounting and the 100mm standoff adapter version?
A: Choose standoff adapters when surface temperatures exceed standard probe limits or when external machine insulation blankets obstruct direct housing access.
