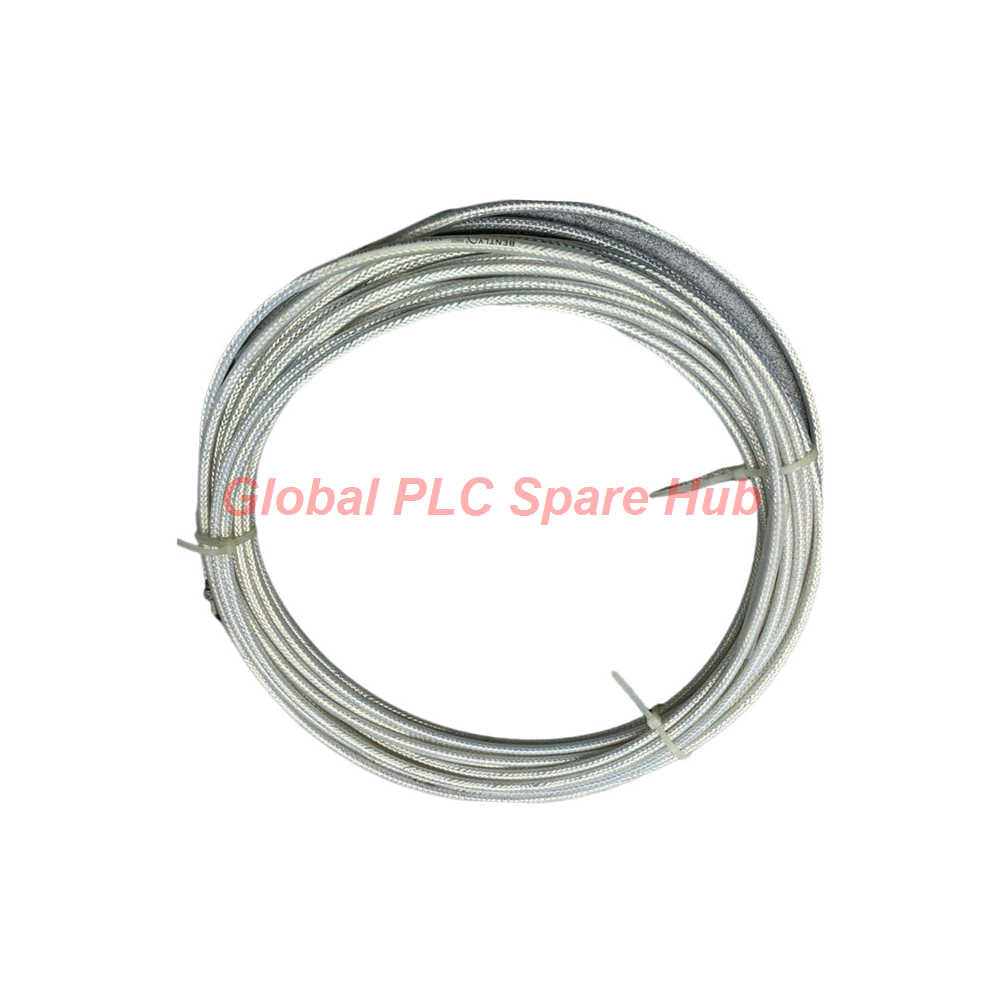

27490-0370-00 Bently Nevada XL Proximitor Cable 11.28m Signal Lead

Product Introduction

The Bently Nevada 27490-0370-00 is a high-performance XL Proximitor Extension Cable designed for critical machinery protection. This cable provides the essential electrical bridge between the proximity probe and the proximitor sensor. Its triaxial design ensures superior signal integrity by minimizing attenuation and external noise interference.

Technical Specifications

• Brand: Bently Nevada
• Model: 27490-0370-00
• Product Line: XL Proximitor Series
• Measurement Range: Optimized for standard displacement and vibration sensing.
• Frequency Response: Supports 0 Hz to 10 kHz signal transmission.
• Sensitivity: Designed for 200 mV/mil (7.87 V/mm) system linearity.
• Linearity: Maintains high accuracy across the full displacement range.
• Resolution: High-fidelity signal path for sub-micron measurement.
• Temperature Range: -51 °C to +177 °C (-60 °F to +350 °F).
• Environmental Tolerance: High resistance to industrial lubricants and moisture.
• Interference Rejection: Continuous triaxial shielding for maximum EMI/RFI protection.
• Insulation Voltage: Rated for up to 250 V.

Configuration Breakdown

• 27490 (Base Model: XL Proximitor Extension Cable)
  • -0370 (Length Option)
    • 37.0 Feet Total Length
    • 11.28 Meters Metric Equivalent
  • -00 (Armor Option)
    • No Stainless Steel Armor
    • Standard High-Flexibility Jacket

Installation and Maintenance Guide

• Field Wiring Support: Compatible with 16 to 24 AWG (0.2 to 1.5 mm²).
• Connector Handling: Use pre-terminated ends for secure, error-free locking.
• Routing Guidance: Maintain the minimum bend radius to prevent core damage.
• Debugging Convenience: Gold-plated contacts allow for rapid signal verification.
• Maintenance: Periodically check for physical jacket wear in high-vibration zones.

Equipment Compatibility

• Compatible with Bently Nevada 3300 XL 8mm Proximity Probes.
• Direct interface for Bently Nevada 3300 XL Proximitor Sensors.
• Integrates with 3500/40M and 3500/42M Vibration Monitors.
• Suitable for rotating machinery protection systems (Turbines, Pumps, Fans).

Logistics and Warranty

• Shipment Lead Time: Dispatched within 24-48 hours.
• Courier Services: Fast worldwide delivery via FedEx, UPS, and DHL.
• Warranty Terms: Includes a comprehensive 12-month quality guarantee.
• Certification: Manufactured to meet global industrial safety standards.

Typical Application and Diagnostics

• Application: Critical for steam turbine shaft vibration and axial position monitoring.
• Diagnostic Capability: Enables real-time monitoring of gap voltage and orbit plots.
• System Health: Helps identify probe-to-cable connection issues via proximitor status.

Buyer’s Selection Guide

• Verify the total system length (Probe + Cable) matches the Proximitor calibration (e.g., 5m or 9m).
• Choose the 27490-0370-00 when high flexibility is needed in narrow conduits.
• Select armored versions only if the cable is exposed to extreme mechanical impact.

Frequently Asked Questions (FAQ)

• Question: Is the 27490-0370-00 interchangeable with non-XL cables?
  Answer: No, XL series cables have specific electrical properties for XL Proximitors to ensure accuracy.
• Question: What happens if the cable length is modified in the field?
  Answer: Modifying length changes capacitance, which will invalidate the system calibration and linearity.
• Question: How does this cable handle electromagnetic noise?
  Answer: Its triaxial shield provides a continuous guard that isolates the signal from heavy motor interference.

Packing List

• 1 x Bently Nevada 27490-0370-00 Extension Cable.
• 1 x Quality Inspection Report.
• 1 x Protective Connector Cap Set.
