2300/20_KIT-001-00 Bently Nevada Condition Monitoring Kit | New

2300/20_KIT-001-00 Bently Nevada Condition Monitoring System Kit

Global PLC Spare HUB’s Insight

• The 2300/20_KIT-001-00 is an "all-in-one" protection solution for Balance of Plant (BoP) machinery.

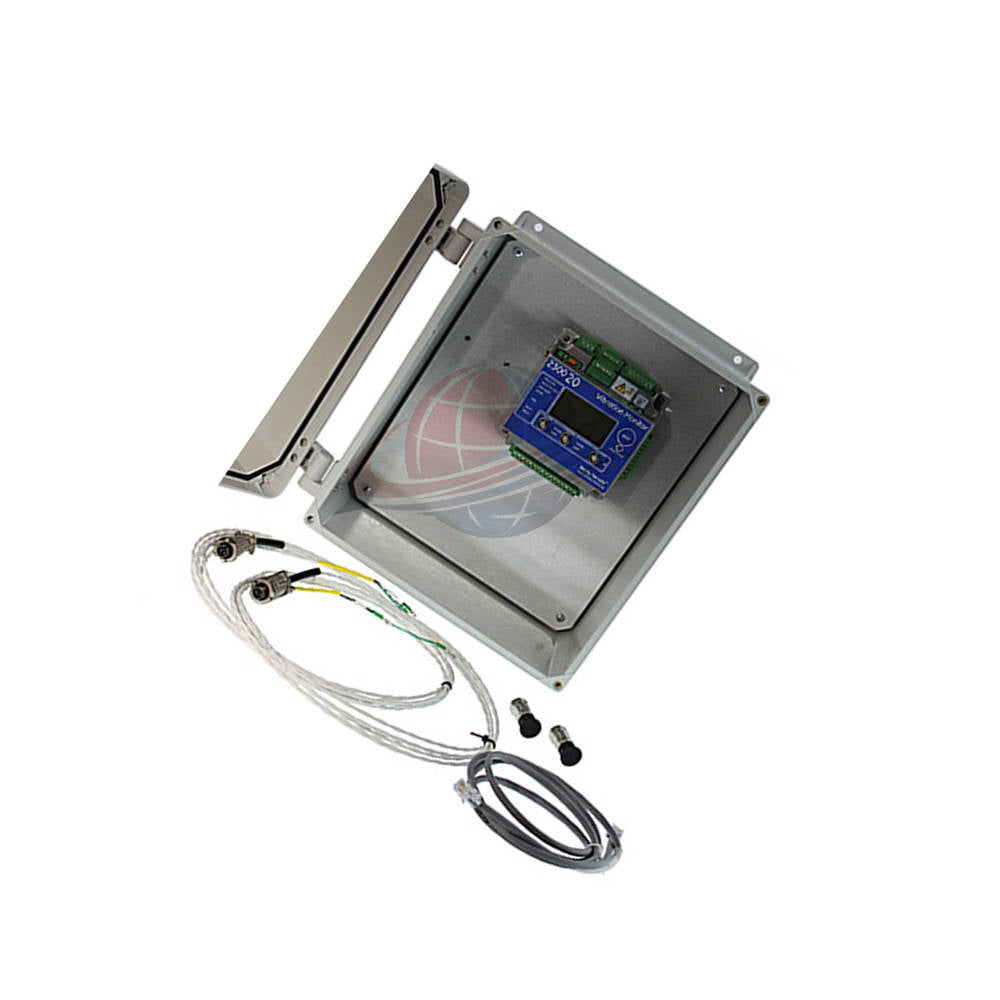

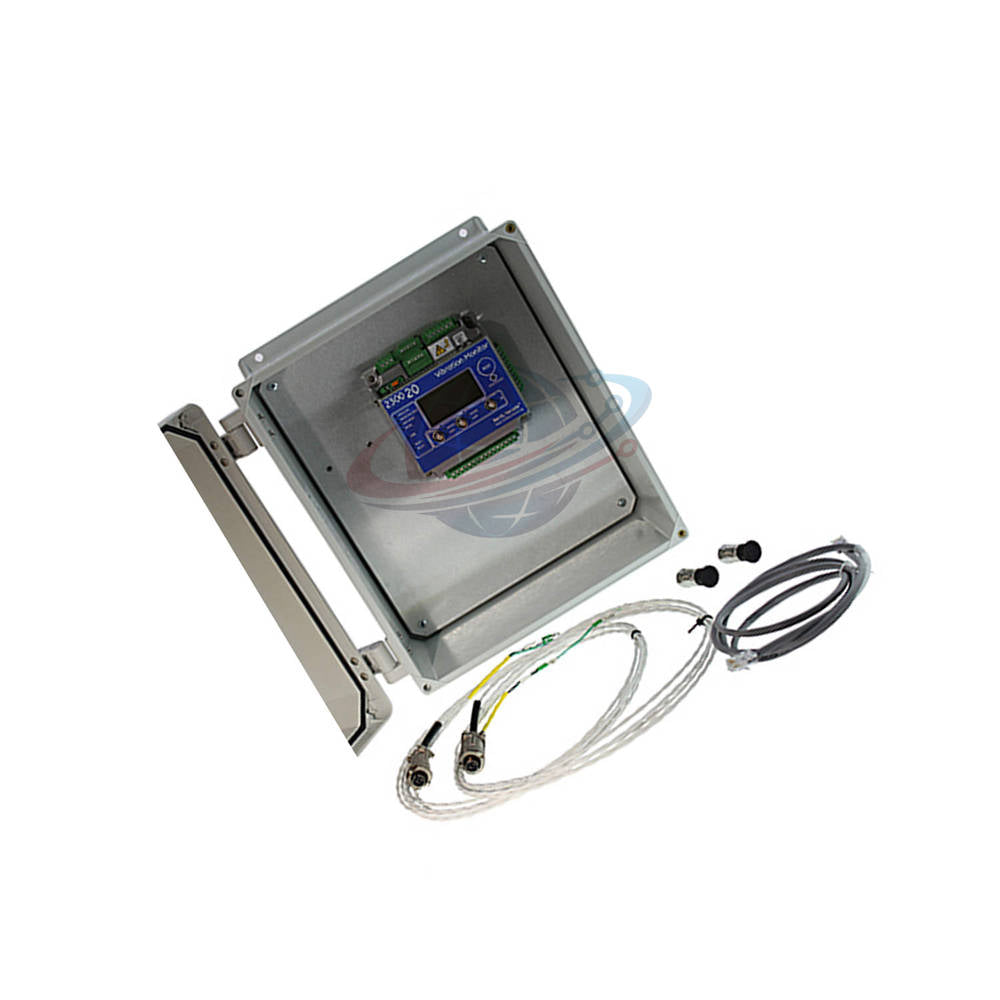

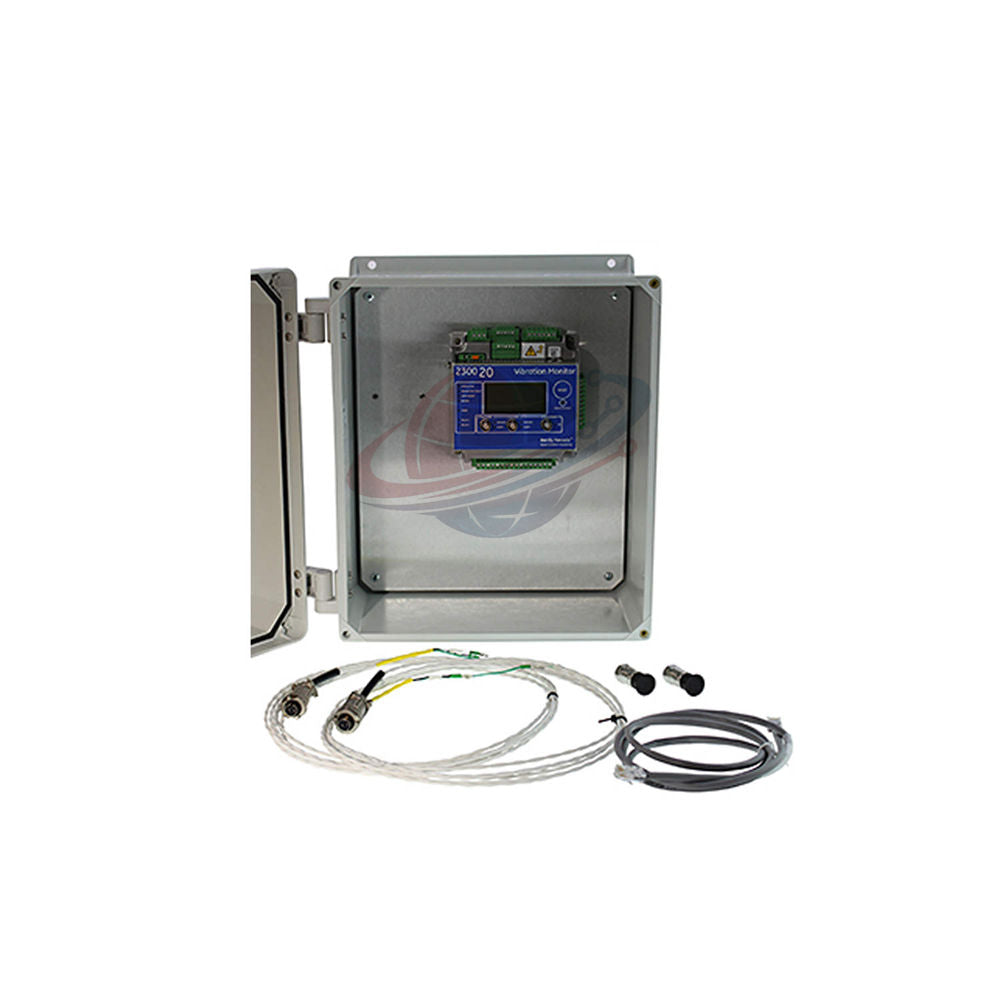

• This kit includes the 2300/20 monitor, two AM3100T2-Z2 sensors, and a rugged field housing.
• It features independent 24-bit ADCs, providing laboratory-grade vibration analysis in a field-mount form factor.
• Ideal for fans, pumps, and motors where full 3500-rack monitoring is not cost-justified.

Configuration Breakdown: KIT-001-00

Technical Specifications

• Input Power: 18 to 36 Vdc, 7.5 W Maximum.
• Processing: High-resolution 24-bit Analog-to-Digital conversion.
• Frequency Range: Configurable bandpass from 0.2 Hz to 20 kHz.
• Relay Outputs: Two SPDT dry-contacts rated for 6A @ 250 Vac.
• Buffered Output: Front-panel BNC connectors for vibration and speed signals.
• Communications: Ethernet (RJ-45) conforming to IEEE 802.3 standards.

Application & Diagnostic Capabilities

• Proactive Maintenance: Real-time trending of acceleration, velocity, and radial vibration.
• Phase Analysis: Speed/Keyphasor input supports phase-locked data up to 120,000 RPM.
• Event Data Capture: Automatically records pre- and post-event waveforms for root-cause analysis.
• Diagnostic Integrity: OK Limit configuration ensures transducer health is monitored continuously.

Global PLC Spare HUB Review

The 2300/20_KIT-001-00 provides a critical bridge between standalone protection and enterprise-wide condition monitoring. Its 100ms update rate on 4-20mA outputs ensures safety systems respond instantly to surges. We recommend this kit for critical cooling fans and regional pump stations where data loss during network outages cannot be tolerated.

Commercial Terms & Logistics

• Warranty: 12-Month Quality Assurance.
• Shipping: Worldwide express delivery via FedEx, UPS, or DHL.
• Handling Time: Order fulfillment within 24-48 hours.

FAQ & Professional Guidance

Can the 2300/20_KIT-001-00 work without a PC connection?

Yes. The monitor functions as a standalone protection device with local relays and LCD display. The PC connection is only required for advanced diagnostics and long-term trending via System 1.

Does this kit support Proximitor sensors?

While the kit comes with accelerometers, the 2300/20 monitor hardware is fully compatible with Bently Nevada proximity probes and velomitors.

What is the maximum Ethernet cable distance?

The standard Ethernet limit is 100 meters (328 ft). For longer distances, an industrial fiber-optic switch should be used.

Is the 2300/20_KIT-001-00 suitable for hazardous areas?

The "00" approval option is for non-hazardous areas. For hazardous zones, you must select the appropriate approval option and use the stainless steel housing kit.

How do I handle the 4-20mA loop wiring?

The 2300/20 outputs are internally powered. Do NOT use an external loop power supply, as it will conflict with the monitor’s internal compliance voltage.
