22B-D012N104 Allen-Bradley 480V 5.5kW AC Frequency Drive

Product Executive Overview

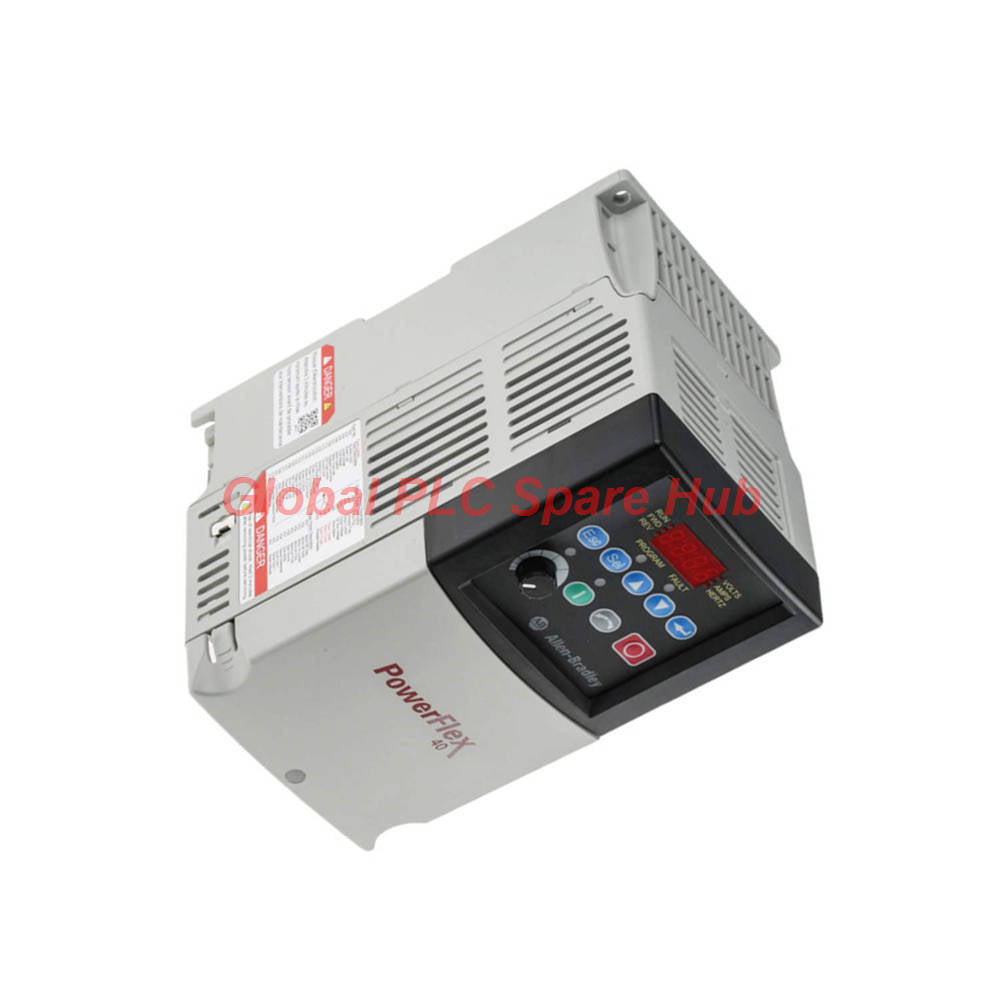

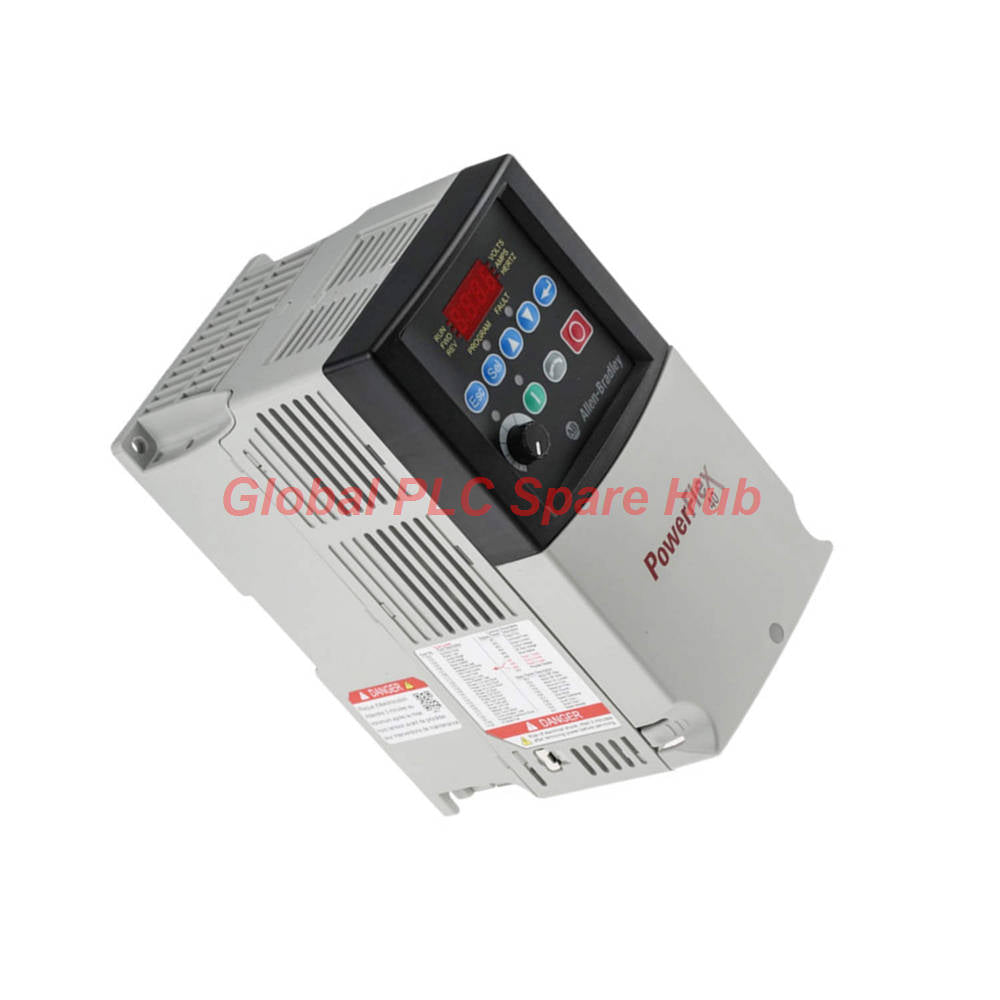

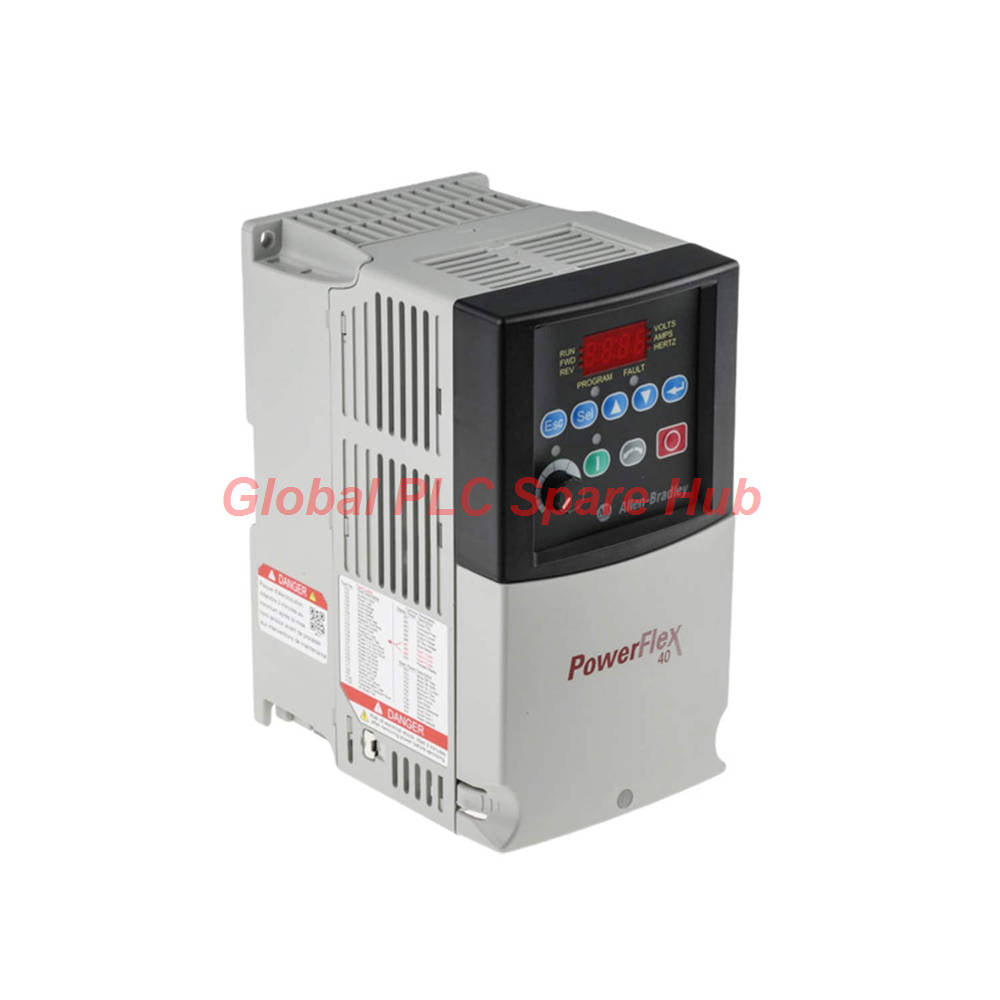

The 22B-D012N104 is a high-performance, compact AC frequency drive from the Allen-Bradley PowerFlex 40 family manufactured by Rockwell Automation. Designed to deliver variable speed motor control, this drive handles 3-phase input voltages ranging from 342 VAC to 528 VAC at 480V nominal rating.

With a rated output power of 5.5 kW (7.5 HP) and continuous current rating of 12.0 Amperes, this drive incorporates Sensorless Vector Control (SVC) and built-in PID loop algorithms. Integrated features include an internal brake IGBT transistor, an LED keypad with local speed potentiometer, an embedded RS-485 serial port, and an IP20 NEMA/UL Type Open panel-mount chassis.

Global PLC Spare HUB Insight & Field Engineering Review

In automated material handling and industrial pumping applications, the PowerFlex 40 Series remains an industry standard for compact, reliable variable speed performance. The 22B-D012N104 drive delivers exceptional low-speed starting torque while reducing energy consumption on variable-torque loads.

During a field service commissioning on a plant ventilation overhaul, motor tripping occurred on startup due to heavy line fluctuations. Technicians configured the 22B-D012N104 with Sensorless Vector mode, utilizing its 200% overload capability for 3 seconds to smoothly start high-inertia fan wheels without nuisance overcurrent faults.

System Configuration Breakdown

• 22B — Product Series: PowerFlex 40 Adjustable Frequency AC Drive
•   └── D — Voltage Rating: 480 VAC, 3-Phase (342–528 VAC Input)
•       └── 012 — Amperage Rating: 12.0 Amperes Output (5.5 kW / 7.5 HP)
•           └── N — Enclosure Rating: IP20 / NEMA / UL Type Open Panel Mount
•               └── 1 — Interface Module: Fixed Digital Keypad with Display
•                   └── 0 — Filter Option: No EMC Filter
•                       └── 4 — Brake IGBT: Dynamic Braking Transistor Included

Technical Parameters & Operating Limits

• Brand / Manufacturer: Allen-Bradley / Rockwell Automation
• Catalog Number: 22B-D012N104
• Product Line: PowerFlex 40
• Input Voltage Range: 342 to 528 VAC, 3-Phase (14.2A Input Current, 11.8 kVA)
• Nominal Output Voltage: 0 to 460/480 VAC, 3-Phase
• Output Power Rating: 5.5 kW / 7.5 HP
• Continuous Output Current: 12.0 Amperes
• Motor Overload Rating: Class 10 (150% for 60 seconds, 200% for 3 seconds)
• Hardware Overcurrent Limit: 200% hardware limit / 300% instantaneous trip
• Control Modes: Volts per Hertz (V/Hz) & Sensorless Vector Control (SVC)
• Discrete Inputs: 3 Fixed (Start/Stop/Reverse) + 4 Fully Programmable
• Discrete / Relay Outputs: 1 N.O./N.C. Dry Contact + 2 Optocoupler Outputs
• Analog Inputs: 2 Unipolar (0–10V or 4–20 mA) + 1 Bipolar (±10V)
• Serial Communication: Embedded RS-485 Modbus RTU / DriveProtocol
• Recommended Protection: 140M-D8E-C20 motor protection breaker / 100-C23 contactor
• Minimum Enclosure Space: 2069 cubic inches (33.9 Liters)

Application Scenarios & Machinery Diagnostics

• Variable speed control of industrial pumps, exhaust fans, blowers, and air handling skids.
• Torque control and smooth speed ramp management on industrial conveyor systems, agitators, and mixers.
• Closed-loop flow or pressure regulation using internal PID feedback loop control.
• Real-time drive fault diagnosis tracking overvoltage trips, phase loss, ground fault protection, and thermal drive overload.

Installation, Maintenance & Logistics Terms

Mount the drive vertically inside a clean, well-ventilated control enclosure. When installing the drive on ungrounded or impedance-grounded power systems where line-to-ground voltage may exceed 125%, disconnect the removable Metal Oxide Varistors (MOVs) to prevent component damage.

Ensure adequate clear spacing around the IP20 chassis to maintain thermal convection airflow. Route power input lines through recommended branch circuit protection devices like motor protection breakers or high-speed semiconductor fuses.

Package Contents: 1 x Allen-Bradley 22B-D012N104 PowerFlex 40 AC Drive with integrated keypad, terminal block covers, and quick start reference manual.

Global Express Delivery: Orders process and ship within 24 to 48 hours via premium express air couriers including FedEx, UPS, and DHL worldwide.

Warranty Guarantee: Covered by a comprehensive 12-month operational warranty against mechanical and electrical manufacturing defects.

Frequently Asked Questions & Technical Advice

Q1: What is the main operational benefit of using Sensorless Vector Control over standard V/Hz mode on this drive?

A1: Sensorless Vector Control calculates motor slip and rotor position automatically, delivering higher starting torque at low shaft speeds and superior speed regulation under fluctuating motor loads.

Q2: Does this drive model require an external dynamic braking resistor?

A2: The drive includes an internal dynamic braking IGBT transistor. To utilize active deceleration braking on high-inertia loads, you only need to connect an external braking resistor across the BR+ and BR- terminals.

Q3: How do engineers troubleshoot an F007 (Motor Overload) fault code on the digital display?

A3: Check motor nameplate current parameters against parameter A089 settings. Measure actual motor current draw with a clamp meter to identify mechanical jam conditions or extended acceleration ramps.

Q4: Can I control the speed reference of this AC drive using a 4–20 mA process instrument signal?

A4: Yes, wire the 4–20 mA process signal to the analog input terminals and configure parameter P038 (Speed Reference) to accept the analog input channel.

Q5: What factors should guide engineers when choosing between 5.5 kW and larger horsepower drive frames?

A5: Base selection on full-load motor current (FLA) rather than horsepower alone, accounting for duty cycle requirements, ambient operating temperature, and potential altitude derating.
