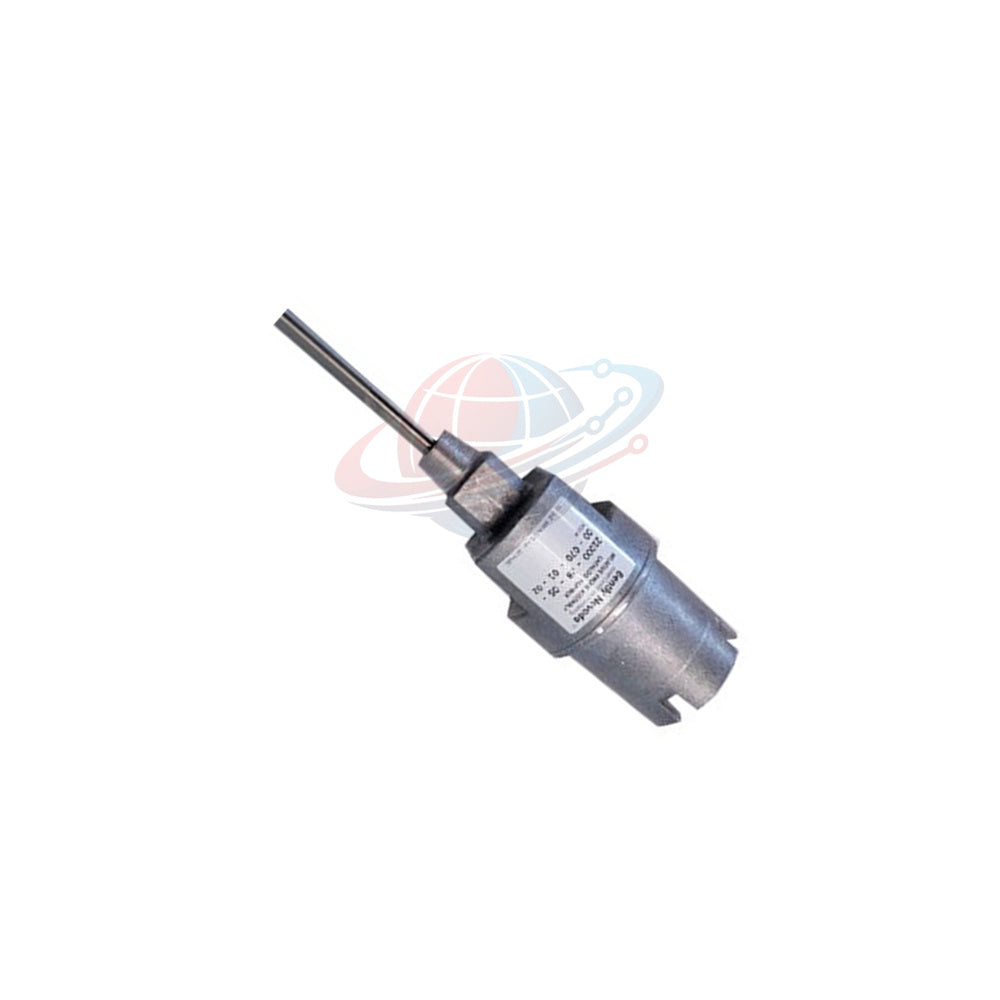

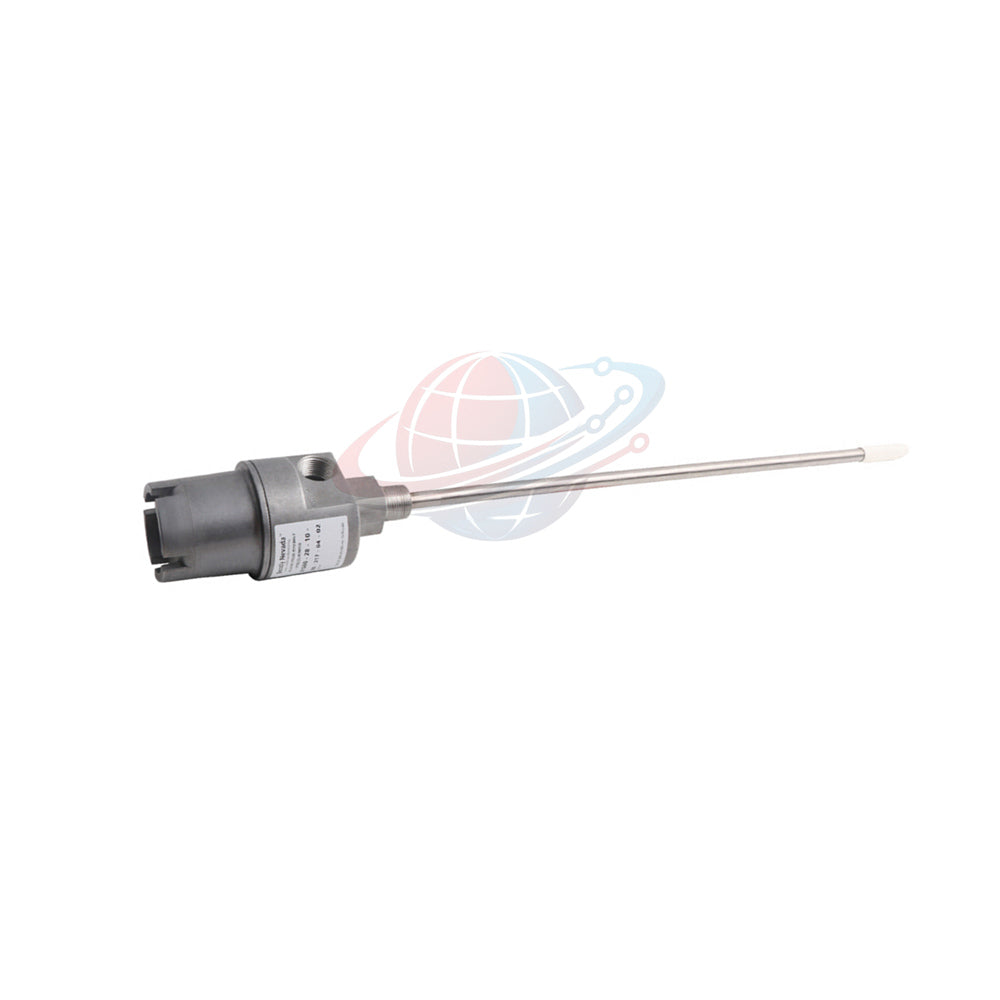

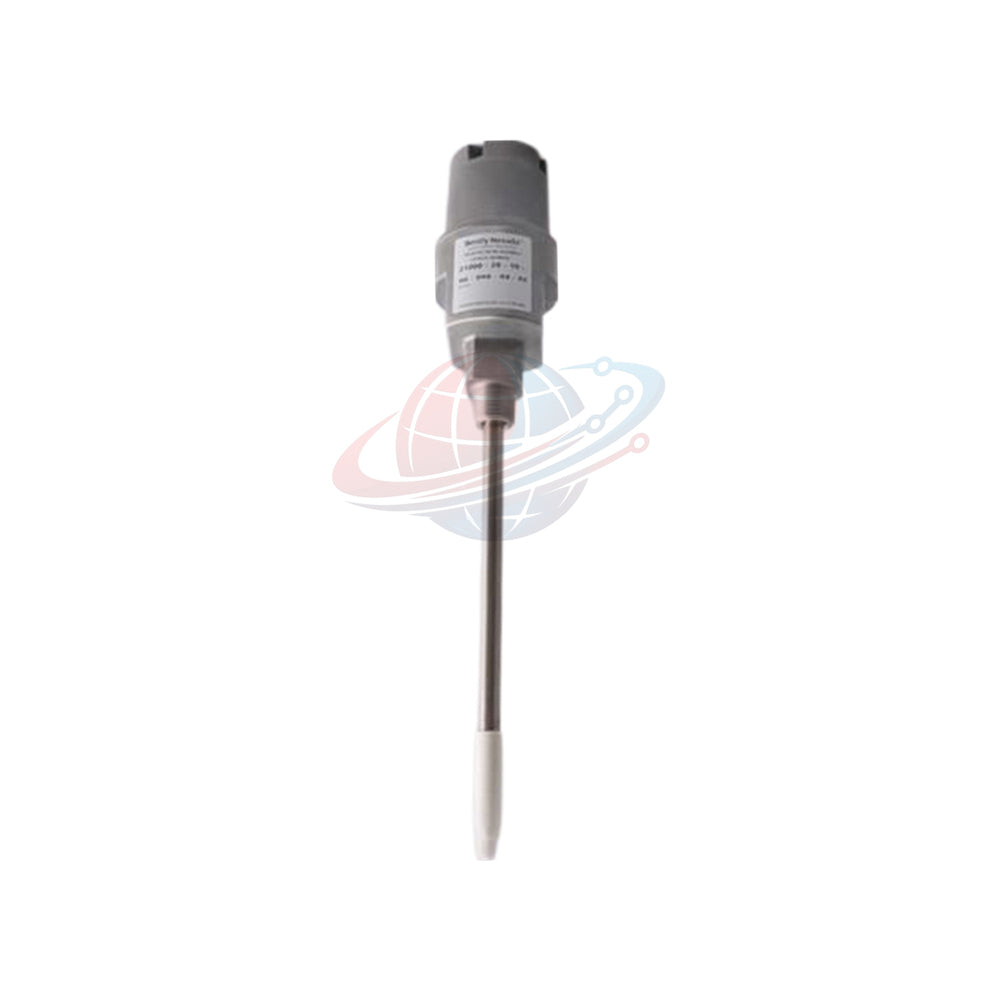

21000-28-10-20-030-04-02 Bently Nevada Explosion-Proof Transducer

Bently Nevada 21000-28-10-20-030-04-02 Proximity Probe Housing Assembly Overview

The Bently Nevada 21000-28-10-20-030-04-02 belongs to the rugged 21000 Series externally mounted proximity probe housing assemblies. Fully compliant with API 670 standards, this heavy-duty aluminum body enclosure with a 304 stainless steel sleeve protects internal reverse-mount eddy current sensors against environmental hazards, physical mechanical impacts, and hazardous atmosphere exposure. The 21000-28-10-20-030-04-02 allows external adjustment and replacement of vibration transducers while maintaining process sealing and explosion-proof ratings.

Part Number Configuration Breakdown

21000-28-10-20-030-04-02 Model Structure
├── 21000 : Aluminum Body Proximity Probe Housing Assembly (CSA Type 4 / NEMA 4)
├── -28-   : Probe Option, with Connector (3300 XL 8 mm Probe, Selectable Hazardous Area Approvals)
├── -10-   : Probe Cable Length Option (1.0 Meter / 39 in)
├── -20-   : Standoff Adapter Option (2.0 Inches)
├── -030-  : Probe Penetration Option (3.0 Inches)
├── -04-   : Fitting Option (One 3/4-14 NPT Plug Only)
└── -02    : Mounting Thread Option (3/4-14 NPT)

Comprehensive Technical Specifications

Engineering Characteristics & Advantages

• API 670 Standardized Construction: Meets strict petroleum and petrochemical industry requirements for external transducer mounting hardware.
• Explosion-Proof Environment Sealing: Certified CSA Type 4 enclosure design prevents gas ignition in hazardous processing locations.
• Sleeve Depth Flexibility: Engineered with a 2-inch standoff adapter and 3-inch penetration depth to position the probe tip accurately against internal shafts.
• O-Ring Sealed Thread System: Screwed dome cover with internal synthetic O-rings isolates probe electronics from moisture, dirt, and corrosive fumes.
• Reverse Mount Maintenance Architecture: Simplifies sensor replacement by permitting probe removal without dismantling the primary bearing housing cover.

Suitable Machinery & Field Applications

• API 612 Steam Turbines: Houses axial position and radial shaft vibration probes on main rotor bearing caps in classified areas.
• Heavy Duty Gas Turbines: Protects key vibration monitoring sensors exposed to outdoor weather conditions and high ambient temperatures.
• High-Pressure Process Compressors: Mounts on seal housings to continuously measure shaft eccentricity and thrust displacement.
• Large Boiler Feed Pumps: Provides liquid-tight protection for proximity sensors operating under continuous thermal cycling and washdown conditions.

Model Cross-Selection Comparison & Technical Guidance

Engineering Selection Advice:

• Select the 21000-28-10-20-030-04-02 when your machinery housing outer wall requires a 2-inch standoff clearance combined with a shallow 3.0-inch sleeve penetration for standard bearing caps using 1.0-meter internal cables.
• Choose the 21000-16-05-00-105-03-02 variant when your machine requires deep sleeve reach (10.5 inches penetration) directly flush against the housing without standoff elevation, utilizing shorter 0.5-meter internal cabling.

Installation & Physical Mounting Protocols

• Apply thread seal compound or approved PTFE tape to the 3/4-14 NPT process mounting threads before screwing the housing body into the bearing port.
• Tighten the sleeve body firmly to ensure process isolation and check that internal O-rings are seated cleanly inside the main dome assembly.
• Insert the reverse-mount probe through the internal sleeve, locking it at the designated physical gap setting (typically -9 Vdc to -10 Vdc baseline) prior to securing locknuts.
• Ensure the 1.0-meter internal probe cable maintains smooth bends inside the aluminum body dome, avoiding sharp pinches against the threaded cap.
• Torque the dome cover down completely to maintain certified explosion-proof flame paths and CSA Type 4 weatherproofing seals.

Diagnostic Capabilities & Onsite Troubleshooting

• Enclosure Seal Leak Verification: Inspect dome cover thread seals and cable entrance fittings for moisture accumulation if raw signal noise appears.
• Probe Sleeve Alignment Check: Verify the internal stainless steel sleeve remains concentric with the mounting hole to prevent sleeve binding against the probe body.
• Explosion-Proof Integrity Auditing: Check aluminum housing body threads and flame paths for scoring or corrosion during routinely scheduled maintenance overhauls.
• Signal Grounding Verification: Verify housing body grounding continuity to machine casing ground to eliminate stray high-frequency ground loop noise.

Global PLC Spare HUB's Insight

In offshore oil platform environments, housing assemblies often suffer severe atmospheric corrosion. The Bently Nevada 21000-28-10-20-030-04-02 solves this challenge by combining a lightweight, anodized aluminum dome with a heavy 304 stainless steel sleeve extension. During a recent offshore turbomachinery overhaul, replacing worn legacy enclosures with the 21000-28-10-20-030-04-02 eliminated water ingress failures on exposed thrust bearing probes while maintaining full explosion-proof hazardous site compliance.

Packaging, Express Fulfillment & Warranty Terms

• Condition: Brand New & Original in Sealed Factory Packing.
• Order Fulfillment: Fast warehouse processing and dispatch within 24 to 48 hours.
• Global Express Shipping: Fast international transit via FedEx, UPS, and DHL.
• Warranty Terms: Covered by a comprehensive 12-Month Factory Warranty.

Frequently Asked Questions

What is the advantage of using a standoff adapter option on the housing assembly?

The standoff adapter elevates the housing main body away from hot machine casings, preventing thermal degradation of internal wiring and allowing clearance around bearing obstruction flanges.

How do I troubleshoot intermittent signal drops inside the aluminum enclosure?

Unscrew the dome cover and check the internal ClickLoc coaxial connector to ensure it has not loosened due to continuous machine vibration.

Can I field-adjust the penetration depth of this probe housing assembly?

Penetration depth is fixed by the sleeve length option (-030 = 3.0 inches); small fine-tuning is performed by adjusting the internal reverse-mount probe locknut position.

What maintenance precautions should be taken with the dome cover threads?

Inspect synthetic O-rings for cracking and apply a light coat of petroleum-based lubricant to body threads to prevent galling while maintaining CSA Type 4 sealing.

How do I verify if the assembly meets API 670 requirements for my installation?

The 21000-28-10-20-030-04-02 natively complies with API 670 guidelines for external transducer mounting housings when installed using approved NPT conduit seals.
