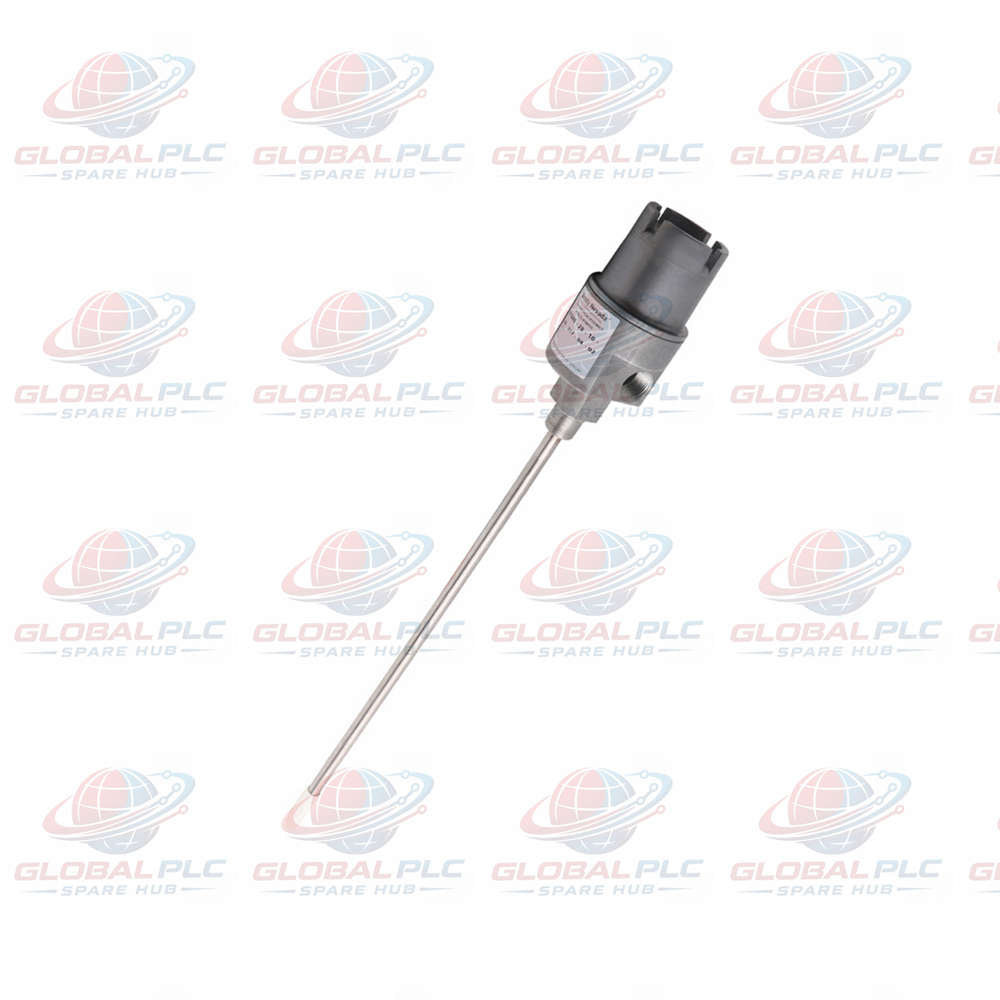

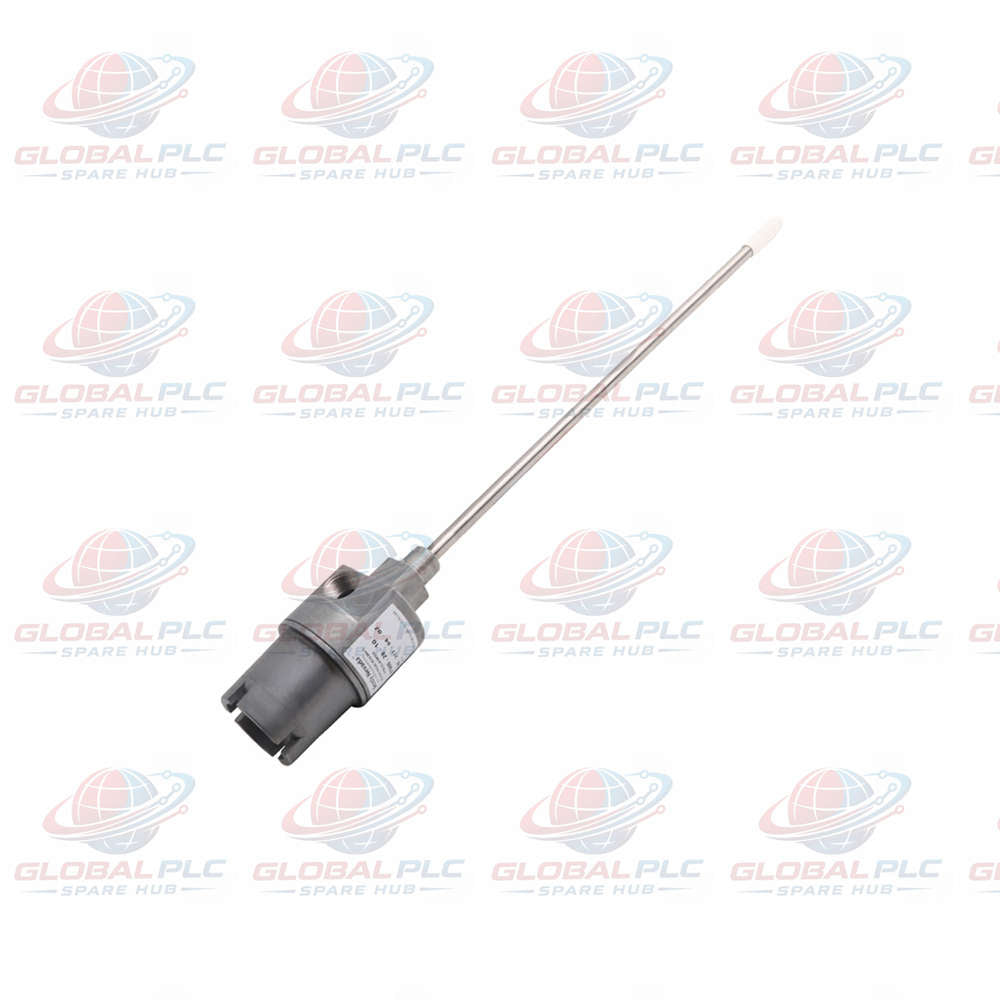

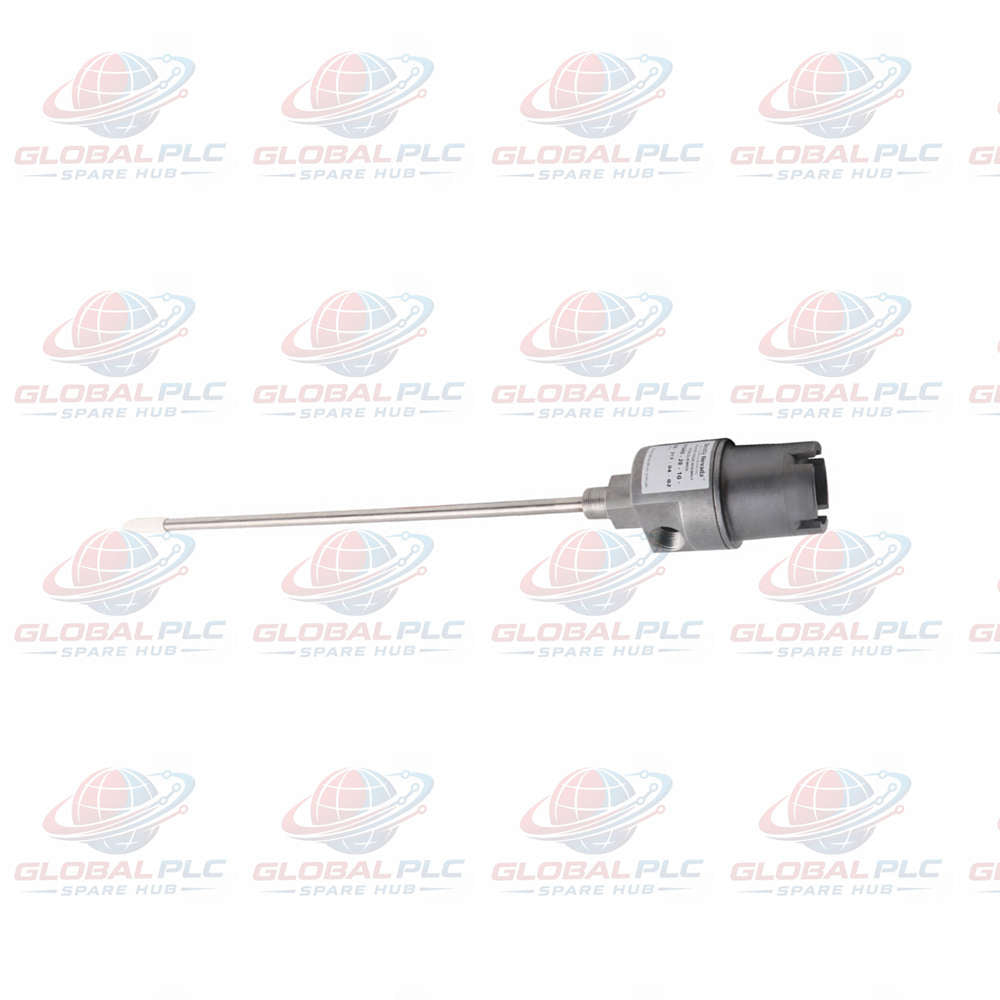

21000-16-10-00-089-03-02 Bently Nevada Proximity Probe Housing Assembly

21000-16-10-00-089-03-02 Bently Nevada Proximity Probe Housing Assembly Overview

The 21000-16-10-00-089-03-02 provides rugged, explosion-proof protection for shaft vibration monitoring systems.

Manufactured by Bently Nevada, this externally mounted Proximity Probe Housing Assembly housing fully complies with API 670 standards.

It shields sensitive eddy current transducers operating in harsh chemical, petrochemical, and power generation environments.

The assembly allows external probe adjustment and replacement without requiring machine casing removal.

Its lightweight aluminum body with 304 stainless steel sleeve offers exceptional environmental endurance in hazardous locations.

Configuration Breakdown & Suffix Code Tree

Model Base: 21000 - Aluminum Proximity Probe Housing Assembly

• Probe Option (-16): Integrated 3300 XL 8 mm reverse mount probe with connector
• Probe Cable Length Option (-10): 1.0 meter (39 inches) cable length
• Standoff Adapter Option (-00): No standoff adapter included
• Probe Penetration Depth (-089): 8.9 inches penetration sleeve length
• Fitting Option (-03): Conduit kit containing:
  • 1x 3/4-14 NPT threaded plug
  • 1x 3/4-14 to 1/2-14 NPT reducer
  • 1x Cable seal grip with grommets (fits 1/8-3/16, 1/4-5/16, and 5/16-3/8 inch cables)
• Mounting Thread Option (-02): 3/4-14 NPT outer casing mounting thread

Engineering Specifications & Structural Parameters

Target Equipment & Application Scenarios

Main steam turbine bearings requiring continuous dynamic vibration measurement.

High-pressure boiler feed pumps running continuous process fluid distribution.

Multi-stage centrifugal gas compressors operating in explosion-proof refinery zones.

Large industrial gearboxes requiring API 670 externally mounted probe sleeves.

Model Selection Comparison & Technical Recommendations

When selecting probe housings, physical sleeve dimensions and cable length determine machine fitment:

• Target Assembly (21000-16-10-00-089-03-02): Configured with a 3300 XL 8mm probe, 1.0m cable, zero standoff adapter (-00), and 8.9-inch penetration sleeve depth (-089).
• Alternative Option (21000-28-05-20-050-03-02): Configured with a 2.0-inch standoff adapter (-20), 5.0-inch penetration (-050), and 0.5m cable (-05).

Technical Selection Recommendation:

Choose the 21000-16-10-00-089-03-02 when deep casing penetration (8.9 inches) is required without external standoff spacing. If your machine housing features shallow mounting ports or thermal expansion clearance needs, select the 21000-28-05-20-050-03-02 instead to avoid internal sleeve interference with shaft shoulders.

Installation Guidelines & Diagnostic Capabilities

Thread housing base directly into 3/4-14 NPT process connections using approved thread sealant.

Verify internal O-ring seal seating before securing dome cover to preserve CSA Type 4 rating.

Verify probe gap voltage using a digital multimeter at the Proximitor monitor terminal output.

Signal attenuation indicates improper probe connector torque or internal cable seal pinch.

Inspect thread seal integrity annually during scheduled machine outage maintenance cycles.

Commercial Terms, Logistics, & Warranty Policy

Global PLC Spare HUB's Insight & Field Experience

Maintaining API 670 compliance requires rigorous protection around critical turbine monitoring points.

Our vibration specialists often observe water ingress failures when field technicians omit cable seal grommets.

Using the included multi-size grommet kit ensures tight sealing around varied extension cable diameters.

During a refinery turnaround, improper sleeve depth calculation caused a probe tip to strike an internal collar.

Utilizing the exact 8.9-inch penetration sleeve of the 21000-16-10-00-089-03-02 eliminated interference while maintaining ideal gap voltage.

Always torque internal reverse-mount probe locknuts to preventing signal drift caused by machine vibration.

Selection & Buyer Guidance

Measure required probe penetration from the outer housing mounting face to the shaft surface.

Verify whether your installation requires a standoff adapter to clear external machine casing obstacles.

Confirm that the 1.0 meter probe cable length matches your extension cable routing distance to the junction box.

Ensure conduit thread specifications match local explosion-proof fitting requirements (3/4 NPT vs 1/2 NPT).

Frequently Asked Questions (FAQ)

Question: What does the -089 suffix specify in the 21000-16-10-00-089-03-02 part number?

Answer: The -089 suffix indicates a probe penetration sleeve length of exactly 8.9 inches into the machine casing.

Question: Is this housing rated for use in hazardous, explosion-proof environments?

Answer: Yes, the 21000 series aluminum housing carries CSA explosion-proof certification and Type 4 rating for hazardous areas.

Question: What fittings are included in the -03 fitting option kit?

Answer: The kit includes one 3/4-14 NPT plug, one 3/4-14 to 1/2-14 NPT reducer, and one cable seal grip with grommets for multiple cable sizes.

Question: Field Experience: How do I select between zero standoff (-00) and an extended standoff adapter?

Answer: Measure external casing clearance. If the mounting port sits flush on the machine, select -00 (no standoff). If external pipe flanges or thermal insulation obstruct the housing dome, order a standoff adapter option to elevate the assembly outer housing.

Question: Field Experience: Why is my gap voltage jumping intermittently after housing installation?

Answer: Check extension cable connection inside the housing sleeve. Loose miniature connectors or moisture ingress through improperly sealed conduit ports cause intermittent grounding noise. Ensure cable seal grommets are fully tightened.
