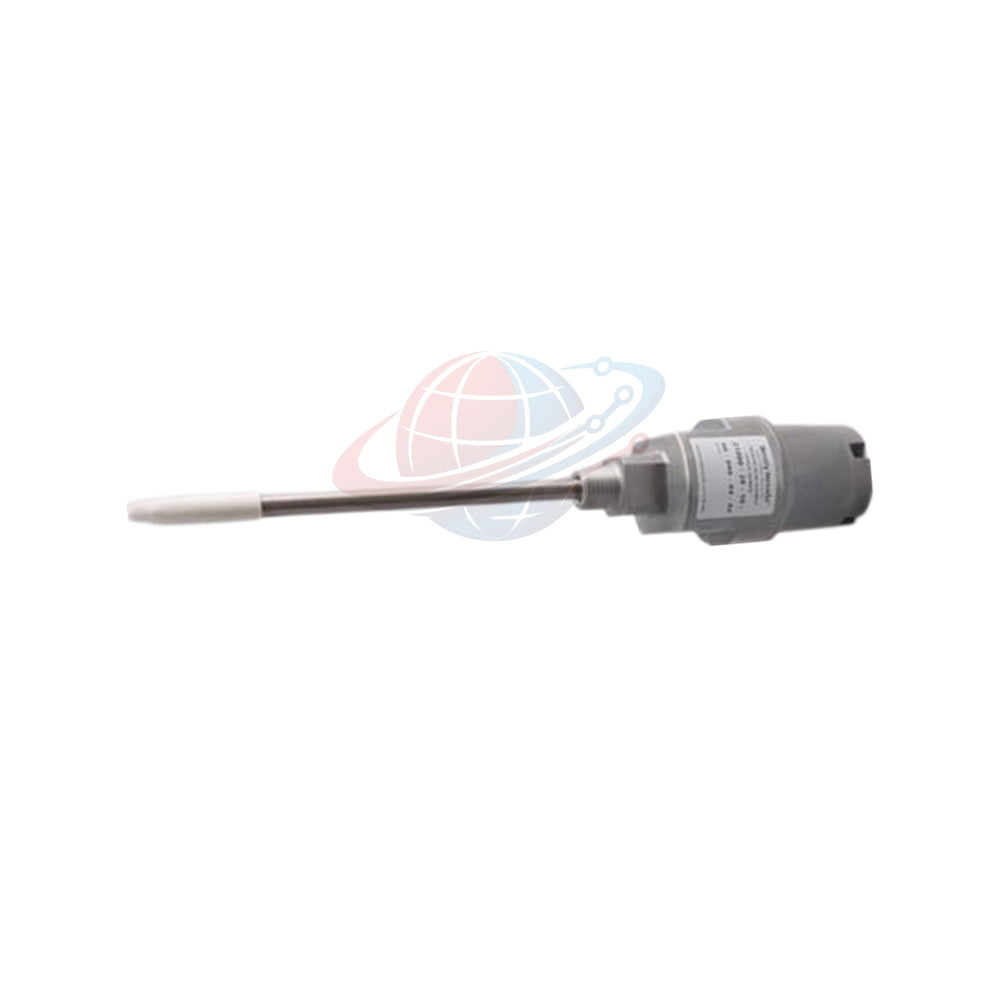

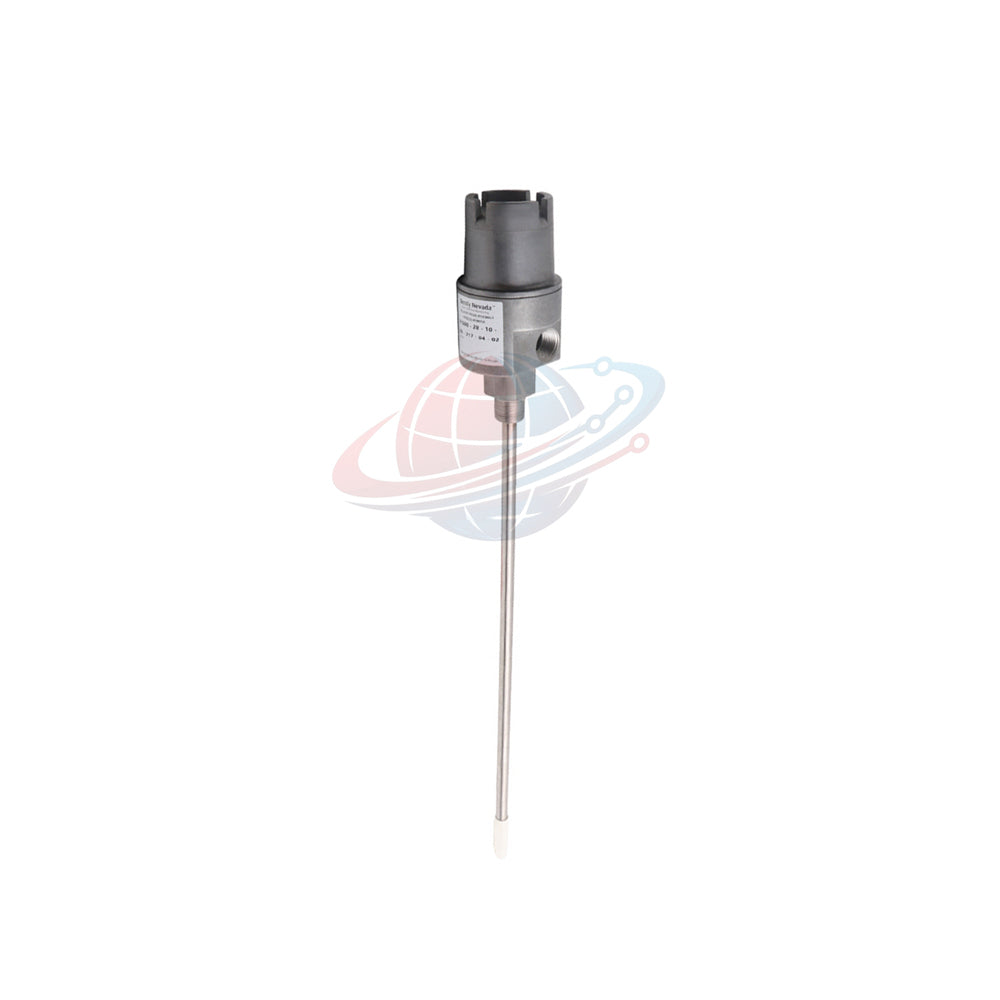

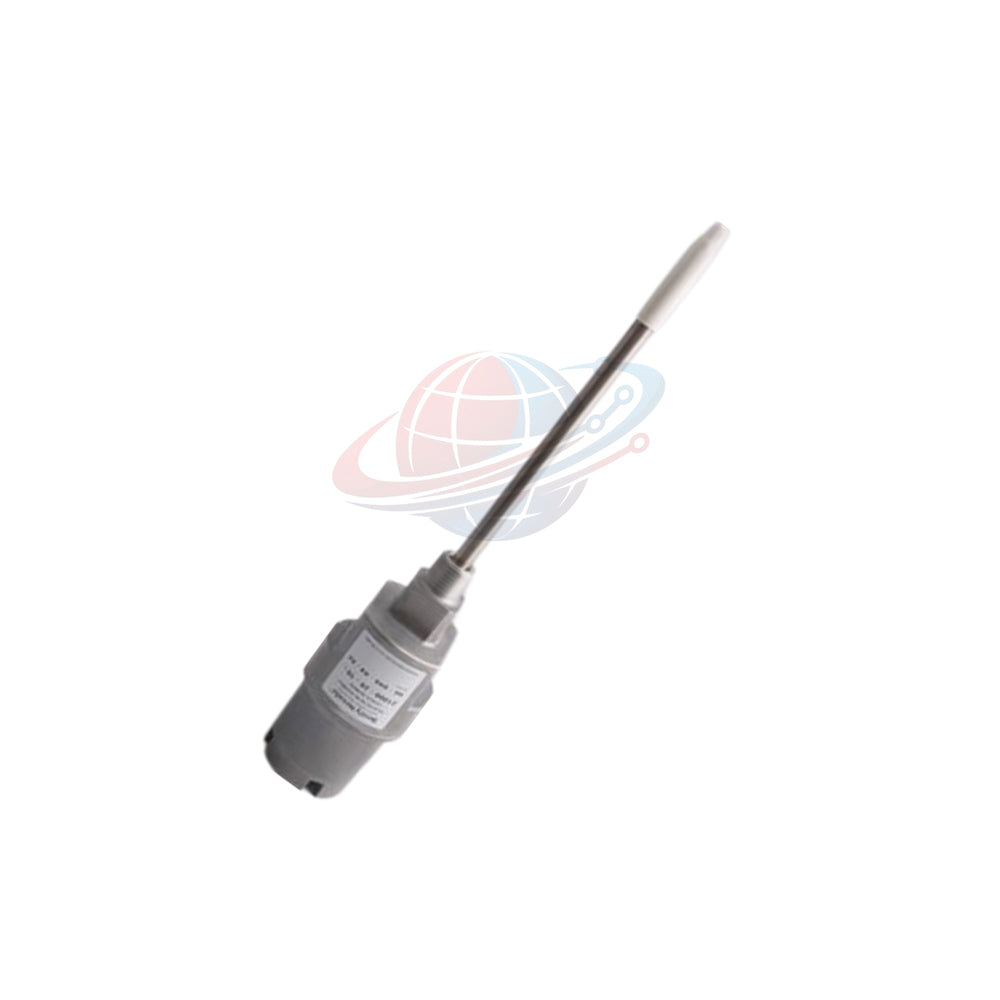

21000-16-10-00-072-03-02 Bently Nevada Proximity Probe Housing Assembly

21000-16-10-00-072-03-02 Bently Nevada Proximity Probe Housing Assembly Overview

The Bently Nevada 21000-16-10-00-072-03-02 is an industrial-grade, hazardous-area proximity probe enclosure system. Built specifically for critical machinery monitoring, this assembly provides external mounting access while maintaining environmental seal integrity. The housing combines a corrosion-resistant aluminum body with a 304 stainless steel probe sleeve to protect delicate eddy current transducers from physical impact, moisture, and hazardous process gases.

Fully compliant with API 670 standards, the 21000-16-10-00-072-03-02 allows live replacement and mechanical gap adjustments of internal reverse-mount probes without machine shutdown. The integrated 3/4-14 NPT explosion-proof design handles harsh ambient conditions across oil refineries, power plants, and chemical processing facilities.

Part Number Configuration Breakdown

21000 Base Series: Explosion-Proof Proximity Probe Housing (Aluminum Body, CSA Type 4)

• -16 (Probe Option): Integrated 3300 XL 8 mm reverse mount probe with ClickLoc connector
• -10 (Cable Length): 1.0 meter (39 inches) internal triaxial FEP probe lead
• -00 (Standoff Adapter): Direct-mount configuration without standoff extension adapter
• -072 (Penetration Length): 7.2 inches total probe sleeve penetration depth
• -03 (Fitting Option): Complete fitting kit:
  • One 3/4-14 NPT explosion-proof plug
  • One 3/4-14 to 1/2-14 NPT thread reducer
  • One cable seal grip with multi-size grommet set (1/8"-3/16", 1/4"-5/16", 5/16"-3/8")
• -02 (Mounting Thread): 3/4-14 NPT process connection thread

Technical Specifications

Target Equipment and Machinery Applications

• Centrifugal Gas Compressors: Secures radial vibration probes near high-speed shaft journals without depressurizing outer casings.
• Heavy Duty Steam Turbines: Measures rotor axial thrust position near bearing pedestals where ambient temperatures remain high.
• Boiler Feed Pumps: Monitors shaft position under constant moisture, high humidity, and washdown spray conditions.
• Industrial Gearboxes: Captures high-frequency dynamic motion, shaft centerline position, and balance vector tracking.

Advanced Diagnostic Capabilities

The sealed rigid structure of the 21000-16-10-00-072-03-02 eliminates mechanical resonance artifacts that false-trigger vibration alarms. The 304 stainless sleeve stabilizes probe alignment against fluid turbulence inside bearing sumps. Electrical continuity from the shielding grommets prevents ground loops, allowing clean signal capture for orbit plots, Cascade waterfall diagrams, and Bode peak-phase analyses within Bently Nevada System 1 software.

Selection Comparison & Engineering Guidance

Choosing the correct 21000 Series configuration requires evaluating casing thickness, sleeve insertion depth, and probe connector types. Below is a comparison with a popular alternative variant:

Engineering Advice: If your mounting point sits directly against the machine housing, use the 21000-16-10-00-072-03-02 without a standoff. However, if thermal insulation or thick machine ribbing blocks direct access, choose the 21000-28-10-30-065-04-02 with its 3.0-inch standoff adapter to clear mechanical obstructions. Always double-check sleeve penetration depth (7.2 in vs 6.5 in) to prevent the internal probe tip from contacting moving rotor surfaces during assembly installation.

Global PLC Spare HUB's Insight and Field Experience

Field instrument Technicians often struggle with moisture ingress inside junction enclosures. When high-pressure washdown water enters unsealed conduit connections, signal corrosion occurs rapidly at the ClickLoc connector joint.

In our field testing, using the supplied multi-grommet cable seal (Fitting Option 03) combined with thread sealant on the 3/4-14 NPT process connection completely eliminates internal condensation buildup. During an overhaul project at a power generating plant, replacing unsealed generic housings with genuine 21000-16-10-00-072-03-02 assemblies reduced sensor drift complaints to zero over a two-year operating cycle.

Package Contents and Shipping Terms

Each factory-sealed package includes the complete Bently Nevada 21000-16-10-00-072-03-02 housing assembly, reverse mount probe, internal O-rings, domed cover, and Fitting Option 03 kit. Every item is 100% new, original, and supplied in factory packaging. Orders dispatch worldwide within 24 to 48 hours via express carriers including FedEx, UPS, and DHL. Global PLC Spare HUB covers this item with an absolute 12-month factory warranty.

Expert Frequently Asked Questions

Q: How do I calculate total physical sleeve insertion before ordering penetration Option 072?

A: Measure the exact distance from the outer surface of the 3/4-14 NPT mounting boss to the target shaft surface minus your desired probe gap setting (typically 1.0 mm or 40 mils). Option 072 provides 7.2 inches of effective sleeve reach into the machine housing.

Q: Can I replace the internal probe without removing the outer aluminum housing from the turbine?

A: Yes. Unscrew the domed aluminum top cover, release the internal sleeve locking screw, and extract the reverse-mount probe lead out through the housing top. The process housing remains securely threaded into the machine casing throughout maintenance.

Q: What is the main structural advantage of Option 03 fitting hardware over standard conduit fittings?

A: Option 03 includes specialized grommet sizes fitting 1/8" up to 3/8" outer diameter cables. This guarantees an explosion-proof, IP66-equivalent seal around field wiring without needing separate hazardous-area cable glands.

Q: Why is the maximum visible P/N dimension capped at 17.0 inches on this housing assembly?

A: This limitation ensures that part numbers and serial tags on the internal stainless steel sleeve remain visible through the housing window during routine maintenance checks, preventing full disassembly just to verify part identity.

Q: Does the aluminum 21000 body meet offshore oil platform corrosion protection requirements?

A: Yes. The cast aluminum housing uses a marine-grade alloy with epoxy coating that satisfies CSA Type 4 ratings. For highly concentrated acid fumes or extreme marine spray, consider the 24701 full 304 stainless steel housing series.
