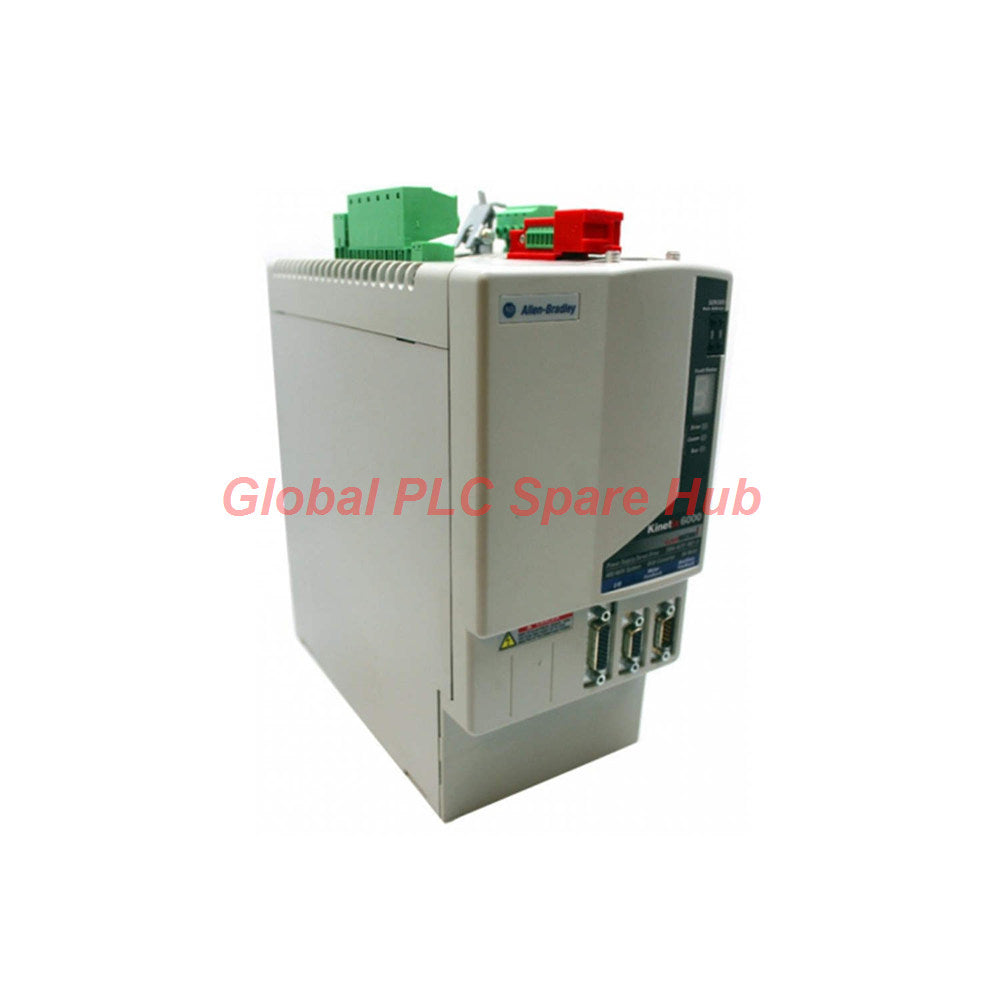

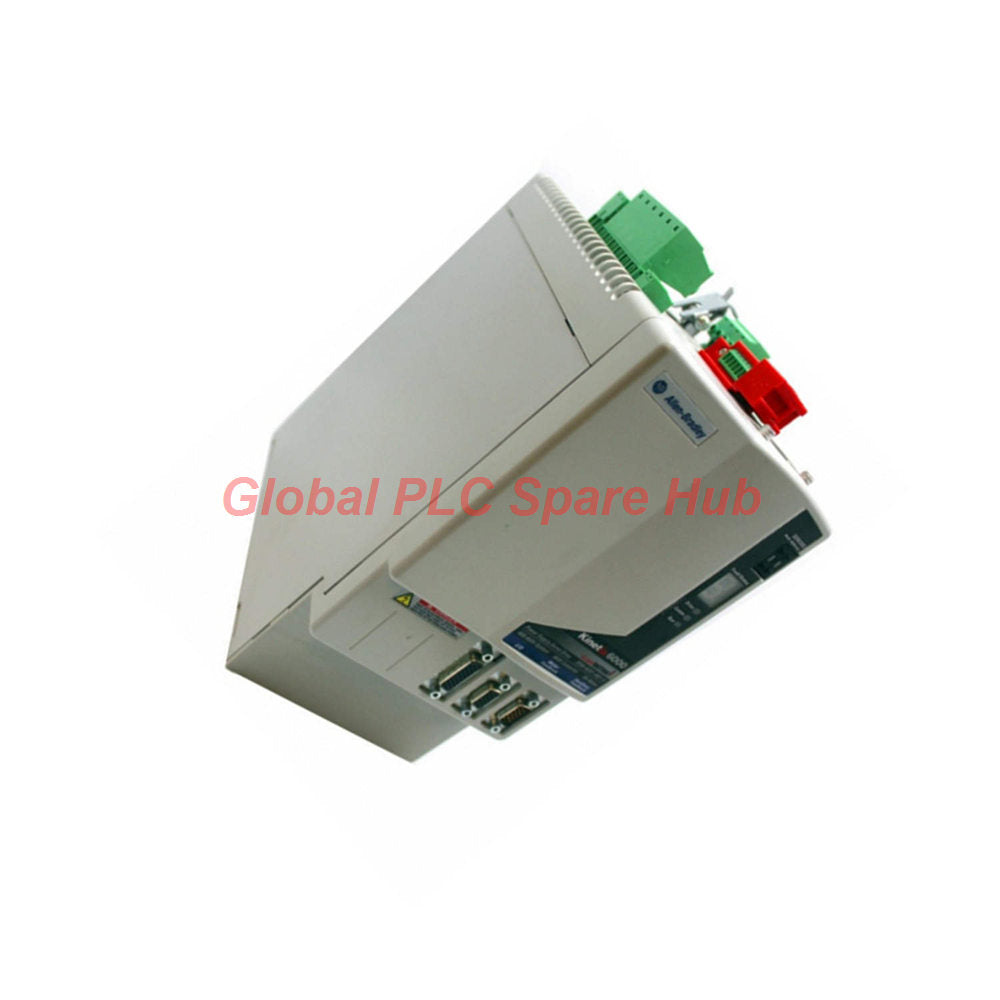

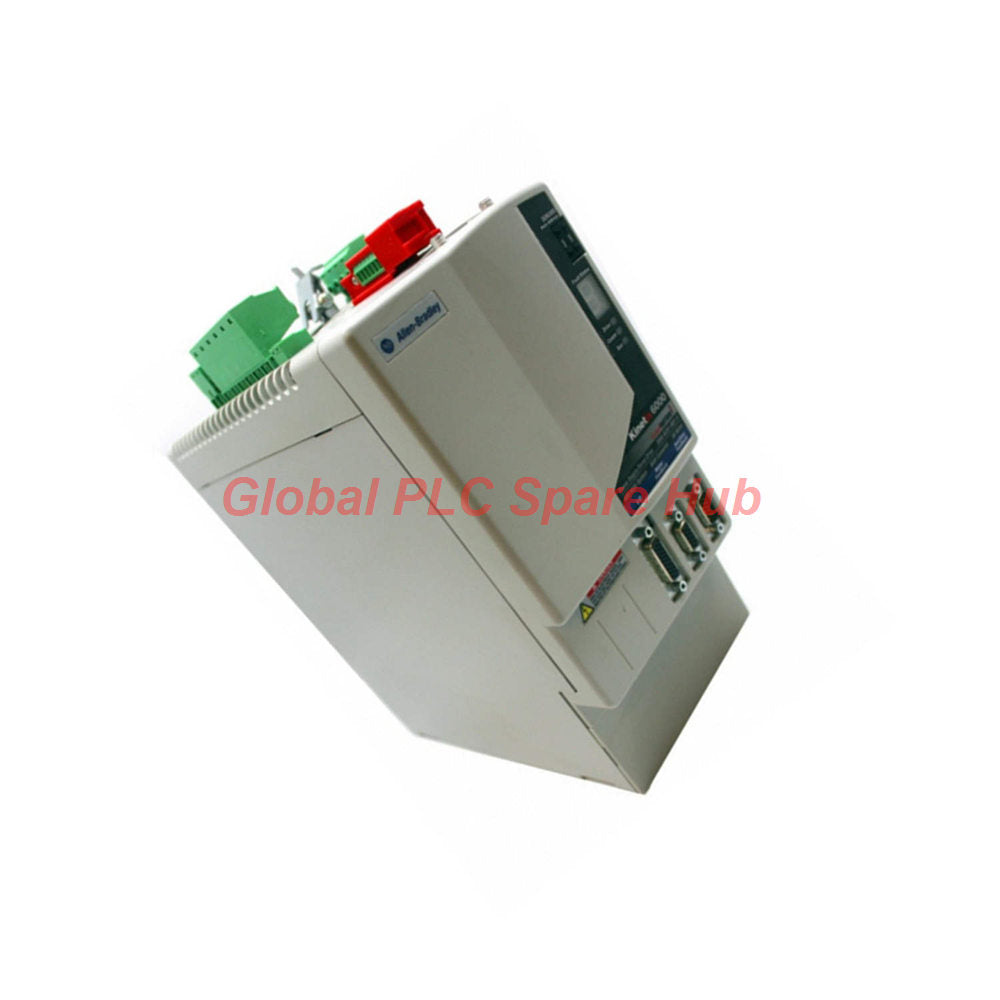

2094-BC01-M01-M Servo Drive Allen-Bradley Kinetix Series

Manufacturer: Allen-Bradley
Product No.: 2094-BC01-M01-M
Condition： In stock
Product Type: Integrated Axis Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 5670g
Shipping port: Xiamen
Warranty: 12 months

Quantity

Selected quantity: 1

Estimate delivery times: 12-26 days (International), 3-6 days (United States).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Guaranteed Safe Checkout

Product Introduction

Welcome to Global PLC Spare HUB Review for the Allen-Bradley 2094-BC01-M01-M Kinetix 6200 Integrated Axis Module. This advanced multi-axis servo drive combines a robust 6 kW converter and a 9 A inverter section into a single, compact housing. Engineered for demanding motion control environments, the Kinetix 6200 Series unit features an embedded Safe Speed Monitor to enhance operator safety without sacrificing productivity. Global PLC Spare HUB's Insight emphasizes that integrating safety functions directly into the drive chassis eliminates external wiring complexity and minimizes cabinet footprint.

Configuration Breakdown & System Hierarchy

Manufacturer & Brand: Rockwell Automation / Allen-Bradley
Catalog Number & Series: 2094-BC01-M01-M / Kinetix 6200 Series
Module Classification: Integrated Axis Module (IAM) / Power Module with Safe Speed Monitor
Voltage & Power Ratings: 460 VAC nominal input (360-480V 3-phase), 3.9 kW wattage output
Physical Dimensions: 4.9 x 11.9 x 13.2 inches (125 x 302 x 336 mm) with a total weight of 12.5 lbs (5.67 kg)

Technical Specifications

Engineering Parameter	Technical Performance Metric
Output Current & Inverter	9 Amperes continuous inverter rating with 6 kW converter section
Bus Capacitance	Maximum bus capacitance of 4585 Microfarads
Operating Temperature	32 to 122 degrees Fahrenheit (0 to 50 degrees Celsius)
Safety Features	Safe Speed Monitor, Safe Torque Off, Safe Maximum Speed, Zero Speed Monitoring
Network Compatibility	Supports SERCOS interface and EtherNet/IP communication pathways
Enclosure & Mechanical	Modular multi-axis physical structure designed for panel backplate mounting

Installation Guidelines

Mount the 2094-BC01-M01-M securely onto a conductive panel backplate within an appropriate industrial control cabinet.

Ensure proper 3-phase AC input wiring supplying 360 to 480 Volts to the main power terminals with recommended fusing protection.

Connect the shared DC common bus and control modules correctly across adjacent axis modules in the multi-axis node stack.

Verify that system grounding meets local electrical standards to mitigate high-frequency electrical noise from high-speed switching.

Commissioning and Maintenance Convenience

Embedded diagnostic error messaging provides instant fault identification on the module display interface.

Integrated safety functions eliminate the need for cumbersome external safety monitoring relays and associated wiring.

Modular plug-and-play design permits rapid component replacement without disturbing neighboring axis connections.

Compatibility & Integration

Backward compatible with Kinetix 6000 servo drive architectures to simplify migration and system expansion.

Integrates smoothly into modern Studio 5000 automation environments supporting advanced motion control instructions.

Certification Information

Designed and manufactured to comply with stringent industrial electrical safety and EMC performance directives.

Incorporates certified safe motion monitoring capabilities to meet global machinery safety standards.

Package Contents & Warranty

One Allen-Bradley 2094-BC01-M01-M Kinetix 6200 Integrated Axis Module unit.

Standard safety instruction sheets and protective terminal covers.

Backed by a full 12-month warranty starting from the original invoice date.

Shipping and Logistics

Rapid order fulfillment within 24-48 hours for items currently stocked in our central warehouse.

Reliable international express delivery managed via FedEx, UPS, and DHL.

Heavy-duty industrial cushioning protects sensitive internal power electronics during global transit.

Typical Applications and Diagnostic Capability

Application 1: Multi-axis high-speed packaging machines requiring synchronized electronic camming and precise motion profiles.

Application 2: Automated material handling systems and robotic assembly lines demanding integrated functional safety.

Diagnostic Capability: Detects overcurrent events, bus undervoltage faults, thermal overloads, and safety circuit trips instantly via alphanumeric status reporting.

Frequently Asked Questions (FAQ)

How does the embedded Safe Speed Monitor reduce mechanical wear on industrial machinery?

It allows maintenance personnel to inspect or clear jams while the machine operates at a safe, monitored low speed, avoiding repeated full power cycles and brake wear.

What is the advantage of using a 6 kW converter section with a 9 A inverter?

The robust converter capacity supplies stable DC bus power capable of handling peak regeneration and acceleration demands across multi-axis configurations.

Can the 2094-BC01-M01-M transition between SERCOS and EtherNet/IP communication networks?

Yes, the drive architecture supports flexible network integration options to match evolving plant-wide control topologies.

What precautions are necessary when checking the 4585 Microfarads internal bus capacitance during servicing?

Always verify that the DC bus voltage has completely discharged to safe levels using a calibrated meter before touching internal power terminals.

How should an engineer troubleshoot an unexpected Safe Torque Off fault trip?

Inspect the dual-channel safety input wiring, verify terminal block seating, and check for loose feedback jumpers on the safety connector plug.

12-Month Comprehensive Warranty

Every part supplied by Global PLC Spare Hub is covered by a 12-month warranty from the date of invoice.

Coverage: Functional defects and hardware failures under normal operating conditions.
Commitment: We provide immediate repair, replacement, or a full refund for any verified defective components to minimize your operational downtime.

Returns & Exchange Policy

We offer a 30-day return policy to ensure you receive the exact part your system requires.

Eligibility: Returns are accepted for uninstalled items in their original, factory-sealed packaging.
RMA Process: Please contact our support team to obtain a Return Merchandise Authorization (RMA) number before shipping.
Fast Processing: Refunds or exchanges are processed within 3–5 business days after the returned item passes our technical inspection.

Need Technical Assistance?Not sure if this part is compatible with your system? [Consult our Engineers] before purchasing to ensure 100% compatibility.
