200152-04-10 Bently Nevada Standard Interface Cable for Vibration Systems

Product Overview | Bently Nevada 200152-04-10

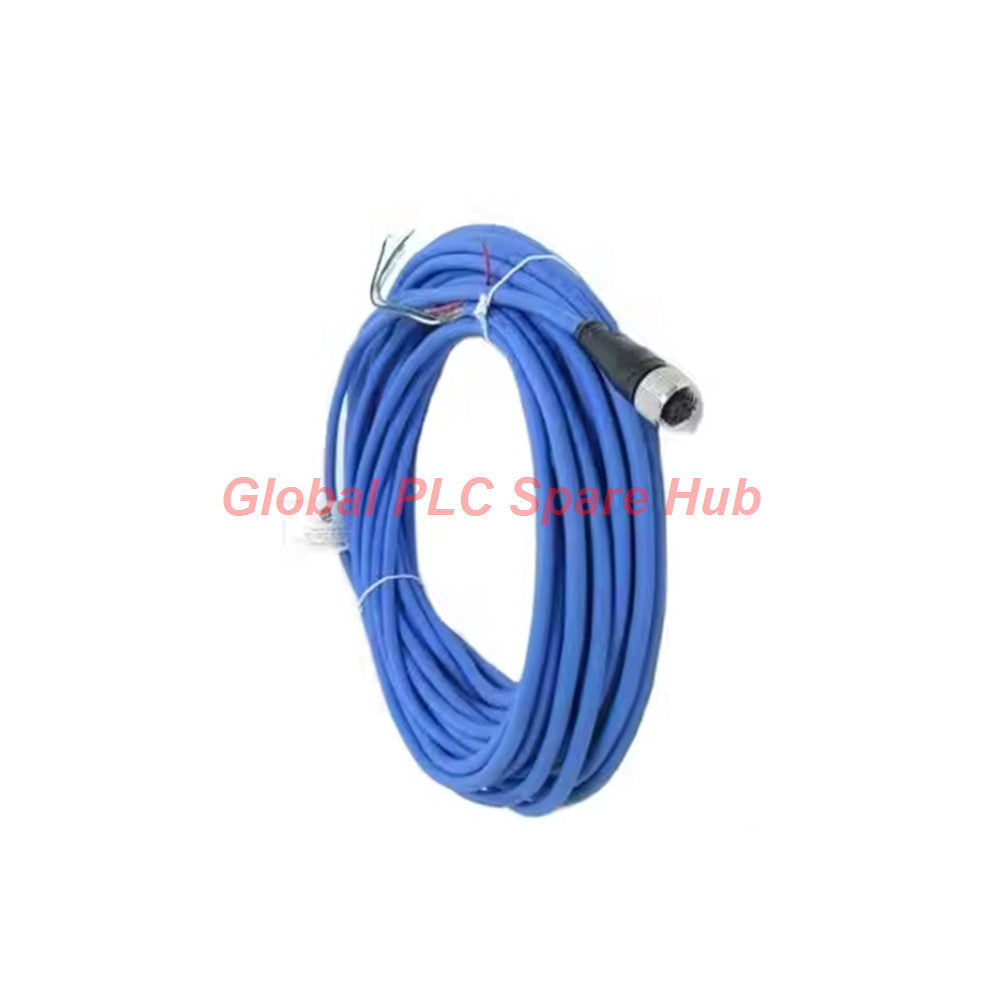

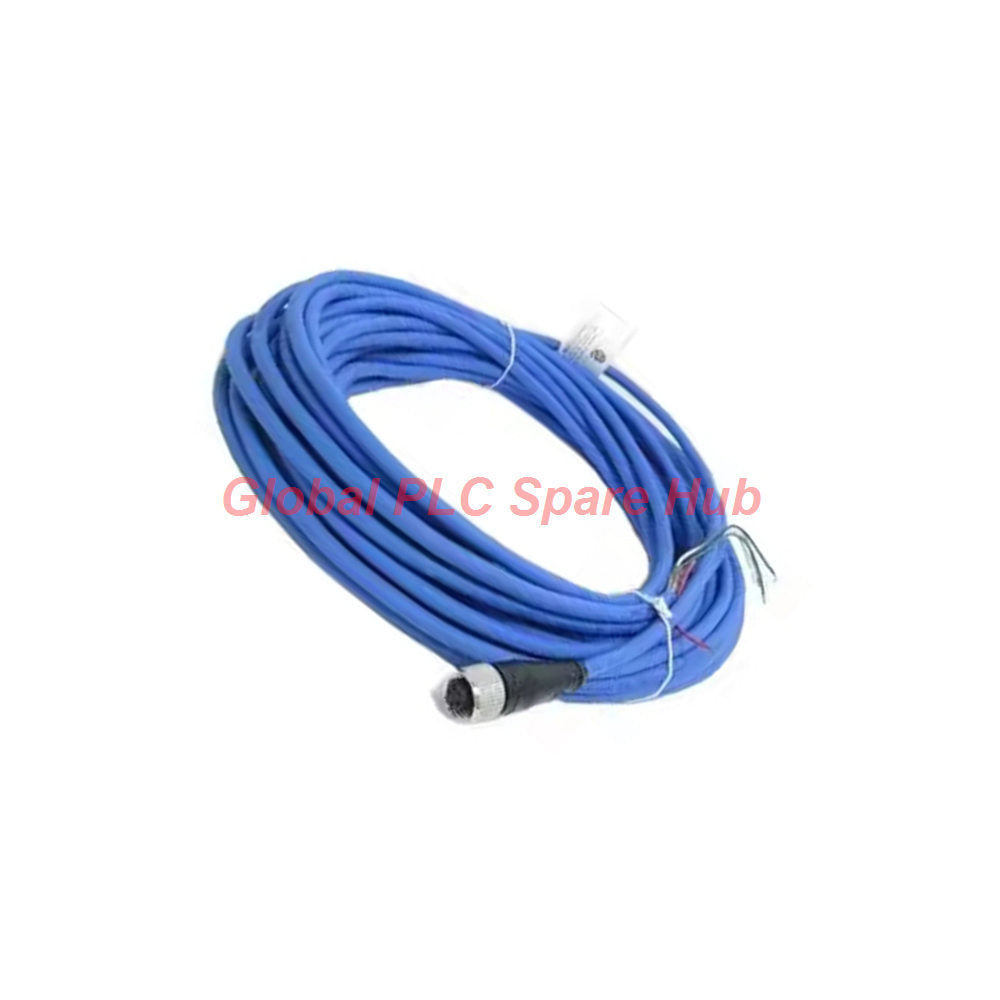

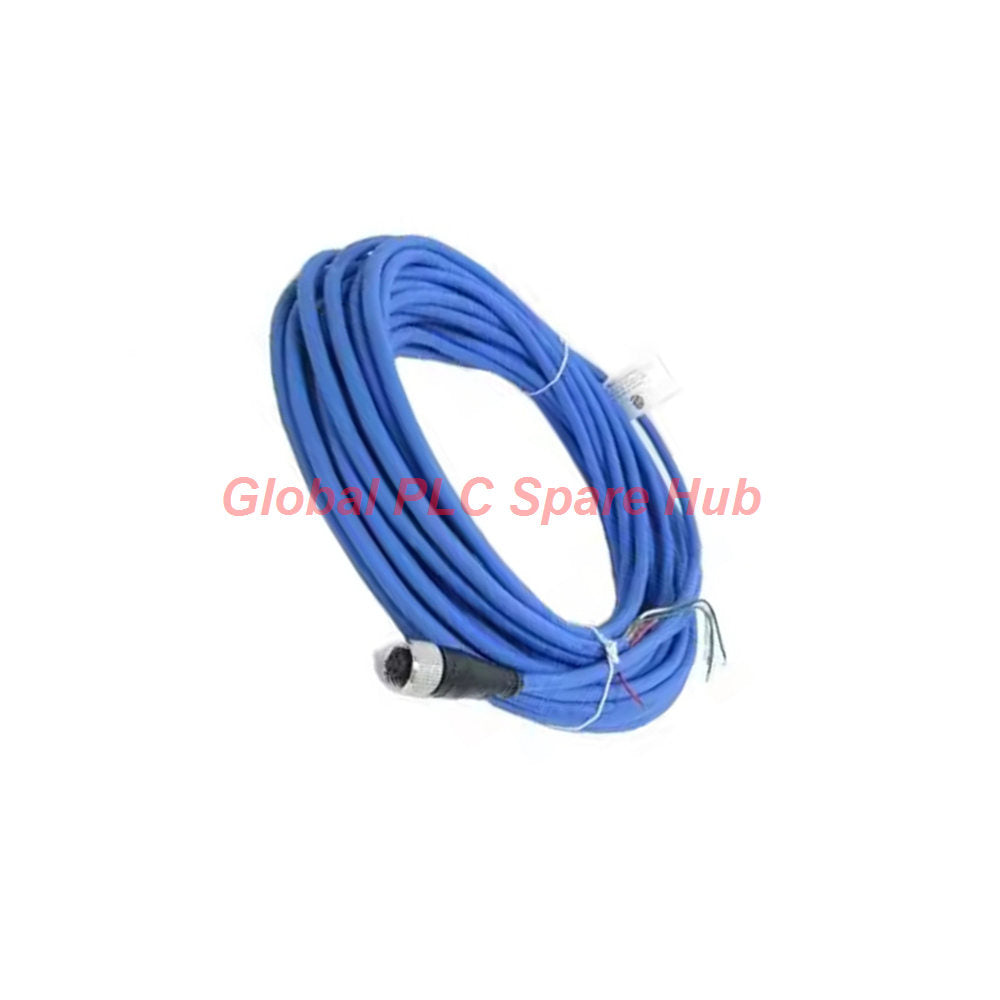

The Bently Nevada 200152-04-10 is an accelerometer interface cable designed to connect compatible accelerometers with vibration monitoring equipment. Its four-conductor construction, braided shield, and molded connectors support signal transmission in industrial monitoring installations.

This configuration combines a 4.0-meter cable with an enhanced coupling nut on the accelerometer end. The coupling nut improves grip during tightening and helps technicians secure the connector correctly.

• Manufacturer: Bently Nevada
• Model: 200152-04-10
• Product category: Accelerometer interface cable
• Cable length: 4.0 meters
• Connector configuration: Connector on the accelerometer end only, according to the supplied ordering description
• Primary function: Connect compatible accelerometers to vibration monitoring systems

Configuration Breakdown | Decode Each Suffix

Ordering verification: The supplied description identifies the ordering model as 200151 but labels the minimum bend radius as 200152. Confirm the exact base model and configuration before ordering a replacement.

Electrical and Mechanical Construction

Environmental Protection and Installation Limits

• Moisture protection: The connector provides an IP67 seal when correctly mated with compatible hardware.
• Thermal shock protection: DC4 electrical insulating compound inside the connectors provides additional moisture protection during thermal shock.
• Cold-weather handling: Lower temperatures may be acceptable when the installation prevents cable flexing or bending.
• Cold-temperature caution: Flexing the cable below −20°C may damage its construction.
• Bend control: Maintain the specified minimum bend radius to reduce conductor and jacket stress.

Compound specification note: The supplied information also lists a temperature range of −55°C to +121°C and a 24-hour cure time. Confirm the exact material and application associated with these values before using them in installation procedures. Do not treat them as the cable's operating temperature rating.

Installation Guidance for Reliability

1. Confirm the interface. Check the accelerometer model, mating connector, and monitoring system requirements.
2. Measure the cable route. Allow sufficient length for service access without creating excessive slack or tight loops.
3. Protect the bend radius. Keep bends at or above 73.7 mm where this specification applies.
4. Secure the connector. Use the enhanced coupling nut on the accelerometer end and follow the manufacturer's tightening instructions.
5. Protect the cable path. Avoid sharp edges, crushing points, hot surfaces, and moving machine parts.
6. Manage electrical interference. Route the cable away from high-current conductors where practical and follow the system's grounding requirements.
7. Inspect before startup. Check the jacket, connector seating, mating surfaces, and cable strain relief.

Suitable Equipment and Industrial Applications

The cable suits vibration monitoring installations that use compatible accelerometers and matching Bently Nevada interface hardware. Verify the exact sensor and monitor combination before installation.

• Rotating machinery: Connect compatible accelerometers used to monitor motors, pumps, and fans.
• Industrial compressors: Support vibration signal connections where the installed accelerometer and monitoring channel accept this cable.
• Gearboxes: Maintain sensor connections for condition monitoring and vibration trend collection.
• Process equipment: Support vibration monitoring on compatible equipment in continuous production environments.
• Maintenance programs: Replace damaged or incorrectly routed sensor cables during planned maintenance.
• Condition monitoring systems: Carry sensor signals to compatible monitoring hardware for analysis and trending.

Diagnostic Value and Field Troubleshooting

This cable provides the physical signal path between a compatible accelerometer and monitoring equipment. It does not independently analyze vibration or diagnose machine faults.

Global PLC Spare HUB's Insight

Field technicians should inspect cable routing and connector condition before replacing an accelerometer or monitoring channel. Cable faults can imitate sensor or signal-conditioning problems.

Field example: A pump monitoring channel may show intermittent vibration readings after maintenance. If the readings change when technicians inspect the connector area, check coupling security, cable strain, and shield continuity before replacing the sensor.

Selection insight: Choose the cable length from the actual installation route rather than the straight-line distance. Allow service access while avoiding unnecessary loops near rotating machinery or hot surfaces.

These checks provide practical fault-isolation guidance. Confirm any suspected electrical defect with the applicable equipment manual and approved test procedure.

Five Professional FAQs

Q1: How does the enhanced coupling nut improve maintenance work?

The enhanced nut provides a better grip when tightening the connector at the accelerometer end. Follow the manufacturer's specified tightening method and avoid excessive force.

Q2: Can technicians install this cable in a continuously moving cable carrier?

Do not assume suitability for continuous flexing. The supplied specifications warn against flexing below −20°C and do not establish a continuous-flex rating. Confirm the application with the manufacturer before using a moving cable carrier.

Q3: What should buyers check when a replacement cable looks identical to the original?

Compare the complete part number, cable length, connector arrangement, coupling nut option, and mating interface. Similar appearance does not guarantee identical electrical or mechanical compatibility.

Q4: Does an IP67 connector rating guarantee protection in every installation?

No. The stated seal applies to compatible transducers and mating hardware. Damaged seals, incorrect mating, contamination, or unsuitable installation conditions can compromise protection.

Q5: How can maintenance teams determine whether a cable or accelerometer causes an unstable reading?

Inspect connectors, routing, and shielding first. Then follow the site's approved diagnostic procedure to test cable continuity and compare readings using known-good compatible components. Never disconnect monitoring hardware on operating machinery without the required safety authorization.

Packaging, Warranty and Shipping

• Product: Bently Nevada accelerometer interface cable in the confirmed ordered configuration.
• Accessories: Additional connectors, sensors, and installation hardware require separate confirmation.
• Warranty: 12-month warranty under the seller's agreed terms.
• Dispatch: Target dispatch within 24–48 hours after order confirmation, subject to stock verification and payment processing.
• Courier options: FedEx, UPS, and DHL, subject to destination and service availability.
• Before ordering: Confirm the full model number, required length, connector interface, delivery address, and shipping schedule.

Request Pricing and Compatibility Confirmation

Contact Global PLC Spare HUB for a quotation on the Bently Nevada 200152-04-10 accelerometer interface cable.

Provide your accelerometer model, monitoring equipment model, required quantity, and delivery destination. Our team can help review the configuration and confirm availability before order placement.
