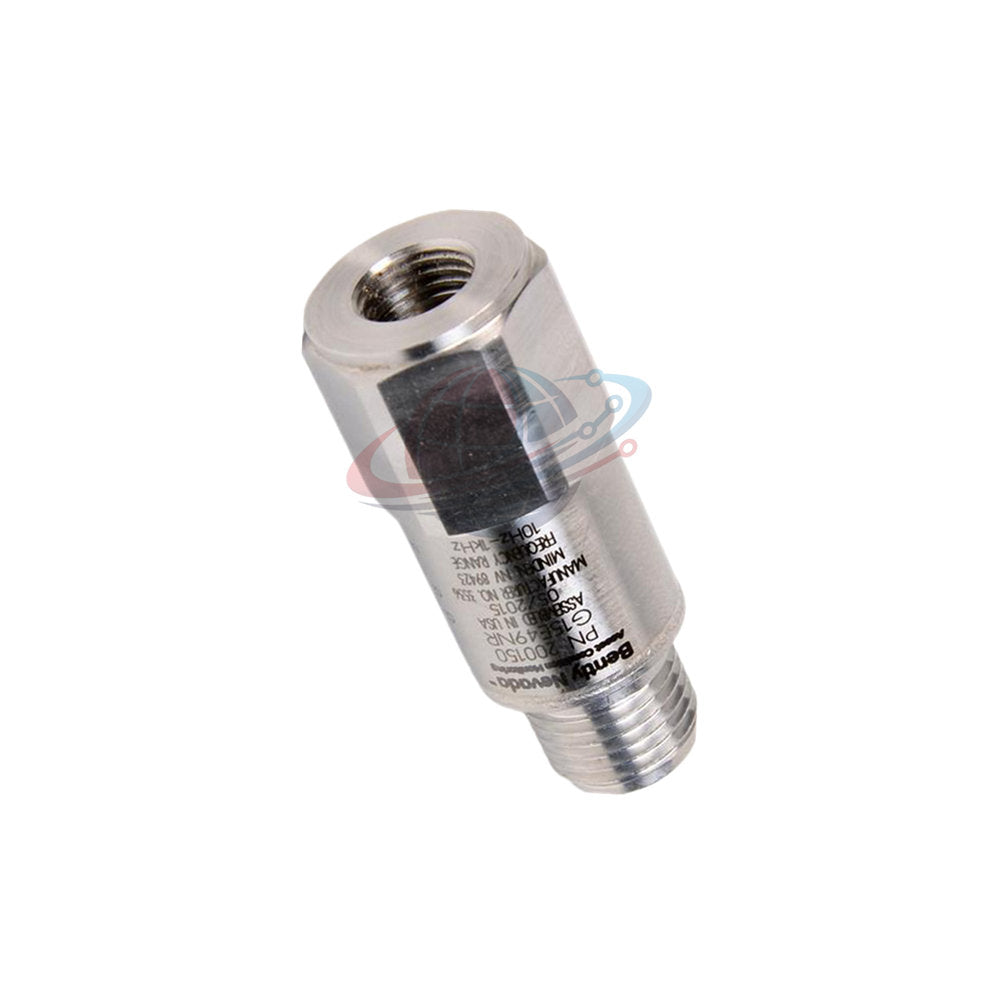

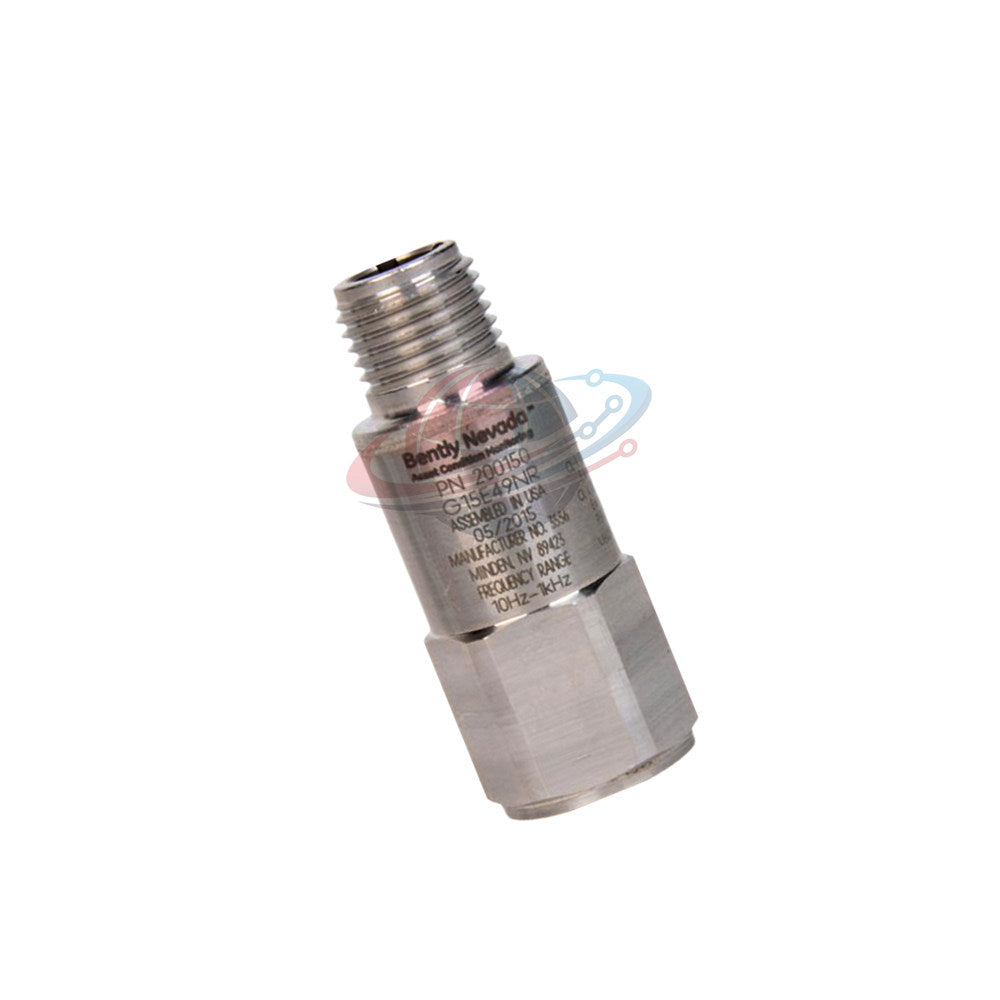

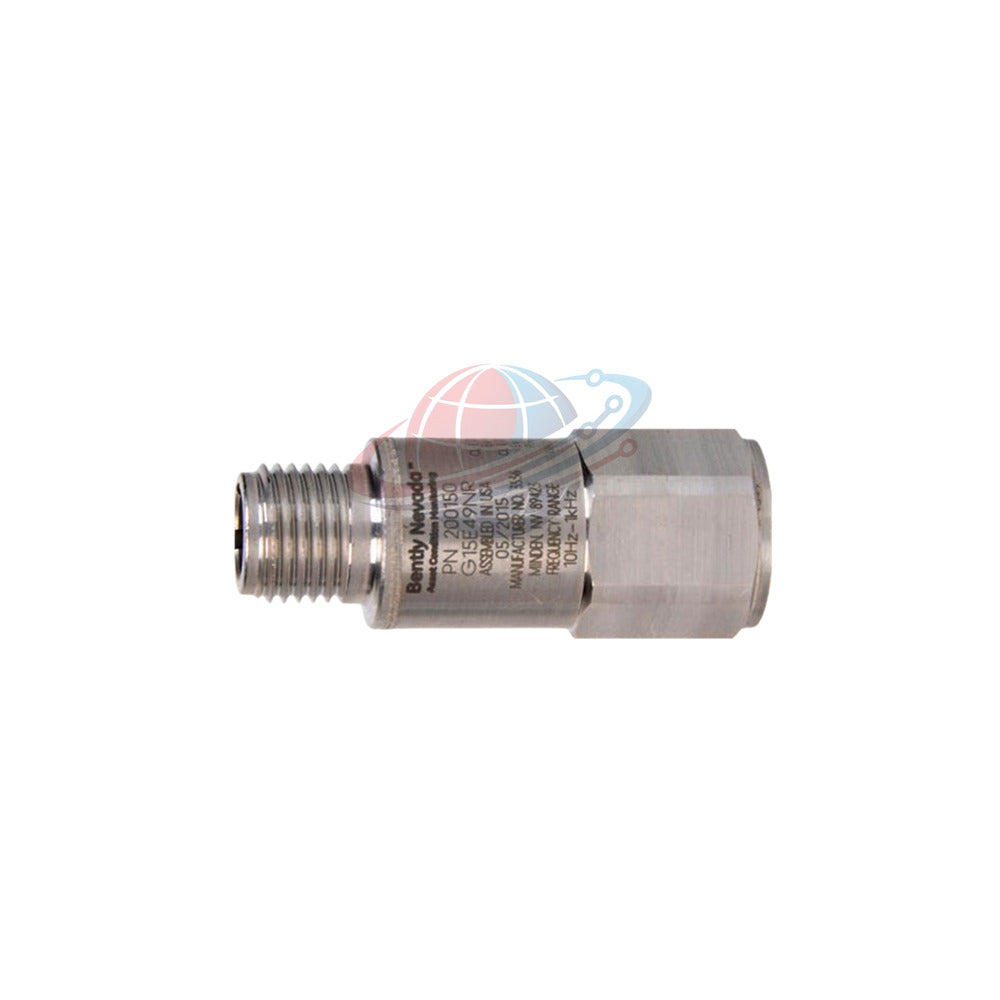

200150-12-05 Bently Nevada Trendmaster 2000 Accelerometer
Manufacturer: Bently Nevada
Product No.: 200150-12-05
Condition： In stock
Product Type: Accelerometer Sensor
Product Origin: USA
Payment: T/T, Western Union
Weight: 58g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Product Overview
Global PLC Spare HUB's Insight: Global PLC Spare HUB delivers mission-critical industrial sensing hardware for continuous machinery health logging. The 200150-12-05 belongs to the Trendmaster 2000 series. Reliability engineers deploy this shear-mode ceramic accelerometer within harsh plant floors to monitor high-frequency casing vibrations on continuous-duty rotating assets.
Configuration Breakdown
| Base Part Number | 200150 - General Purpose Trendmaster 2000 Accelerometer |
| Mounting Stud Option | 12 = 3/8-24 to 1/4-20 UNC, 3/4 inch hex stud adapter configuration |
| Agency Approval Option | 05 = Multiple hazardous area certifications including CSA, ATEX, and IECEx |
Technical Specifications
| Brand | Bently Nevada |
| Manufacturer Part Number | 200150-12-05 |
| Sensitivity | 10.2 mV/(m/s2) or 100 mV/g nominal output at 80 Hz |
| Measurement Range | Plus or minus 245 m/s2 pk (plus or minus 25 g pk) acceleration span |
| Frequency Response | 10 Hz to 1000 Hz (600 to 60,000 cpm) referenced to 80 Hz |
| Mounted Resonant Frequency | Greater than 20 kHz (greater than 1200 kcpm) |
| Amplitude Linearity | Plus or minus 2% across 1 to 10g peak range |
| Excitation and Bias | 4.7 to 5.5 Vdc supply voltage with +2.5 Vdc output bias |
| Operating Temperature | -40°C to +105°C housing operational limits |
| Casing Material | Solid 316L stainless steel housing for extreme corrosion resistance |
Installation Guide
- Clean the machinery mounting spot thoroughly to ensure flat, metal-to-metal contact.
- Apply a thin layer of coupling fluid to the mating surface to optimize high-frequency transmission.
- Thread the 3/8-24 stud into the pre-drilled and tapped machinery pad.
- Tighten the hardware using a calibrated torque wrench between 2.7 and 6.8 N-m (2 to 5 ft-lbf).
- Route the low-noise twisted triad cable away from high-voltage power conduits to prevent electromagnetic induction.
Commissioning and Maintenance Convenience
The unit settles within 300 milliseconds of power application, allowing rapid loop verification during startup. Quiescent current remains below 800 microamps, minimizing thermal self-heating inside the internal electronics. Technicians can verify circuit health instantly by measuring the static output bias voltage against the 2.5 Vdc baseline reference.
Compatibility Notes
This transducer interfaces directly with ProTIM modules configured for standard acceleration-to-velocity channel types (-01). Ensure the monitoring system power supply provides a regulated constant current source within the specified 4.7 to 5.5 Vdc excitation envelope.
Certification Information
The assembly carries multiple global explosion-proof ratings. Certified classifications include CSA, ATEX, and IECEx directives for safe operation in explosive gas and dust atmospheres.
Package Contents and Warranty
Each delivery box contains one factory-tested 200150-12-05 vibration transducer along with its specified mounting stud. Global PLC Spare HUB backs this industrial item with a solid 12-month replacement warranty.
Logistics and Delivery
Global PLC Spare HUB processes and ships orders within 24 to 48 hours. Expedited international delivery runs via trusted couriers including FedEx, UPS, and DHL.
Typical Application Scenarios and Diagnostic Capability
Industrial plants deploy this sensor on heavy centrifugal pumps, industrial fans, electric motors, gearboxes, and large air compressors. The shear-mode ceramic element captures high-frequency impact energy, enabling early detection of gear tooth pitting, rolling element bearing degradation, cavitation, and structural looseness before catastrophic failure occurs.
Frequently Asked Questions
What is the primary function of the shear-mode ceramic element inside this housing?
Shear geometry isolates the sensing crystal from base-bending strains and thermal transients, ensuring that measured signals reflect true machine vibration rather than structural distortion.
Why does my reading drift immediately after torquing the sensor down?
Over-tightening beyond 6.8 N-m can distort the mounting base or stress the internal piezoelectric crystal, causing temporary offset voltage shifts or baseline instability.
Can I paint over the 316L stainless steel body to match my machine color?
Painting the housing is strongly discouraged because it insulates the body from ambient air, trapping heat and potentially driving internal electronics past their thermal limits.
How do I test if the transducer is shorted before connecting it to the ProTIM?
Measure the resistance between the signal pin and the outer stainless steel case using a digital multimeter; a healthy unit should show an open circuit rather than zero ohms.
What criteria should guide my selection when choosing between different Trendmaster studs?
Match your machine pad's existing thread depth and diameter to the stud conversion kit, ensuring maximum thread engagement without bottoming out the stud base.
Buying Guide
When selecting industrial accelerometers, evaluate your machinery's operating frequency spectrum, environmental exposure hazards, and monitoring system input power compatibility. Procuring exact factory part numbers like the 200150-12-05 guarantees full calibration compliance and seamless integration with existing distributed diagnostic networks.
