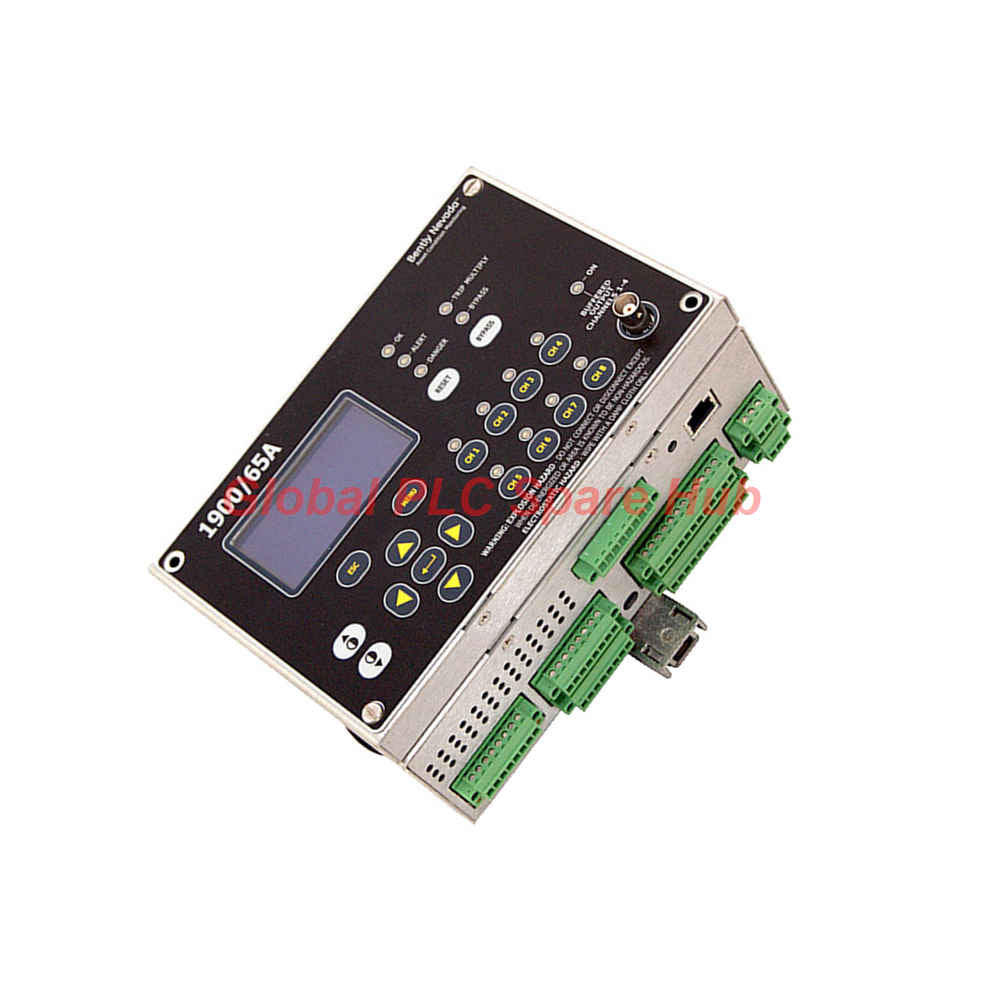

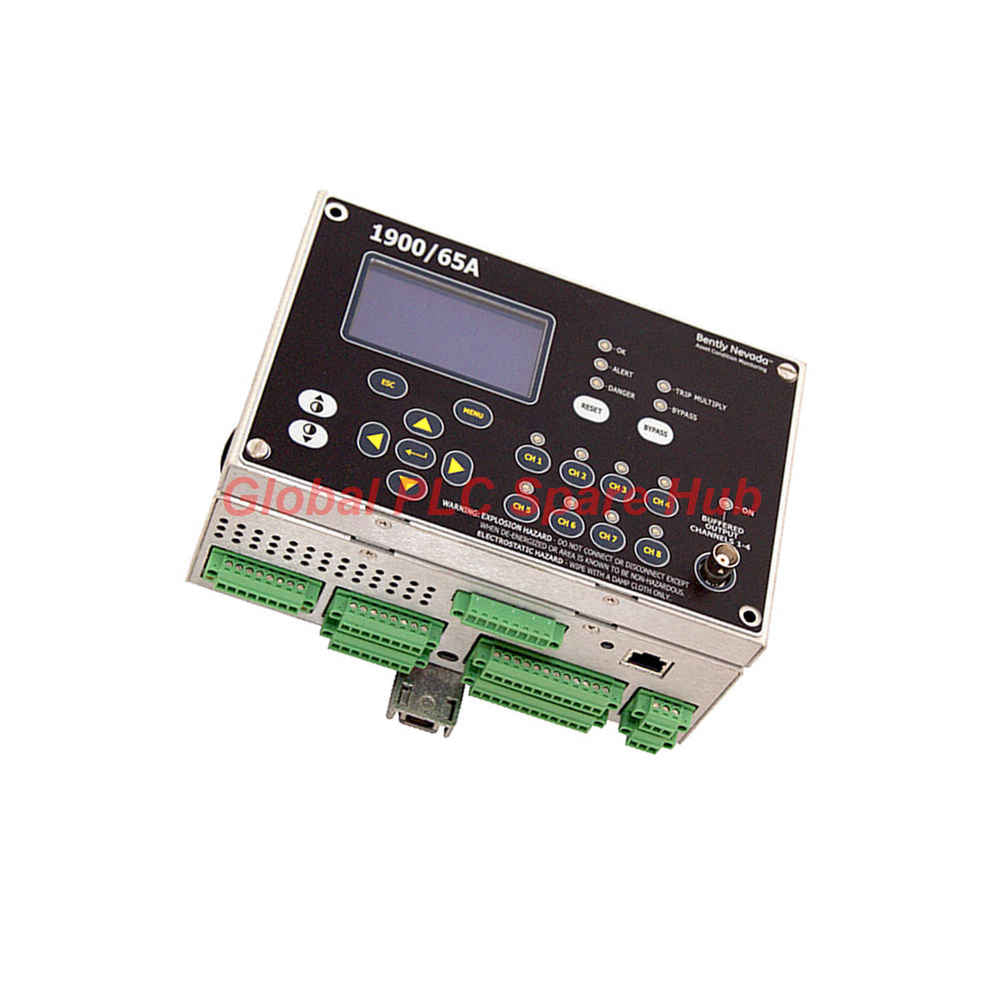

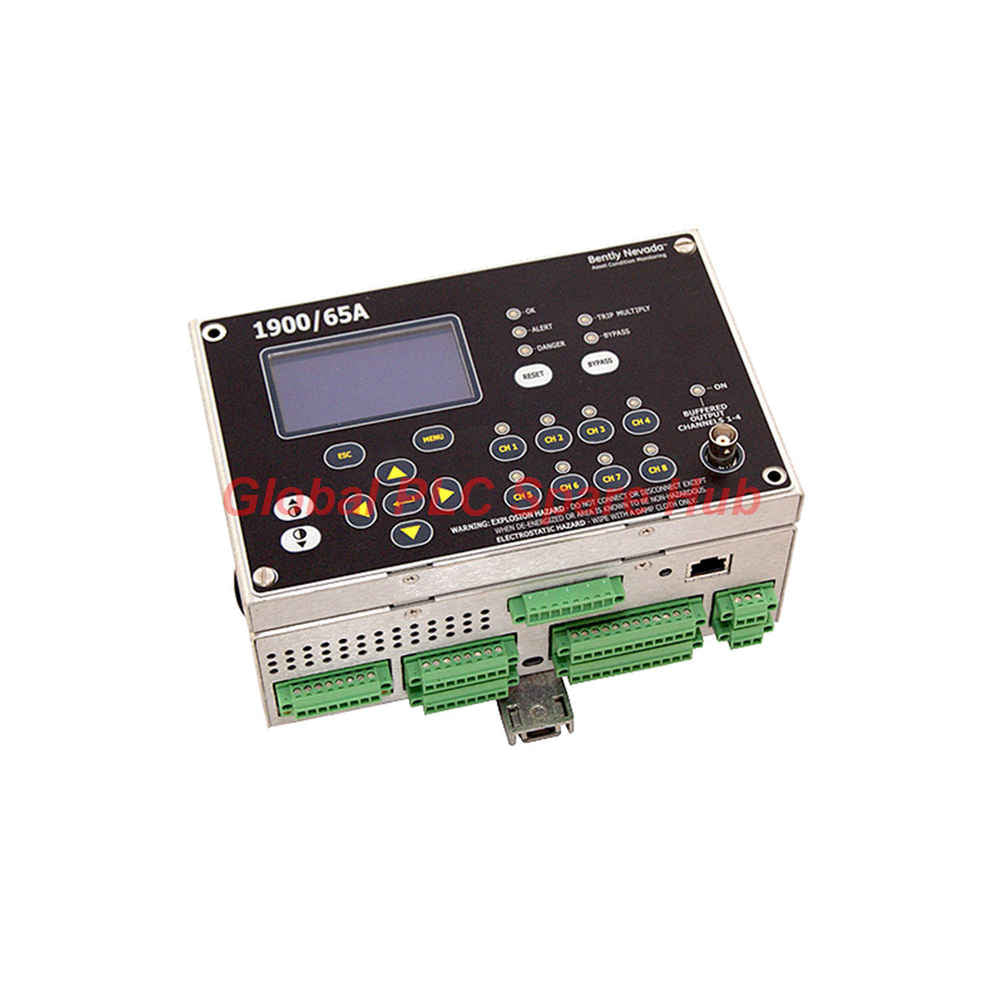

1900/65A-00-00-03-00-00 Bently Nevada 1900/65A Equipment Monitor

Product Overview

The 1900/65A-00-00-03-00-00 is a highly versatile stand-alone machinery protection system belonging to the Bently Nevada 1900 Series. Engineered for continuous monitoring of general-purpose plant assets, this unit processes up to four vibration/proximity transducer inputs and four dedicated temperature inputs simultaneously. The module includes a factory-installed NEMA 4X/IP66 weatherproof fiberglass enclosure with a clear viewing door window, ensuring robust physical protection in demanding washdown or outdoor industrial environments. Operating on a 18 to 36 Vdc power supply, it features six configurable relay outputs, four 4-20 mA recorder outputs, and raw buffered outputs for detailed diagnostic analysis.

Model Configuration Breakdown

• 1900/65A — 1900/65A General Purpose Equipment Monitor Base Unit
• -00 — Power Option: 18 to 36 Vdc Input
• -00 — Display Option: No Display Module Installed
• -03 — Mounting Option: Fiberglass NEMA 4X/IP66 Weatherproof Housing with Door Window
• -00 — Approvals Option: None / Standard Commercial
• -00 — Communications Option: None / Standard Base Configuration

Technical Specifications

Transducer & Sensor Compatibility

The 1900/65A-00-00-03-00-00 integrates directly with standard industrial dynamic sensors across multiple channel configurations:

• Accelerometers: Bently Nevada 330400, 330425, and standard 2-wire / 3-wire ICP acceleration sensors.
• Velocity Transducers: Bently Nevada 190501, 330500, 330525, and 330750 Velomitor piezovelocity sensors.
• Proximity Probe Systems: Bently Nevada 3300 5/8mm, 3300 XL 8mm/11mm/25mm/50mm/NSv, and 7200 Series (5mm, 8mm, 11mm, 14mm) Proximitor systems.
• Temperature Sensors: Type E, J, K, T thermocouples along with standard 2-wire and 3-wire RTD elements.

Target Equipment Applications

Designed as a cost-effective alternative to complex rack-based protection systems, this monitor is tailored for essential balance-of-plant (BOP) machinery, including:

• Single-stage centrifugal air and gas compressors
• Balance-of-plant electric motors and induction drives
• Overhung process pumps, cooling water pumps, and boiler feed pumps
• Cooling tower fans, forced draft blowers, and induced draft fans
• Industrial speed reducers, gearboxes, and motor-driven agitators

Diagnostic & Machinery Protection Capabilities

By constantly processing high-speed dynamic sensor signals, the monitor provides full automated machinery safety trip mechanisms alongside detailed diagnostic insight:

• Rolling Element Bearing Defect Detection: Utilizes 2-pole and 4-pole bandpass peak/RMS enveloping filters to identify early race and ball pitting before thermal escalation.
• Shaft Vibration & Position Monitoring: Processes overall radial displacement, axial thrust position, and peak velocity to guard against unbalance, misalignment, and journal bearing wear.
• Thermal Bearing Checks: Combines mechanical vibration trends with direct 3-wire RTD bearing pad temperatures, preventing catastrophic thermal wipes.
• Raw Signal Extraction: Provides dedicated front-panel buffered BNC connections, allowing plant reliability engineers to attach portable FFT analyzers without disturbing machine protection loops.

Packaging Details, Fast Dispatch & Warranty

• Product Condition: New & Original in Factory Packaging
• Warranty Coverage: 12 Months full factory defect replacement warranty
• Shipping Lead Time: Dispatches within 24 to 48 hours following order placement
• Global Express Logistics: Shipped internationally via FedEx, UPS, or DHL

Global PLC Spare HUB's Insight

The 1900/65A-00-00-03-00-00 is an ideal, self-contained solution for skid-mounted equipment or remote pump houses where rack space is unavailable. The factory option -03 NEMA 4X fiberglass enclosure completely eliminates the need for field engineers to source and punch third-party junction boxes, drastically reducing field wiring labor. If digital DCS integration is required later, the internal hardware easily accepts the 1900/01 communications upgrade module to add Modbus TCP/RTU protocol support over Ethernet or RS-485 networks without altering the existing field sensor wiring.

Frequently Asked Questions (FAQ)

Q: Can I field-upgrade the communications protocol on this base unit if Modbus is needed later?

A: Yes. Because option -00 omits factory communications, field technicians can install the Bently Nevada 1900/01 Communications Upgrade card to enable Modbus TCP (Ethernet) and RS232/RS485 serial communication to DCS or SCADA systems.

Q: How do I configure signal filtering and relay alarm logic on this non-display model?

A: Connect a laptop running Bently Nevada 1900 Configuration Software directly to the module's RJ45 Ethernet port. Software parameters, filter cutoffs, and relay voting logic are saved into non-volatile memory onboard the monitor.

Q: Is an external barrier required when wiring 3300 XL proximity probes to the transducer inputs?

A: Internal terminal connections supply the required -24 Vdc proximity probe power directly. External zener barriers are only necessary when routing probe cables into designated intrinsically safe hazardous zones.

Q: How does the enveloping filter option assist in predictive maintenance schedules?

A: Standard vibration filters measure low-frequency overall rotational energy. The enveloping filter isolates high-frequency repetitive impacts caused by bearing micro-cracks, generating alert flags months before catastrophic mechanical failure.

Q: Selection Guide: When should I choose the 1900/65A monitor instead of a 3500 rack system?

A: Select the 1900/65A-00-00-03-00-00 for standalone or isolated machines requiring 4 dynamic channels or fewer per casing. Reserve large 3500 multi-channel racks for primary turbomachinery trains requiring complex API 670 machine shutdown voting matrix structures.
