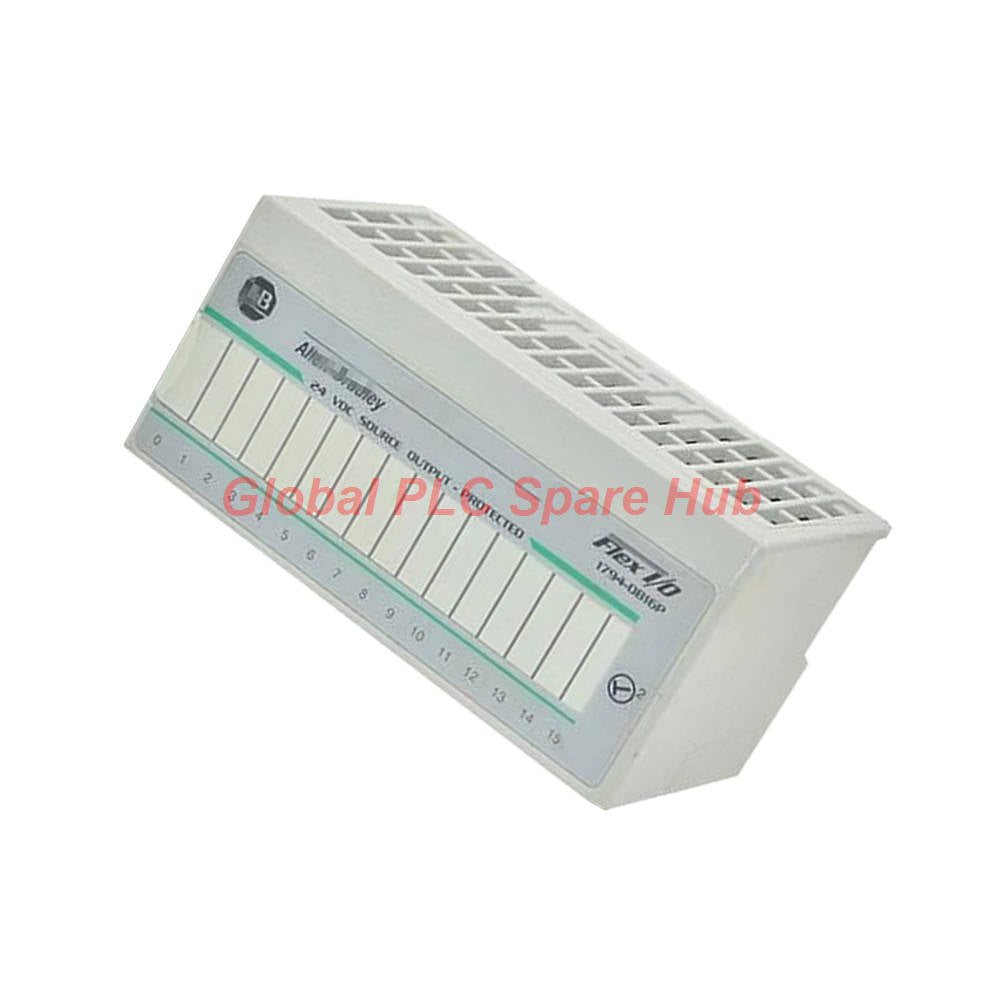

1794-OB16P Allen-Bradley Flex I/O 16-Channel Sourcing Output Module

Engineering Overview & Architecture

The 1794-OB16P is a high-density discrete output module engineered by Rockwell Automation for the Flex I/O Series. Designed for distributed automation frameworks, this unit provides sixteen current-sourcing output channels operating at a nominal 24V DC. It streamlines panel layout by combining high-speed switching performance with advanced electronic channel protection, eliminating the need for external fuses.

Core System Specifications Matrix

Operational Environment & Compliance Tree

• Thermal Envelope: Operational temperature range of 0°C to 55°C (32°F to 131°F); storage range from -40°C to 85°C.
• Humidity Tolerance: 5% to 95% non-condensing relative humidity parameters.
• Shock & Vibration Resistance: Tested to 30g peak operating shock (11ms pulse) and 5g vibration across 10 to 500 Hz per IEC 68-2-6.
• Hazardous Approvals: Class I Div 2 Groups A, B, C, D; Class I Zone 2 Group IIC; UL, CSA, and CE certified.

Target Equipment & Control System Compatibility

• Logix PAC Controllers: Direct distributed integration with ControlLogix and CompactLogix rack controllers.
• Legacy Process Controllers: Fully compatible with SLC 500 and PLC-5 remote I/O subsystems.
• Network Communication Adapters: Interfaces seamlessly via EtherNet/IP, ControlNet, DeviceNet, and PROFIBUS adapters.
• Mandatory Terminal Bases: Requires physical mounting on compatible terminal bases including 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3K, 1794-TB3SK, and 1794-TBN.

Industrial Applications & Diagnostic Capabilities

The 1794-OB16P drives high-speed automation control loops across heavy discrete and hybrid process sectors:

• Solenoid Valve Actuation: Controls pneumatic and hydraulic directional control valves in high-cycle packaging lines.
• Inductive Relay Interfacing: Energizes control relay coils safely while absorbing inductive flyback spikes via electronic protection.
• Machine Status Signaling: Manages 24V DC tower lights, horn annunciators, and status indicator arrays.
• Real-Time LED Diagnostics: 16 yellow front-panel indicators provide instant visual feedback on individual channel logic states for rapid troubleshooting.

Global PLC Spare HUB's Insight

From an industrial networking and maintenance perspective, deploying the 1794-OB16P requires careful attention to module current budgeting. Because all 16 outputs share a common sourcing architecture drawing up to 0.5A per channel, engineers must verify that the external 24V DC power supply can handle the 8A total load plus the Flexbus current requirements. Utilizing terminal bases with built-in spring-clamp connections (such as the 1794-TB3S) significantly reduces wire loosening under high operational vibration environments.

Logistics, Fulfillment & Quality Guarantee

• Condition Status: 100% Brand New and Original Factory Sealed Packaging.
• Fulfillment Speed: Guaranteed dispatch within 24 to 48 hours of order clearance.
• Global Express Courier: Secure transit delivered via FedEx, UPS, or DHL with tracking capabilities.
• Warranty Assurance: Protected by a comprehensive 12-Month Factory Defect Warranty.

Frequently Asked Questions (FAQ)

Q1: How do the built-in electronic protections handle short-circuit conditions on an individual channel?

A: Unlike traditional modules with physical fuses, the 1794-OB16P uses electronic fault sensing that automatically trips and latches off the affected channel during an overcurrent event without blowing hard fuses or requiring hardware replacements.

Q2: Can I mix this sourcing output module with sinking input modules on the same Flex I/O adapter rack?

A: Yes. Flex I/O backplane architectures allow arbitrary mixing of digital input, digital output, analog, and specialty modules on a single communication adapter node.

Q3: What guidelines should I follow when routing field wiring to the terminal base?

A: Use Category 2 shielded or unshielded stranded copper wire up to 12 gauge (4mm2) with maximum 1.2mm insulation thickness, adhering to publication 1770-4.1 industrial grounding guidelines to mitigate electrical noise.

Q4: Why does the module specify a maximum surge current rating of 1.5A for 50 milliseconds?

A: This temporary high-current allowance accommodates the initial inrush surge common when energizing inductive loads like heavy solenoid coils and electromechanical relay gates.

Q5: What factors should guide my selection between screw-clamp and spring-clamp terminal bases?

A: Select screw-clamp bases (like the 1794-TB3) for legacy compatibility and high torque pull-down preferences, or choose spring-clamp bases (like the 1794-TB3S) for vibration-heavy applications where screw retightening maintenance needs to be eliminated.
