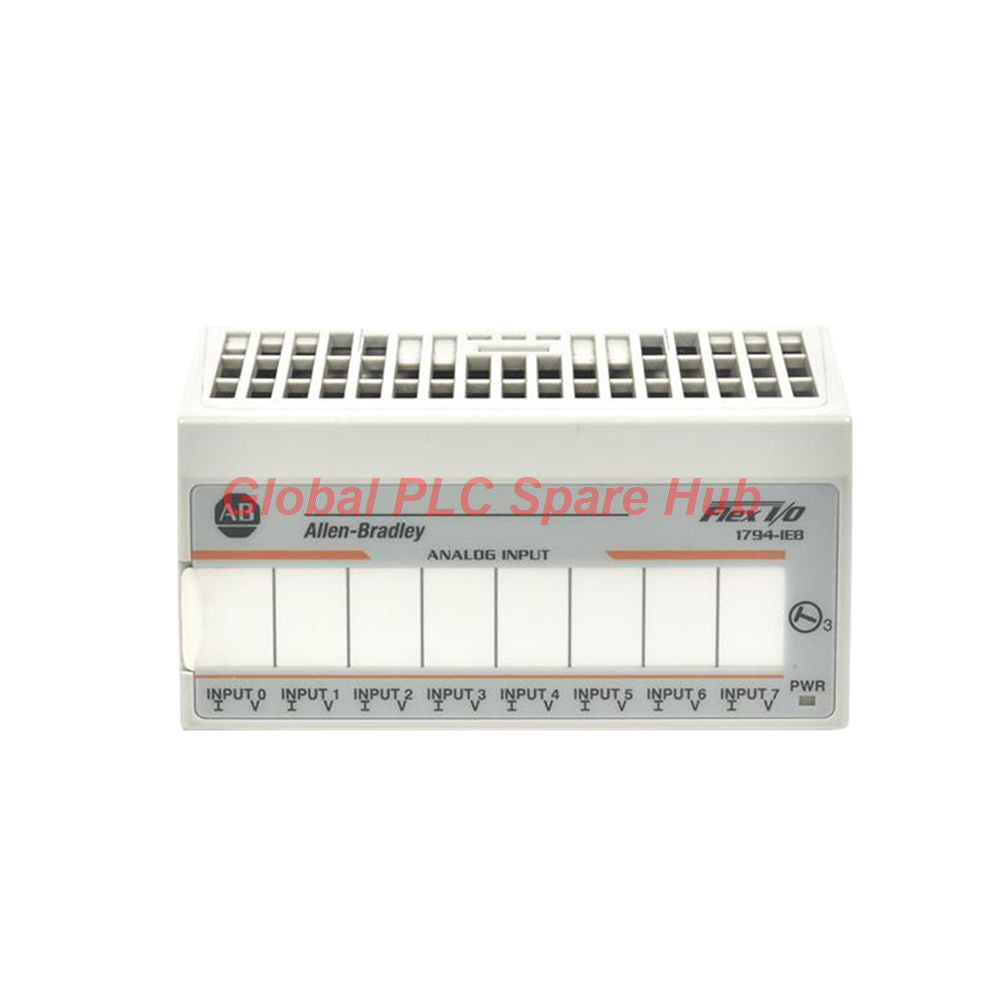

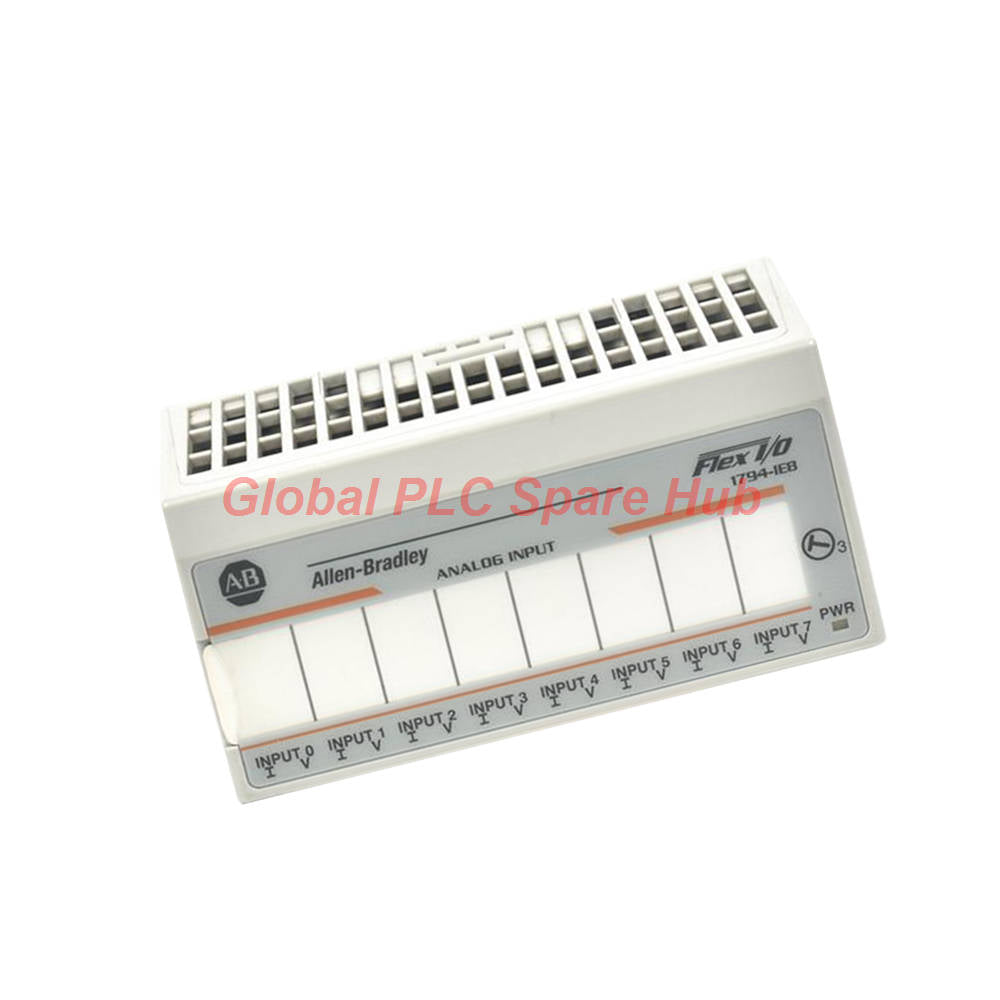

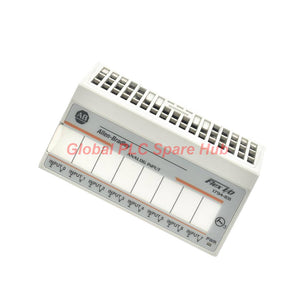

1794-IE8 Allen-Bradley Flex I/O 8-Channel Analog Input Module

System Architecture and Functional Overview

The 1794-IE8 is a high-density 8-channel single-ended analog input module engineered for the Allen-Bradley / Rockwell Automation Flex I/O platform. Designed for distributed automation architectures, this module supports user-configurable voltage and current ranges (0-20 mA, 4-20 mA, 0-10V DC, and ±10V DC) without requiring manual field calibration.

Technical Parameters and Specifications

Physical Integration and Installation Guidelines

• Mount the 1794-IE8 module onto standard DIN rails or directly to panels using any compatible terminal base (1794-TB2, TB3, TB3S, TB3T, or TB3TS).
• Supply external operating voltage within the 10.5V to 31.2V DC range (nominal 24V DC including 5% AC ripple).
• Leverage Flex I/O adapter compatibility (EtherNet/IP, ControlNet, Universal Remote I/O) to integrate distributed nodes smoothly.
• Ensure operating ambient temperatures stay within -20°C to 55°C (-4°F to 131°F) to maintain measurement precision.

Advanced Diagnostics and Performance Metrics

• Single bi-color green/red LED provides instant visual status indication for power and module operational health.
• Fast step response times of 9.4 milliseconds for voltage terminals and 18.2 milliseconds for current terminals (to 63% of final value).
• High overload tolerance supporting up to 30V continuous on voltage inputs and 32 mA continuous on current inputs.

Compatibility and Environmental Hardening

• Designed for open-style enclosures meeting rigorous vibration (5g at 10-500 Hz) and operating shock (30g) standards.
• Fully compatible with all standard Flex I/O communication adapters across distributed control architectures.

Logistics and Warranty Terms

• Backed by a robust 12-month warranty covering electronic component integrity and factory calibration precision.
• Expedited global delivery managed through premier logistics carriers including FedEx, UPS, and DHL.
• Guaranteed order preparation and rapid dispatch within 24-48 hours of verification.

Target Equipment and Typical Application Scenarios

• Process control loops monitoring field transmitters, flow meters, and pressure transducers.
• Industrial data recorders and analog indicating instruments requiring high-density signal conversion.
• Distributed manufacturing skids utilizing Ethernet/IP or ControlNet drop architectures.

Global PLC Spare HUB's Insight and Field Experience

Automation engineers deploying the 1794-IE8 must note that its 8 channels are single-ended and non-isolated; consequently, proper common-mode grounding of field instrument shields is critical to prevent signal drift in high-electromagnetic interference environments. Field experience confirms that because the module requires no manual calibration, swapping out a base unit during maintenance is fast and straightforward, minimizing process downtime.

Frequently Asked Questions

Q: Does the 1794-IE8 analog input module require periodic manual calibration adjustments on the plant floor?
A: No, the module does not require any calibration beyond its precise factory settings throughout its operational lifecycle.

Q: Can mixed current and voltage input signals be wired to the 1794-IE8 module simultaneously?
A: Yes, each of the 8 channels is user-configurable, allowing a combination of current (4-20mA) and voltage (±10V) transmitters across the same module base.

Q: What troubleshooting steps apply if an analog channel reports erratic or pegged-out scaling values?
A: Verify that the external 24V DC supply is stable within 10.5 to 31.2V, check signal shielding ground continuity, and inspect terminal base seating.

Q: What is the primary functional difference between unipolar and bipolar configuration modes on this module?
A: Unipolar mode provides a 12-bit resolution for positive-only signals (0-10V, 0-20mA), while bipolar mode provides an 11-bit plus sign resolution for signals spanning negative and positive values (±10V).

Q: What selection rules govern the choice of terminal bases for this module?
A: Select spring-clamp bases (like the 1794-TB3S) for vibration-heavy installations, or standard screw-clamp bases (like the 1794-TB2 or TB3) depending on plant wiring standards.
