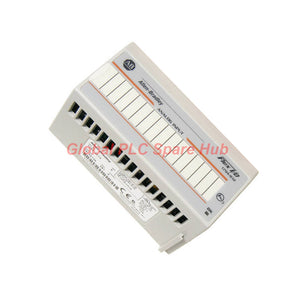

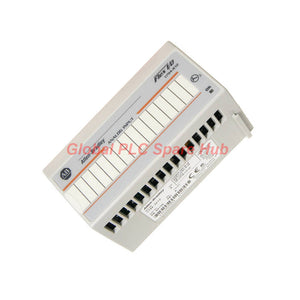

1794-IE12 Allen-Bradley Flex I/O High-Density Analog Input Module

Manufacturer: Allen-Bradley
Product No.: 1794-IE12
Condition： In stock
Product Type: Analog Input Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 97g
Shipping port: Xiamen
Warranty: 12 months

Quantity

Selected quantity: 1

Estimate delivery times: 12-26 days (International), 3-6 days (United States).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Guaranteed Safe Checkout

Product Introduction

Automation engineers integrate the Allen-Bradley 1794-IE12 Series Flex I/O High-Density Analog Input Module to aggregate multi-channel sensor data across distributed control architectures. This advanced 1794-IE12 device features twelve single-ended channels supporting precise current and voltage conversions. Global PLC Spare HUB's Insight: Instrumentation techs frequently deploy this high-density module on remote valve skids to minimize panel footprint while maintaining strict 16-bit measurement accuracy for loop controllers.

Configuration Breakdown & Technical Parameters

System Parameter	Technical Specification
Brand & Series	Allen-Bradley / Flex I/O Series / 1794-IE12
Catalog Number / Model	1794-IE12
Input Channels	Twelve (12) single-ended channels (0-20mA, 4-20mA, +/-10VDC, 0-10VDC)
Resolution & Conversion	16-bit 2's complement; 320 uV/cnt (Voltage), 0.641 uA/cnt (Current)
Conversion Rate	8.0 ms across all channels (Quick Step mode available at 0.09 seconds)
Terminal Base Compatibility	1794-TB3G or 1794-TB3GS (Keyswitch Position 3)
Power & Dissipation	24 VDC nominal supply (10.0 to 31.2 VDC range); 1.2W power dissipation
Environmental Rating	Operating temp 0 to 55°C; Vibration 5g @ 10-500 Hz; Shock 30g

Packing List & Warranty

One Allen-Bradley 1794-IE12 Flex I/O Analog Input Module
Factory inspection sheet and official 12-month warranty documentation

Installation & Maintenance Guidelines

Ensure the terminal base keyswitch is locked securely at position 3 before mounting the module to prevent electrical mismatch.

Verify that the external 24 VDC power supply remains strictly within the 10.0 to 31.2 VDC threshold to avoid conversion errors.

Maintain clean grounding practices and use shielded triax or twisted-pair wiring to protect low-level analog signals from plant noise.

Inspect terminal base spring-clamp connections annually to prevent intermittent contact resistance on sensitive current loops.

Compatibility & Certifications

Fully compatible with standard Flex I/O communication adapters and 1794-TB3G/1794-TB3GS terminal bases.

Engineered with open-type enclosure designs meeting rigorous industrial shock and vibration standards.

Meets international safety compliance parameters for industrial automation signal processing equipment.

Shipping & Logistics

Global express courier delivery supported via DHL, FedEx, and UPS networks.

Priority order handling guarantees warehouse dispatch within 24 to 48 hours.

Protective anti-static cushioning secures sensitive internal microprocessors during international transit.

Typical Applications & Diagnostic Capabilities

Continuous multi-channel pressure, flow, and temperature transmitter monitoring in chemical plants.

Water treatment telemetry panels requiring high-density analog aggregation.

Rapid identification of input channel overloads via status LEDs and diagnostic register flags.

Frequently Asked Questions

Question: What causes the 1794-IE12 to register erratic readings on a 4-20mA current loop?

Answer: Ground loops or failing shield terminations typically inject common-mode noise, skewing the 16-bit conversion values across active channels.

Question: Why is keyswitch position 3 mandatory when installing the 1794-IE12?

Answer: The mechanical keying configuration prevents operators from accidentally plugging a high-voltage or incompatible module into the wrong terminal base.

Question: How does Quick Step mode affect signal response time on this analog module?

Answer: Quick Step filtering reduces input step response time from 1.3 seconds down to 0.09 seconds for applications requiring rapid dynamic tracking.

Question: Can maintenance technicians swap the 1794-IE12 under power without shutting down the rack?

Answer: Yes, Flex I/O architecture supports Removable Terminal Blocks (RTB), allowing module replacement while backplane power remains active if permitted by local safety protocols.

Question: What is the significance of the 0.1% full-scale absolute accuracy specification?

Answer: It guarantees high measurement precision at 25°C, ensuring that calibration drift stays minimal across long-term industrial operations.

12-Month Comprehensive Warranty

Every part supplied by Global PLC Spare Hub is covered by a 12-month warranty from the date of invoice.

Coverage: Functional defects and hardware failures under normal operating conditions.
Commitment: We provide immediate repair, replacement, or a full refund for any verified defective components to minimize your operational downtime.

Returns & Exchange Policy

We offer a 30-day return policy to ensure you receive the exact part your system requires.

Eligibility: Returns are accepted for uninstalled items in their original, factory-sealed packaging.
RMA Process: Please contact our support team to obtain a Return Merchandise Authorization (RMA) number before shipping.
Fast Processing: Refunds or exchanges are processed within 3–5 business days after the returned item passes our technical inspection.

Need Technical Assistance?Not sure if this part is compatible with your system? [Consult our Engineers] before purchasing to ensure 100% compatibility.
