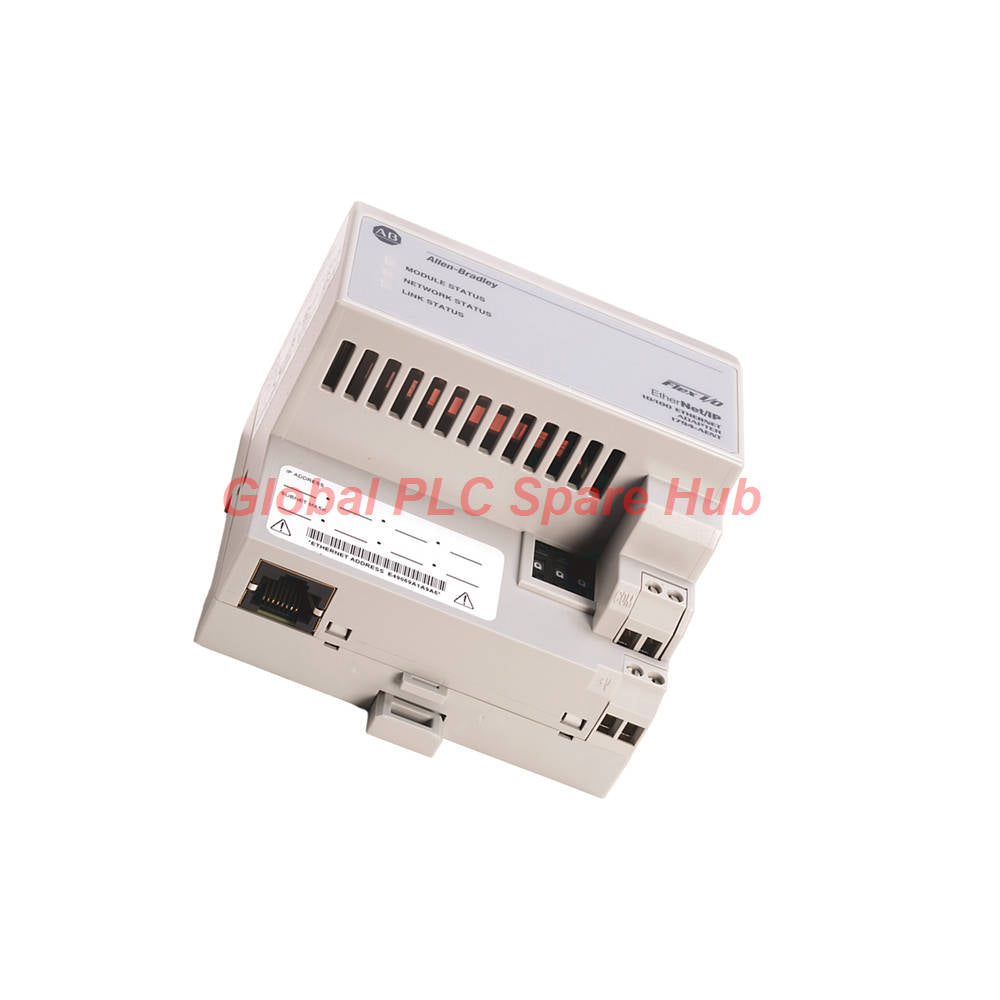

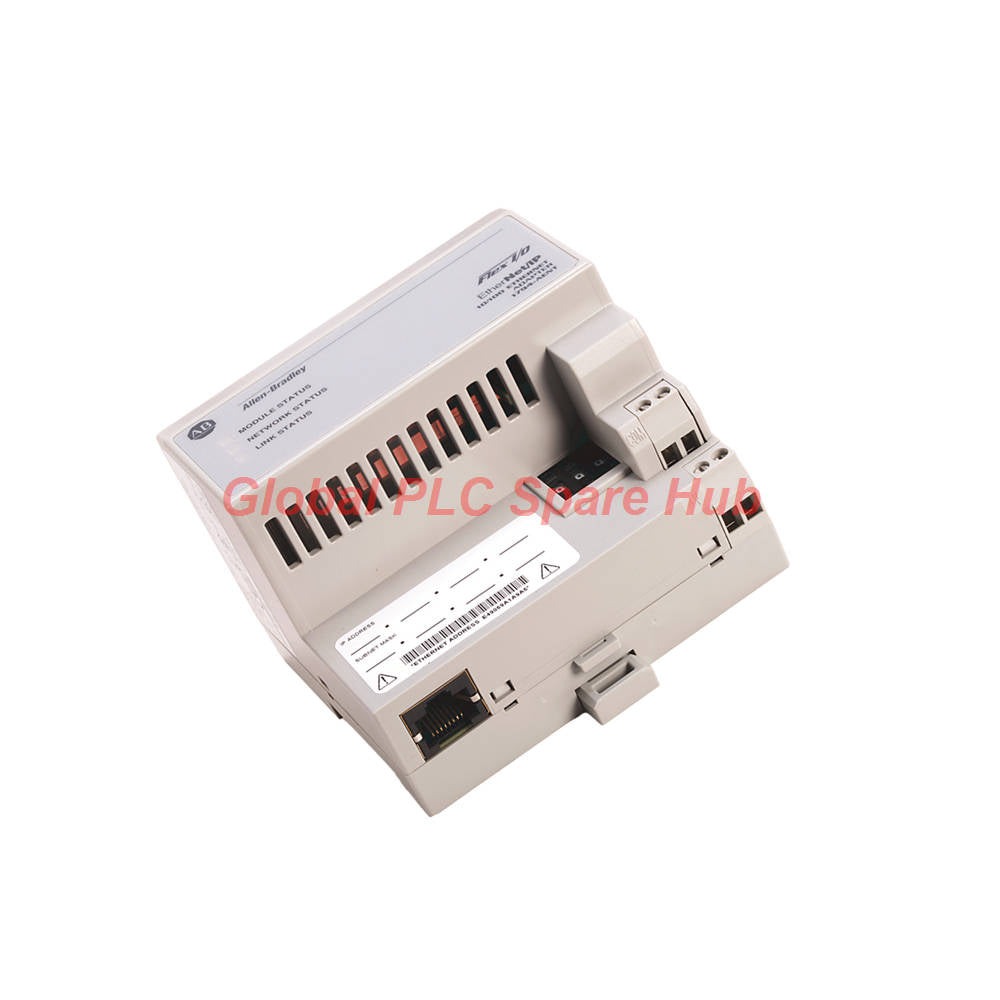

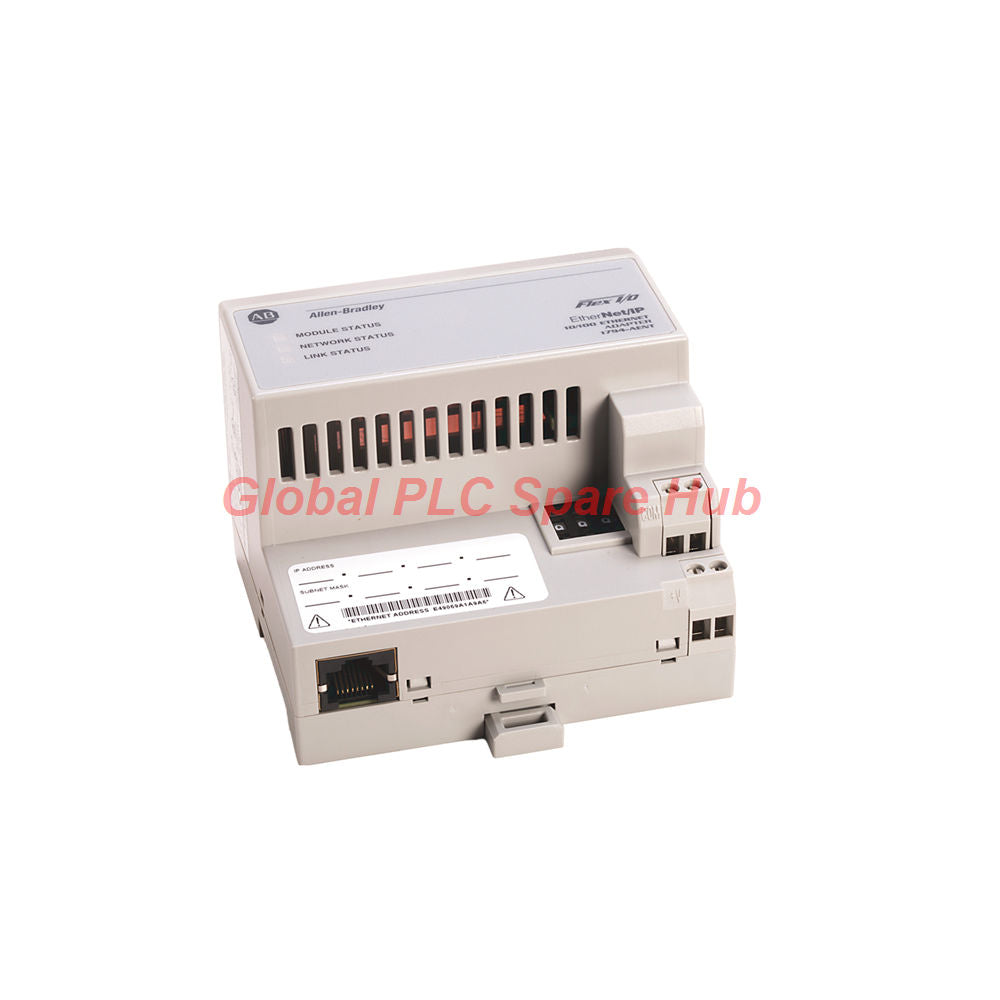

1794-AENTR Rockwell Redundant Media Communication Unit

System Architecture and Functional Overview

The 1794-AENTR adapter serves as a high-performance, dual-port Ethernet/IP communication module engineered for the Allen-Bradley / Rockwell Automation Flex I/O platform. Supporting Device Level Ring (DLR) and linear topologies, this DIN-rail mounted gateway bridges up to 8 distributed Flex I/O modules directly to central controllers like ControlLogix and CompactLogix.

Technical Parameters and Specifications

Physical Integration and Installation Guidelines

• Mount the 1794-AENTR module securely onto standard DIN rails in an open-style enclosure, ensuring clearance for airflow.
• Connect external SELV/PELV-compliant 24V DC power using stranded copper wire sized between 22 and 12 AWG (0.34 to 2.5 mm²) rated at 75°C or higher.
• Maintain operating ambient temperatures between 0°C and 55°C (32°F to 131°F) while protecting against excessive shock (up to 30g peak) and vibration (5g).
• Configure static IP addresses, subnet masks, and gateway parameters via software tools prior to live network deployment.

Advanced Diagnostics and Network Status Indicators

• Front bi-color LEDs display real-time operational status for Module health, Network communication, and individual Ethernet Link 1 / Link 2 activity.
• Link indicators flash yellow for 10 Mbps connections and glow solid green for 100 Mbps full-duplex operation.
• Built-in managed switch capabilities support CIP data collection, drive configuration, and high-speed process control on a unified network.

Compatibility and Network Scalability

• Seamlessly interfaces with Logix-family controllers using standard Category 5 RJ45 cabling without requiring complex routing tables or network scheduling.
• Fully compatible with all standard 1794 Flex I/O terminal bases and input/output modules on the local backplane.

Logistics and Warranty Terms

• Backed by a dependable 12-month warranty covering manufacturing flaws and internal hardware defects.
• Expedited international delivery coordinated through premier global logistics partners including FedEx, UPS, and DHL.
• Guaranteed order processing and rapid dispatch within 24-48 hours of payment verification.

Target Equipment and Typical Application Scenarios

• High-availability plant-wide Ethernet/IP networks requiring fault-tolerant Device Level Ring (DLR) topologies.
• Distributed manufacturing skids and remote pump stations communicating with central ControlLogix controllers.
• Data acquisition racks requiring high-speed plant management and drive configuration over a single network.

Global PLC Spare HUB's Insight and Field Experience

Automation engineers deploying the 1794-AENTR in ring topologies must ensure that all media switches and adapters properly support DLR beacon-based supervision to prevent silent node dropouts. Field experience dictates that establishing a strict IP address management protocol during panel staging eliminates communication conflicts when expanding remote I/O drops across the plant floor.

Frequently Asked Questions

Q: Can the 1794-AENTR adapter be hot-swapped while the main control panel power is turned on?
A: No, installing or removing this communication adapter while the system is powered on is strictly prohibited to prevent backplane damage.

Q: What specific network topologies are supported by the dual RJ45 ports on this adapter?
A: The dual ports support both simple linear connections and high-availability Device Level Ring (DLR) network topologies.

Q: What troubleshooting steps apply if the Module or Network status LED glows solid red?
A: Verify IP address configuration conflicts, inspect Ethernet cable integrity, and check for proper 24V DC power stability within the 19.2 to 31.2V range.

Q: Does the 1794-AENTR require complex scheduling or routing table setup prior to operation?
A: No network scheduling or routing tables are required; the adapter communicates natively via CIP over standard Ethernet/IP infrastructure.

Q: What selection rules govern power supply compliance for this adapter module?
A: Power sources must be Safety Extra Low Voltage (SELV) or Protected Extra Low Voltage (PELV) compliant to meet CE Low Voltage Directive standards.
