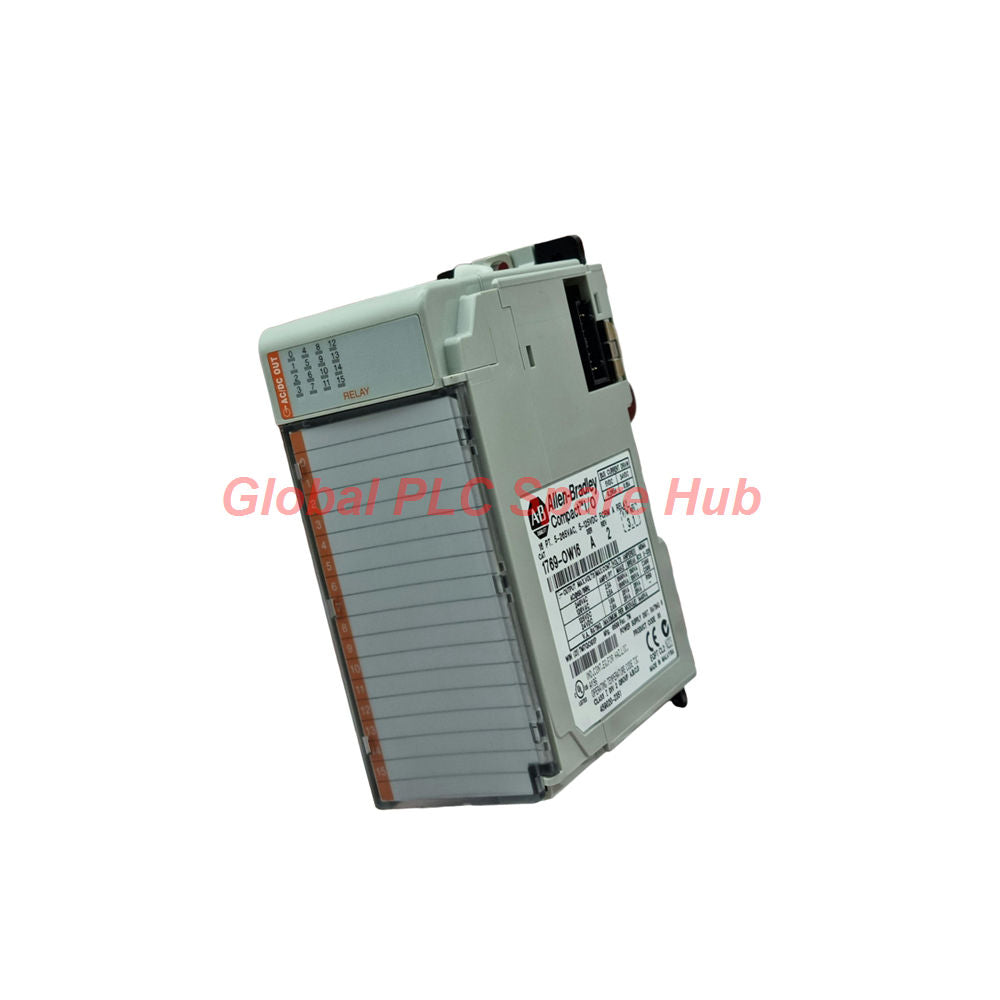

1769-OW16 Allen-Bradley CompactLogix Discrete Output Module

1769-OW16 Allen-Bradley CompactLogix Discrete Output Module | 1769-OW16 Relay Unit

Global PLC Spare HUB's Insight: The 1769-OW16 module delivers reliable switching performance for multi-voltage industrial control panels. Field engineers appreciate the dual-group isolation architecture, which permits simultaneous management of different potential levels safely. By integrating this discrete output unit into legacy CompactLogix or MicroLogix 1500 assemblies, automation professionals extend system lifespan and optimize local load handling without major architecture overhauls.

Technical Specifications Matrix

Hardware Deployment and Installation Guidelines

• Chassis Positioning: Mount the unit directly onto a standard DIN rail or secure panel, ensuring a maximum distance of eight modules away from the system power supply.
• Bus Connection: Lock the integral slide-style bus levers firmly into adjacent modules to maintain secure electronic backplane communication.
• Terminal Wiring: Strip copper-90 wire correctly and insert conductors into screw terminals, torquing properly to withstand 2G operational vibrations.

Diagnostics and System Monitoring

The module architecture incorporates internal status data registers that log operational states and communication errors. System integrators read these status files via programming software to pinpoint stuck relay contacts or address configuration mismatches instantly. Furthermore, verifying controller fault tables helps isolate abnormal voltage spikes or thermal overloads across individual output groups.

Target Applications and System Compatibility

Engineers deploy this hardware extensively within distributed factory automation systems, HVAC distribution panels, and material handling conveyor logics. The unit interfaces seamlessly with CompactLogix controllers, MicroLogix 1500 controller expansions, and 1769-AENTR Ethernet or DeviceNet adapter assemblies.

Fulfillment, Shipping, and Warranty Terms

• Dispatch Window: Orders process and dispatch securely within 24 to 48 hours.
• Logistics Partners: Expedited worldwide transport via FedEx, UPS, and DHL.
• Warranty Coverage: Fully backed by a 12-month replacement warranty from Global PLC Spare HUB.

Frequently Asked Questions

Question: How can technicians verify if an isolated group on the 1769-OW16 is receiving proper bus power?

Answer: Engineers check the internal processor data files using programming software to confirm that backplane voltage parameters and slot communication bits reflect active status without faults.

Question: What precautions prevent premature contact wear when driving inductive loads with this module?

Answer: Field technicians should install appropriate external surge suppressors, such as RC networks or diodes, across inductive loads to absorb high-voltage kickbacks during the break state.

Question: Why does the system signal a power supply distance fault after adding this unit?

Answer: The module sits beyond the 8-module power supply distance rating limit, requiring the insertion of an additional system power supply or a modular bus spacer.

Question: Can mixed AC and DC load voltages run simultaneously through different groups of the same unit?

Answer: Yes, because the two groups of eight channels are physically isolated, allowing distinct voltage categories to operate safely side by side.

Question: What selection factors guide engineers when choosing between solid-state and this relay output version?

Answer: Selection depends on switching frequency and load type; choose this relay version for high-voltage tolerance, multi-voltage flexibility, and robust mechanical isolation rather than high-speed cycling.
