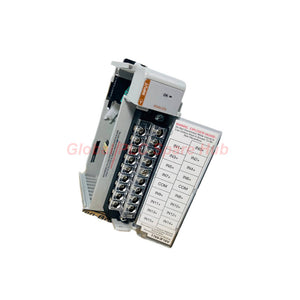

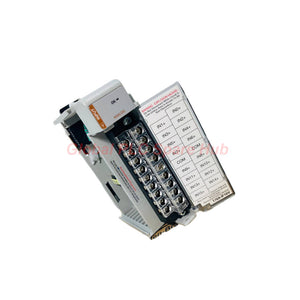

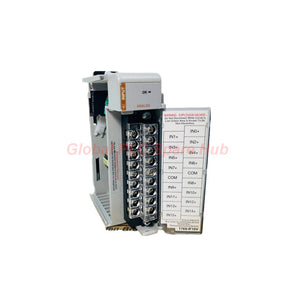

1769-IF16V Allen-Bradley CompactLogix 16-Channel Analog Voltage Input

Global PLC Spare HUB's Insight

The Allen-Bradley 1769-IF16V is a high-density solution for precision voltage acquisition within the Compact I/O family. By packing 16 single-ended channels into a compact 35mm frame, it allows for significant cabinet space optimization without sacrificing signal resolution. The core of the 1769-IF16V is its Sigma-Delta Analog-to-Digital Converter, which provides exceptional noise rejection and a 16-bit unipolar resolution. For systems engineers, the "Power Supply Distance Rating of 8" is a critical architectural constraint—this module must reside within 8 slots of a 1769 power supply to ensure voltage rail stability across the backplane. We recommend this module for applications requiring high-density monitoring of drive speed references or pressure transducers where high-frequency noise rejection is paramount.

Core Technical Architecture

• Brand: Allen-Bradley / Rockwell Automation
• Model: 1769-IF16V
• Series: Compact I/O (CompactLogix / MicroLogix 1500)
• Input Density: 16 High-Density Single-Ended Channels
• Voltage Ranges: ±10V, 0-10V, 0-5V, 1-5V DC
• ADC Method: Sigma-Delta Modulator
• Resolution: 16 Bits (Unipolar) / 15 Bits + Sign (Bipolar)
• Backplane Current: 190 mA @ 5.1V / 70 mA @ 24V
• Isolation: 30V DC Reinforced (Tested at 710V DC)
• Input Impedance: 1 MΩ Operational
• Power Supply Distance Rating: 8 Slots

Application Scenarios & Controller Pairing

• High-Density Monitoring: Ideal for large-scale sensor arrays in HVAC systems, pump stations, and chemical mixing tanks.
• Drive Speed Feedback: Precise acquisition of 0-10V or ±10V signals from Variable Frequency Drives (VFDs).
• System Compatibility: Seamlessly integrates with CompactLogix controllers and MicroLogix 1500 LRP/LSP bases.
• Industrial Environment: Suited for DIN-rail or subpanel mounting in enclosures with limited depth (87mm profile).

Diagnostic & Performance Capabilities

• Bit Reporting: Integrated over-range and under-range detection relayed directly to the controller tags.
• Process Alarms: Configurable channel-level alarms for rapid response to signal anomalies.
• Selectable Filtering: 16Hz, 50Hz, and 60Hz filter settings for optimization between speed and noise immunity.
• Status Indication: On-board color light indicator provides instant visual confirmation of module health.
• Precision Engineering: Calibrated accuracy of ±0.35% with a low nonlinearity of ±0.03%.

Global Logistics & Quality Assurance

• Warranty Period: Includes a full 12-month professional warranty.
• Express Delivery: Priority worldwide dispatch via FedEx, UPS, and DHL.
• Order Processing: Guaranteed shipment within 24-48 hours.
• Authenticity: Guaranteed New & Original in factory packaging; UPC 10612598626790.

Selection & Buying Guide

• Wiring Integrity: Single-ended inputs share a common return; use high-quality shielded cable (such as Belden™ 8761) to prevent ground loops.
• Power Budget: At 190mA (5.1V), verify your total rack current draw to ensure it does not exceed the capacity of your 1769-PA2/PB2 supply.
• Slot Placement: Strictly observe the distance rating; do not place this module more than 8 slots away from the power supply.

Professional FAQ

Does the 1769-IF16V support current-based signals like 4-20mA?

No, the 1769-IF16V is strictly a voltage-input module. For current loops, you should select the 1769-IF16C or use external precision shunt resistors.
